OVERVIEW
The SONY BP-U Series Battery Pack is a 14.4V nominal voltage Li-ion battery that is compatible with SONY BP-U batteries. It displays remaining power information in the camera and has a capacity of 90Wh / 6.2Ah. It also features a built-in 14.4V D-tap output and charging input, as well as a built-in 45W USB-C input and output. The battery pack has a 4-level LED power indicator and multiple circuit protections.
The 2-ch SONY BP-U Charger and Adaptor is a charger for SWIT LB-SU98/SU75 batteries. It has 2-ch intelligent charging and is compatible with SONY BP-U series batteries. The charger also has a DC adapting output for SONY cameras and 4-level LED charging indicators. The package includes a DC cable for adapting SONY cameras.
SUMMARY
Battery Capacity: 90Wh
Battery Mount / Type: 2x Sony BP-U
Charging Ports: 2
INCLUDED IN BOX
2x SONY BP-U Series Battery Pack
1x 2-ch SONY BP-U Charger and Adaptor
About The Swit 2x BP-U Battery And Charger Kit
2x Sony BP-U Series Battery Pack
90Wh SONY BP-U Battery with D-tap and USB-C
LB-SU90C is a new 90Wh large capacity BP-U type DV battery with D-tap output and 45W USB-C in/out, for SONY PXW FS5/FS7, PXW-FX6/FX9, PXW-Z280/X280 etc.
90Wh Large Capacity
LB-SU90C consists of 8pcs battery cells, 14.4V nominal voltage, 90Wh/6200mAh large capacity to keep cameras powered for longer time. The constant power load is 70W/6A.
14.4v D-tap Power Socket
The LB-SU90C BP-U battery provides a D-tap power socket of 11-16.8V voltage, 70W/6A high load for various kinds of video devices. You can also charge the battery via the D-tap socket by SWIT PC-U130B2.
USB-C 45W for Laptop
LB-SU90C provides a USB-C socket of 5V/9V/12V/15V/20V(Max) 2.25A, 45W power output for various kinds of laptop, tablets or smart phones, supports BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook 13, Macbook Pro 13/15, ThinkPad New S2/T470/X270, Dell XPS 13/Latitude, HP Spectre x360-13/EliteBook Folio G1, Samsung Chromebook Plus, Google Pixelbook, Huawei Matebook, etc)
USB-C 45W Charging Input
You can also charge LB-SU90C by USB-C charger. Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W power input, which means you can fully charge the 90Wh battery within 3 hours.
4-Level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage.
4-Way Charging
LB-SU90C can be charged by SWIT S-3602U 2-way charger, SWIT PC-U130B2 D-tap charger, or LC-D421 4-way charger. By the LC-D421, You can charge 4 batteries simultaneously, and fully charging within 3.5 hours.

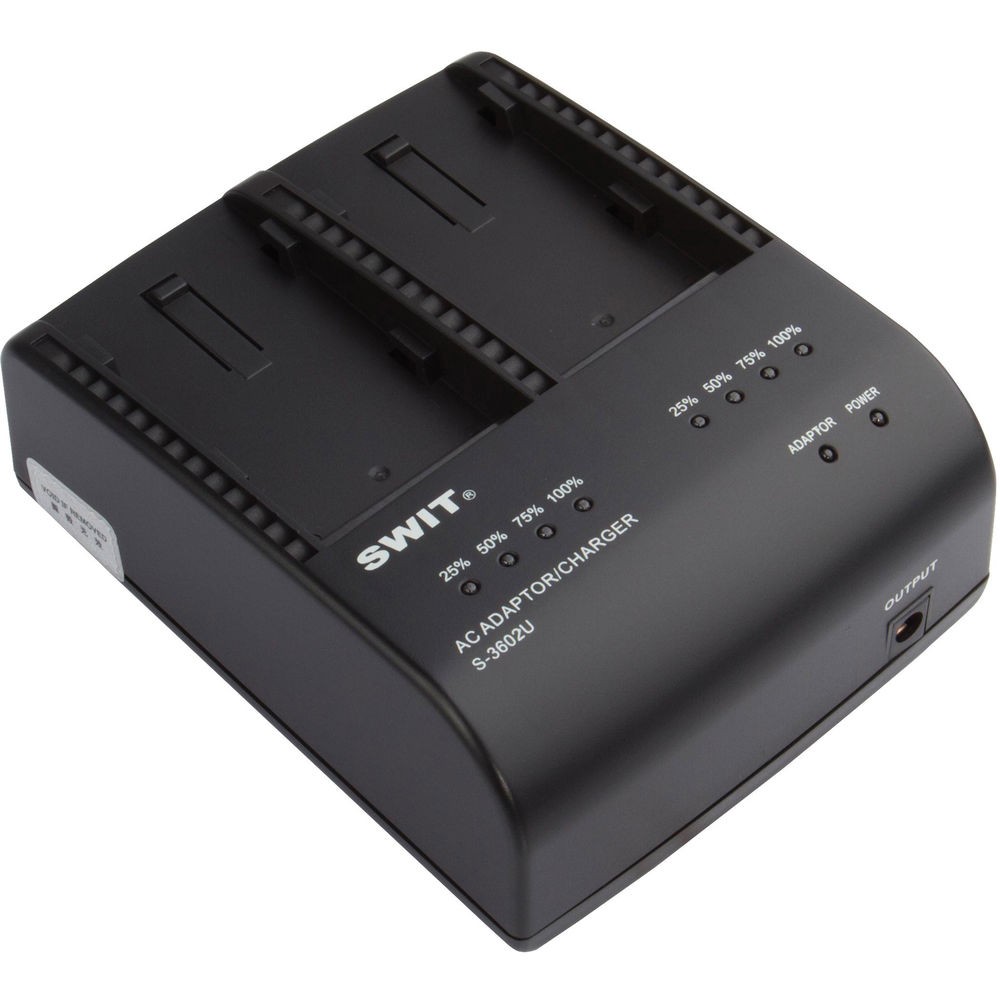

1x SONY BP-U series DV battery Charger
S-3602U is a dual channel charger for SWIT LB-SU98 battery and compatible with SONY BP-U series batteries
Intelligent Dual Channel Charging
S-3602U has 2 charging channels, DC 16.7V, 1.9A output,and can charge 2 batteries sequentially to 75% capacity,and then charge both batteries simultaneously to full.
The 4-level LED charging indicators are provided for eachchannel, which indicate the real time capacity by percentage when charging.

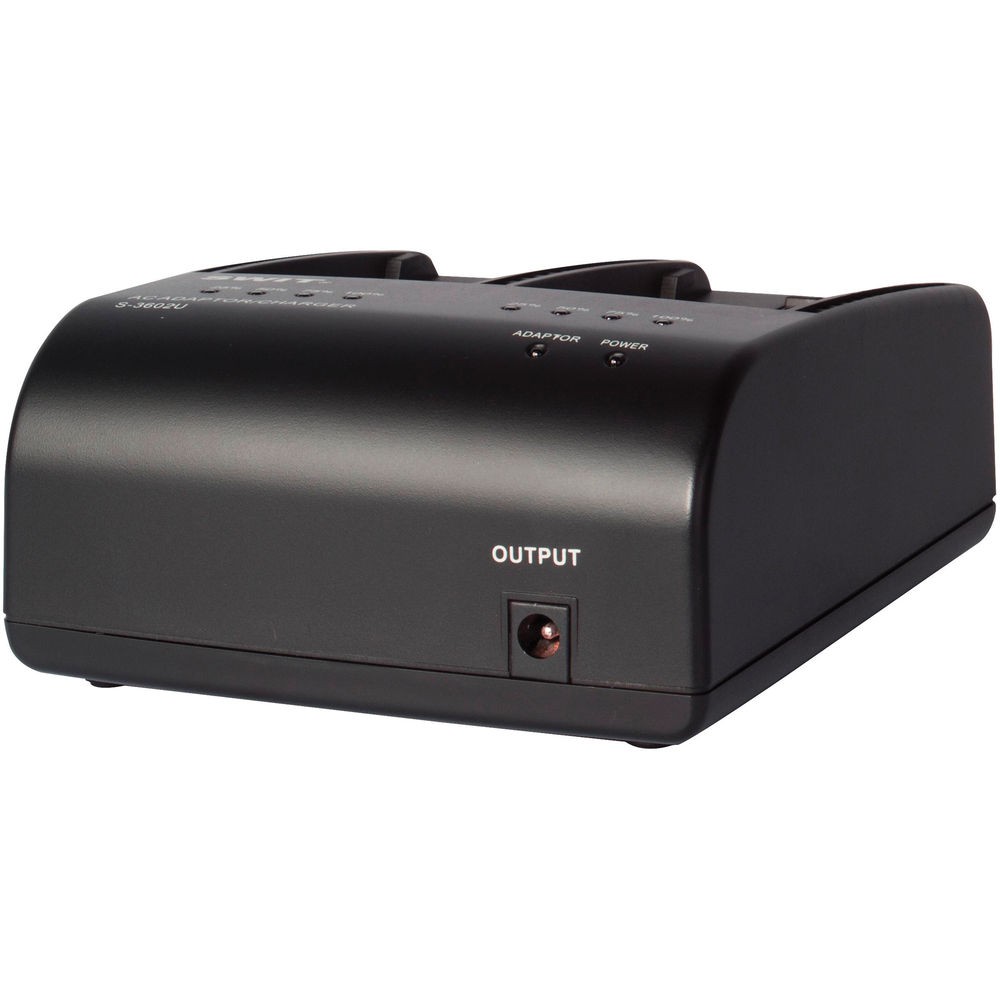

AC-DC Adapting Output
S-3602U has a 5.5mm/2.1mm pole socket of DC12V, 1.9A adapting output. The package also provides a DC cable for adapting SONY cameras.
SONY BP-U Series Battery Pack
Nominal Voltage 14.4V
Capacity 90Wh, 6.2Ah
Max power load 70W, 6A
D-tap 14.4V, 70W, 6A
USB-C 45W input: 5V/9V/12V/15V/20V, 2.25A
45W output: 5V/9V/12V/15V/20V, 2.25A
BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Original batteries SONY BP-U30, BP-U60, BP-U100
Compatible cameras SONY PXW-FS5/FS7, PXW FX6/FX9, PXW-Z280/X280 etc
Dimension 70×42×96mm
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Approx 462g
2-ch SONY BP-U Charger and Adaptor
Power input AC 100V-240V 50/60Hz
Charging output DC 16.8V, 1.9A×2
Adapting output DC 12V, 1.9A
Applicable battery LB-SU75, LB-SU98
SONY BP-U series
Applicable camera SONY X180, Z280, etc
Dimensions 136×110×53mm
Net weight 0.36kg
SONY BP-U Series Battery Pack
14.4V nominal voltage Li-ion battery
Compatible with SONY BP-U batteries
Display remaining power info in camera
90Wh / 6.2Ah capacity
Built-in 14.4V D-tap output / Charging input
Built-in 45W USB-C input and output
4-level LED power indicator
Multiple circuit protections
2-ch SONY BP-U Charger and Adaptor
Charger for SWIT LB-SU98/SU75 battery
2-ch intelligent charging
Compatible with SONY BP-U series batteries
1 DC adapting output for SONY cameras
4-level LED charging indicators
