Swit 2-Ch JVC BN-VF Charger And Adaptor

OVERVIEW

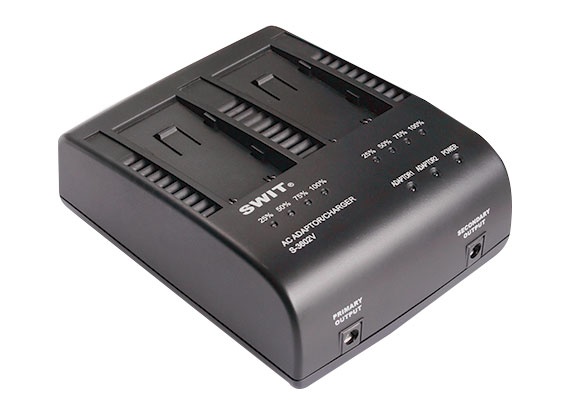

The SWIT S-8823 battery charger, the JVC BN-VF823 DV ChargerS-3602V, is a reliable and efficient option for charging your batteries. This dual channel charger is specifically designed for the SWIT S-8823 battery and is also compatible with the JVC BN-VF823 DV battery.

The charger features 2 DC adapting output sockets, allowing for simultaneous charging of 2 batteries. Each channel has a charging output of DC 8.4V, 1.8A, and the 4-level LED charging indicators display the real-time capacity of each battery as a percentage. Additionally, the charger has 2x 5.5mm/2.1mm pole sockets for DC adapting output, providing a total output of DC 8.4V, 3.5A.

SUMMARY
Charging Ports: 2

About The Swit 2-Ch JVC BN-VF Charger And Adaptor
JVC BN-VF823 DV Charger

S-3602V is a dual channel charger for SWIT S-8823, and compatible with JVC BN-VF823 DV battery.

Dual Channel Simultaneous Charging

S-3602V has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries simultaneously. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging

AC-DC Adapting Output

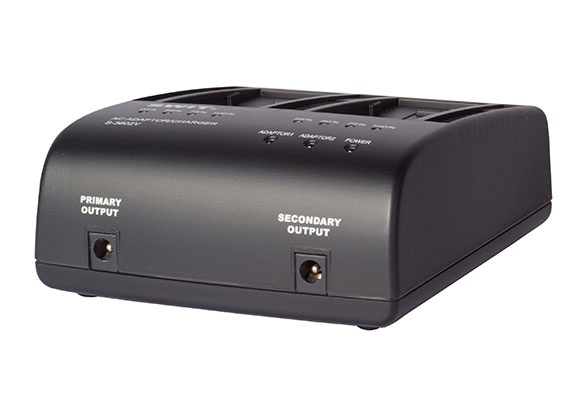

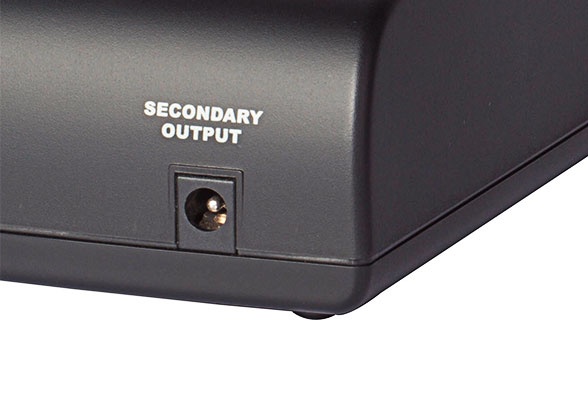

S-3602V has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total.

Power input AC 100V-240V 50/60Hz
Charging output DC 7-8.4V, 1.8A×2
Adapting output DC 8.4V, 3.5A
Applicable battery S-8823JVC
BN-VF823
Dimensions 136×110×47mm
Net weight Net 0.36kg; With package 0.65kg

Charger for SWIT S-8823 battery
2-ch simultaneous charging
Compatible with JVC BN-VF823 DV battery
2 DC adapting output sockets
4-level LED charging indicators
