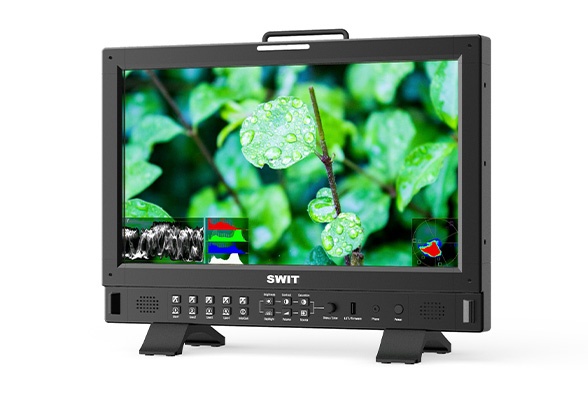

Swit 17.3 Inch 12GSDI Studio Monitor

OVERVIEW
The BM-U175 is a high-quality 17.3-inch 4K monitor that boasts a UHD panel with a 91.5% DCI-P3 color gamut. It features a 3840×2160 resolution and a 300nits LED backlight, providing a clear and vibrant display. The monitor also has a wide viewing angle of H178° / V178° and a contrast ratio of 800:1.

Equipped with multiple 4K/8K interfaces, the BM-U175 supports single link 4K, quad link 4K and quad link 8K inputs, as well as HDMI 2.0 and 12GSDI via SFP fiber. It also has features such as 3DLUT auto self-calibration, audio/video zero latency, and HDR/SDR EOTFs. The monitor can be remotely controlled via an IP webserver and is rack mountable for convenient installation.

SUMMARY
Screen Size: 17.3 Inch
Resolution: 4096 x 2160
Inputs:
BNC
HDMI 2.0
RJ-45
RS485
SFP
Outputs:
3.5mm
BNC
RS485
NITs: 300
Recording: No
INCLUDED IN BOX
1x Swit 17.3-inch 4K/8K 12GSDI Studio Monitor [BM-U175]

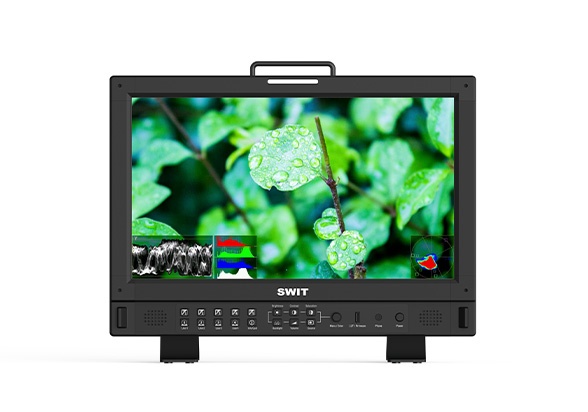

About The Swit 17.3 Inch 12GSDI Studio Monitor
17.3-inch 4K Monitor
UHD panel, 91.5% DCI-P3

BM-U175 adopts a 17.3-inch 8-bit+2FRC LCDpanel, UHD 3840×2160 resolution, 300nits LEDbacklight, 800:1 contrast, 91.5% DCI-P3 colour gamut. The viewing angle is H178° / V178°.

Multi 4K/8K Interfaces

12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)

* The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.

Display Modes

Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, colour gamut selection for each input.

Single link 4K inputs – 12GSDI, HDMI2.0, SFP
Quad link 4K inputs – 4x 3GSDI (SQD or 2SI)
Quad link 8K inputs – 4x 12GSDI (SQD or 2SI)
Mixed inputs Multiview – 4 independent video inputs of 12G/6G/3G/HD-SDI or HDMI mixed

HDR/SDR EOTFs

BM-U175 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Colour Gamut selection from LCD native, BT.709, DCI-P3 and BT.2020.

Payload ID Auto Setting

Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Colour Gamut, Input range, Colour space and Colour depth according to the Payload ID info.

Multi CG & EOTF Viewing

Supports 1 input source copied to 4 windows and display different HDR/SDR and colour gamut simultaneously. You can get correct reference when producing HDR and SDR together.

3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port.The monitor generates colour patterns and the colour probes read the colour, send colour info to monitor via USB. Then the monitor compares the colour difference and generate 3DLUT and calibrate itself automatically.Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

Audio/Video Zero Latency

Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.

HDR/SDR De-log LUTs

The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.

Multiple Video Analysis Patterns

Waveform Y/Cb/Cr/R/G/B with Nits mark
Vector scope
Red/Blue Peaking focus assist
R/G/B/Mono mode
Single line waveform
R/G/B/Y Histogram
Over exposure zebra stripes
False colour

Audio Patterns

Max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.Moreover, BM-U monitors support Lissajous and 5.1+2 surround sound patterns.

Eye Pattern

Built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality.

Webserver IP Remote Control

BM-U175 supports webserver remote control by Ethernet LAN connection.Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

19-inch Rack mount

BM-U175 monitor provides a pair of rack ears in the package, to install onto standard 19-inch rack, 7U height.

LCD Performance
Size 17.3 inches
Display area 381.88×214.82mm
Resolution 3840×2160
Aspect ratio 16:09
Brightness 300nits
Contrast 800:01:00
Colour depth 16.77M colours, 8-bit
Signal process 18-bit
Viewing angle 178°(H) /178°(V)

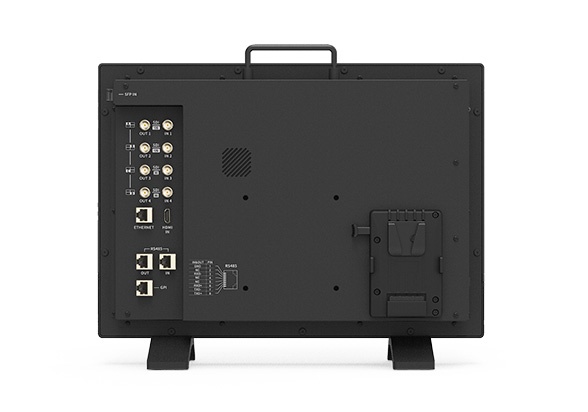

Input
BNC ×4 12G/6G/3G/HD/SD-SDI input
HDMI ×1 HDMI 2.0 input
SFP ×1 Optical Fiber input (By optional SFP adaptor)
RS485 ×1 TSL 3.1/4.0 UMD input
RS485 ×1 GPI (Tally) input
RJ45 ×1 1000M Ethernet input for Webserver IP control
Output
BNC ×4 12G/6G/3G/HD/SD-SDI loop output
RS485 ×1 TSL 3.1/4.0 UMD output
Analog audio 3.5mm headphone and speaker
Video Format
SDI 1/2/3/4 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
Quad Link 4K (Each channel) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Quad Link 8K (Each channel) 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
Input voltage DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption 60W
Working temperature 0°C～+50°C
Working humidity 10%～90%
Storage temperature -15°C～+60°C
Storage humidity 10%～90%
Dimensions 436×310.8×88.8mm
Net weight (main body) 5.9kg

17.3-inch LCD Panel, 3840×2160 resolution
12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
12GSDI via SFP Fiber input (Optional)
ST2110 IP via SFP Fiber input (Optional)
3DLUT Auto Self-calibration without PC
Audio/Video 0 latency for lip-sync
HLG/PQ/S-log3 HDR EOTF
Payload ID auto setting
Built-in Multi camera Delog LUTs
User 3DLUTs upload via USB
Waveform / Vector / Histogram
Focus assist / False colour / Zebra
16-ch audio meters / Lissajous
IP webserver remote control
TSL UMD and text TALLY display
USB firmware upgrade
19-inch rack mountable, 7U height
