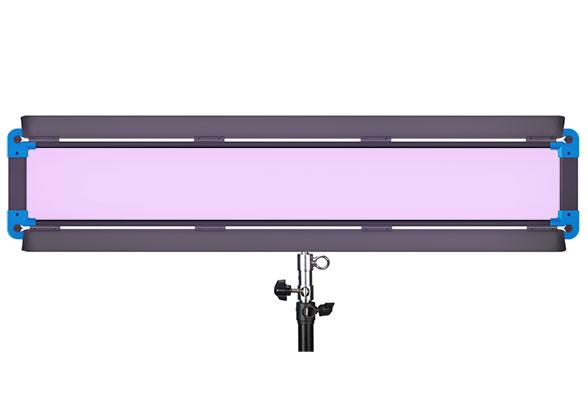

Swit 100W Long Ratio Ultra Slim RGBW Light

OVERVIEW
The VANGO-100L is a powerful and versatile lighting panel that features 180pcs RGB and 300pcs White SMD-LEDs. With its edge mounted LEDs, ultra slim size of only 21mm, and 100W power, it can produce a brightness of 1800Lux at 1 meter without the need for a fan, making it completely noiseless. It also utilizes Time-Division drive technology to provide ultra bright and accurate color light in various modes such as CCT, HSI, RGB, CIE, GEL, and EFF. Additionally, it has a built-in 20x Rosco and 20x LEE Gels, and can adjust from 2800K to 10000K with a G/M±1.00 adjustment. With a high CRI of 96 and TLCI of 93, this panel also has a 3.5-inch color LCD for easy color selection and supports DMX512 control and DC 11-34V input voltage. It also comes with a V-mount or Gold mount battery plate and can be controlled via Bluetooth using the SWIT Console app on IOS or Android devices. The VANGO-100L is a compact and powerful RGBW panel that is perfect for video studio setups. With its slim size of 3×0.5′ Long Ratio and high color light output equivalent to a regular 300W RGB panel, it offers flexibility and convenience. It uses SWIT’s unique Edge Mounted SMD and 90° high efficient light guide technology to achieve its ultra slim size of only 21mm. The Time Division Drive technology also allows for increased intensity of color light by assigning full power to the RGB color LEDs. The control panel at the rear of the panel features a large color LCD for easy menu navigation and hot keys for convenient color picking. It also has a USB-A port for firmware updates and wireless DMX receiver power. The VANGO-100L can also be controlled via Bluetooth using the SWIT Console app, which supports various color modes and preset color GELs and light effects. It also comes with a strong swan neck ball head for easy mounting on light stands.

INCLUDED IN BOX
1x VANGO-100L light with barndoor
1x Swanneck ball head connector
1x AC-DC adaptor
1x Carrying bag

About The Swit 100W Long Ratio Ultra Slim RGBW Light
100W Long Ratio Ultra Slim RGBW

VANGO-100L, the slim portable size 100W RGBW panel of 3×0.5’ Long Ratio size and with extreme high colour light output, equivalent to regular 300W RGB colour light intensity, for your flexible video studio setup.　

3×0.5’ Long Ratio, 21mm Ultra Slim

With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100L has a ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.

Time Division Tech, Brighter Colour Light

The regular RGB panels are high bright in CCT mode, but much lower in RGB colour mode. That’ s because in a regular RGB light, the RGB colour LED and White LED have fixed rates to share the total power of the light, and when output colour lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB colour LEDs, and greatly increased the intensity of colour light. The 100W VANGO-100L colour light intensity equals to a regular 300W RGB colour light intensity.

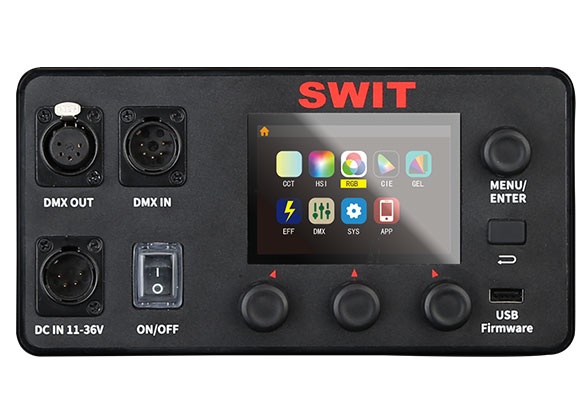

Control Panel

VANGO-100L rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large colour LCD with menu and hot keys for convenient colour picking. The USB-A port is for firmware update or user colour profile upload, and to power wireless DMX receiver.

On-board 3.5-inch Colour LCD

Visualized colour selection

Bluetooth APP Control

Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.

SWIT Console APP

The APP control supports CCT, HSI, RGB, CIE colour modes, and select preset colour GELs and light effects.

Swanneck Strong Ball Head

VANGO-100L provides a strong swanneck ball head for light stand mounting, both junior pin male and baby pin female.

LED 180pcs RGB + 300pcs W SMD LEDs
Illuminance 1800Lux @ 1m
Beam angle 65°
Colour Temperature 2800K～10000K, G/M±1.00
CRI 96
TLCI 93
Power 100W
DMX DMX512, 5pin XLR IN & OUT
USB USB-A power out & firmware update
Input voltage 4pin XLR, DC 11V～34V IN
Dimension 839×163×21mm
Lighting area 780×104mm
Weight Net 5.7kg with barndoor; With package 10kg

180pcs RGB + 300pcs White SMD-LEDs
Edge mounted LEDs, 21mm ultra slim
3×0.5′ Long ratio, 100W power, 1800Lux @ 1meter
No fan, No noise
Time-Division drive tech, ultra bright color light
CCT/HSI/RGB/CIE/GEL/EFF colour modes
Built-in 20x Rosco and 20x LEE Gels
2800K-10000K, G/M±1.00 adjustment
CRI Ra 96, TLCI 93
On-board 3.5-inch color LCD visualized colour pick
DMX512 3bit/6bit/7bit colour control
DC 11-34V wide input voltage
On-board V-mount or Gold mount battery plate
IOS/Android APP bluetooth control
With 2-leaf metal barn doors
