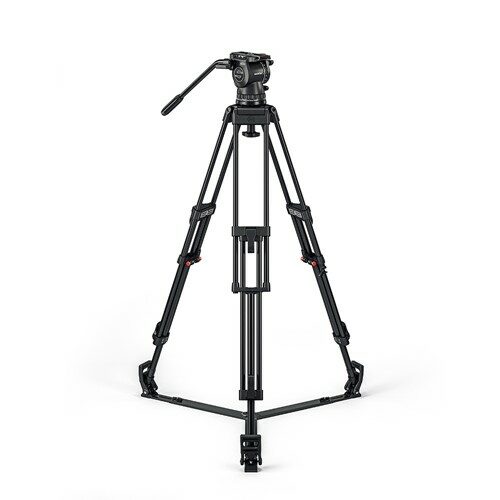

Sachtler System FSB 10 Mk II ENG AL GS

OVERVIEW
Tripod ENG 2 D (5186)
When you need stability for payloads of up to 35 kg, you don’t have to give up on lightweight design and easy transportability. The Sachtler ENG 2 D Aluminum Tripod is an alternative to EB-carbon fibre tripods, which gives you the versatility and robust performance you need to shine whatever environment you are operating in. Balancing speed and precision, the quick clamping system locks the tripod legs in seconds so that you can get to work quickly.
This a dual extractible, aluminum ENG tripod features a diameter of 16 mm and a 100 mm bowl base. The ENG 2 D’s double extension delivers optimal stability with extended height of 1.5 m, making it an ideal solution for news professionals that need the ability to set up and go at a moment’s notice.
FSB 10 Fluid Head (S2073-001)
Fluid, Smooth, Balanced
Capture the moment precisely
Redesigned with features from the revolutionary Sachtler…

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 12kg
Max Height Group: 170cm
Min Height Group: 62cm
Leg Section: 2 Section
Spreader Type: Ground
Head Fitting: 100mm
Material: Aluminium
Type: Photo

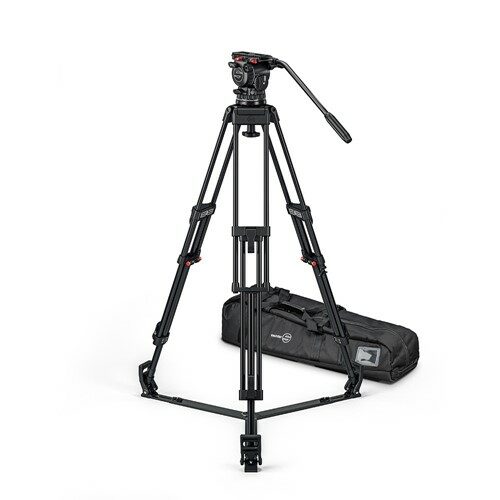

INCLUDED IN BOX
1x FSB 10 Fluid Head (SB2073-0001)
1x Tripod ENG 2 D (5186)
1x Ground Spreader 100 (7002)
1x Bag ENG (9104)

About The Sachtler System FSB 10 Mk II ENG AL GS
Tripod ENG 2 D (5186)

When you need stability for payloads of up to 35 kg, you don’t have to give up on lightweight design and easy transportability. The Sachtler ENG 2 D Aluminum Tripod is an alternative to EB-carbon fibre tripods, which gives you the versatility and robust performance you need to shine whatever environment you are operating in. Balancing speed and precision, the quick clamping system locks the tripod legs in seconds so that you can get to work quickly.

This a dual extractible, aluminum ENG tripod features a diameter of 16 mm and a 100 mm bowl base. The ENG 2 D’s double extension delivers optimal stability with extended height of 1.5 m, making it an ideal solution for news professionals that need the ability to set up and go at a moment’s notice.

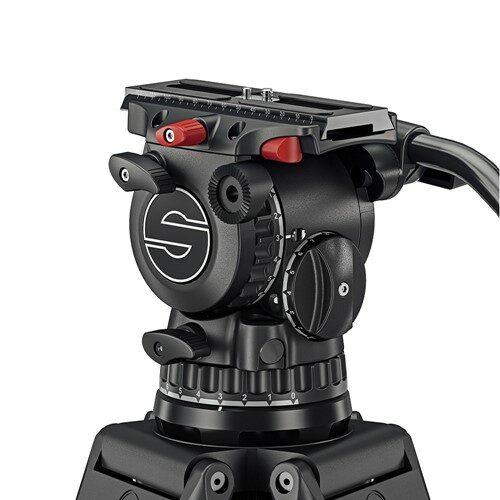

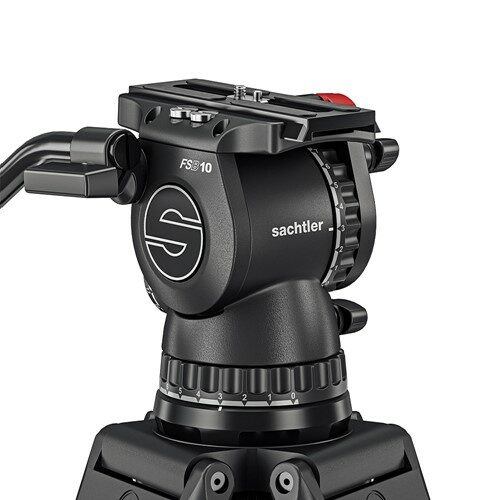

FSB 10 Fluid Head (S2073-001)

Fluid, Smooth, Balanced

Capture the moment precisely

Redesigned with features from the revolutionary Sachtler aktiv fluid head range, FSB delivers precision movement with finely calibrated levels of drag and counterbalance for the perfect shot. The streamlined profile is built to withstand the toughest conditions to deliver repeatable, reliable camera support shot after shot.

Spreader type Ground spreader
Bowl 100 mm
Payload range 0 – 12 kg / 0 – 26.5 lb
Counterbalance steps 15+0
Drag setting 7+0
Balance range 120 mm / 4.7 in
Tilt range +90° to -70°
Camera fitting Sideload S
System weight 6.7 kg / 14.8 lb
Height range with spreader 62 – 170 cm / 24.4 – 66.9 in
Transport length 89 cm / 35 in
Tripod stages 2
Tripod material Aluminium
Smooth operation.

Create precision pans with smooth starts and soft stops.

Finely balanced.

Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg.

Always on the level.

Innovative illuminated PrismBubble visible from any height – day or night.

Built for endurance

Engineered to the highest standards with tough materials and precision components.
