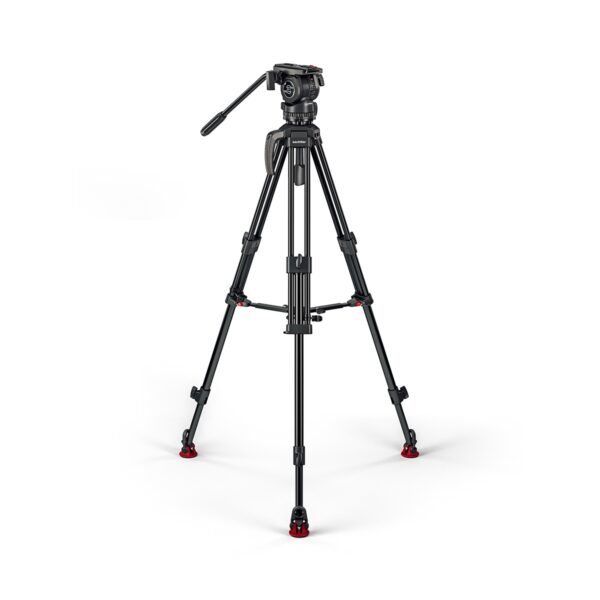

Sachtler FSB 4 75/2 AL GS Mk II System

OVERVIEW
The Sachtler 0381A FSB 4 75/2 AL GS Mk II System is a top-of-the-line product that is perfect for those looking for quick set up and precise balancing while using a smaller camera. This system features the FSB 4 fluid head, which can finely balance any camera payload from 0kg up to 4kg (8.8lbs) with its innovative Speedbalance technology.

One of the standout features of this system is its smooth operation, allowing for precision pans with smooth starts and soft stops. The patented Sachtler drag ensures subtle and smooth movement, and with three horizontal and vertical drag settings, you can easily tune the drag to your specific payload.

The FSB 4 system also includes a lightweight 2-stage aluminium 75mm tripod, which is both portable and strong. With three 3/8″ accessory mounting points on the tripod bowl, you can easily add extra accessories such as a Magic Arm. The included carry handle also allows for easy one-handed movement of the system. Additionally, the detachable ground spreader provides maximum stability, and a padded bag is included for transportation.

Engineered to the highest standards with tough materials and precision components, the FSB 4 system is built for endurance. It can perform consistently in a wide range of temperatures and environments, making it the top choice for busy operators who need a reliable and durable system.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 4kg
Leg Section: 2 Section
Spreader Type: Ground
Head Fitting: 75mm
Material: Aluminium
INCLUDED IN BOX
FSB 4 Fluid Head (0307)
Tripod 75/2 AL Mk II (S2172-0001)
Ground Spreader SP 75 (7001)
Carry Handle (S2051-1063)
Padded Bag 75 (9116)

About The Sachtler FSB 4 75/2 AL GS Mk II System
When you need quick set up and precise balancing while using a smaller camera, the Sachtler FSB 4 Fluid Head ensures you don’t have to compromise on performance. Speedbalance technology finely balances any camera payload from 0kg up to 4kg (8.8lbs), while the snap and go side loading mechanism with a sliding range of 120mm (4.7in) makes mounting and positioning accessorised handheld cameras and DSLRs simple.

Create precision pans with smooth starts and soft stops. Patented Sachtler drag always gives you subtle and smooth movement. Three horizontal and vertical drag settings help you to tune the drag to your payload.

The System includes a lightweight 2-stage aluminium 75mm tripod that’s portable without sacrificing strength. With three 3/8” accessory mounting points on the tripod bowl you can add extra accessories like a Magic Arm and attach the included carry handle to help move the system around one-handed. The detachable ground spreader provides maximum stability, and a padded bag is included for transportation.

Engineered to the highest standards with tough materials and precision components, FSB is built for endurance. With no variation in performance in the widest range of temperatures and environments, FSB is the first choice for busy operators.

Payload 0 – 4 kg
0 – 8.8 lbs
Counterbalance Steps 5 + 0
Drag settings 3 + 0
Weight 5.3 kg
11.7 lb
Height range 57 – 173 cm
22.4 – 68.1 in
Transport length 87 cm
34.3 in
Illumination no
Pan bar type pan bar DV #0992SP
Number of pan bars 1
Bowl size 75 mm
Tripod Stages 2
Tripod material Aluminium
Sliding range 120 mm
4.7 in
Camera plate Interface Sideload
Tilt Range +90° to -70°
Temperature range -40°C to +60°C
-40°F to +140°F
Warranty 1-Year manufacturer warranty extendable to 2 Years with product registration
Packaging dimensions 97 x 26 x 25; 8.1 kg
38.2 x 10.2 x 9.8 in; 17.8 lb

FSB 4 system with 2-stage aluminium tripod
Smooth operation ­ Create precision pans with smooth starts and soft stops
Finely balanced ­ Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg
Built for endurance – Engineered to the highest standards with tough materials and precision components
Ground spreader, carry handle and padded bag included
