Sachtler Ace XL AL GS Mk II System




Introducing the Sachtler 1019AM Ace XL AL GS Mk II System – a must-have for any professional videographer. This system boasts a lightweight and compact design, making it the perfect companion for any journey, whether it be in the urban jungle or the great outdoors.

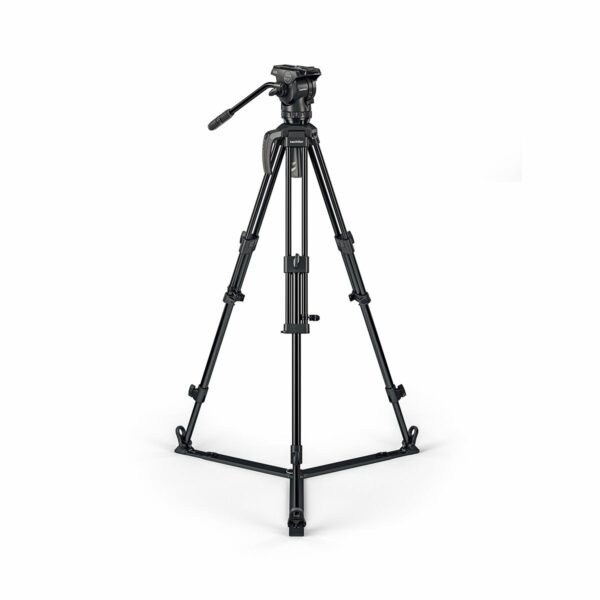

Equipped with a two-stage aluminium tripod, the Ace XL system can support payloads of up to 8kg (17.6lbs). With nine steps of counterbalance and Sachtler drag with 3 + 0 steps, achieving finesse in every shot has never been easier. The illuminated level bubble ensures straight shots in any location, while the accessory mounts on the tripod bowl allow for additional equipment to be added.

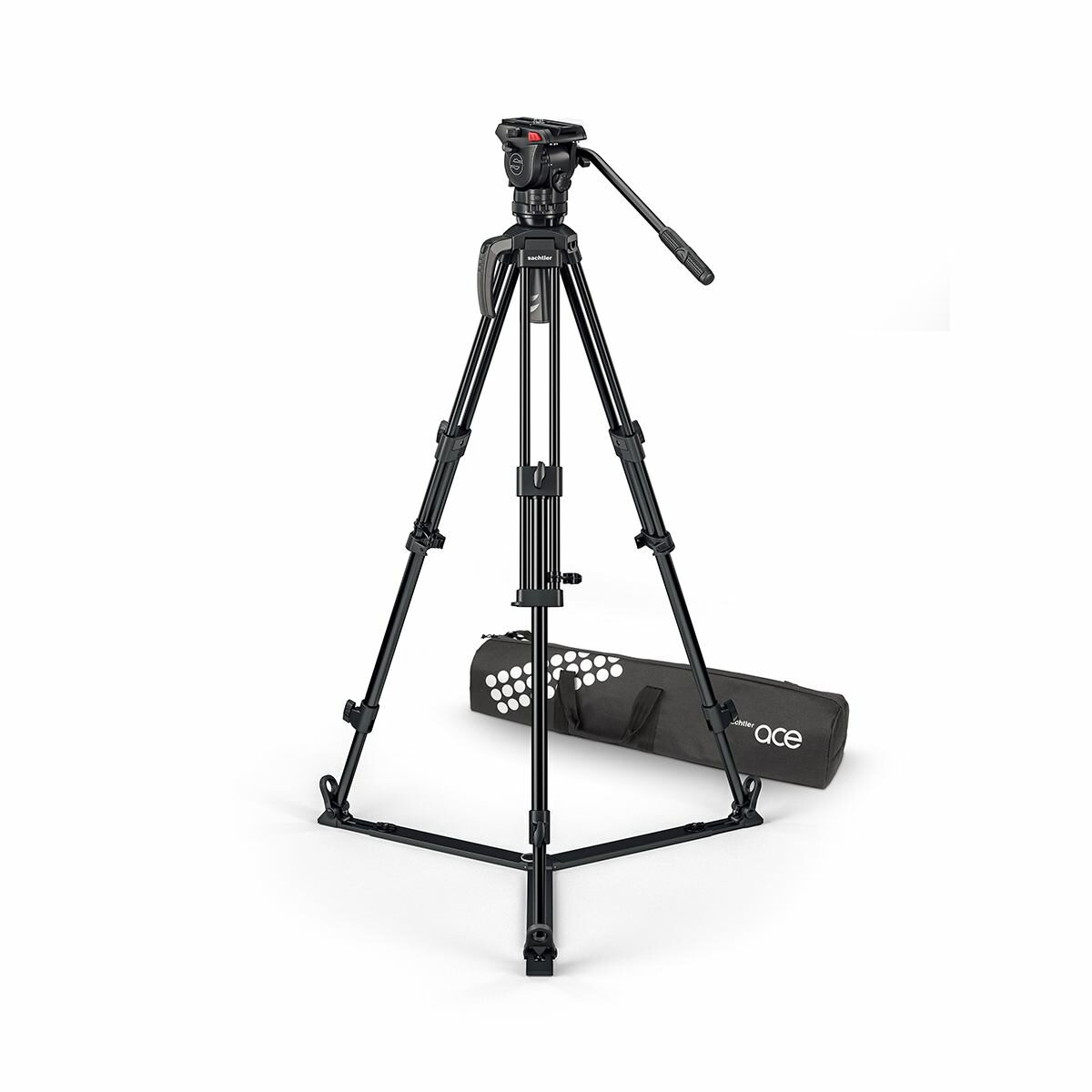

The Ace XL system also includes an Ace bag, ground spreader, and carry handle, making it a complete package for your videography needs. Weighing just 4.5kg (9.9lbs), this system is light in weight but not in features, allowing you to go further and capture that perfect shot, even in the most unexpected moments.

Built with precision-engineered drag segments and rigorously tested materials, the Ace XL system is designed to provide consistent performance and earn its place as your go-to support system. Trust in Sachtler, trusted by professionals like you, to deliver the stability and smoothness you need for every shot, no matter where your journey takes you.

Tripod Head Type: Fluid Head
Max Payload: 8kg
Leg Section: 2 Section
Spreader Type: Ground
Head Fitting: 75mm
Material: Aluminium

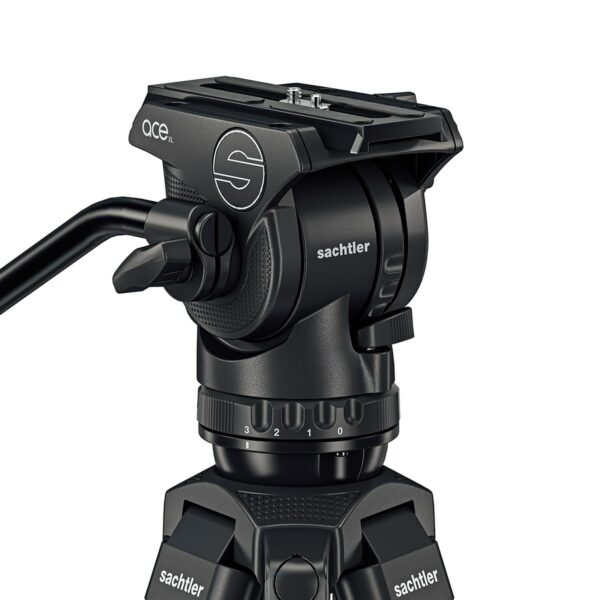

Ace XL Mk II Fluid Head (S2170-0001)
Tripod 75/2 AL Mk II (S2172-0001)
Ground Spreader SP 75(7001)
Bag Ace (9117)
Carry Handle (S2051-1063)

About The Sachtler Ace XL AL GS Mk II System
Are you ready?

With Ace, precision meets dedication. Achieve finesse in every shot with fast counterbalance, and smooth drag adjustments. Lightweight and compact, with consistent performance, Ace is along for the journey. From urban jungles to the call of the wild, be ready for every opportunity that comes your way.

With Ace in your corner, stability and smoothness comes with every shot. It simplifies your setup with camera plate markers, stepped counterbalance and quick pan and tilt adjustments. Ace XL supports camera rigs weighing up to 8kg (17.6lbs), with nine steps of balance to quickly match your payload. A 104mm (4.1in) balance plate sliding range helps position accessorised cameras centrally and Sachtler drag gives smooth movement in any temperature. Ace XL also includes an illuminated level bubble to keep things straight in any location and a removable threaded stud for when you want to swap to a slider. Weighing just 4.5kg (9.9lbs), this Ace XL system is light in weight but not in features, so go further, climb higher and capture that winning shot unplanned or in the heat of the moment.

The System Ace XL AL GS includes a lightweight 2-stage aluminium 75mm tripod that’s portable without sacrificing strength. With three 3/8” accessory mounting points on the tripod bowl you can add something extra to your rig like a Magic Arm. Or attach the carry handle so you’re always ready to chase down the shot. The detachable ground spreader provides maximum stability wherever you are. And when the road is long, Ace comes with a carry case for protection on the go.

Ace is built to earn its place on your journey. Designed with precision-engineered drag segments and rigorously tested materials, consistent performance is a given. That’s why Sachtler is trusted by professionals like you. Whatever path you choose to travel, Ace is your support system.

Payload 0 – 8 kg
0 – 17.6 lbs
Counterbalance Steps 9 + 0
Drag settings 3 + 0
Weight 4.5 kg
9.9 lb
Height range 58 – 173 cm
22.8 – 68.1 in
Transport length 87 cm
34.3 in
Illumination yes
Pan bar type Pan bar Ace #S2150-1200
Number of pan bars 1
Bowl size 75 mm with integrated flat base
Tripod Stages 2
Tripod material Aluminium
Sliding range 104 mm
4.1 in
Camera plate Interface Slide in
Tilt Range 90° to -75°
Temperature range -30° to +60°C
-22° to +140°F
Warranty 1-Year manufacturer warranty extendable to 2 Years with product registration
Packaging dimensions 22 x 21.5 x 98 cm; 6.8 kg
8.7 x 8.5 x 38.6 in; 15 lb
Ace XL system with 2-stage aluminium tripod
Supports payloads up to 8kg (17.6lbs)
Nine steps of counterbalance
Sachtler drag with 3 + 0 steps
Illuminated level bubble
Accessory mounts on tripod bowl
Ace bag, ground spreader and carry handle included
