Miller CX14 Sprinter II 1-Stage Tripod

OVERVIEW

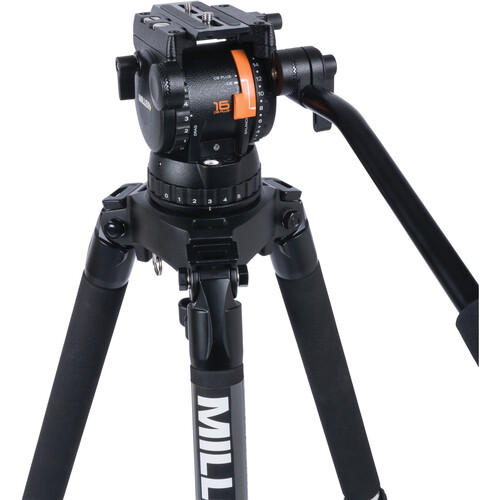

The 3782 CX14 Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 – 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 1 stage Sprinter II (alloy) tripod and mid-level spreader providing incredible speed of set up, variable tripod footprint and the versatility to set up on all terrain.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 14kg
Max Height Group: 60-65 inch
Min Height Group: 30-35 inch
Leg Section: 3 Section
Spreader Type: Mid-Level
Head Fitting: 100mm
Leg Lock Type: Twist Lock
Type: Cine
INCLUDED IN BOX
1x CX14 fluid head (1097)
1x Sprinter II 1-stage tripod (alloy) (1589)
1x Mid-level spreader (993)
1x Rubber feet (set of 3) (475)
1x Pan handle – fixed with clamp (679)

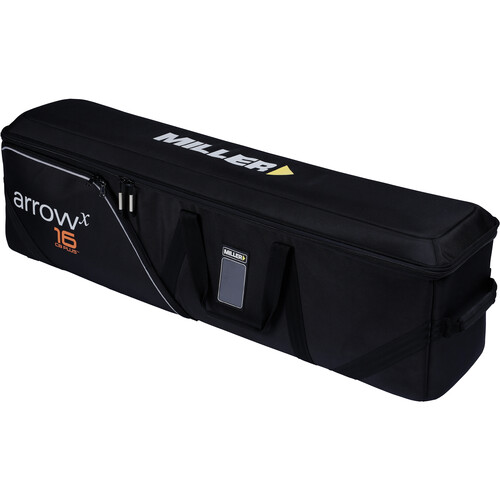

1x Arrow softcase 1-stage (3500)

About The Miller CX14 Sprinter II 1-Stage Tripod
The 3782 CX14 Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 – 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.

Matched with the 1 stage Sprinter II (alloy) tripod and mid-level spreader providing incredible speed of set up, variable tripod footprint and the versatility to set up on all terrain.

Payload Range 0-14.0 kg (0 – 30.9 lbs)
Weight 7.2kg (15.9lbs)
Height Range 823-1583mm (32.4-62.3”)
Transport Length 993mm (39.1”)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4”)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 150mm (6.0″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 1-stage
Lock Type HS single action
Leg Material Alloy
Components 1097 CX14 fluid head
1589 Sprinter II 1-stage tripod (alloy)
993 Mid-level spreader
475 Rubber feet (set of 3)
679 Pan handle – fixed with clamp
3500 Arrow softcase 1-stage
Compact, lightweight and versatile.
100mm ball levelling.
Perfect for payloads to 0-14.0 kg (0-30.9 lbs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
High speed independent 2-stage dual leg locks.
Durable black anodised alloy tubing.
Comes with mid-level spreader and rubber feet.
Comes with 2-stage tripod bag.
3 year warranty.
