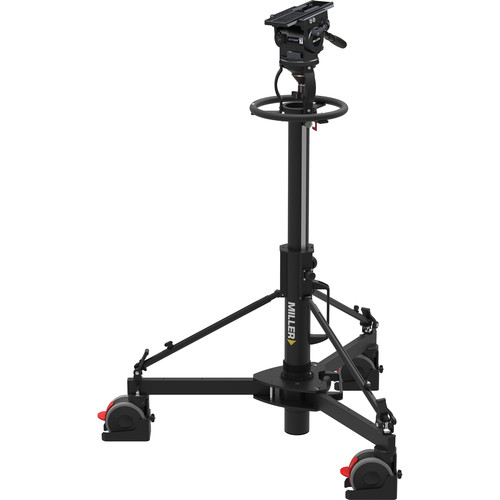

Miller Arrowx 7 Combo Pedestal System

OVERVIEW
The Miller Combo Pedestal series offers light weight portability with air adjustable column system that provides a smooth 350mm (13.8”) stroke for maximum payloads 30kg (66Ibs).
With its sturdy construction it delivers maximum stability with reliable and simple to use features. This makes the Combo Pedestal series a high performer offering perfect option for small broadcast studios looking for a versatile pedestal that punches above its weight.
INCLUDED IN BOX
Miller Studio Dolly with Cable Guards (481)
Arrowx 5 Fluid Head (1076)
Pan Handle – telescopic with clamp (696)

About The Miller Arrowx 7 Combo Pedestal System
The Miller Combo Pedestal series offers light weight portability with air adjustable column system that provides a smooth 350mm (13.8”) stroke for maximum payloads 30kg (66Ibs).

With its sturdy construction it delivers maximum stability with reliable and simple to use features. This makes the Combo Pedestal series a high performer offering perfect option for small broadcast studios looking for a versatile pedestal that punches above its weight.

Payload Range 6-25kg (13.2-55.1lbs)
Weight 18.0kg (39.7lbs)
Height Range 1062-1412mm (41.8-55.6″)
Mounting Base Ø150mm (5.9″) ball levelling with 3 x M5 holes for flat base mounting
Column In-Shot Stroke 350mm (13.8″)
Steering Wheel Diameter Ø294mm (11.6″)
Tracking Width 1072mm (42.2″)
Wheel Diameter Ø294mm (11.6″)

Compact and portable with carry handle for dolly
Simple and easy to setup and use
Air adjustable column system for quick payload balancing
Quick action column lock
Smooth 350mm (13.8”) stroke
Independent 125mm dolly wheel brake system
Sturdy adjustable cable guards
Steering wheel diameter 294mm (11.6”)
Dolly tracking width 920mm (36.2”)
