OVERVIEW

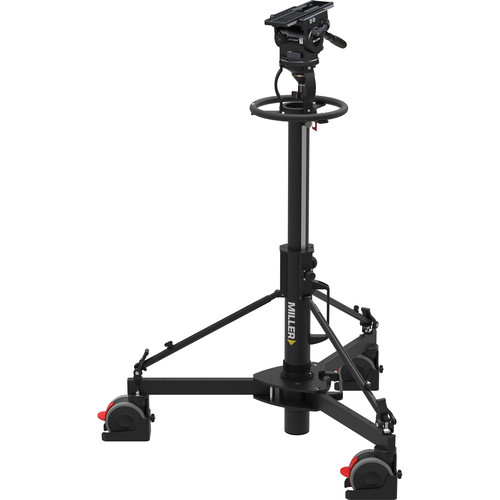

The Miller 3260 – Arrowx 7 Combo Live 30 Pedestal System is the ultimate filming bundle for live broadcast studios. This compact and portable system includes the Arrowx 7 Fluid head and Pan handle (3260), making it simple and easy to set up and use.
One of the key features of this product is its air adjustable column system, which allows for quick payload balancing and a smooth, low noise 450mm (17.7”) stroke. This makes it perfect for capturing high-quality footage with payloads ranging from 6kg to 25kg (13.2lbs – 55lbs).
The Miller 3260 – Arrowx 7 Combo Live 30 Pedestal System is designed for maximum stability and reliability. It features an independent dolly wheel axle brake system that eliminates wheel tyre indents, as well as multiple wheel positions for linear or radius dolly tracking.
With a steering wheel diameter of 294mm (11.6) & 400mm (15.7) and a dolly tracking width of 964mm (38), this system offers precise and smooth movements for capturing the perfect shot. It also comes with sturdy adjustable cable guards and a portable hand pump with pressure gauge for convenience.
Whether you’re filming on location or in a studio, the Miller 3260 – Arrowx 7 Combo Live 30 Pedestal System is the ideal choice. Its compact design and sturdy construction make it a high performer that punches above its weight. Trust in Miller for all your filming needs.
INCLUDED IN BOX
Pedestal
Arrowx 7 Fluid Head (1076)
Pan Handle – telescopic with clamp (696)
About The Miller Arrowx 7 Combo Live System
Miller Combo Live Pedestal series offers light weight portability with air adjustable column system that provides a precise-smooth low noise in shot 450mm (17.7”) stroke for maximum payloads 30 to 55kg (66-121Ibs).
With its sturdy construction it delivers maximum stability with reliable and simple to use features. This makes the Combo Live Pedestal series a high performer offering perfect option for live broadcast studios looking for a versatile pedestal that punches above its weight.
Payload Range 6-25kg (13.2-55.1lbs)
Weight 21.8kg (48.0lbs)
Height Range 972-1537mm (38.2-60.5″)
Mounting Base Ø100mm (3.9”) ball levelling
Column In-Shot Stroke 450mm (17.7″)I1737
Steering Wheel Diameter Ø294mm (11.6″)
Tracking Width 970mm (38.2″)
Wheel Diameter Ø125mm (4.9″)
Compact and portable with carry handle for dolly
Simple and easy to setup and use
Air adjustable column system for quick payload balancing
Independant dolly wheel axle brake system eliminates wheel tyre indents
Multiply wheel positions for linear or radius dolly tracking
125mm dual ball bearing wheels for quick swivlturn action
Centre hub locking column with adjustable spider arm supports
Steering wheel diameter 294mm (11.6) & 400mm (15.7)
Dolly tracking width 964mm (38)
Sturdy adjustable cable guards
Portable hand pump with pressure gauge
Fluid head payload Range 6kg – 25kg (13.2lbs – 55lbs)
