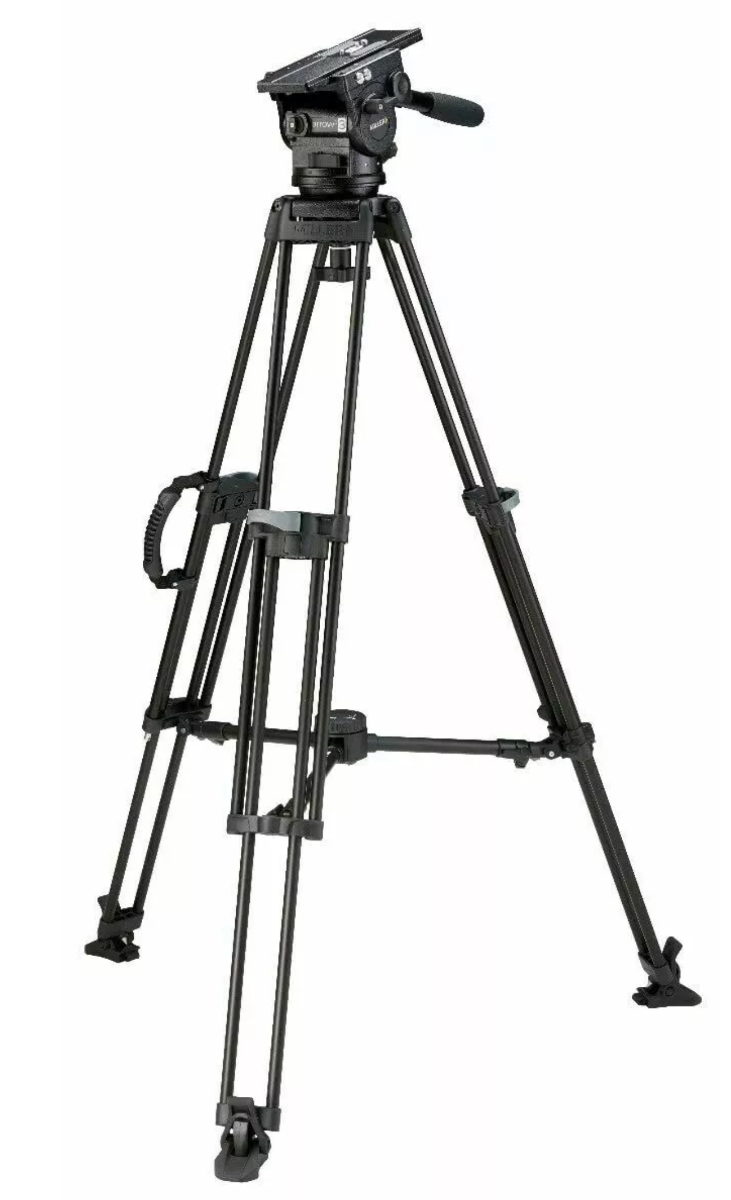

Miller ArrowX 3 Alloy Tripod Kit

OVERVIEW
The Miller MIL-3035 ArrowX 3 Sprinter II 1-Stage Alloy Tripod System with Fluid Head (3035) is a compact, lightweight and versatile tripod system that offers a wide range of features to support professional camera work. The system includes the ArrowX 3 fluid head, which has 5 selectable fluid pan and tilt drag positions and a 16 position CB PlusTM counterbalance system for precise and smooth movements. With a payload range of 1-19 kg (2.2-41.8lbs), this tripod system is suitable for a variety of cameras and accessories.

The ArrowX 3 fluid head is designed to meet the high standards of the renowned Arrow series, offering professionals the flexibility, speed and accuracy they need for their creative work. With 62 years of experience in the industry, Miller has incorporated their expertise into this fluid head, making it a reliable and efficient tool for any shooting situation.

The tripod system is designed to support the latest generation of cameras, from DSLRs to film-ready HDV alternatives and lightweight ENG camcorders. It can handle payloads from 1-19kg (2.2-41.8lbs) and offers 5 + 0 selectable pan-tilt fluid drag positions, making it ideal for news gathering and documentaries. The innovative 16 position CB PlusTM counterbalance system allows for repeatable, accurate and rapid setup, with a “one flick” switch for quick fine-tuning.

The Sprinter II ENG tripod features Miller’s Sprint-Locks, side-action leg locks for quick and easy setup. The streamlined design of the levers offers a more ergonomic feel and the single stage control allows for efficient adjustments. The mid-level spreader design offers continuous variable adjustment between maximum and minimum height settings, making it easy to set up and pack down the tripod.

The detachable rubber feet of the tripod provide stable support on any surface, ensuring that the tripod stays in place during use. The rubber feet are designed to always lay flat on the surface, eliminating the need to bend down and adjust them before use. The tripod also comes with telescopic pan handles and a soft case for easy transport and protection during travel.

Overall, the Miller MIL-3035 ArrowX 3 Sprinter II 1-Stage Alloy Tripod System with Fluid Head (3035) is a reliable, versatile and professional tripod system that offers a wide range of features to support high-quality camera work. With its robust construction and practical design, it is suitable for use in a variety of shooting conditions, making it a valuable tool for any professional photographer or videographer.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 19kg
Max Height Group: 55-60 inch
Min Height Group: 20-30 inch
Leg Section: 2 Section
Spreader Type: Mid-Level
Head Fitting: 100mm
Material: Aluminium
Type: Video
INCLUDED IN BOX
1x ArrowX 3 Fluid Head
1x Sprinter II Single-Stage Alloy Tripod
1x Mid-Level Spreader
1x Set of Tripod Rubber Feet
1x Set of Pan Handles
1x Single Stage Arrow Soft Case

About The Miller ArrowX 3 Alloy Tripod Kit
System ArrowX 3 Sprinter II Single Stage tripod system combines the ArrowX 3 fluid head with speedy and solid Sprinter II Single Stage Alloy tripod to support the latest generation in acquisition from the DSLR to film-ready HDV alternatives to the lightweight ENG camcorders of payloads from 1-19kg 2.2-41.8lbs.

Fluid Head:

Following in the tradition and reputation of the world-renowned Arrow series, the all-new ArrowX 3 sets new dimensions in professional camera support augmenting the power of expression of creative professionals, Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, ArrowX 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.

1-19kg (2.2-41.8lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 3 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories. CB PlusTM is an innovative sequential counterbalance design, taking traditional counter balancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

Tripod:

The new Sprinter II ENG tripod range features Miller Sprint-Locks, side-action leg locks. Miller’s designers have updated the streamline design of the levers to bring you a more ergonomic feel to the lever-lock action. Single Stage Sprinters feature a singular Sprint-Lock side-action lever for single stage control.

Spreader:

The mid-level spreader design offers continuous variable adjustment between maximum and minimum height settings and assist the tripod in rapid setup and pull down by keeping the tripod legs at an equal or pre-set distance relative to each other.

Tripod Rubber Feet:

The detachable rubber feet provide stable support for your camera on any surface. No matter what position before setup, with Miller’s unique design the feet will always place flat upon the surface on your location. No more bending down to position feet curled inside the tripod. The rubber feet are supplied as a set of three and suit all tripods sold with the Mid-Level Spreader.

Pan Handles:

Telescopic with black handle carrier

Soft Case:

The Arrow Soft case for Single Stage tripods has padded carry straps for comfortable carrying with patented head-end cradle to protect the fluid head during transport. The Soft case is made from weatherproof Cordura with heavy duty zippers on bag and all pockets. Weighing only 3.5kg (7.7 lbs) and a transport length of 1080mm (42.5″) this soft case is great protection for your tripod system.

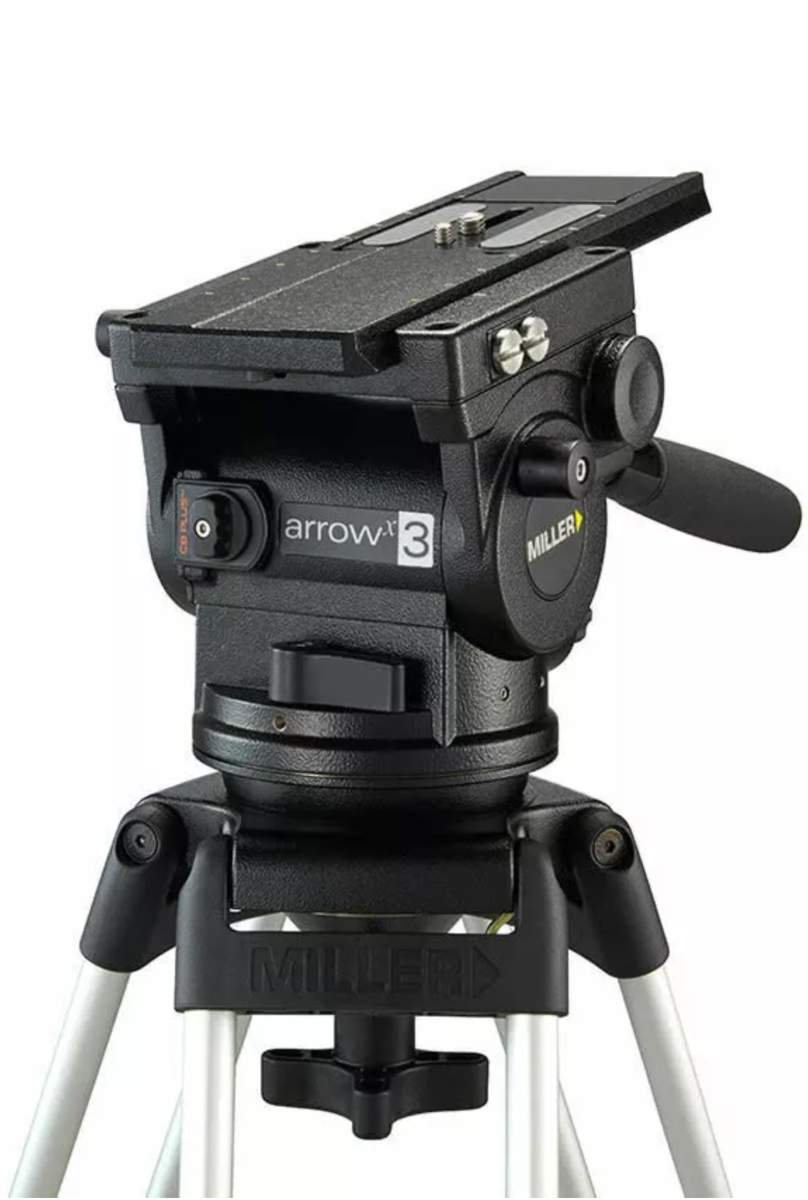

ArrowX 3 Fluid Head:
Sliding Range 120mm (4.7″)
Payload Range 1-19kg (2.2-41.8lbs)
Weight 3.10kg (6.8lbs)
Mounting 100mm
ball levelling with 3 x M5 holes for flat base mounting
Tilt Range +90˚
-75˚
Tilt Lock Positive lock calliper brake system
Pan Drag 5 selectable fluid drag positions + 0
Pan Range 360 °
Pan Lock Positive lock calliper brake system
Counter Balance System 16 selectable positions
Temperature Range -40° to +65°C
Pan Handle Telescopic 390 to 590mm
Height Above Bowl 162 mm (6.4 in)
Illumination Bubble level, pan-tilt drag controls
Sprinter II Single-Stage Alloy Tripod:
Spreader Type Mid Level Spreader
Tripod Series Sprinter Tripod Series
Transport Length 840 mm (33.1 in)
Payload Capacity 45.00 kg (99.2 lbs)
Minimum Height 665 mm (26.2 in)
Maximum Height 1430 mm (56.3 in)
Material Aluminium
Lock Type Sprint-Locks
Construction Single Stage
Bowl Diameter 100 mm (3.9 in)
Weight 3.20 kg (7.1 lbs)
Mid-Level Spreader:
Attachment Spring clip
Extended Length 520 mm (20.5 in)
Folded Length 320 mm (12.6 in)
Spreader Type Mid Level Spreader
Weight 0.79 kg (1.7 lbs)
Tube Type Alloy
Rubber Tripod Feet:
Attachment Rubber Stirrup
Foot Dimensions 95 x 55mm
Weight 0.20 kg (0.4 lbs)
Pan Handle:
Weight 0.38 kg (0.8 lbs)
Length 390 mm (15.4 in)
Extended Length 590 mm (23.2 in)
Material Alloy/rubber
Singe Stage Arrow Soft Case:
External Width 190 mm (7.5 in)
External Height 220 mm (8.7 in)
External Length 1080 mm (42.5 in)
Weight 3.50 kg (7.7 lbs)
Accessories Head Cradle Yes
Accessories Pockets Yes
Accessories Carry Strap Yes

ArrowX 3 Fluid Head:
Compact, lightweight and versatile.
5 selectable of fluid pan and tilt drag
positions +0.
16 position CB PlusTM counterbalance system.
Wide payload range 1-19 kg (2.2-41.8lbs).
Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
Controls “all in one location” design for fast, easy and practical use.
Illuminated bubble level and pan-tilt drag controls.
Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
Quick release, 120mm sliding camera platform with standard camera plate (euro).
Removable ball level stud for flat base mounting (Sliders) with 3/8” screw hole.
Mitchell base adaptable.
Robust construction for rugged outdoor shooting conditions.
Optional second pan handle mount.
Side mounting points for view finders and accessories.
Three-year warranty.

Sprinter II Single-Stage Alloy Tripod:
Easily accessible, high speed dual action locks
Lightweight and rigid tripod construction
Tripod suits fine height adjsutable mid level spreader
Inline carry handle
Forever-flat rubber foot design
Rapid action transport clips

Mid-Level Spreader:
Provides infinite adjustments for the footprint of the tripod
Top adjustment knob offers easy operation
Latch and swivel design spreader attachment enable fast setups and prevents accidental damage
Suits all Sprinter II and HD tripods

Tripod Rubber Feet:
Suitable for all tripods with Mid Level Spreaders
Provide stable support for tripod
Always remain flat upon the location surface
Set of 3

Pan Handle:
Supplied with black handle carrier
Durable black anodised aluminium tubing
Material alloy/rubber

Arrow Softcase:
Suits single stage Arrow systems
Padded carry straps
Patented head-end cradle protects fluid head during flight & vehicle transport
Heavy duty zippers on bag and all pockets
Weatherproof Cordura construction
