Miller ArrowX 3 2-St CF Tripod Kit

OVERVIEW

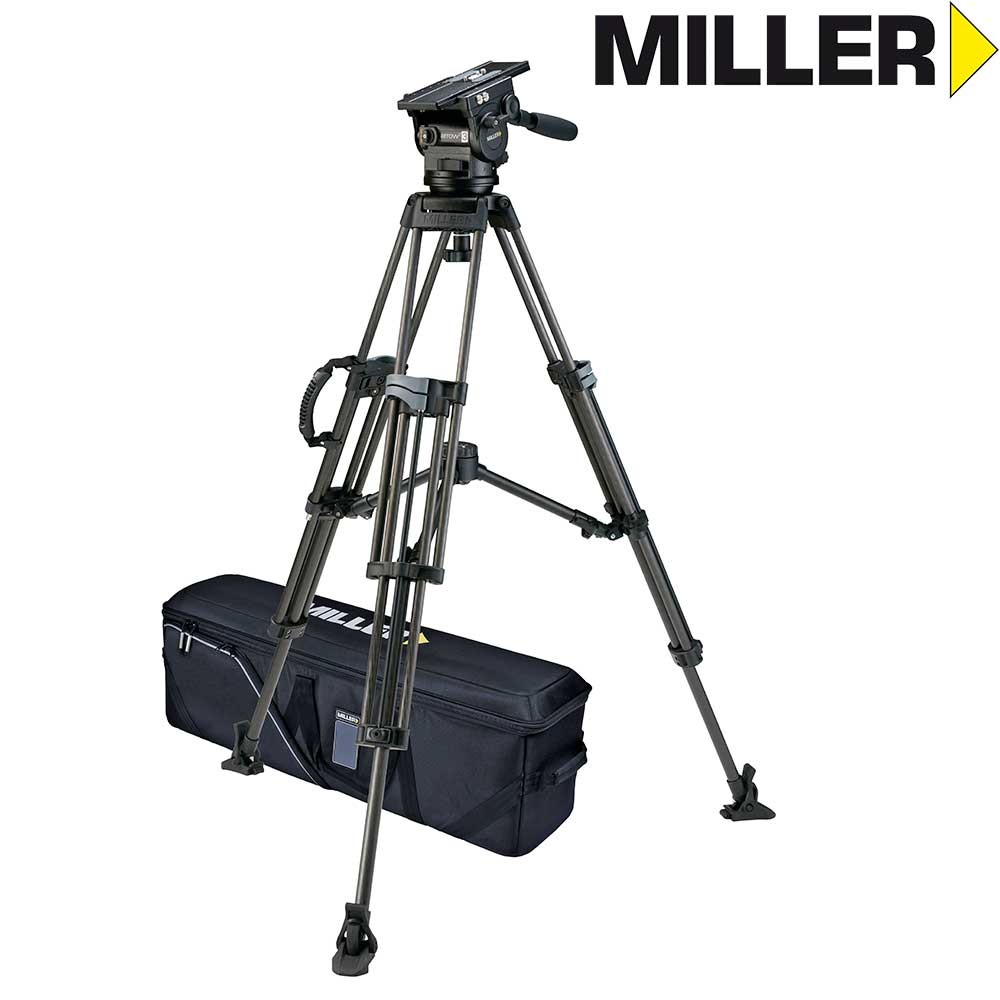

System ArrowX 3 Sprinter II 2-stage (carbon fibre) Sprinter II 2 Stage tripod system combines the ArrowX 3 fluid head with speedy and solid Sprinter II carbon fibre tripod to support the latest generation in acquisition from the DSLR to film-ready HDV alternatives to the lightweight ENG camcorders of payloads from 1-19kg 2.2-41.8lbs.
Fluid Head:
Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 3 sets new dimensions in professional camera support augmenting the power of expression of creative professionals, Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.
1-19kg (2.2-41.8lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 3 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses…

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 19kg
Max Height Group: 60-65 inch
Min Height Group: 10-20 inch
Leg Section: 3 Section
Spreader Type: Mid-Level
Head Fitting: 100mm
Material: Carbon Fibre
Type: Video
INCLUDED IN BOX
1x ArrowX 3 Fluid Head
1x Set of Tripod Rubber Feet
1x Mid-Level Spreader
1x Arrow Soft Case
1x Set of Pan Handles
1x Sprinter II 2 Stage CF Tripod

About The Miller ArrowX 3 2-St CF Tripod Kit
System ArrowX 3 Sprinter II 2-stage (carbon fibre) Sprinter II 2 Stage tripod system combines the ArrowX 3 fluid head with speedy and solid Sprinter II carbon fibre tripod to support the latest generation in acquisition from the DSLR to film-ready HDV alternatives to the lightweight ENG camcorders of payloads from 1-19kg 2.2-41.8lbs.

Fluid Head:
Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 3 sets new dimensions in professional camera support augmenting the power of expression of creative professionals, Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience.

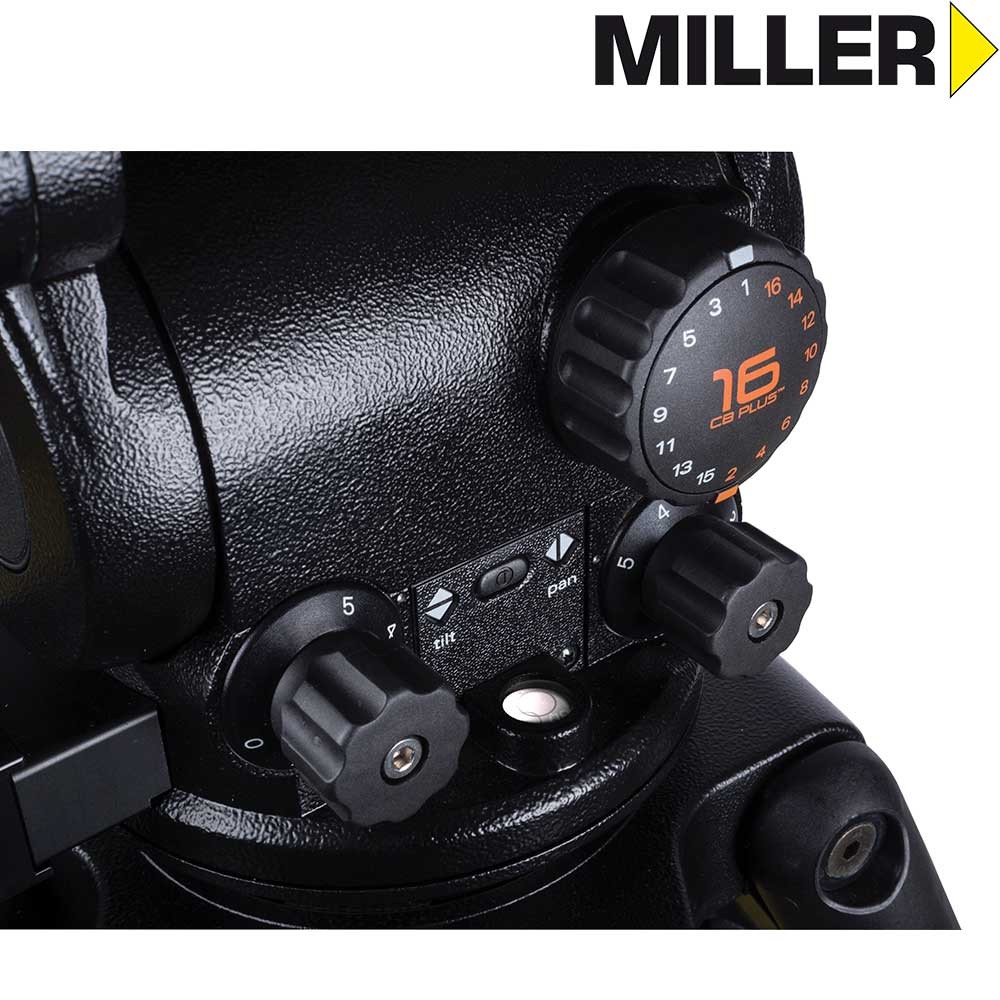

1-19kg (2.2-41.8lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 3 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories. CB PlusTM is an innovative sequential counterbalance design, taking traditional counter balancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required.

Tripod:
The new Sprinter II ENG tripod range features Miller Sprint-locks- Dual, side-action leg locks that let you independently adjust both stages of a 2- stage tripod using one hand. Each tripod leg has two Sprint-locks, co-located on the upper leg clamp. The result: high speed adjustment, no more bending down to adjust the lower tripod stage.

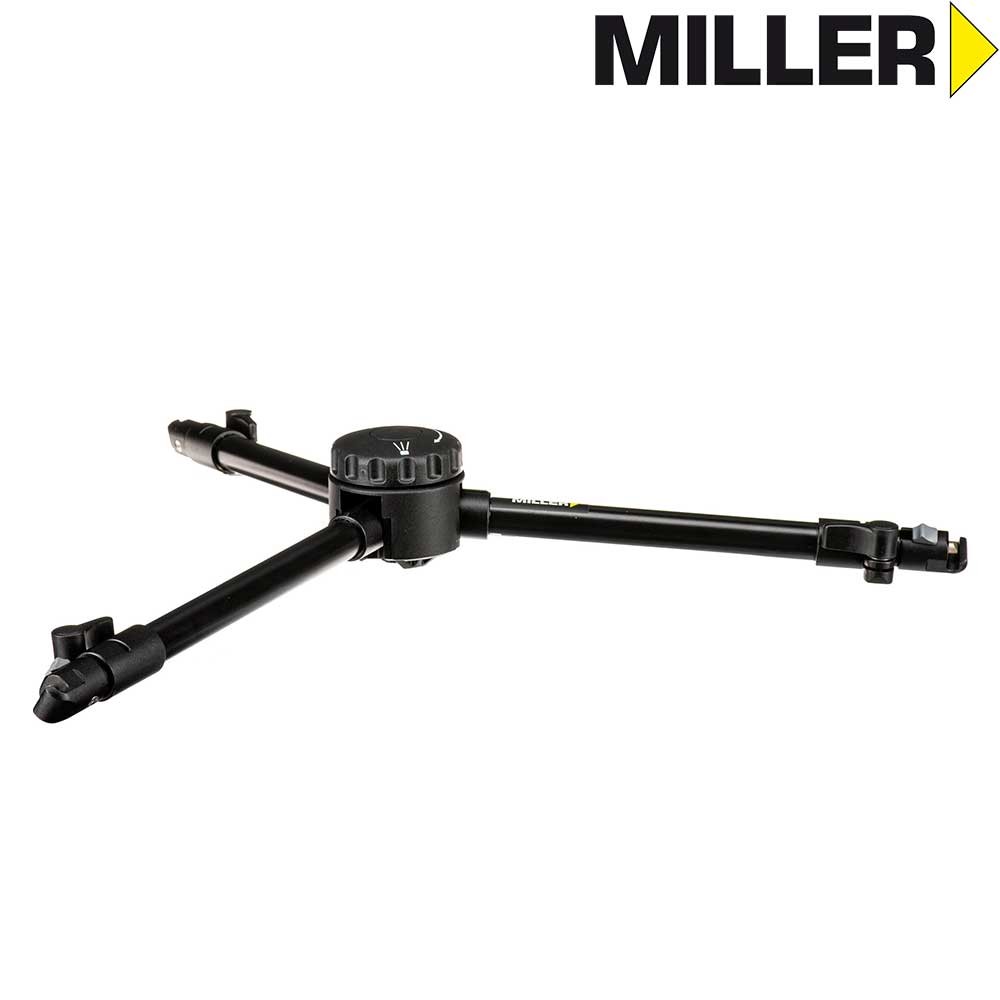

Spreader:
The mid-level spreader design offers continuous variable adjustment between maximum and minimum height settings and assist the tripod in rapid setup and pull down by keeping the tripod legs at an equal or pre-set distance relative to each other.

Pan Handles:
Telescopic with black handle carrier

Soft Case:
The Arrow Soft case for 2-Stage tripods has padded carry straps for comfortable carrying with patented head-end cradle to protect the fluid head during transport. The Soft case is made from weatherproof Cordura with heavy duty zippers on bag and all pockets. Weighing only 3.0kg and a transport length of 930mm this soft case is great protection for your tripod system.

Tripod Rubber Feet:
The detachable rubber feet provide stable support for your camera on any surface. No matter what position before setup, with Miller’s unique design the feet will always place flat upon the surface on your location. No more bending down to position feet curled inside the tripod. The rubber feet are supplied as a set of three and suit all tripods sold with the Mid-Level Spreader.

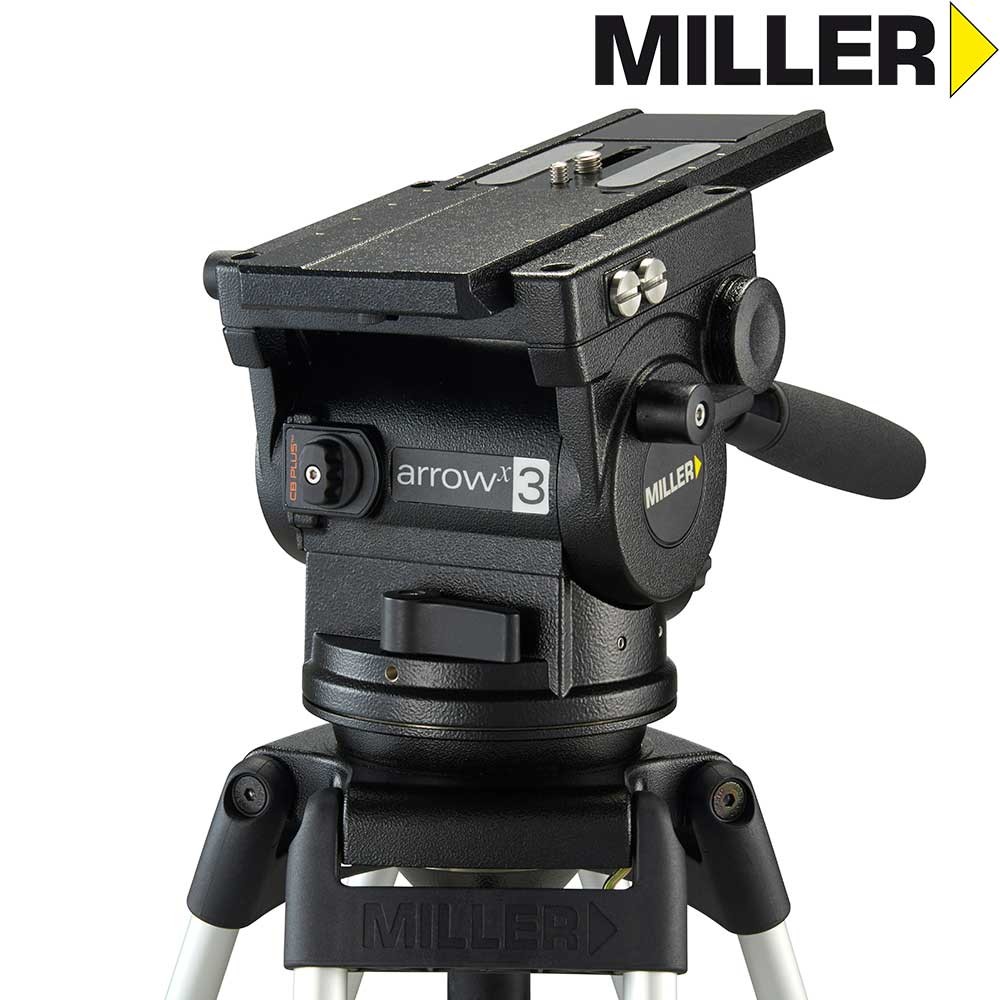

ArrowX 3 Fluid Head:
Sliding Range 120mm (4.7″)
Payload Range 1-19kg (2.2-41.8lbs)
Weight 3.10kg (6.8lbs)
Mounting 100mm
ball levelling with 3 x M5 holes for flat base mounting
Tilt Range +90˚
-75˚
Tilt Lock Positive lock calliper brake system
Pan Drag 5 selectable fluid drag positions + 0
Pan Range 360 °
Pan Lock Positive lock calliper brake system
Counter Balance System 16 selectable positions
Temperature Range -40° to +65°C
Pan Handle Telescopic 390 to 590mm
Height Above Bowl 162 mm (6.4 in)
Illumination Bubble level, pan-tilt drag controls
Sprinter II 2-Stage Carbon Tripod:
Spreader Type Mid Level Spreader
Tripod Series Sprinter Tripod Series
Transport Length 700 mm (27.6 in)
Payload Capacity 45.00 kg (99.2 lbs)
Minimum Height 440 mm (17.3 in)
Maximum Height 1530 mm (60.2 in)
Material Carbon Fibre
Lock Type Sprint-Locks
Construction 2-Stage
Bowl Diameter 100 mm (3.9 in)
Weight 3.20 kg (7.1 lbs)
Mid-Level Spreader:
Attachment Spring clip
Extended Length 520 mm (20.5 in)
Folded Length 320 mm (12.6 in)
Spreader Type Mid Level Spreader
Weight 0.79 kg (1.7 lbs)
Pan Handle:
Weight 0.38 kg (0.8 lbs)
Length 390 mm (15.4 in)
Extended Length 590 mm (23.2 in)
Material Alloy/rubber
Arrow Soft Case:
External Width 220 mm (8.7 in)
External Height 240 mm (9.4 in)
External Length 930 mm (36.6 in)
Weight 3.00 kg (6.6 lbs)
Accessories Head Cradle Yes
Accessories Pockets Yes
Accessories Carry Strap Yes
Rubber Tripod Feet:
Attachment Rubber Stirrup
Foot Dimensions 95 x 55mm
Weight 0.20 kg (0.4 lbs)

Arrowx 3 Fluid Head:
Compact, lightweight and versatile.
5 selectable of fluid pan and tilt drag
positions +0.
16 position CB PlusTM counterbalance system.
Wide payload range 1-19 kg (2.2-41.8lbs).
Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
Controls “all in one location” design for fast, easy and practical use.
Illuminated bubble level and pan-tilt drag controls.
Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
Quick release, 120mm sliding camera platform with standard camera plate (euro).
Removable ball level stud for flat base mounting (Sliders) with 3/8” screw hole.
Mitchell base adaptable.
Robust construction for rugged outdoor shooting conditions.
Optional second pan handle mount.
Side mounting points for view finders and accessories.
Three-year warranty.

Sprinter II 2-Stage Carbon Fibre Tripod:
Easily accessible, high speed dual action locks
Lightweight and rigid tripod construction
Tripods model suits fine height adjsutable mid level spreader
Inline carry handle
Compatible with #475 Forever-flat rubber foot design
Rapid action transport clips

Mid-Level Spreader:
Provides infinite adjustments for the footprint of the tripod
Top adjustment knob offers easy operation
Latch and swivel design spreader attachment enable fast setups and prevents accidental damage
Suits all Sprinter II and HD tripods
Pan Handle:
Supplied with black handle carrier
Durable black anodised aluminium tubing
Material alloy/rubber

Arrow Softcase:
Suits 2-stage tripod Arrow systems
Padded carry straps
Patented head-end cradle protects fluid head during flight & vehicle transport
Heavy duty zippers on bag and all pockets
Weatherproof Cordura construction

Tripod Rubber Feet:
Suitable for all tripods with Mid Level Spreaders
Provide stable support for tripod
Always remain flat upon the location surface
Set of 3

Pan Handles:
Supplied with black handle carrier
Durable black anodised aluminium tubing
Material alloy/rubber
