OVERVIEW

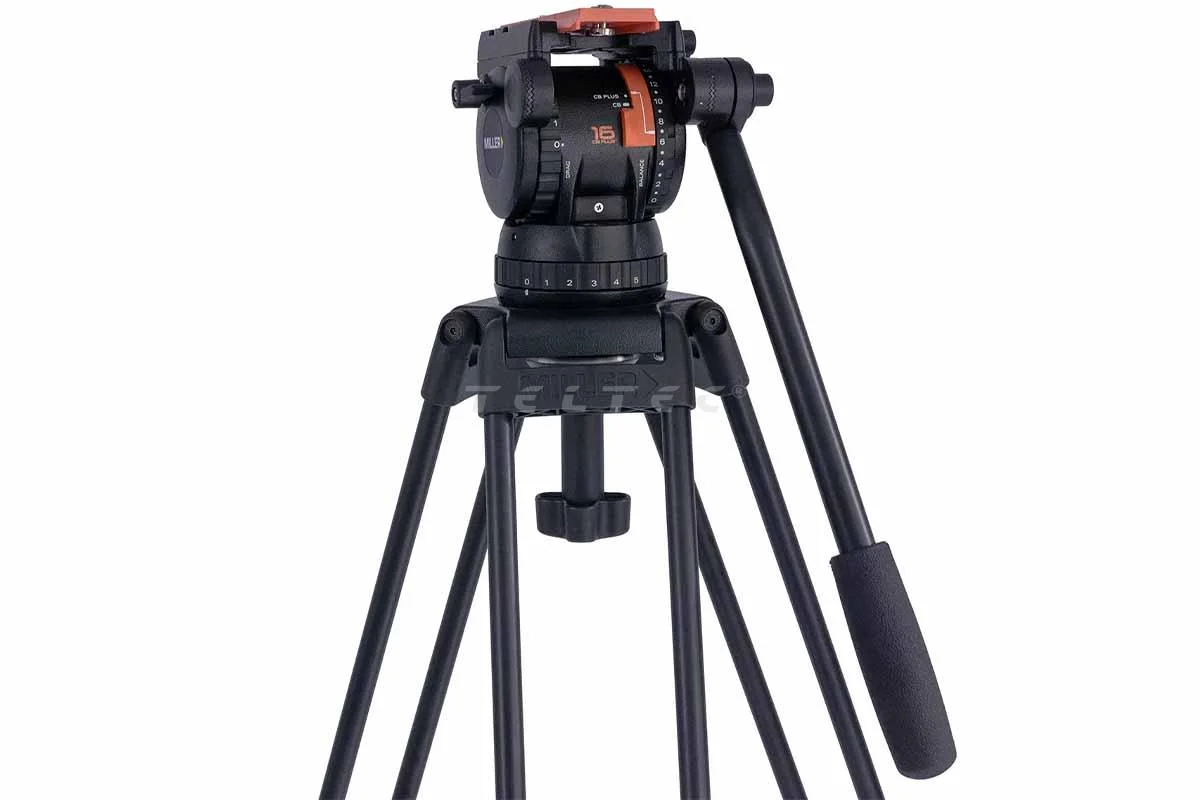

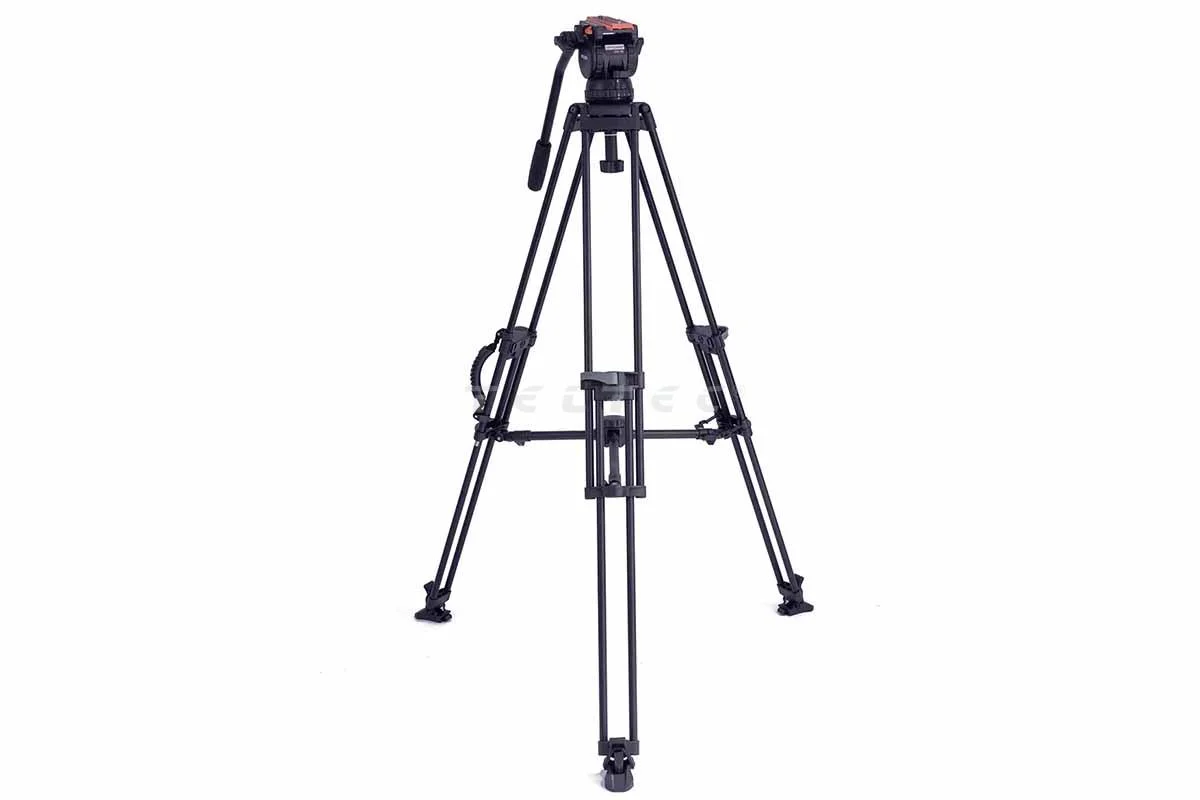

The 4132 Versa CXV10 Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
Versa CXV10 employs CB Plus technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 100mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The Versa CXV10 is matched with the 1 stage Sprinter II (alloy) tripod and mid-level spreader providing incredible speed of set up, variable tripod footprint and the versatility to set up on all terrain.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 12kg
Max Height Group: 60-65 inch
Min Height Group: 30-35 inch
Spreader Type: Mid-Level
Material: Alloy
INCLUDED IN BOX
1x 1144 Versa CXV10 fluid head
1x 1589 Sprinter II 1-stage tripod (alloy)
1x 993 Mid-level spreader
1x 679 Pan handle – fixed with clamp
1x 475 Rubber feet (set of 3)

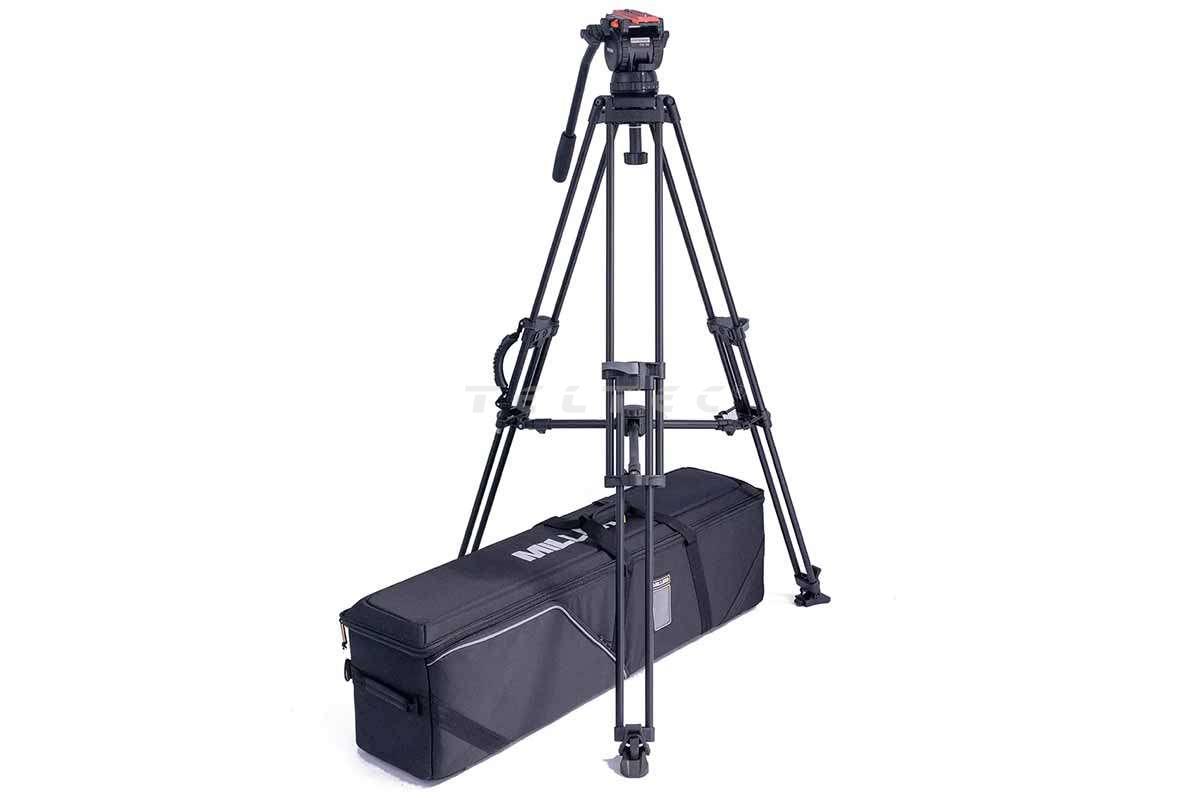

1x 3500 Arrow softcase 1-stage
About The Miller 4132 CXV10 Sprinter II 1-St Tripod System
The 4132 Versa CXV10 Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
Versa CXV10 employs CB Plus technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 100mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The Versa CXV10 is matched with the 1 stage Sprinter II (alloy) tripod and mid-level spreader providing incredible speed of set up, variable tripod footprint and the versatility to set up on all terrain.
Payload Range 0-12kg (0-26.4lbs)
Weight 6.8kg (15.0lbs)
Height Range 823-1583mm (32.4-62.3”)
Mounting Base Ø100mm (3.9″) ball levelling
Transport Length 993mm (39.1”)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock caliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 100mm (3.93″)
Height Bowl 158mm (6.2″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 1-stage
Lock Type HS single action
Leg Material Alloy
Affordable, Stable, Robust.
100mm ball levelling.
Perfect for payloads to 0-12kg (26.4bs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
2-stage fast toggle adjustment legs.
Durable black anodised alloy tubing.
Comes with on ground spreader.
Comes with2-stage tripod bag.
3 year warranty.
