Miller 3916 CiNX 7 Fluid Head Kit

7,961.40

MIL-3916

Compare
Category:

OVERVIEW
Cinematographers require a versatile set-up to meet their needs, and Miller has answered the call with the CiNX 7 Lightweight Cinema Pan and Tilt Fluid Head and Complete Accessory Kit. This high-performance kit includes a waterproof, custom foam hard case to carry the CiNX Fluid head and its accessories.

The CiNX 7 is a lightweight and durable fluid head that boasts a wide payload range of 6kg (13.2lbs) to 25kg (55.1lbs) and 7+0 positions of pan and tilt drag. It is designed to meet the needs of cinematographers at an affordable price.

One of the key features of the CiNX series is Miller’s patented 16 CB Plus™ technology, which utilizes a unique sequential counterbalance design for quick and accurate set-up. With 16 positions of counterbalance, this fluid head provides precise and repeatable balance, making it ideal for frequent and fast re-rigging.

The sideload camera platform with safety lock accommodates a variety of camera sizes, lenses, and accessories, and the telescopic pan handle extends by 200mm (5″) for added control when heavy drag is applied. The multi-positional articulated pan handle allows for precise pan and tilt control, even at difficult angles.

The CiNX 7 also offers versatility with its Mitchell Base Adaptor, allowing it to be mounted on industry standard Mitchell flat base tripods. It also includes a D100mm Claw Ball and D150 Claw Ball Level for mounting on flat base and D150 bowl tripods respectively. The mounting block provides an additional 3kg of accessory attachment options.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 25kg
Type:
Cine
Video
INCLUDED IN BOX
1x CiNX 7 Fluid Head
1x Pan handle HD Telescopic with clamp
1x Pan handle articulated with extender
1x Serated handle clam extender
1x Mitchell base adaptor with claim
1x D150 Claw Ball Level
1x Accessory Mounting Block
1x CiNX Fluid Head Case

About The Miller 3916 CiNX 7 Fluid Head Kit
Cinematographers require the ability to adapt their set-up to suit their needs. Miller has put together a CiNX 7 Fluid head kit complete with accessories to ensure you have the right gear to get the job done without compromise.

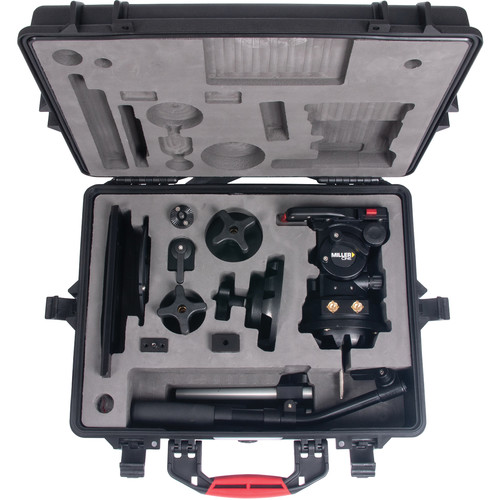

The head kit consists of a high-performance Resin hard case is a lightweight, waterproof shell with PE45 custom foam to carry Miller’s CiNX Fluid heads and accessories:

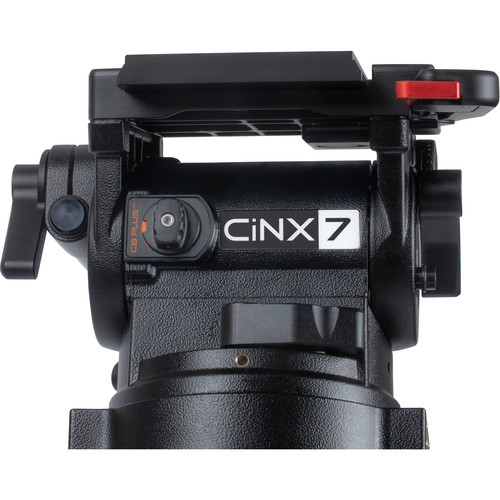

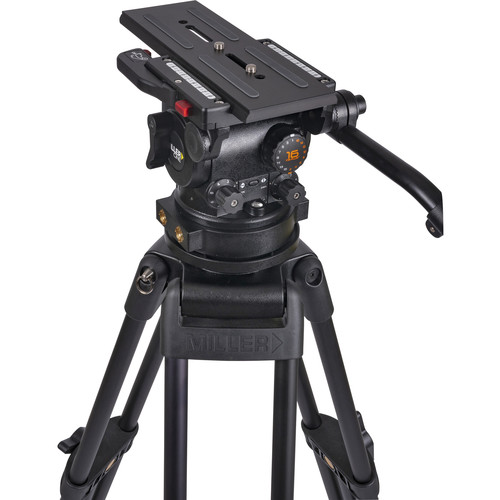

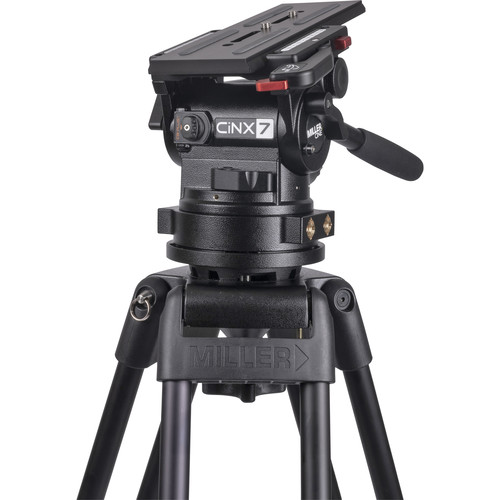

CiNX 7 is a lightweight and durable fluid head packed with features designed to meet all the needs of cinematographers at an affordable price. The wide payload range of Miller’s new CiNX 7 Fluid head enables accurate counterbalance of multiple camera sizes, lenses and accessories – increasing the flexibility of use.

The CiNX 7 payload range from 6kg (13.2lbs) to 25kg (55.1lbs) and pan and tilt drag of 7+0 positions.

A key feature of the CiNX series is Miller’s patented 16 CB Plus™ technology—a unique sequential counterbalance design resulting in accurate and rapid setup. With 16 positions of counterbalance, the new series provides very fine, repeatable balance, which is ideal for cinematographers requiring frequent and fast re-rigging.

The sideload platform enables rapid deployment of countless sizes of camera rigs as well as extended camera plate range of movement for balancing front heavy setups.

Telescopic pan handle, extendable by 200mm (5”). Particularly suited when heavy drag is applied.

The multi-positional articulated pan handle is designed for cinematographers who require tight and accurate pan and tilt control. Its positional flexibility enable difficult shots at awkward angles.

Serrated handle clamp extender enables pan handles to be mounted 50mm out from the from the fluid head.

Mitchell Base Adaptor enables CiNX Fluid heads to be mounted on industry standard Mitchell flat base tripods.

D100mm Claw Ball (factory fitted).

D150 Claw Ball Level is an adapter designed to attach to the bottom of a flat based fluid head. Attaching the adapter then allows mount to D150 bowl tripods.

Mounting Block enables user to attach 3kg of accessories, such as external viewfinder. Allows for 1/4″ and 3/8″ threads.

Payload Range 6-25kg (13.2-55lbs)
Weight 4.0kg (8.8lbs)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 7 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock caliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Side load quick release camera plage (Arri type)
Sliding Range 150mm (5.9”)
Mounting Base Ø100mm (3.9″) ball levelling (std.) Ø150mm (5.9″) ball levelling (opt.) Mitchell Base (opt.)
Height Above Bowl 202mm (8.0”)
Illuminated Controls Bubble level, pan-tilt drag controls
Pan Handle Telescopic 390 to 590mm (15.4 to 23.2”)
Temperature Range -40° to +65°C (-40° to +149°F)
Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
16 positions of counterbalance.
Payload range from 6kg (13.2lbs) up to 25kg (55.1lbs).
Pan and tilt drag 7+0 positions.
Side loading camera platform, with safety lock, to suite Arri/OConnor or compatible camera plates.
150mm camera plate sliding range
Multiple mounting bases: CiNX is adaptable to a Mitchel base plate, 100mm or 150mm ball levelling (supplied with 100mm ball levelling).
4 Arri type accessory mounting points.
Illuminated bubble level and pan-tilt drag controls.
Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
Removable ball level stud allows for flat base mounting with 3/8” screw thread.
Optional second pan handle mount
