Miller 3752 CX10 System

OVERVIEW
The 3752 Compassx 10 (CX10) Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
Whether the job requires a mirrorless camera, DSLR, cine-rig or a broadcast camera, the CX10 is capable of balancing from 0kg to 12kg. It features advanced precision fluid drag, fast set-up and professional performance with the flexibility and rigidness of the 1589 alloy Sprinter.
CX10 employs CB PlusTM technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The CX10 is matched with the 1 stage Sprinter II (alloy) tripod and mid-level spreader providing incredible speed of set up, variable tripod footprint and the versatility to set up on all terrain.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 12kg
Max Height Group: 60-65 inch
Min Height Group: 30-35 inch
Leg Section: 2 Section
Spreader Type: Mid-Level
Head Fitting: 100mm
Material: Aluminium
Type: Video
INCLUDED IN BOX

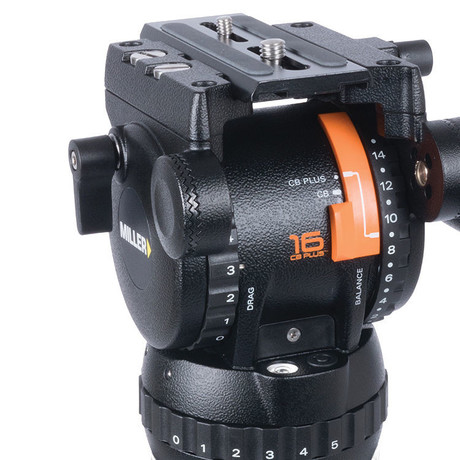

1x CX10 fluid head
1x Sprinter II 1-stage tripod (alloy)
1x Mid-level spreader
1x Pan handle – fixed with clamp
1x Rubber feet (set of 3)

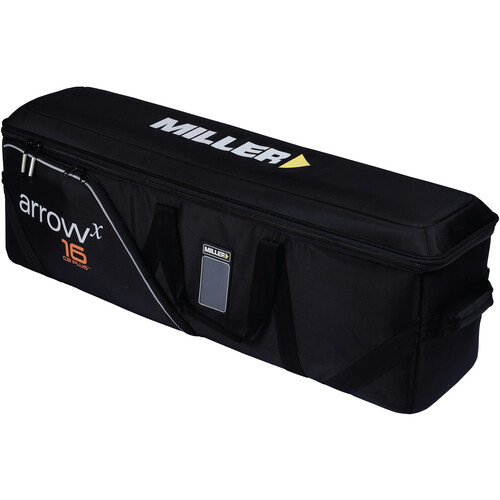

1x Arrow softcase 1-stage

About The Miller 3752 CX10 System
The 3752 Compassx 10 (CX10) Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

Whether the job requires a mirrorless camera, DSLR, cine-rig or a broadcast camera, the CX10 is capable of balancing from 0kg to 12kg. It features advanced precision fluid drag, fast set-up and professional performance with the flexibility and rigidness of the 1589 alloy Sprinter.

CX10 employs CB PlusTM technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.

The CX10 is matched with the 1 stage Sprinter II (alloy) tripod and mid-level spreader providing incredible speed of set up, variable tripod footprint and the versatility to set up on all terrain.

Payload Range 0-12.0kg (0-26.4lbs)
Weight 6.8kg (14.8lbs)
Height Range 823-1583mm (32.4-62.3”)
Transport Length 993mm (39.1”)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 Selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 150mm (6.0″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 1-stage
Lock Type HS Dual Action
Leg Material Alloy

Compact, lightweight and cost effective
100mm ball levelling
3 selectable positions of fluid pan and tilt drag + 0
4 selectable positions of counterbalance
Perfect for payloads to 4-14kg (8.8-30.9lbs)
Integrated 100mm bowl
High speed independent 1-stage dual leg locks
Durable black anodised alloy tubing
Comes with mid-level ground spreader and rubber feet
Comes with 1-stage tripod bag
