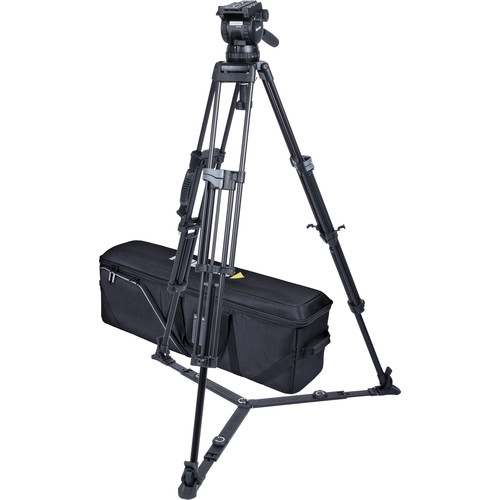

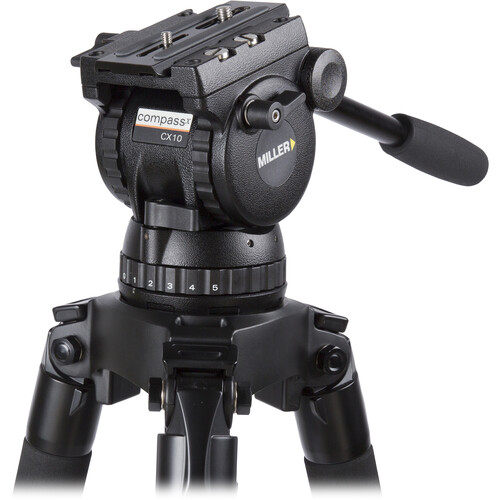

Miller 3749 CX10 Sprinter II Tripod System

OVERVIEW
The 3749 CX10 Sprinter II 2 Stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

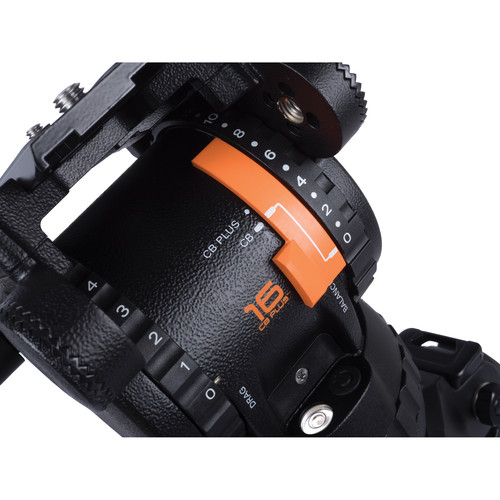

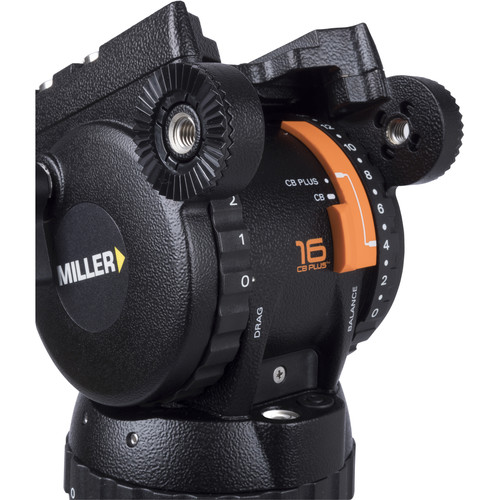

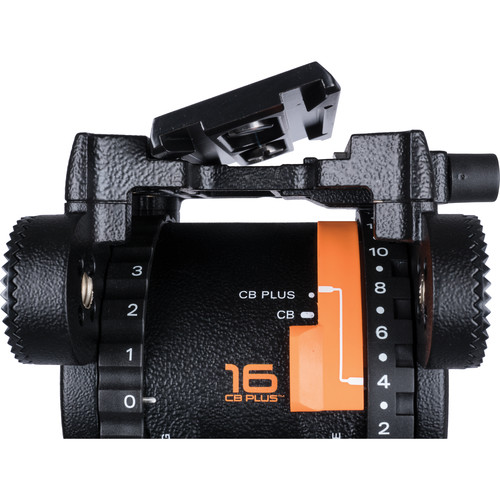

CX10 employs CB Plus technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The CX10 is matched with the 2 stage Sprinter II (alloy) tripod and the stability of a ground spreader.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 12kg
Max Height Group: 65-70 inch
Min Height Group: 20-30 inch
Leg Section: 2 Section
Spreader Type: Ground
Head Fitting: 100mm
Material: Aluminium
Type:
Cine
Video
INCLUDED IN BOX

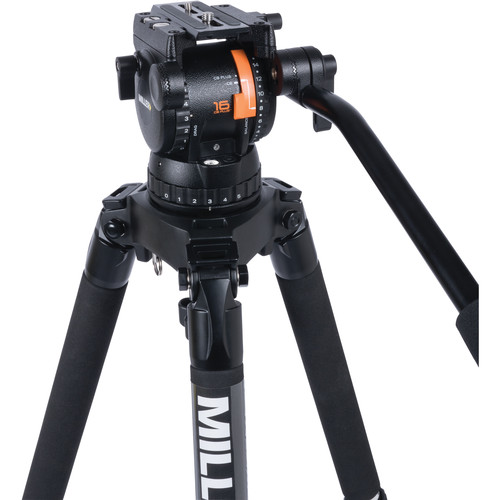

1x 1096 CX10 fluid head
1x 1580G Sprinter II 2-stage tripod (alloy)

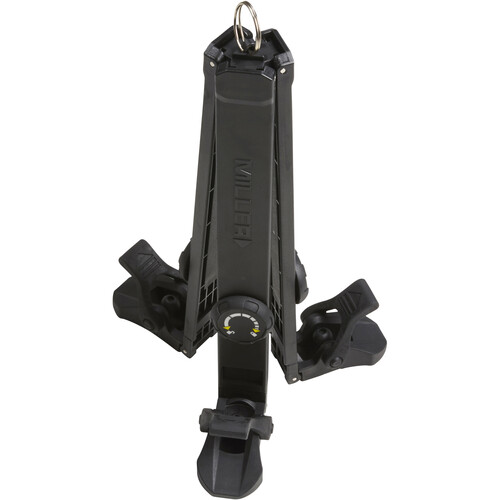

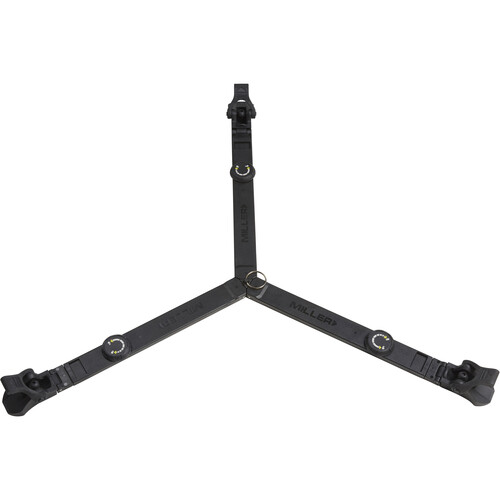

1x 470 Ground spreader
1x 679 Pan handle – fixed with clamp

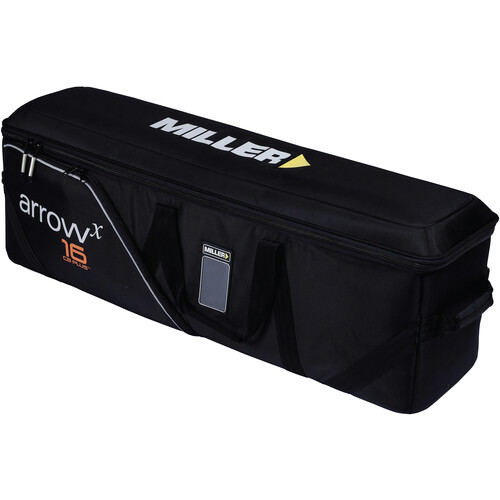

1x 3502 Arrow softcase 2-stage
About The Miller 3749 CX10 Sprinter II Tripod System
The 3749 CX10 Sprinter II 2 Stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

CX10 employs CB Plus technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.

The CX10 is matched with the 2 stage Sprinter II (alloy) tripod and the stability of a ground spreader.

Payload Range 0-12kg (0-26.4lbs)
Weight 7.5kg (16.5lbs)
Height Range 603-1693mm (23.7-66.6”)
Transport Length 853mm (33.6”)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 Selectable fluid drag positions + 0
Pan Tilt Locks Positive lock caliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°

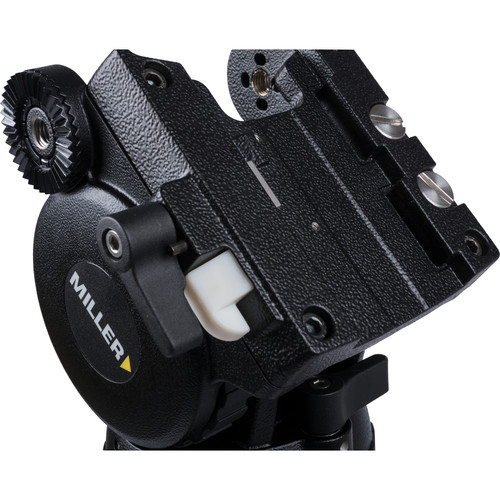

Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 150mm (6.0″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type HS dual action
Leg Material Alloy
Affordable, Stable, Robust.
100mm ball levelling.
Perfect for payloads to 0-12kg (26.4bs).
15+0 CB Plus selectable counterbalance positions.
Ergonomically located CB Plus switch.
5+0 selectable positions of fluid pan and tilt drag.
High speed independent 2-stage dual leg locks.
Durable black anodised alloy tubing.
Comes with ground spreader.
Comes with 2-stage tripod bag.
3 year warranty.
