Miller 3747 CX8 CF Tripod System

OVERVIEW

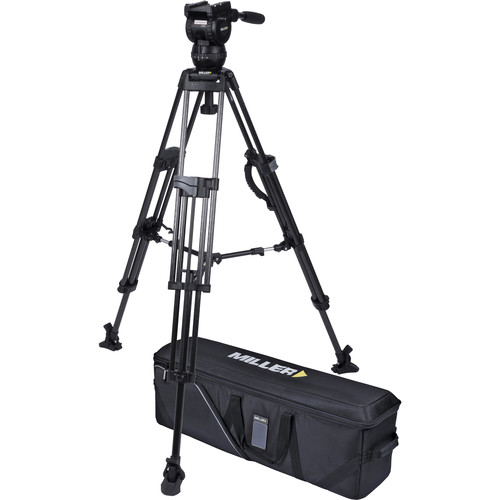

The 3747 CX8 75 Sprinter II 2 Stage (carbon fibre) system combines the 1620 75 Sprinter II tripod and CX8 fluid head for fast and easy set-ups. Designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Millers precision fluid drag system.

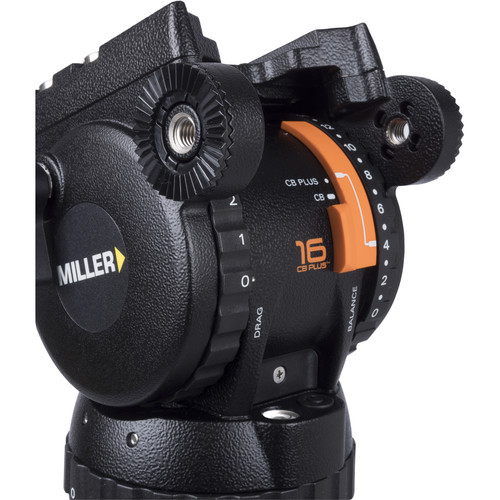

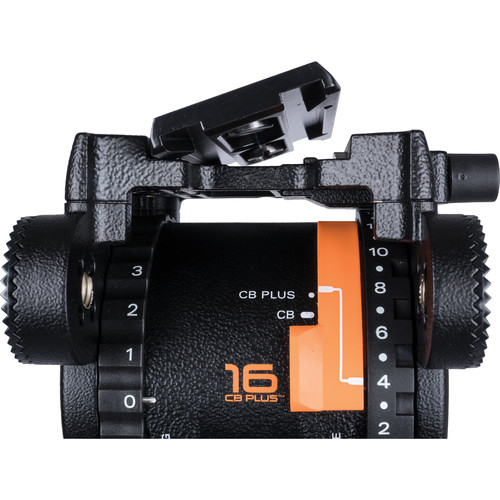

The CX8 employs CB Plus technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
The CX8 is matched with the 2-stage 75 Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 12kg
Max Height Group: 65-70 inch
Min Height Group: 30-35 inch
Leg Section: 2 Section
Spreader Type: Mid-Level
Head Fitting: 75mm
Material: Carbon Fibre
Type: Video
INCLUDED IN BOX
1x 75 Sprinter II 2-Stage Tripod – Carbon Fibre (1620)
1x CX8 Fluid Head (1093)
1x Basic Mid-Level Spreader (593)
3x Rubber Feet (475)
1x Pan handle – fixed with clamp (679)

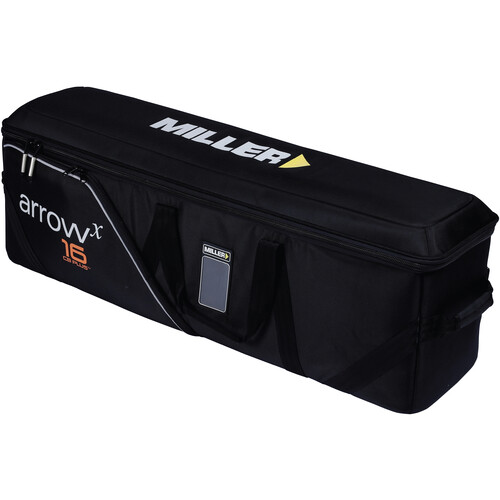

1x Arrowx Softcase (3502)

About The Miller 3747 CX8 CF Tripod System
The 3747 CX8 75 Sprinter II 2 Stage (carbon fibre) system combines the 1620 75 Sprinter II tripod and CX8 fluid head for fast and easy set-ups. Designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Millers precision fluid drag system.

The CX8 employs CB Plus technology providing 16 positions of counterbalance, 5+0 settings of Miller’s fluid pan and tilt drag with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.

The CX8 is matched with the 2-stage 75 Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.

Payload Range 0-12kg (0-26.4lbs)
Weight 6.7kg (14.8lbs)
Height Range 767-1697mm (30.2-66.8″)
Transport Length 867mm (34.1”)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock caliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 2-stage
Lock Type HS dual action
Leg Material Carbon fibre

Compact, light and versatile
75mm ball levelling
Perfect for payloads to 0-12kg (26.4bs)
15+0 CB Plus selectable counterbalance positions
Ergonomically located CB Plus switch
5+0 selectable positions of fluid pan and tilt drag
Positive selection radial ring controls
2-stage dual action lock extension
Lightweight carbon fibre legs
Comes with 2-stage tripod bag
3-year warranty
