Miller 3705 CX2 Tripod System

OVERVIEW
The 3705 CX2 Toggle 2-stage (alloy) tripod system is designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

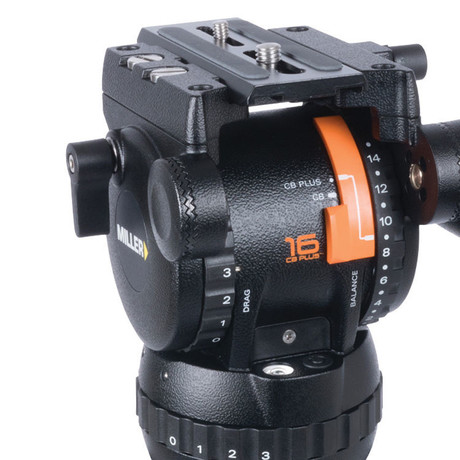

The CX2 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

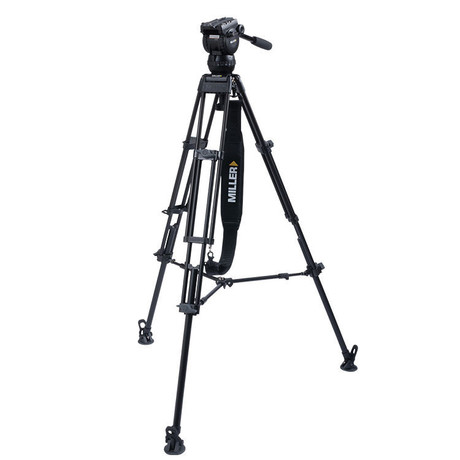

The CX2 is matched with the 2-stage Toggle (alloy) tripod and above-ground spreader to provide a large height range 560-1730mm (22-68.1″), positive leg toggle locks and quick pack down.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 8kg
Max Height Group: 65-70 inch
Min Height Group: 20-30 inch
Leg Section: 3 Section
Spreader Type: Mid-Level
Head Fitting: 75mm
Material: Aluminium
Type: Video
INCLUDED IN BOX

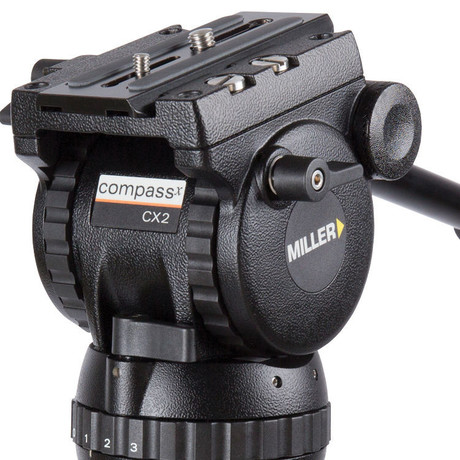

1x CX2 fluid head
1x Toggle 75 2-stage tripod (alloy)
1x Above ground spreader
1x Pan handle – fixed with clamp
1x Rubber feet (set of 3)
1x Shoulder strap (padded)
1x Solo shoulder strap (Aircell)

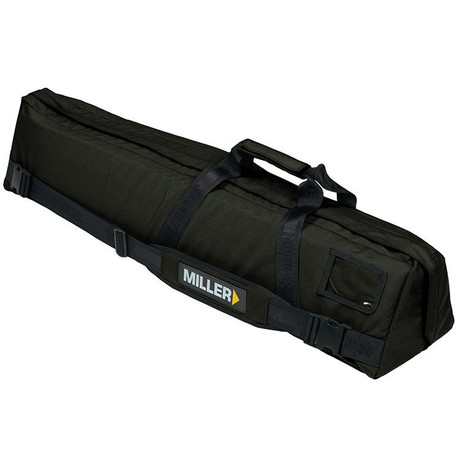

1x Softcase 2-stage

About The Miller 3705 CX2 Tripod System
The 3705 CX2 Toggle 2-stage (alloy) tripod system is designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

The CX2 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

The CX2 is matched with the 2-stage Toggle (alloy) tripod and above-ground spreader to provide a large height range 560-1730mm (22-68.1″), positive leg toggle locks and quick pack down.

Payload Range 0-8.0kg (0-17.6lbs)
Weight 6.6kg (14.5lbs)
Height Range 560-1730mm (22-68.1″)
Transport Length 860mm (33.9″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Material Alloy

Compact, light and versatile
75mm ball levelling
Perfect for payloads to 0-8kg (17.6lbs)
15+0 CB Plus selectable counterbalance positions
Ergonomically located CB Plus switch
3+0 selectable positions of fluid pan and tilt drag
Positive selection radial ring control
2-stage fast toggle adjustment legs
Durable black anodised alloy tubing
Comes with above ground spreader and feet
Comes with 2-stage tripod bag
