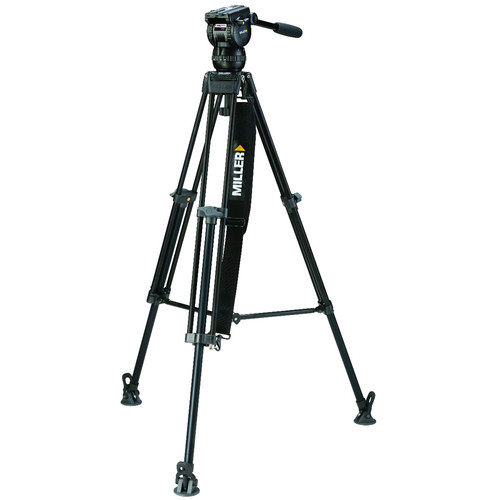

Miller 3702 CX2 Tripod System

1,399.25

MIL-3702

Compare
Category:

OVERVIEW

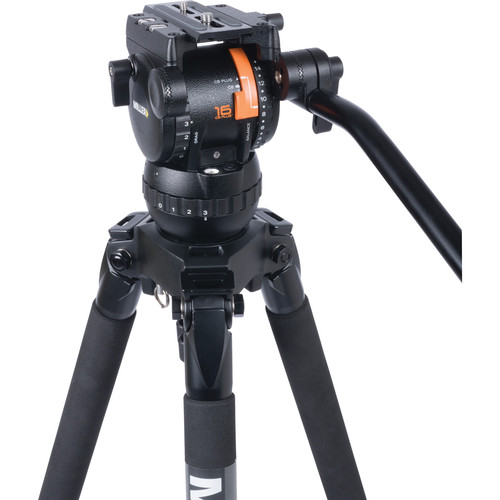

The Miller 3702 Compass X CX2 Toggle LW 1 Stage Alloy Tripod System is the perfect camera support system for on-the-go professionals. It is compact, lightweight, and versatile, making it an ideal choice for a variety of shooting situations. This tripod system comes with a 440 tripod, 835 AG spreader, 679 strap, 554 softcase, and 874 feet, providing everything you need for a complete camera support solution.

The 3702 CX2 Toggle LW 1-stage tripod system features a 75mm ball levelling system, allowing for smooth and precise adjustments. It is capable of supporting payloads up to 0-8kg (17.6lbs), making it suitable for a range of cameras, from mirrorless and DSLRs to mid-sized cine-rigs and ENG cameras.

One of the standout features of the CX2 tripod system is its CB Plus selectable counterbalance positions. With 15+0 positions to choose from, you can easily find the perfect balance for your camera setup. The CB Plus switch is ergonomically located for easy access, and combined with 3+0 selectable positions of fluid pan and tilt drag, you have complete control over your camera’s movements.

The CX2 tripod system also boasts positive selection radial ring controls, making it quick and easy to adjust and lock the tripod legs into place. The 1-stage fast toggle adjustment legs allow for speedy set-up, while the durable black anodised alloy tubing ensures long-lasting performance.

Included with the CX2 tripod system is an above ground spreader and rubber feet, providing stability and versatility on any terrain. The system also comes with a 1-stage tripod bag for easy transport and storage. With advanced precision fluid drag, intuitive controls, and fast set-up, the Miller 3702 Compass X CX2 Toggle LW 1 Stage Alloy Tripod System is a top choice for professional photographers and videographers.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 8kg
Max Height Group: 55-60 inch
Min Height Group: 30-35 inch
Leg Section: 2 Section
Spreader Type: Mid-Level
Head Fitting: 75mm
Material: Aluminium
Type: Video
INCLUDED IN BOX
1x CX2 Fluid Head

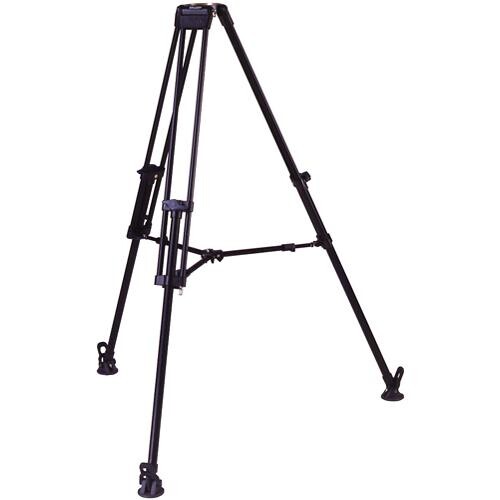

1x Toggle 75 LW Tripod (alloy)

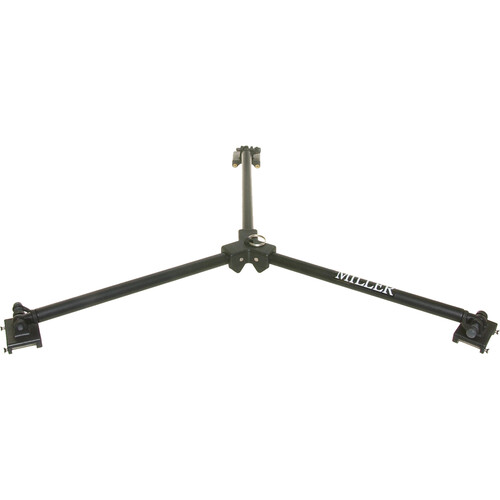

1x DS Tripod Spreader

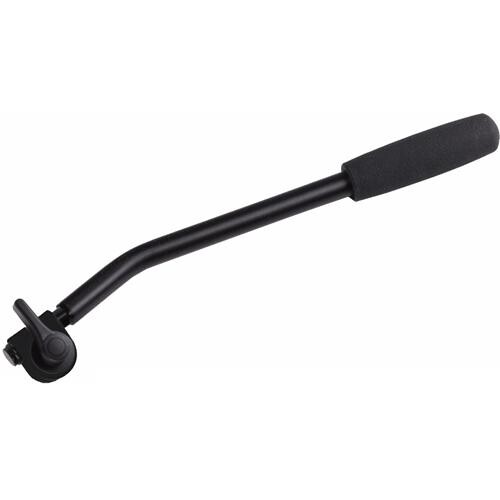

1x Pan Handle – fixed with clamp

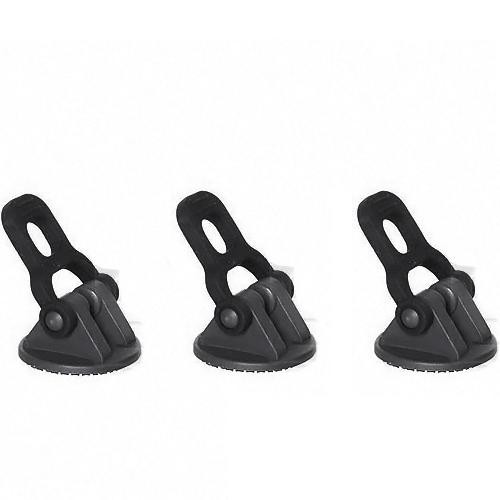

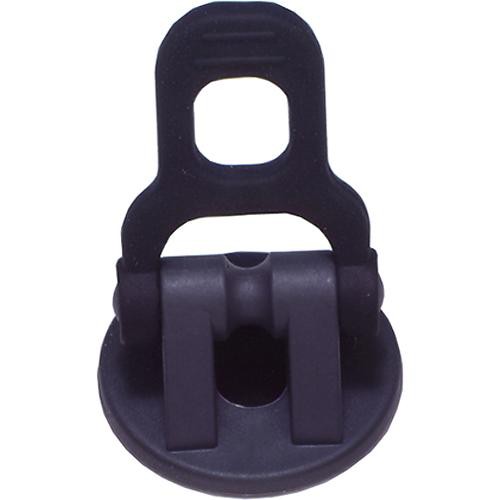

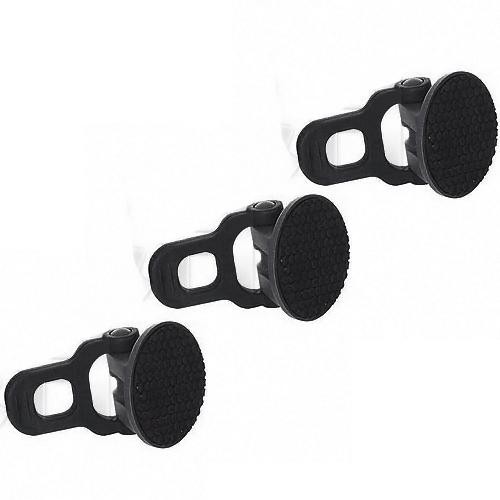

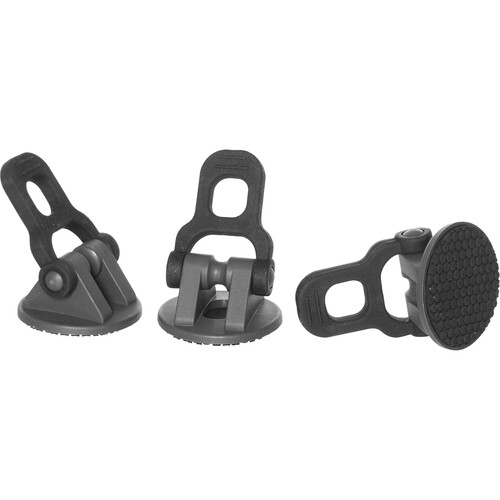

3x Rubber Feet

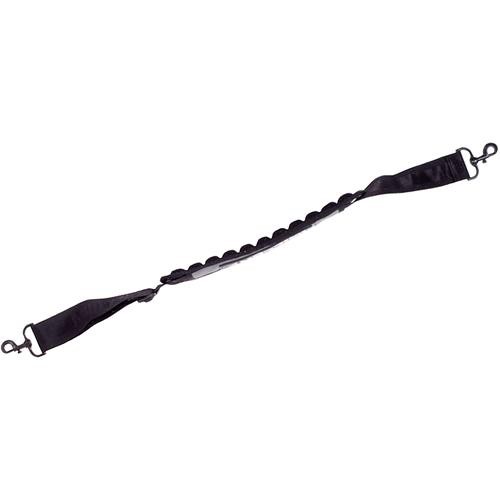

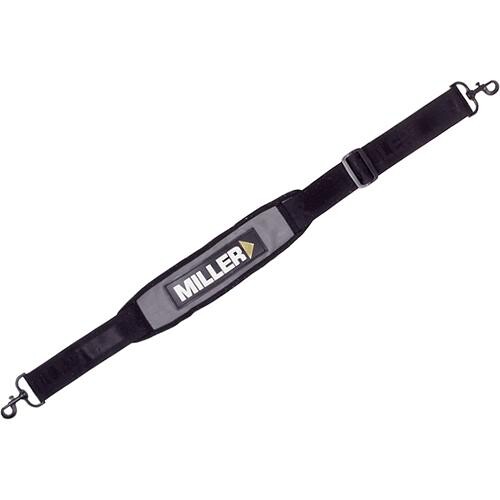

1x Shoulder Strap (padded)

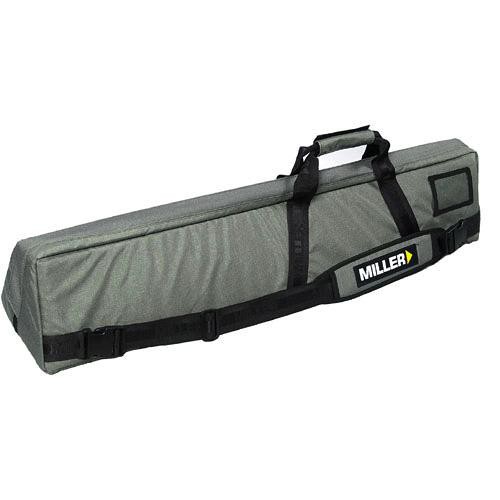

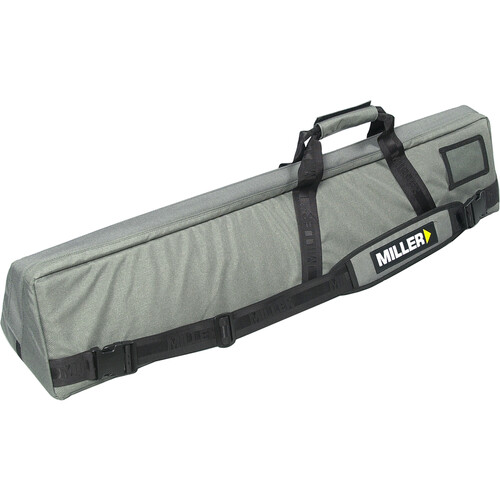

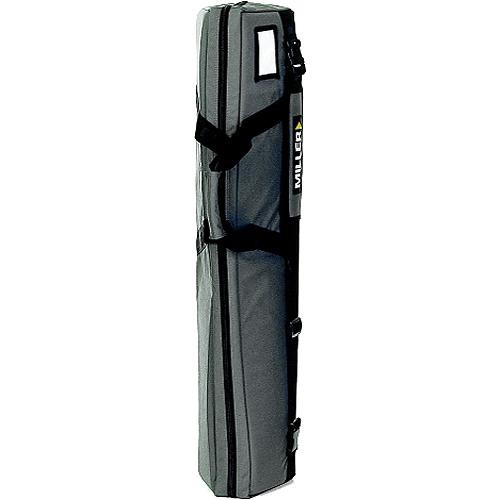

1x Softcase 1-stage

About The Miller 3702 CX2 Tripod System
The 3702 CX2 Toggle LW 1-stage (alloy) tripod system is designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

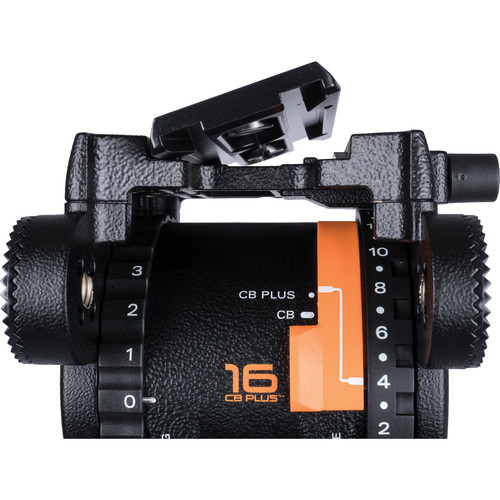

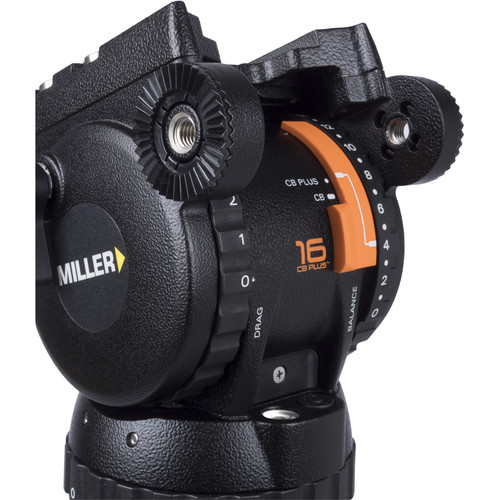

The CX2 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

The CX is matched with the LW Toggle tripod (alloy) with above ground spreader, where the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.

Payload Range 0-8.0kg (0-17.6lbs)
Weight 5.8kg (12.8lbs)
Height Range 790-1500mm (31.1-59″)
Transport Length 1000mm (39.4″)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 3 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°

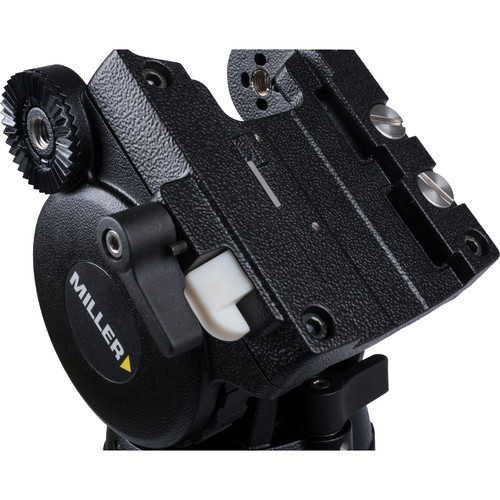

Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4″)
Mounting Base Ø75mm (2.9″) ball levelling
Height Above Bowl 167mm (6.6″)
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4″)
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 1-stage
Lock Type Toggle
Leg Material Alloy

Compact, light and versatile
75mm ball levelling
Perfect for payloads to 0-8kg (17.6lbs)

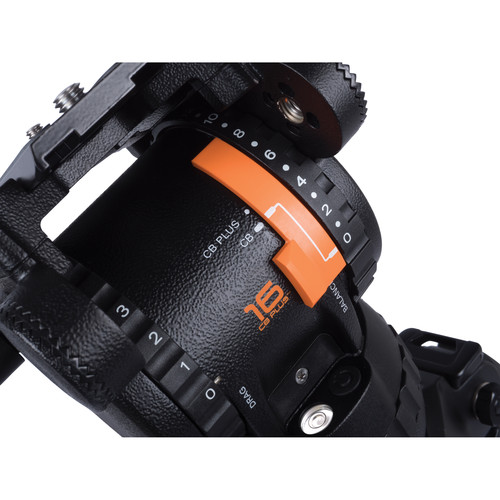

15+0 CB Plus selectable counterbalance positions
Ergonomically located CB Plus switch

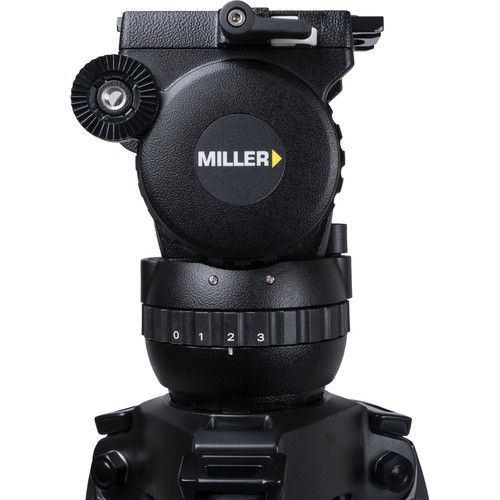

3+0 selectable positions of fluid pan and tilt drag
Positive selection radial ring controls
1-stage fast toggle adjustment legs
Durable black anodised alloy tubing
Comes with above ground spreader and rubber feet
Comes with 1-stage tripod bag
