Miller 3237 ArrowX1 Combo Live 30

OVERVIEW

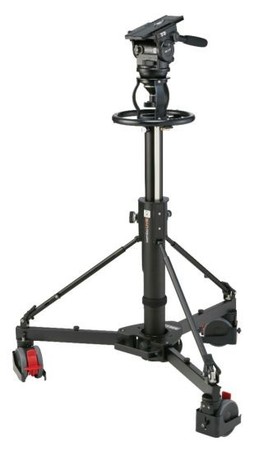

The 3237 Arrowx 1 Combo Live 30 pedestal offers light weight portability employing an air adjustable column system that delivers perfect camera balance with aheight range of 972mm 38.2” up to 1537mm 60.5” with precise, smooth, low noise in-shot 450mm 17.7” elevation stroke for payloads 0-16.0kg (0-35.3lbs).
Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth effortless movement, featuring multiple wheel locking positions for linear or radius dolly tracking.
With its sturdy construction it delivers maximum stability with reliable and simple to use features.

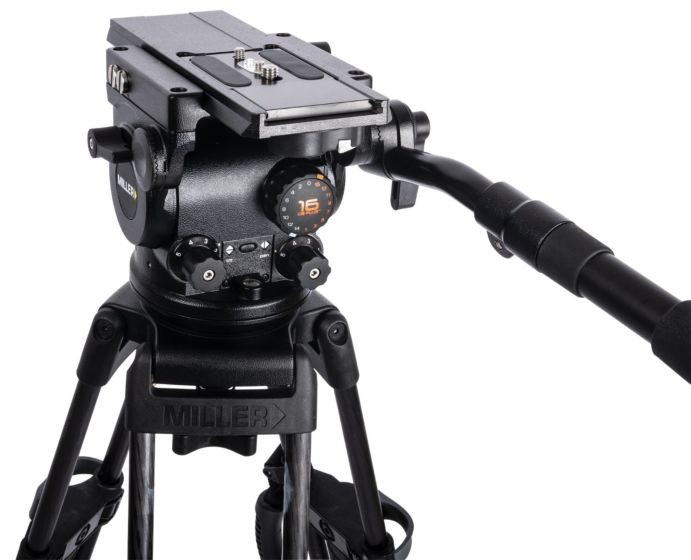

The 3237 comes fitted with Arrowx 1 fluid head which features a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrow x 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
This makes the Combo Live 30 Pedestal series a high performer offering perfect option for live broadcast studios looking for a versatile pedestal…

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 16kg
Max Height Group: 70+inch
Min Height Group: 10-20 inch
Spreader Type: No Spreader
Head Fitting: 100mm
Leg Lock Type: Twist Lock
Material: Carbon Fibre
Type:
Cine
Video
INCLUDED IN BOX
1x 1070 Arrowx 1 fluid head
2x 696 Pan handle – telescopic with clamp
1x 3220 Combo Live 30 pedestal

About The Miller 3237 ArrowX1 Combo Live 30
The 3237 Arrowx 1 Combo Live 30 pedestal offers light weight portability employing an air adjustable column system that delivers perfect camera balance with aheight range of 972mm 38.2” up to 1537mm 60.5” with precise, smooth, low noise in-shot 450mm 17.7” elevation stroke for payloads 0-16.0kg (0-35.3lbs).

Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth effortless movement, featuring multiple wheel locking positions for linear or radius dolly tracking.

With its sturdy construction it delivers maximum stability with reliable and simple to use features.

The 3237 comes fitted with Arrowx 1 fluid head which features a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrow x 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

This makes the Combo Live 30 Pedestal series a high performer offering perfect option for live broadcast studios looking for a versatile pedestal that punches above its weight.

Payload Range 0-16.0kg (0-35.3lbs)
Weight 22.9kg (50.5lbs)
Height Range 972-1537mm (38.2-60.5”)
Mounting Base Ø100mm (3.9″) ball levelling
Column In-Shot Stroke 450mm (17.7″)
Steering Wheel Diameter Ø294mm (11.6″)
Tracking Width 970mm (38.2″)
Wheel Diameter Ø125mm (4.9″)5 selectable positions of fluid pan and tilt drag + 0.
16 position CB Plus™ counterbalance system.
Perfect for payloads to 0-16.0kg (0-35.3lbs).
Quick action column lock.
Smooth 350mm (13.8”) stroke.
Independent 125mm dolly wheel brake system.
Sturdy adjustable cable guards.
Steering wheel diameter 294mm (11.6”).
Dolly tracking width 920mm (36.2”).
