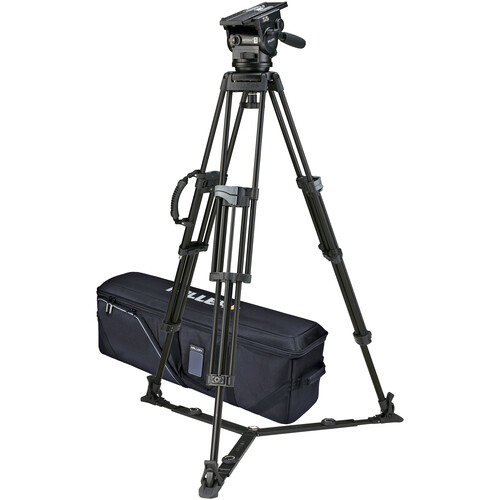

Miller 3023 ArrowX 1 Sprinter II System

OVERVIEW
The 3023 Alloy, Sprinter II, 2-stage Arrowx 1 system, fitted with ground spreader is designed for speed of setup, high level of stability and flexibility of payload, is best suited for level terrain.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.
The Arrowx 1 is matched with the 2 stage Sprinter II (alloy) tripod and ground spreader to give incredible speed of set up and incredible height range.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 16kg
Max Height Group: 65-70 inch
Min Height Group: 20-30 inch
Spreader Type: Ground
Head Fitting: 100mm
Leg Lock Type: Flip Lock
Material: Aluminium
Type:
Cine
Video
INCLUDED IN BOX

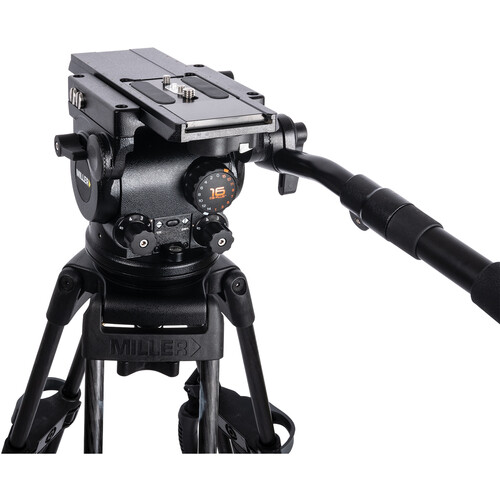

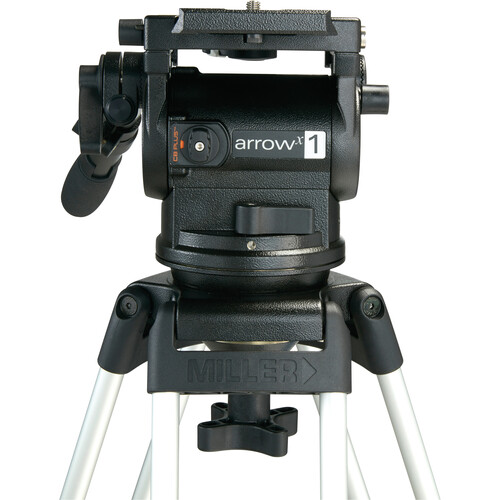

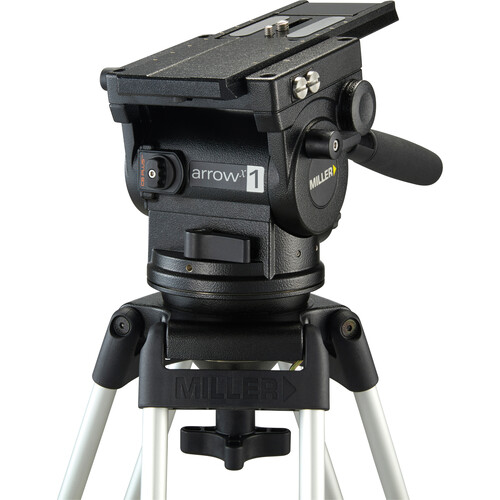

1x 1070 Arrowx 1 fluid head

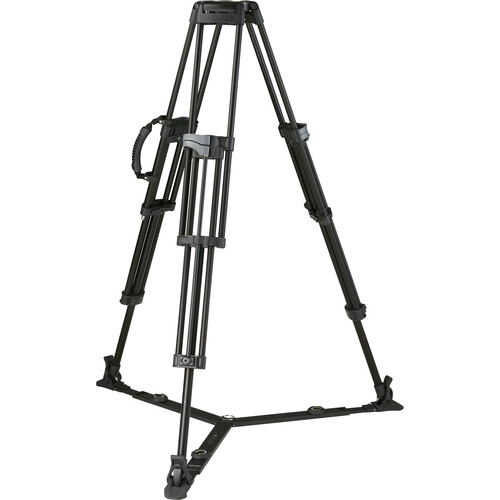

1x 1589G Sprinter II 2-stage tripod (alloy)

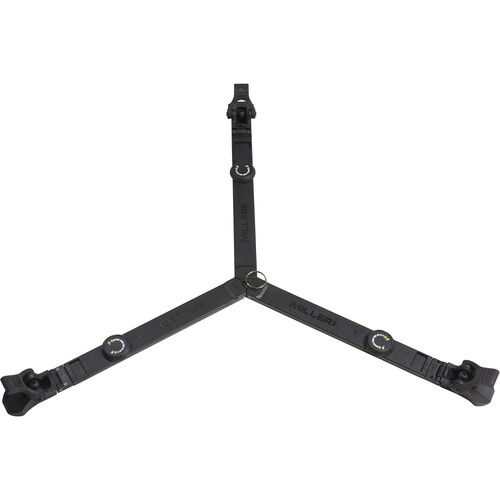

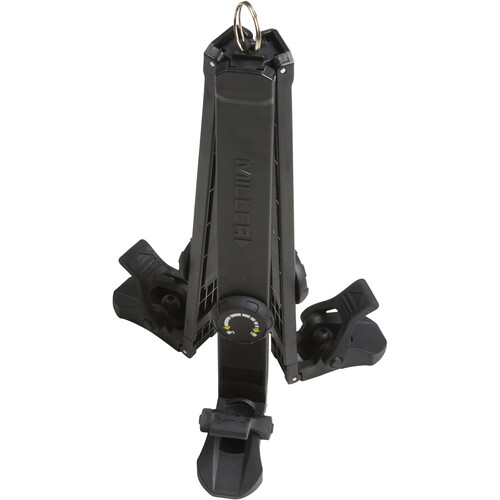

1x 470 On ground spreader
1x 696 Pan handle – telescopic with clamp
1x 3502 Arrowx soft case 2-stage

About The Miller 3023 ArrowX 1 Sprinter II System
The 3023 Alloy, Sprinter II, 2-stage Arrowx 1 system, fitted with ground spreader is designed for speed of setup, high level of stability and flexibility of payload, is best suited for level terrain.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.

The Arrowx 1 is matched with the 2 stage Sprinter II (alloy) tripod and ground spreader to give incredible speed of set up and incredible height range.

Payload Range 0-16.0kg (0-35.3lbs)
Weight 7.9kg (17.4lbs)
Height Range 602-1692mm (23.7-66.6″)
Transport Length 862mm 33.9”
Counterbalance Positions 16 selectable positions
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release camera plate (Euro)
Sliding Range 120mm (4.7”)
Mounting Base Ø100mm (3.9″) ball levelling
Height Above Bowl 162mm (6.4″)
Illuminated Controls Bubble level, pan-tilt drag controls
Pan Handle Telescopic 390-590mm (15.4-23.2″)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 2-stage
Lock Type HS single action
Leg Material Alloy

Compact, lightweight and versatile.
5 selectable positions of fluid pan and tilt drag + 0.
16 position CB Pluscounterbalance system.
Perfect for payloads to 0-16.0kg (0-35.3lbs).
Integrated 100mm bowl.
High speed independent 2-stage dual leg locks.
Durable black anodised alloy tubing.
Comes with on ground spreader.
Comes with 2-stage tripod bag.
3 year manufacturer’s warranty.
