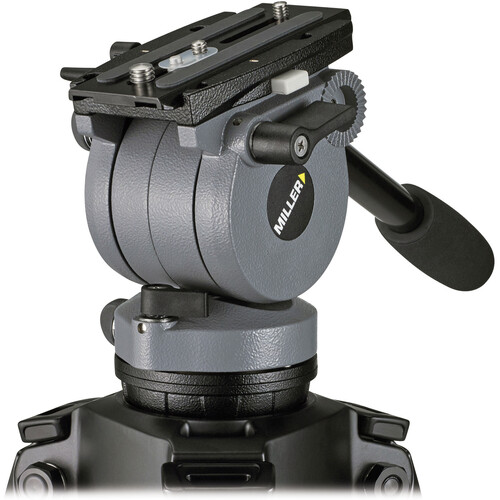

Miller 184 DS20 Fluid Head

OVERVIEW
The DS20 fluid head with a payload up to 10kg provides an economical alternative for HDV/P2HD/XDCAM EX cameras using additional on board accessories or configured for small studio use. The dual position counterbalance allows balancing of cameras both in standard configurations or heavier configurations.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 10kg
Type: Video

About The Miller 184 DS20 Fluid Head
The DS20 fluid head with a payload up to 10kg provides an economical alternative for HDV/P2HD/XDCAM EX cameras using additional on board accessories or configured for small studio use. The dual position counterbalance allows balancing of cameras both in standard configurations or heavier configurations.

Payload Range 5 to 10kg
Payload Capacity 10.00 kg (22 lbs)
Weight 1.75 kg (3.9 lbs)
Camera Platform Type Quick release 60mm sliding camera plate
Camera Plate Std 1/4″ + pin & 1/4″ & 3/8″ screws
Mounting 75mm Ball levelling
Tilt Drag Fluid drag plate system with friction boost
Tilt Range +90/-75°
Tilt Lock Calliper disc brake system
Pan Drag Fluid drag plate system with friction boost
Pan Range 360 °
Pan Lock Calliper disc brake system
Counter balance System 2 selectable positions
Temperature Range -40°C- +65°C
Pan Handle Fixed length
Depth Including Camera Platform 145 mm (5.7 in)
Body Width 72 mm (2.8 in)
Height Above Bowl 137 mm (5.4 in)

HDV/P2HD/XDCAM EX camcorders from 5kg to 10kg
Fluid drag system consistant in all temperature ranges
Selectable counterbalance system
Pan/Tilt locks utilising floating calliper type disc brakes
Quick release, sliding camera plate choice: 1/4″ & 3/8″ screws or 1/4″ & pin
75mm ball levelling with bubble level
