OVERVIEW
With the advent of single reporters/camera operators working in the field alone the DS10 fluid head has earned a reputation for providing professional fluid drag movement in an ultra lightweight yet robust head. Offering two selectable counterbalance positons for HDV/P2HD/XDCAM EX/DSLR camcorders using larger lens/batteries for payloads between 2.5-5 kg the DS 10 provides versatility that single camera operators require.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 5kg
Type:
Video

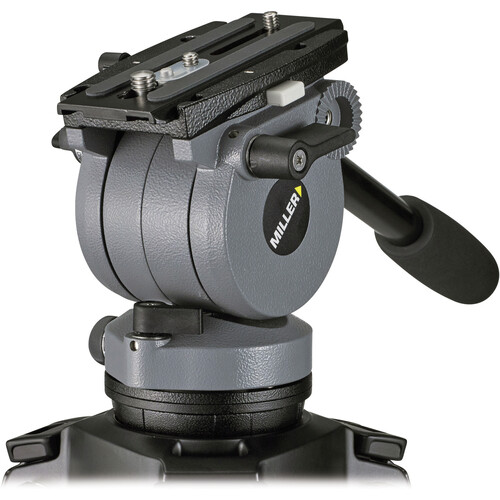

About The Miller 182 DS10 Fluid Head
With the advent of single reporters/camera operators working in the field alone the DS10 fluid head has earned a reputation for providing professional fluid drag movement in an ultra lightweight yet robust head. Offering two selectable counterbalance positons for HDV/P2HD/XDCAM EX/DSLR camcorders using larger lens/batteries for payloads between 2.5-5 kg the DS 10 provides versatility that single camera operators require.
Payload Range 2.5 to 5
Payload Capacity 5.00 kg (11 lbs)
Weight 1.70 kg (3.7 lbs)
Camera Platform Type Quick release 60mm sliding camera plate
Camera Plate Std. 1/4″ + pin
Mounting 75mm Ball levelling
Tilt Drag Fluid drag plate system with friction boost
Tilt Range +90/-75°
Tilt Lock Calliper disc brake system
Pan Drag Fluid drag plate system with friction boost
Pan Range 360 °
Pan Lock Calliper disc brake system
Counter balance System 2 selectable positions
Temperature Range -40°C – +65°C
Pan Handle Fixed length
Depth Including Camera Platform 145 mm (5.7 in)
Body Width 72 mm (2.8 in)
Height Above Bowl 137 mm (5.4 in)
HDV/P2HD/XDCAM EX/DSLR camcorders from 2.5-5kg
Fluid drag plate system consistant in all temperature ranges
Selectable counterbalance system
Quick release sliding camera plate:1/4” Screw and pin
Pan/Tilt locks utilising floating calliper type disc brakes
75mm ball levelling with bubble level
