OVERVIEW
The SOLO DV 20 ALLOY offers incredible price-performance support for payloads of up to 10Kg.
Designed around the popular Miller DS20 with ‘flick-of-a-switch’ selectable counterbalance, SOLO DV 20 ALLOY features a choice of 1/4″ & pin or 1/4″ & 3/8″ screw mounts with sliding quick release mount for lens and battery changes.
The SOLO DV 2-Stage ALLOY tripod complements this lightweight, true fluid drag support for all camcorders.

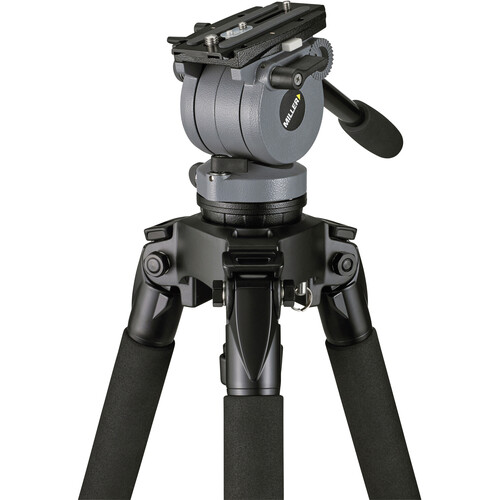

DS20 Fluid Head (184)
As the superior fluid head of the DV range, the DS20 fluid head offers two attachments choice: 1/4″ & 3/8″ screws or 1/4″ & pin, to attach MiniDV or tripod adaptor plates. Adjustable pan and tilt drags provide continuous friction for your flexible applications, while ‘flick-of-a-switch’ selectable counterbalance lets you tilt balance larger camcorders ranging from 5kg to 10kg.
Solo DV 2-Stage 75mm Alloy Tripod (1630)
The 2-Stage telescoping SOLO DV alloy tripod is designed for the single operator: quickly and securely setting up to 63″ (161cm), packing down…
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 10kg
Max Height Group: 65-70 inch
Min Height Group: 10-20 inch
Leg Section: 3 Section
Spreader Type: No Spreader
Head Fitting: 75mm
Material: Aluminium
Type: Video
INCLUDED IN BOX
1x DS20 Fluid Head
1x Solo 75 2-stage tripod (alloy)
1x Pan Handle – fixed with clamp
1x Solo 75 2-stage tripod bag
About The Miller 1643 DS20 Solo DV System
The SOLO DV 20 ALLOY offers incredible price-performance support for payloads of up to 10Kg.
Designed around the popular Miller DS20 with ‘flick-of-a-switch’ selectable counterbalance, SOLO DV 20 ALLOY features a choice of 1/4″ & pin or 1/4″ & 3/8″ screw mounts with sliding quick release mount for lens and battery changes.
The SOLO DV 2-Stage ALLOY tripod complements this lightweight, true fluid drag support for all camcorders.
DS20 Fluid Head (184)
As the superior fluid head of the DV range, the DS20 fluid head offers two attachments choice: 1/4″ & 3/8″ screws or 1/4″ & pin, to attach MiniDV or tripod adaptor plates. Adjustable pan and tilt drags provide continuous friction for your flexible applications, while ‘flick-of-a-switch’ selectable counterbalance lets you tilt balance larger camcorders ranging from 5kg to 10kg.
Solo DV 2-Stage 75mm Alloy Tripod (1630)
The 2-Stage telescoping SOLO DV alloy tripod is designed for the single operator: quickly and securely setting up to 63″ (161cm), packing down to a compact 27″ (70cm) for transport; and hitting a low 9″ (23cm). Selectable leg angle locks ensure rapid stabilisation at any height, while the 75mm diecast alloy bowl and fluid head bubble level offers quick levelling, optimum torsional rigidity and durability under extreme field conditions.
Pan Handle (680)
Fixed length pan handle supplied with grey handle carrier to suit DS5, DS10 and DS20 Fluid Heads.

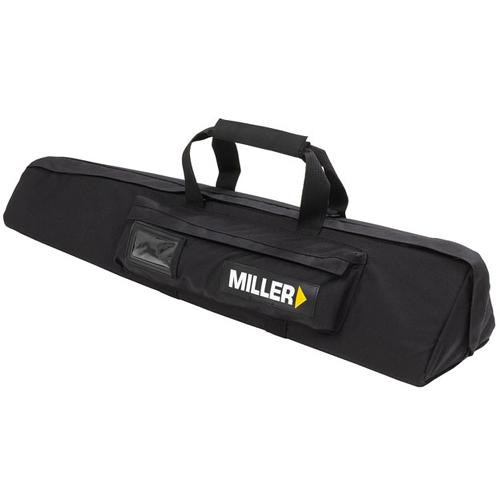

Solo DV Softcase (1518)
The Solo DV Softcase is a compact and comfortable carrying solution made from weatherproof cordura construction. Weighing only 0.65kg and a transport length of 850mm this softcase is the perfect travelling companion.
Material: Aluminium
Construction: 2-Stage
Maximum Height: 1762 mm (69.4 in)
Minimum Height: 371 mm (14.6 in)
Mounting Standard: 75mm ball levelling
Payload Capacity: 10.00 kg (22 lbs)
Payload Range: 5 to 10 kg
Transport Length: 837 mm (33 in)
Weight: 4.8 kg (10.7 lbs)
True fluid pan and tilt
SOLO DV Alloy telescope tubing
75mm ball levelling
Quick Release sliding camera plate
flick-of-a-switch 10 – 20lb CB selection
