MID49 DB-8 Power Distribution Box Sony Burano – VM

OVERVIEW
The Power Distribution Box DB-8 from Sony Burano is a versatile and essential accessory for any camera setup. It attaches directly to the back of the camera body via the V-Mount interface, providing intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Additionally, the DB-8 features a removable LANC cable, allowing for remote start/stop capability using 3pin Fischer devices.

One of the most convenient features of the DB-8 is its ability to hot swap between an onboard battery and a 4pin XLR DC INPUT without interrupting power to the camera or accessories. When both sources are connected, the DC INPUT takes priority and will continue to power the camera until it reaches 12.5V, at which point the DB-8 will automatically switch to the onboard battery. The DB-8 also utilizes a SMART FUSE design, which monitors camera power and allocates the remaining power budget to accessories. In case of a short circuit, the system will immediately shut down and can only be turned back on once the issue has been resolved. With its compatibility with Sony Venice and Venice 2 and optional start/stop capability, the DB-8 is a reliable and efficient power solution for any camera setup.

This text is summarized by AI

INCLUDED IN BOX
1x DB-8 Power Distribution Box For Sony Burano – V Mount

About The MID49 DB-8 Power Distribution Box Sony Burano – VM

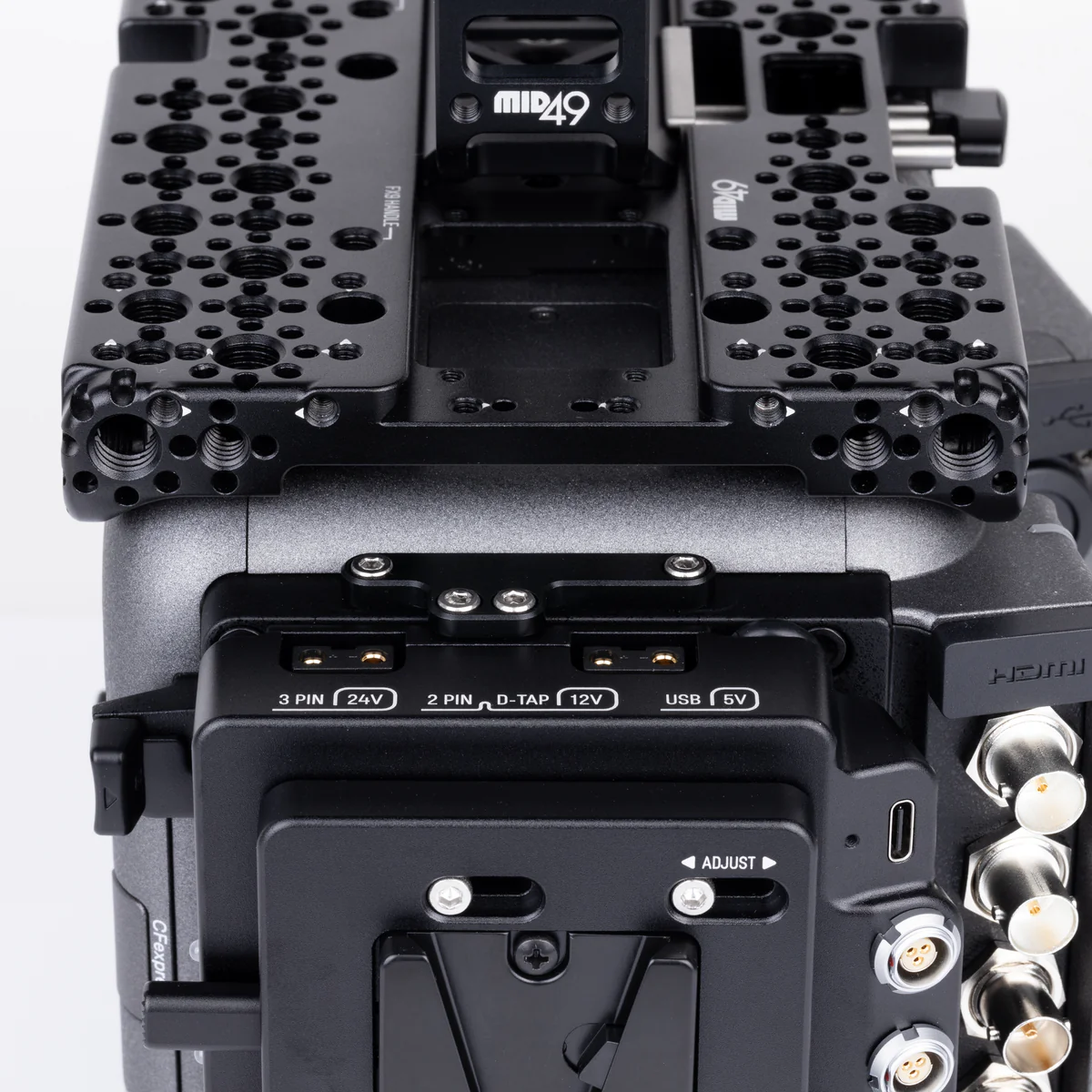

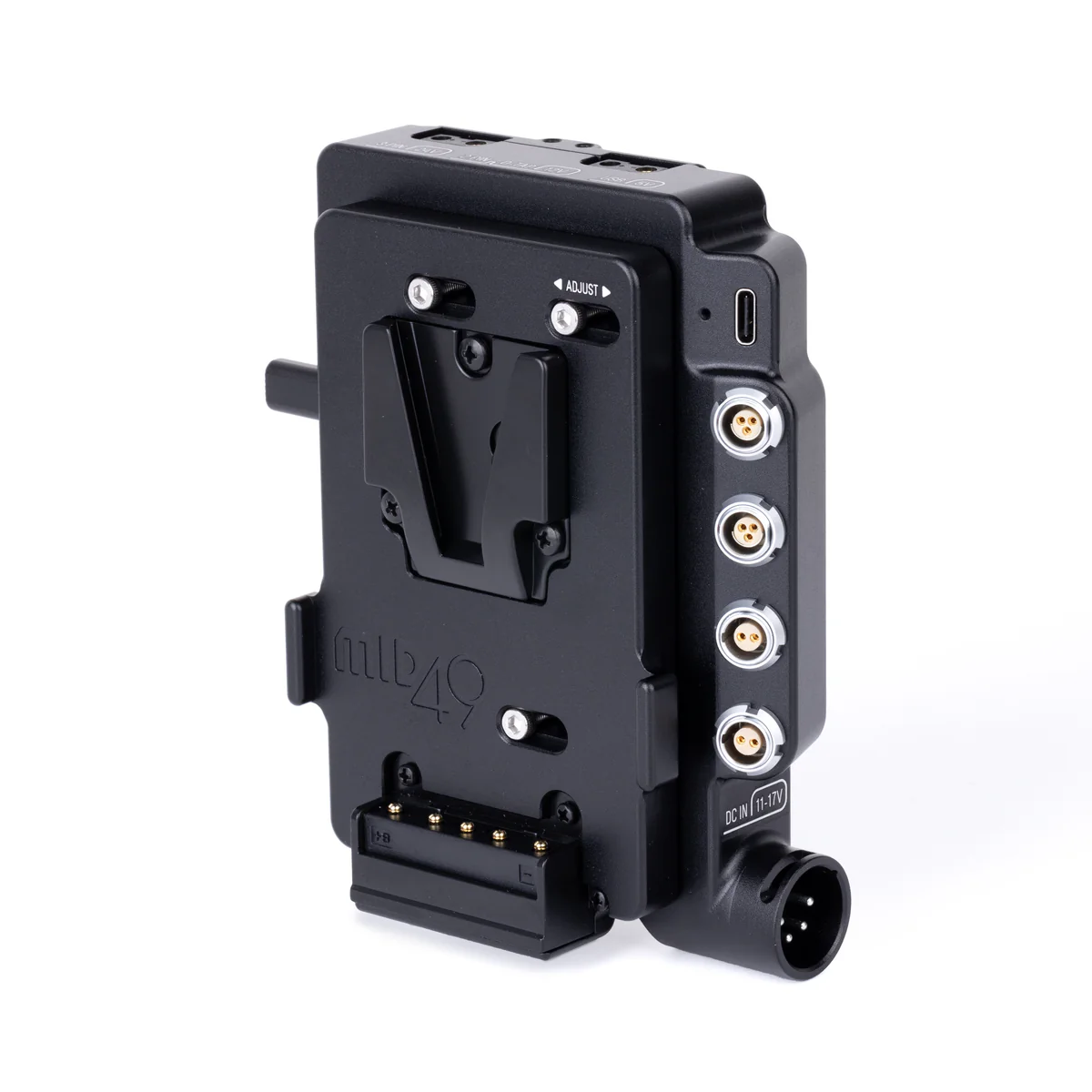

Power Distribution Box DB-8 (Sony Burano, V-Mount) attaches directly to the back of the camera body using the V-Mount interface to provide intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable LANC cable enables remote start/stop capability using 3pin Fischer devices.

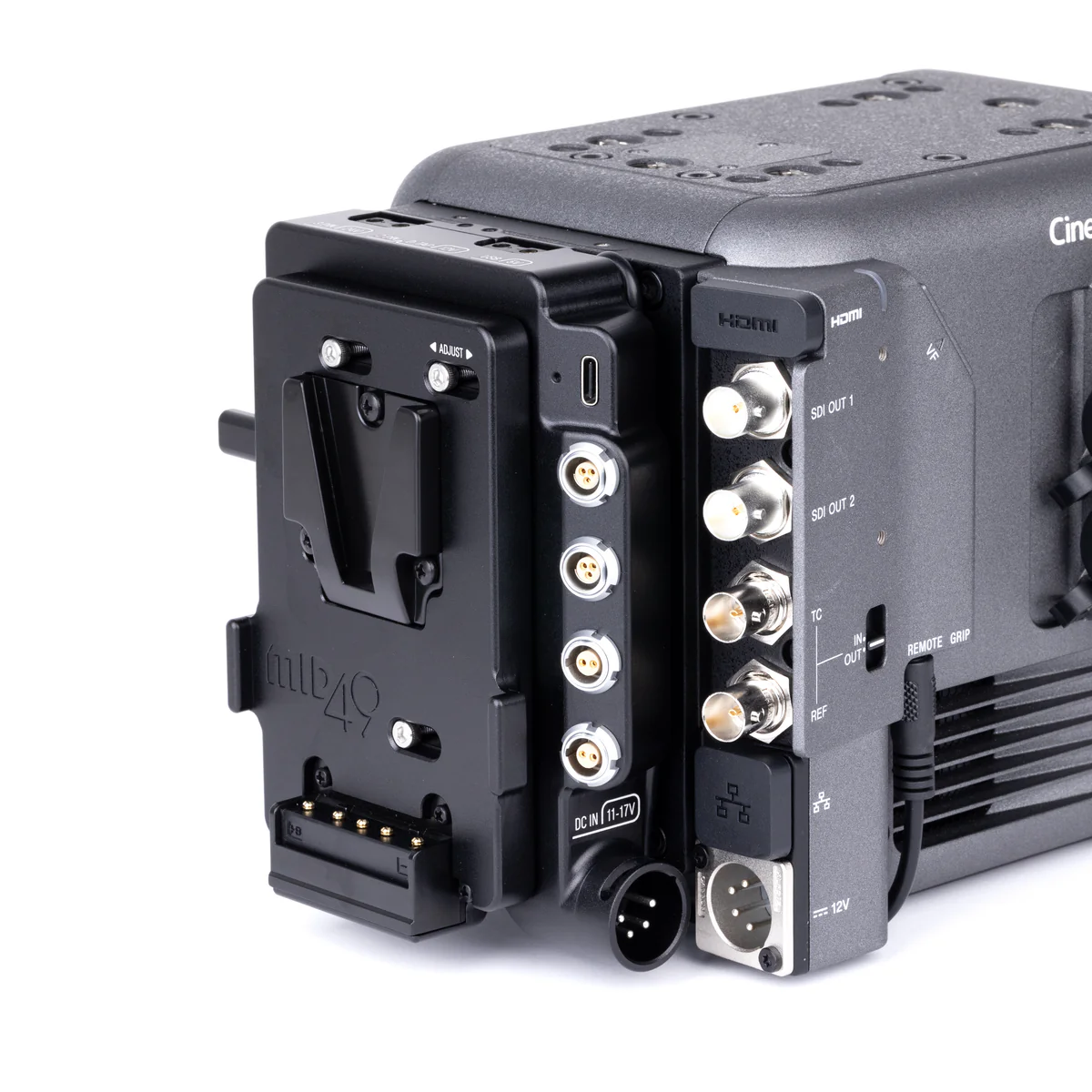

Hot swap between onboard battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-8 will switch to an onboard battery.

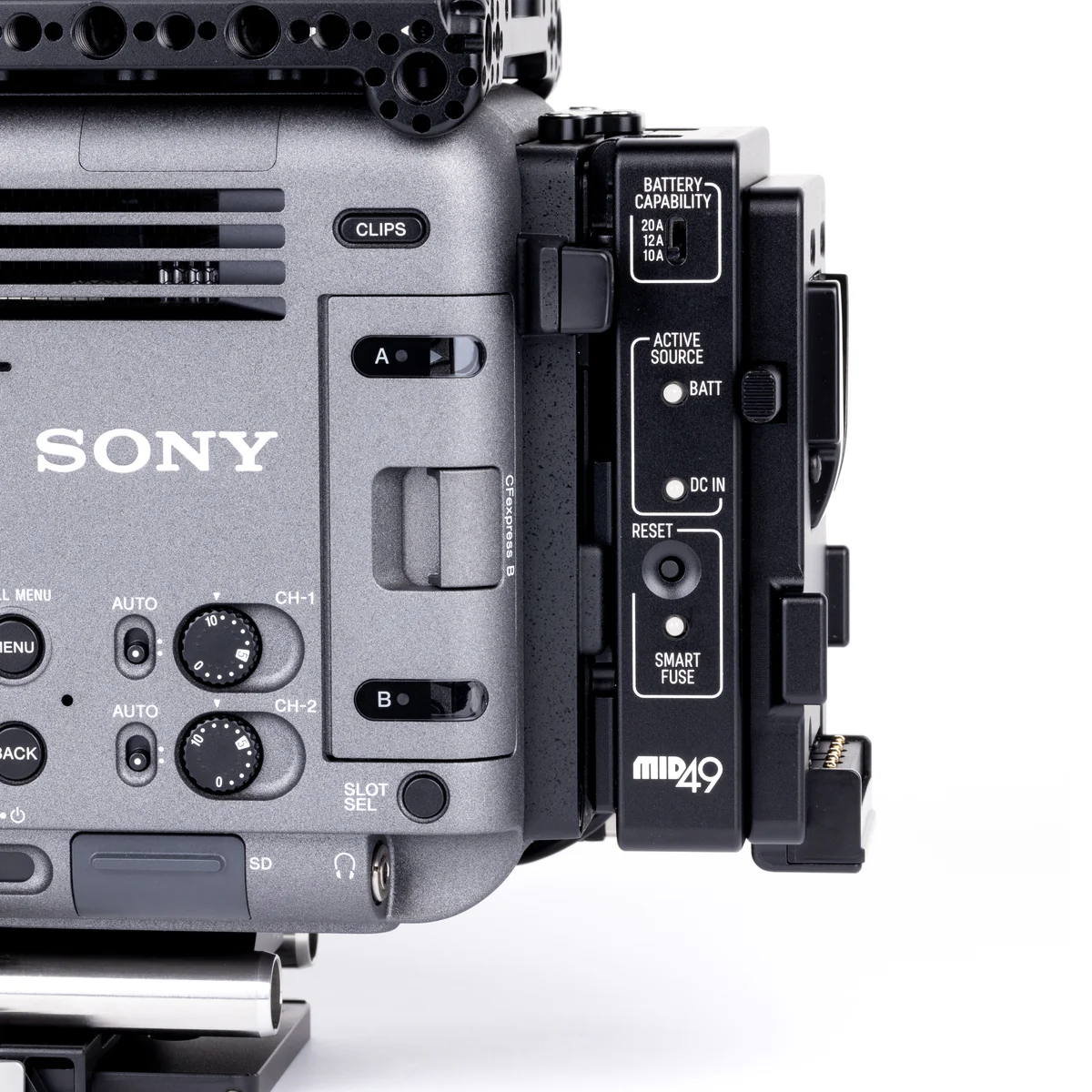

With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the Burano uses approximately 2.8A at 14V so when using a 10A capable battery, the remaining 6.2A is allocated for accessory use. If an accessory configuration exceeds the 6.2A limit, accessory power is cut off, leaving the camera powered. The “SMART FUSE” LED will illuminate showing the error and once the configuration has been adjusted to lower than 6.2A, the RESET button can be pressed and power will be re-enabled to accessory outputs.

In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.

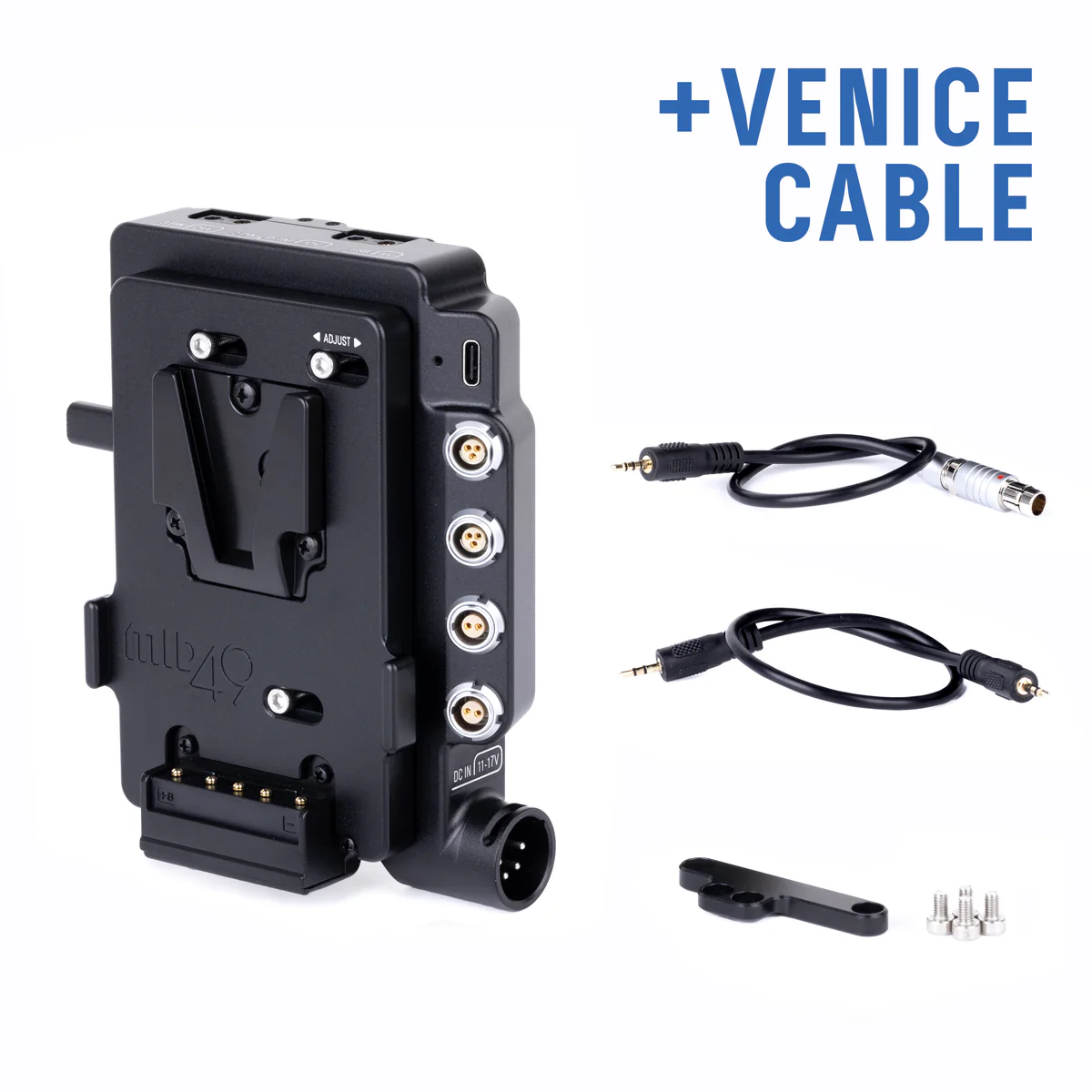

The DB-8 is also compatible with Sony Venice and Venice 2 and start / stop capability can be added using the optional adapter cable.

INPUTS
BATT Gold Mount plate with Anton Bauer communication
DC IN 4pin XLR (11-17V)
OUTPUTS 2x D-Tap (battery voltage)
2x 3pin (24V at 2.5A with run/stop)
2x 2pin (battery voltage)
1x USB-C PD (5V at 3A with thread lock)
Product Weight 13.6oz (385g)
