OVERVIEW
The Astra IP is a compact and versatile Bi-Colour LED panel, featuring a weatherproof rating of IP65. With a high output of 1,500 lux at 10ft/3m and a beam angle of 30˚, this panel is perfect for demanding environments. It also comes with a diffusion panel and has an average CRI/TLCI of 95. Weighing just 6.2lb/2.8kg, it is easy to carry and can be powered by a wide range of mobile options. It also has integrated Bluetooth and is compatible with a DMX module, as well as a variety of modifiers and accessories.
The Astra IP is designed for all-weather performance, making it the top choice for broadcast lighting. With its powerful output and efficient LEDs, it can deliver intense lighting in even the brightest locations. It is also rated IP65, making it resistant to rain, dust, and snow. The Astra IP Half, the most compact in the range, is perfect for small spaces and low ceilings, while still providing a powerful output of 1,500 lux. With its rugged design and multiple power options, the Astra IP is always ready for action, no matter the conditions.
This text is summarized by AI
INCLUDED IN BOX
1x Astra IP Half Bi-Colour LED Panel (Standard Yoke, EU Power Cable)
1x Astra IP Half Medium Diffuser (937-0023)

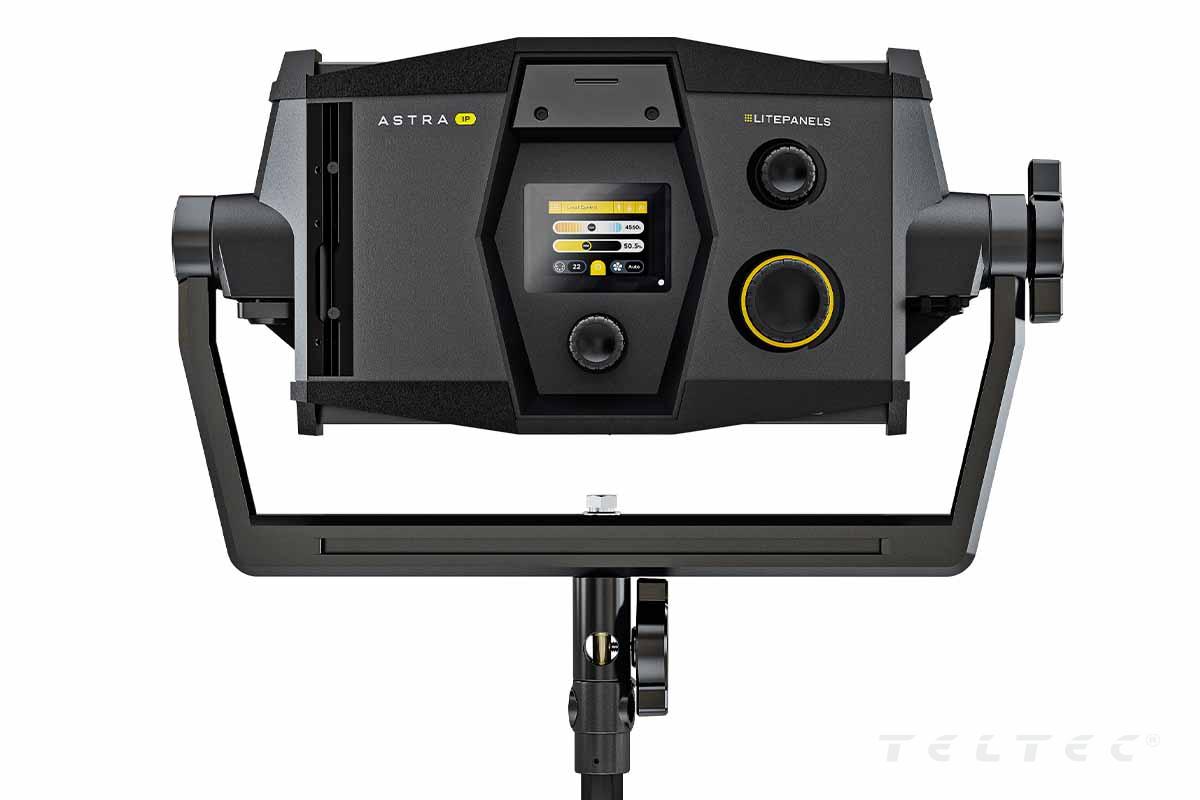

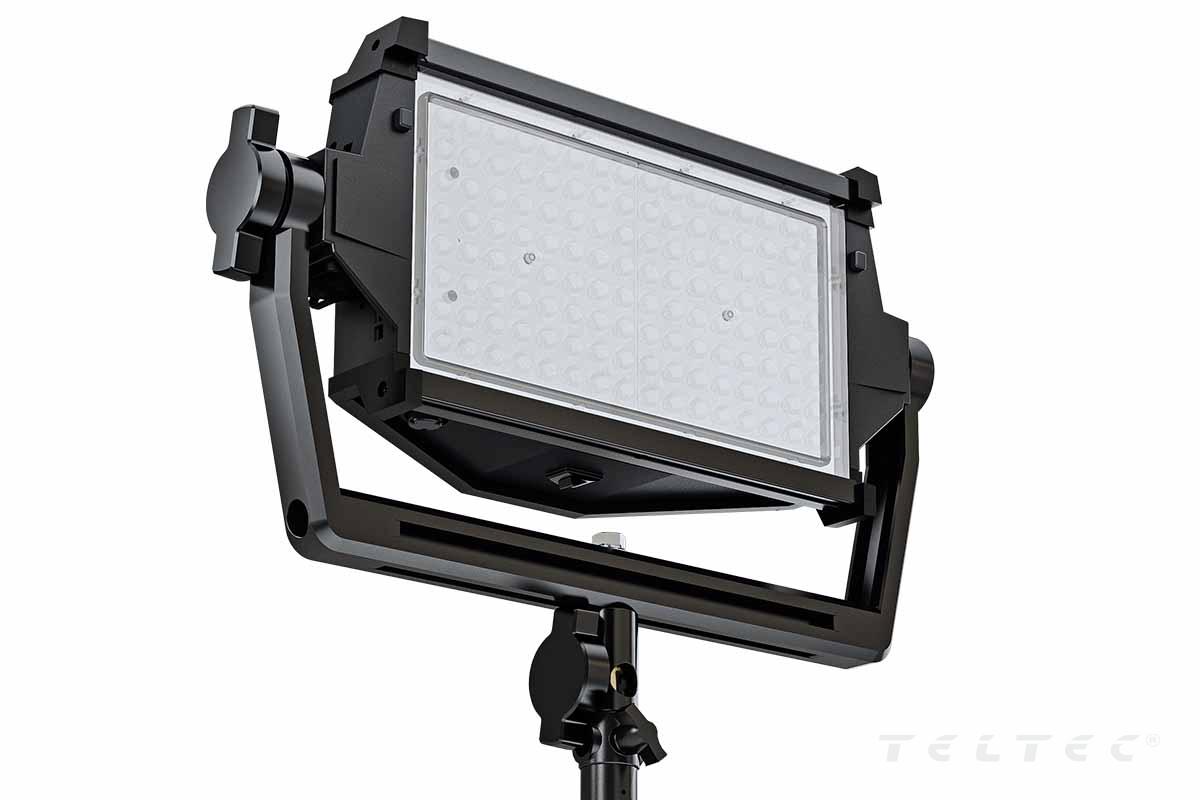

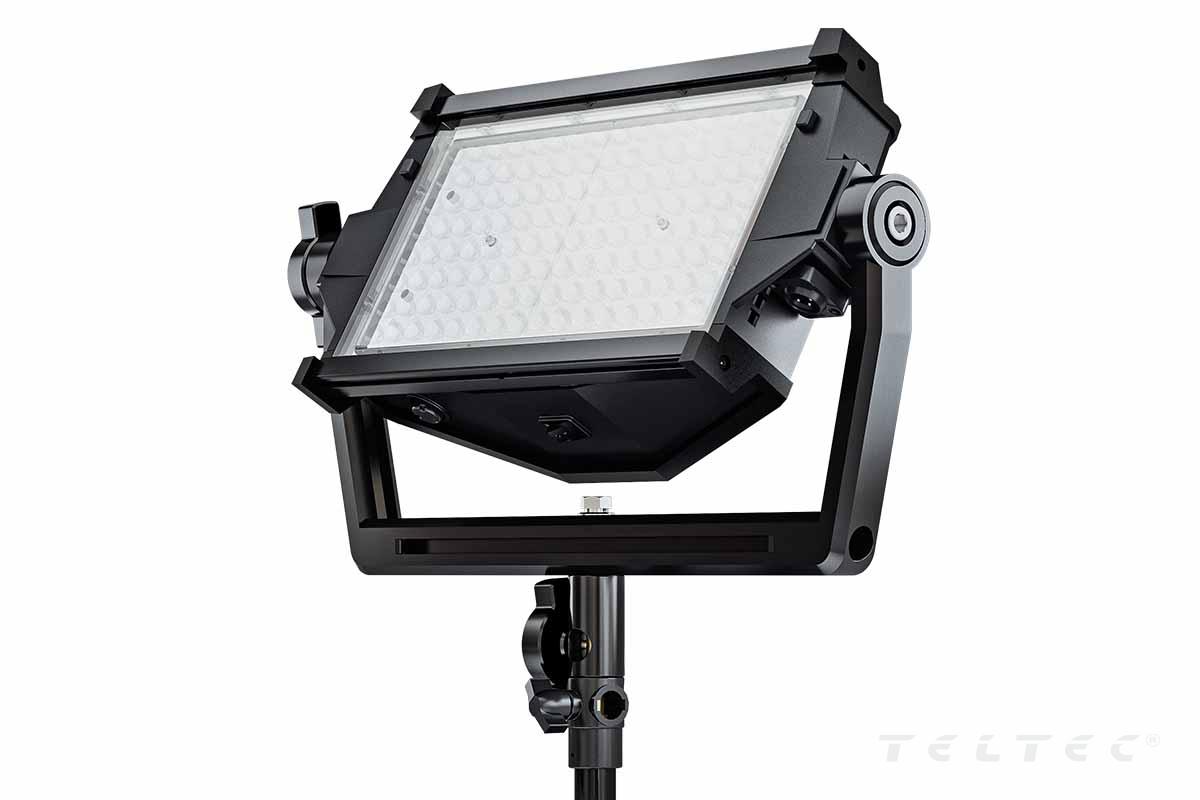

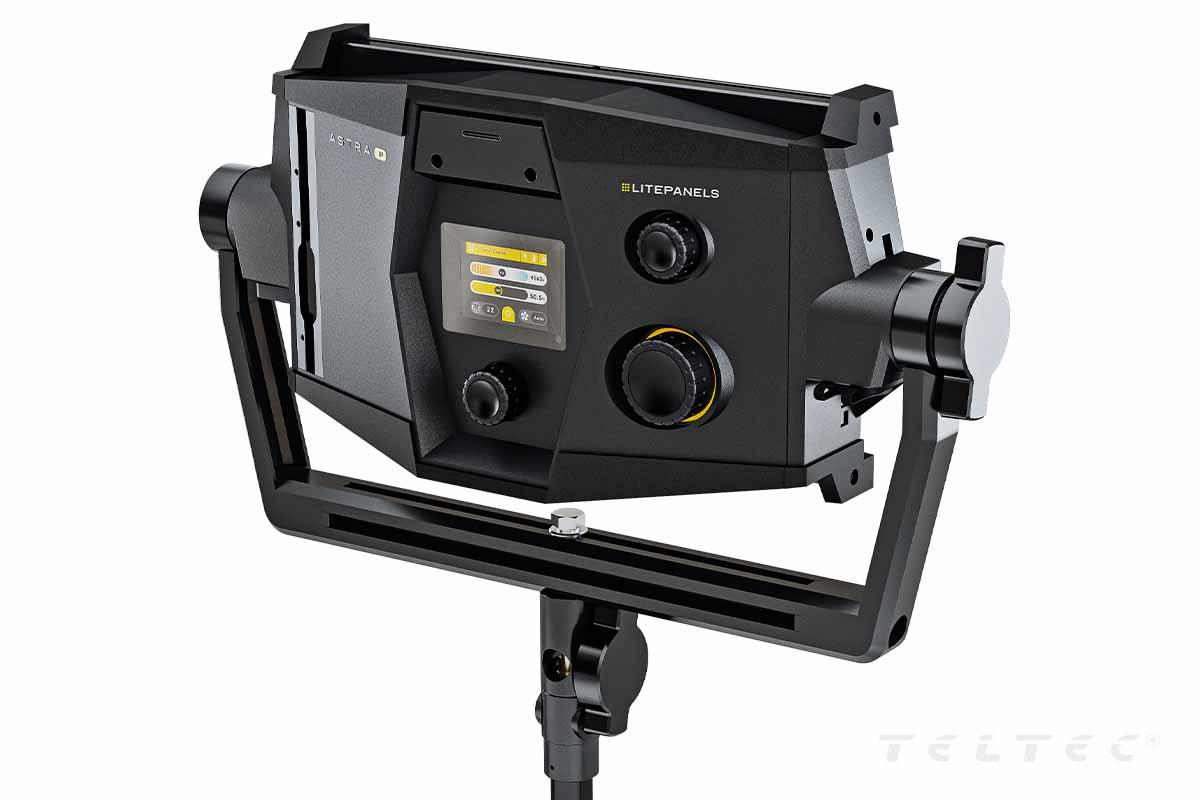

About The Litepanels Astra IP Half LED Panel – SY EU
All-Weather Performance
The industry’s best-selling Bi-Colour LED panel has evolved. Astra IP is tough and water-resistant, delivering intense output in lightweight 1×1, half-size and 2×1 fixtures with fast set up for high-performance broadcast lighting in demanding environments.
Power and Punch
Lighting for even the brightest location. With ultra-efficient LEDs and a tight beam angle, Astra IP produces output with impact. Command powerful, flattering, and accurate white light at any intensity, with or without diffusion. Adjust from 2,700K to 6,500K with instant confirmation on the clear LCD screen to match multiple fixtures with confidence.
Ready for Action
From the studio to the street, Astra IP always performs. Rated IP65, Astra IP defies rain, dust, or snow, for seamless operation, whatever the weather. Built tough with an integrated power supply, and optional Gold Mount, V-Mount and BP-U battery plates, Astra IP is the fast fixture that never backs down in any conditions.
Astra IP Half
Weighing in at just 6.2lb/2.8kg, the lightweight Astra IP Half is perfect for small spaces and low ceilings. The most compact in the range, it boasts a powerful 1,500 lux output at 10ft/3m, delivering weatherproof reliable performance and exceptional brightness, rain, or shine.
Optical
LED Panel Bi-Colour
Beam Angle 30°
Colour Temperature Range 2700°-6500°K
Daylight (5600°K) lux @10ft/3m 1500 (No diff)
Tungsten (3200°K) lux @10ft/3m 1400 (No diff)
CRI Average 95
TCLI Average 95
Interchangable Diffusers Domed (not included)
Medium (included)
Optics 30° custom TIR lens
Operational
Lighting Control Modes CCT/FX with LCD menu control
Preset Options Preset CCT modes with quick select
Customizable user presets with quick select
Dimming Control Constant Current 0-100% Continuous (flicker free)
Remote Control Options Bluetooth [integrated], DMX, RDM [requires separate module]
Fan Control N/A
USB Updates Yes
Ambient Temp Operation -4° to 113° F / – 20° to + 45° C
Estimated LED lifetime 50,000+ hrs
Mechanical
Versions Manual
Weight 6.2 lbs / 2.8kg (including yoke and power supply)
Mounting Method TVMP
Dimensions (without yoke)
Height 7.4″ / 18.9cm
Width 14.8″ / 37.6cm
Depth 4.2″ / 10.6cm
Dimensions (with yoke)
Height 12.1″ / 30.8cm
Width 17″ / 43.2cm
Depth 4.2″ / 10.6cm
Electrical
Nominal Power Draw 63W
Power Supply Internal
Mains Input PowerCON True 1, 100-240 VAC / 50-60Hz
DC Input 12-30V
IP Rating IP65
Compact Bi-Colour LED panel (2,700K to 6,500K)
IP65 weatherproof rating
High output of 1,500 lux at 10ft/3m with 30˚ beam angle
Diffusion panel included
CRI/TLCI average 95
Easy to carry at just 6.2lb/2.8kg
Compatible with a wide range of mobile power options
Integrated Bluetooth with optional DMX module
Range of optional modifiers and other accessories
