OVERVIEW
All-Weather Performance
The industry’s best-selling Bi-Colour LED panel has evolved. Astra IP is tough and water-resistant, delivering intense output in lightweight 1×1, half-size and 2×1 fixtures with fast set up for high-performance broadcast lighting in demanding environments.
Power and Punch
Lighting for even the brightest location. With ultra-efficient LEDs and a tight beam angle, Astra IP produces output with impact. Command powerful, flattering, and accurate white light at any intensity, with or without diffusion. Adjust from 2,700K to 6,500K with instant confirmation on the clear LCD screen to match multiple fixtures with confidence.
Ready for Action
From the studio to the street, Astra IP always performs. Rated IP65, Astra IP defies rain, dust, or snow, for seamless operation, whatever the weather. Built tough with an integrated power supply, and optional Gold Mount, V-Mount and BP-U battery plates, Astra IP is the fast fixture that never…
INCLUDED IN BOX
1x Astra IP 1×1 Bi-Colour LED Panel (Standard Yoke, UK Power Cable)
1x Astra IP 1×1 Medium Diffuser (937-0024)
About The Litepanels Astra IP 1×1 LED Panel – SY UK
All-Weather Performance
The industry’s best-selling Bi-Colour LED panel has evolved. Astra IP is tough and water-resistant, delivering intense output in lightweight 1×1, half-size and 2×1 fixtures with fast set up for high-performance broadcast lighting in demanding environments.
Power and Punch
Lighting for even the brightest location. With ultra-efficient LEDs and a tight beam angle, Astra IP produces output with impact. Command powerful, flattering, and accurate white light at any intensity, with or without diffusion. Adjust from 2,700K to 6,500K with instant confirmation on the clear LCD screen to match multiple fixtures with confidence.
Ready for Action
From the studio to the street, Astra IP always performs. Rated IP65, Astra IP defies rain, dust, or snow, for seamless operation, whatever the weather. Built tough with an integrated power supply, and optional Gold Mount, V-Mount and BP-U battery plates, Astra IP is the fast fixture that never backs down in any conditions.

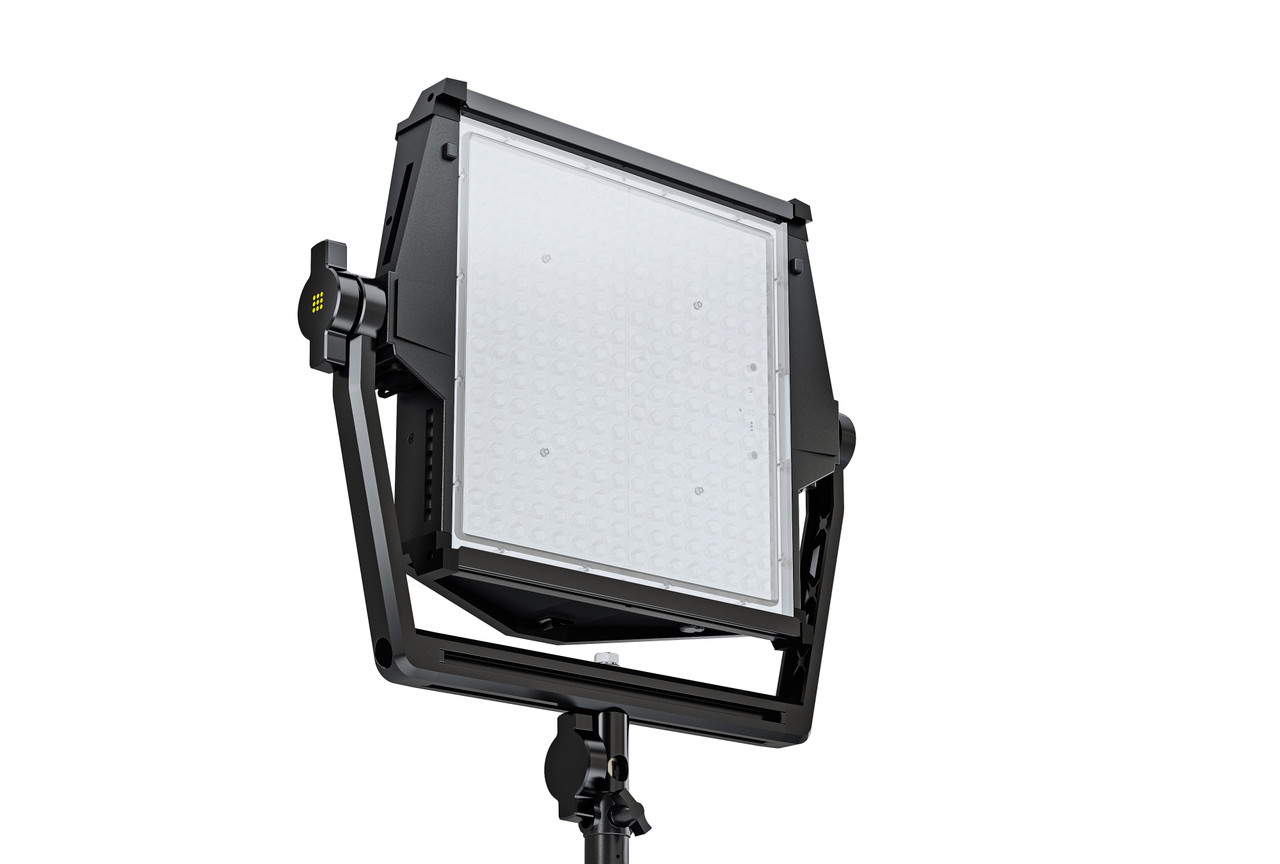

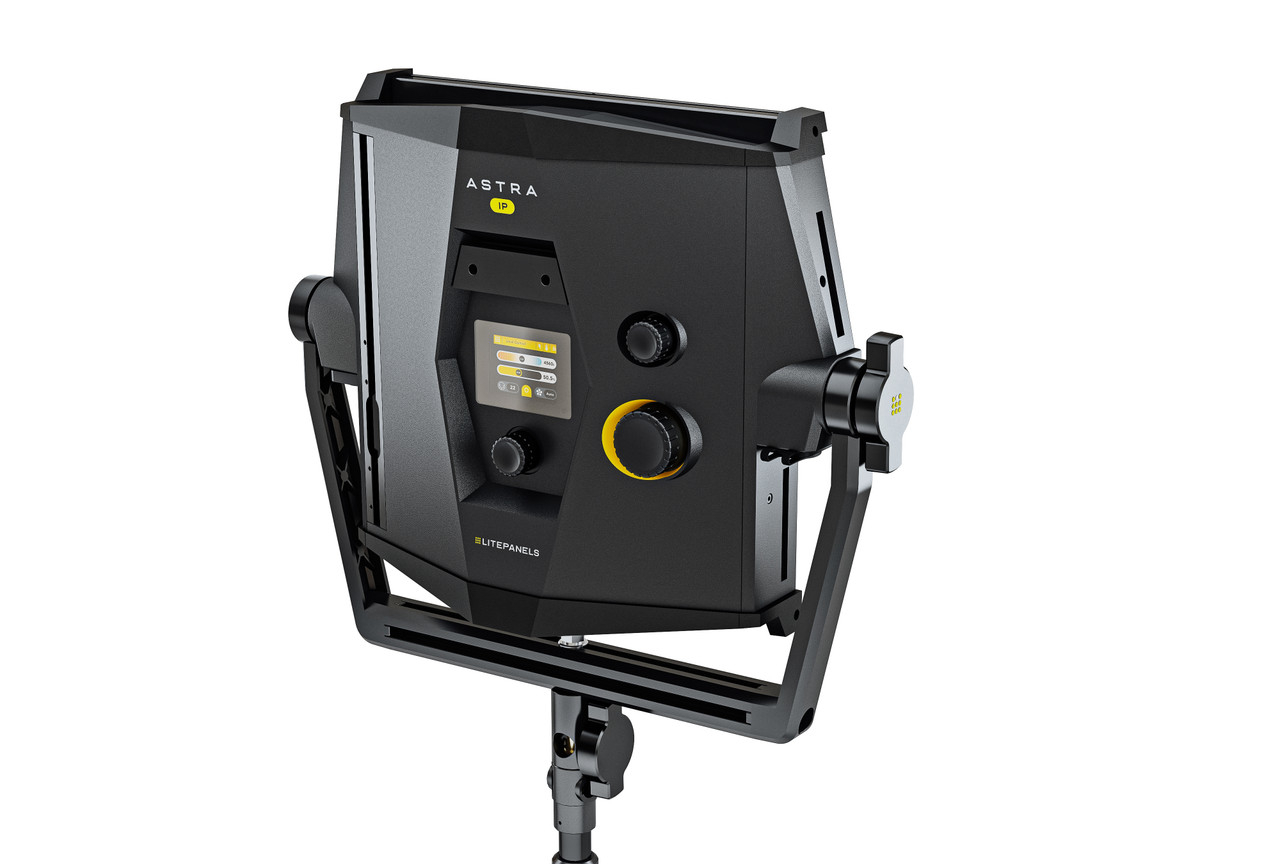

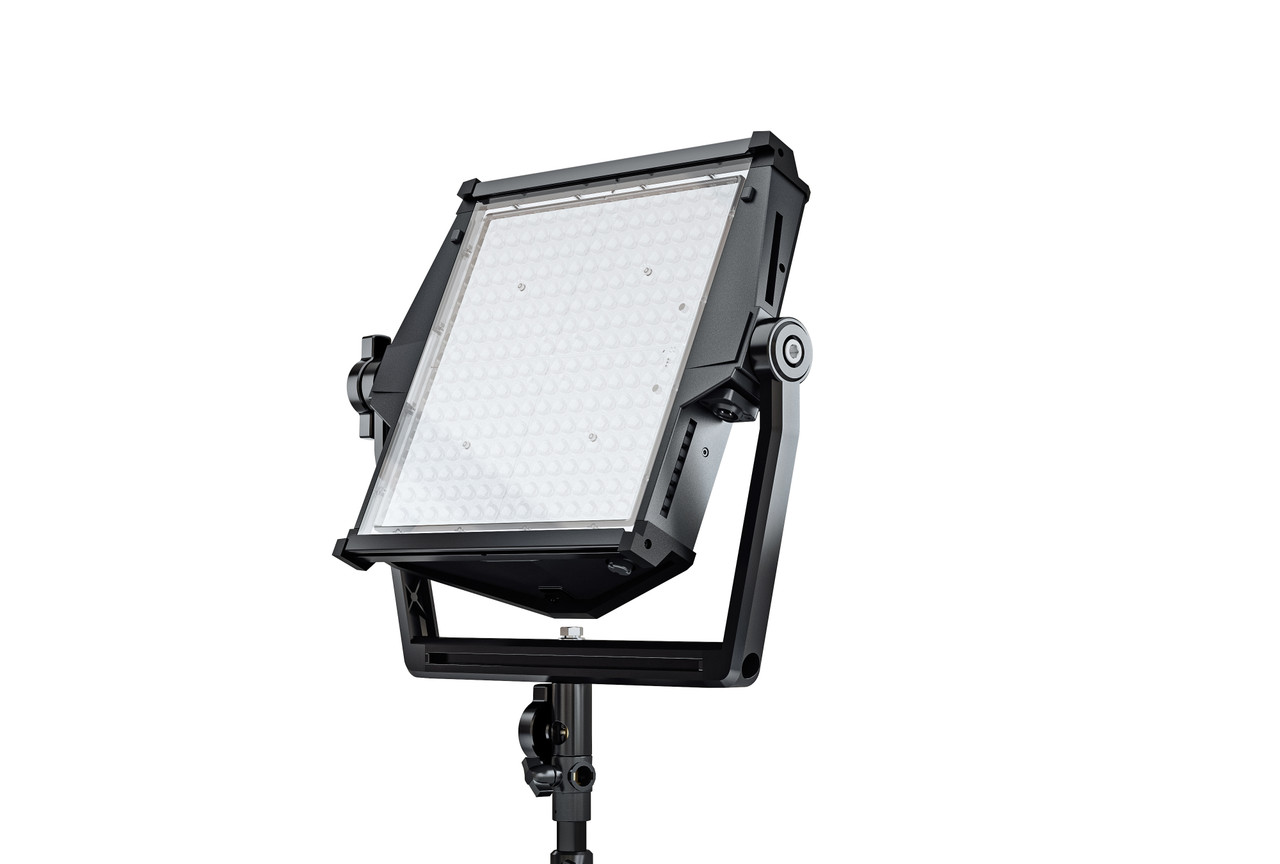

Astra IP 1×1
Astra IP 1×1 outshines previous models, boasting an impressive output of 3,000 lux at 10ft/3m. Compact and light enough to hand hold at just 9.7lb/4.4kg, the tough and weatherproof Astra IP 1×1 delivers exceptional, consistent high-quality white light in any conditions.
Optical
LED Panel Bi-Colour
Beam Angle 30°
Colour Temperature Range 2700°-6500°K
Daylight (5600°K) lux @10ft/3m 3000 (No diff)
Tungsten (3200°K) lux @10ft/3m 2800 (No diff)
CRI Average 95
TCLI Average 95
Interchangable Diffusers Domed (not included)
Medium (included)
Optics 30° custom TIR lens
Operational
Lighting Control Modes CCT/FX with LCD menu control
Preset Options Preset CCT modes with quick select
Customizable user presets with quick select
Dimming Control Constant Current 0-100% Continuous (flicker free)
Remote Control Options Bluetooth [integrated], DMX, RDM [requires separate module]
Fan Control Yes
USB Updates Yes
Ambient Temp Operation -4° to 113° F / – 20° to + 45° C
Estimated LED lifetime 50,000+ hrs
Mechanical
Versions Manual
Weight 9.7 lbs / 4.4kg (including yoke and power supply)
Mounting Method TVMP
Dimensions (without yoke)
Height 12.4″ / 31.4cm
Width 14.8″ / 37.6cm
Depth 4.3″ / 10.8cm
Dimensions (with yoke)
Height 16.8″ / 42.7cm
Width 17″ / 43.1cm
Depth 4.3″ / 10.8cm
Electrical
Nominal Power Draw: 125W
Power Supply Internal
Mains Input PowerCON True 1, 100-240 VAC / 50-60Hz
DC Input 12-30V
IP Rating IP65
Bi-Colour 1×1 LED panel (2,700K to 6,500K)
IP65 weatherproof rating
High output of 3,000 lux at 10ft/3m with 30˚ beam angle
Diffusion panel included
CRI/TLCI average 95
Easy to carry at just 9.7lb/4.4kg
Compatible with a wide range of mobile power options
Integrated Bluetooth with optional DMX module
Range of optional modifiers and other accessories
