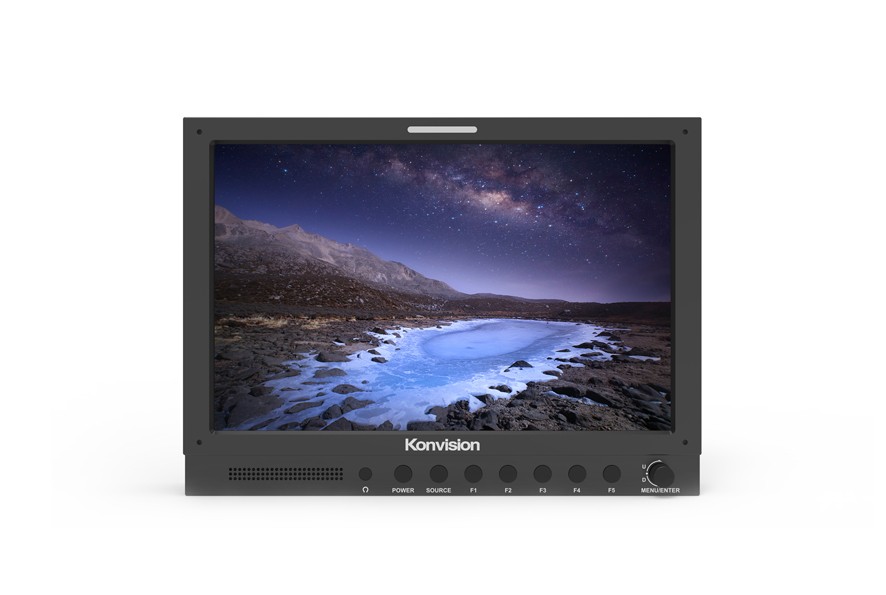

Konvision KVM-1060W 10in FHD 3G-SDI Monitor

OVERVIEW
The 10.1 inch monitor has a resolution of 1920×1200 and features 2 x 3G/HD/SD-SDI inputs. It supports 4:4:4 SMPTE425-AB signal and also has 1 x 3G/HD/SD-SDI output, 1 x HDMI input and output, and 1 x Video input that can be shared with the SDI1 input BNC. Users can import their own 3D LUT files and the monitor also offers features such as Waveform, False Colour, Focus Assist, Zebra, Aspect Ratio, Safe & Area Marker, UMD, Time Code, Blue/Mono Only, Darkness Check, Video Freeze, Fast Mode, Picture Flip, PIP/PBP, 16CH SDI & 2CH HDMI embedded audio, Dynamic & Static UMD, IMD Tally Display (TSL V3.1/4.0), a 3.5mm headset jack, and Tally Indicator. The monitor is housed in an aluminium alloy casing and also offers PIP & PBP functionality.

The monitor supports displaying images of two SDI signals simultaneously, as well as PIP and PBP for one SDI signal with another signal (Video/Component/DVI/VGA). It also has features such as Waveform, False Colour, Focus Assist, Zebra, and Picture Flip to aid in exposure and focus control. The Picture Flip function also allows for a negative image, which is useful in studio settings such as weather forecasts and news programs.

This text is summarized by AI
SUMMARY
Screen Size: 10.1 Inch
Resolution: 1920 x 1200
Aspect Ratio: 16:10
Inputs: 1 x 3G-SDI
Outputs: 1 x 3G-SDI
INCLUDED IN BOX
1x KVM-1060W 10in Monitor

About The Konvision KVM-1060W 10in FHD 3G-SDI Monitor
PIP & PBP

Images of two SDI signals manage to display on screen at the same time. It also supports PIP and PBP for one SDI signal with the other signal (Video/Component/DVI/VGA). The two images can swap freely between each other.

Waveform

SDI supports Waveform, when luminance reaches or exceeds the preset value, the over exposure areas will be red marked (Waveform Alarm).

False Colour

Check exposure of the image. Blue, cyan, green, yellow, orange, and red colour can be displayed in turn to show the luminance or brightness values of the image from darkest to brightest, enables an achievement of proper exposure without applying external test equipment.

Focus Assist

Focus assist aids the camera operator in obtaining the sharpest possible picture, it will mark with red colour where the sharp edges appear on the screen.

Zebra

Display the overexposed areas (too bright) of the image with zebra stripes, aids the camera operator to control the luminance to avoid overexposure. This feature is very effective for proper exposure.

Picture Flip

Horizontal picture flip function allows negative image, is very useful in the studios/virtual studios, such as weather forecast, news, and other programs, etc.

Panel
Display Size 10.1″
Resolution 1920×1200
Aspect Ratio 16:10
Viewing Angle 160°(H) / 160°(V)
Pixel Pitch 0.03325×0.09975(mm)
Colour Depth 16.7M
Back Light LED
Brightness 450cd/m2
Contrast Ratio 1000:1
Input
1 × BNC 3G/HD/SD-SDI input (Video input share with SDI1 input BNC)
1 × BNC 3G/DH/SD-SDI input
1 × HDMI HDMI input (optional)
Output
1 × BNC 3G/HD/SD-SDI output
1 x HDMI HDMI output(optional)
Compatible SDI Formats
SMPTE-425M-A/B
4:2:2 YCbCr 10-bit 1080p(60/59.94/50)
4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)
4:4:4 YCbCr/RGB 12-bit 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:2:2 YCbCr 12-bit 1080i (60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:4:4 YCbCr/RGB 10-bit 720p(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-274M 1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M 720p(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-260M 1035i(60/59.94)
SMPTE-125M 480i(59.94)
ITU－R BT.656 576i(50)
Audio In/Out
SDI/HDMI Audio In 16 Channels SDI/2 Channels HDMI embedded audio
Audio Meter Display H/V Audio Level Meter Display(VU+PPM)
Audio Headset Output 3.5mm Headset Jack
Built-in Speaker 2.5W×1
General
Operating Temperature -10℃～50℃
Input Voltage DC 8.4V – 16.8V
Power Consumption 20 W
Power-Saving Mode Turn off unimportant Key Automatically if no signal input
Accessory Power adaptor
¤ specifications may be changed without prior notice.

10.1 inch 1920×1200 resolution
2 x 3G/HD/SD-SDI inputs
Supports 4:4:4 SMPTE425-AB signal
1 x 3G/HD/SD-SDI output, 1 x HDMI input & output
1 x Video input (share with SDI1 input BNC)
Support user 3D LUT files import
Waveform, False Colour, Focus Assist, Zebra
Aspect Ratio, Safe & Area Marker, UMD
Time Code, Blue/Mono Only
Darkness Check, Video Freeze, Fast Mode
Picture Flip, PIP/PBP
16CH SDI & 2CH HDMI embedded audio
Dynamic & Static UMD, IMD Tally Display (TSL V3.1/4.0)
3.5mm headset jack, Tally Indicator
Aluminium Alloy Casing
