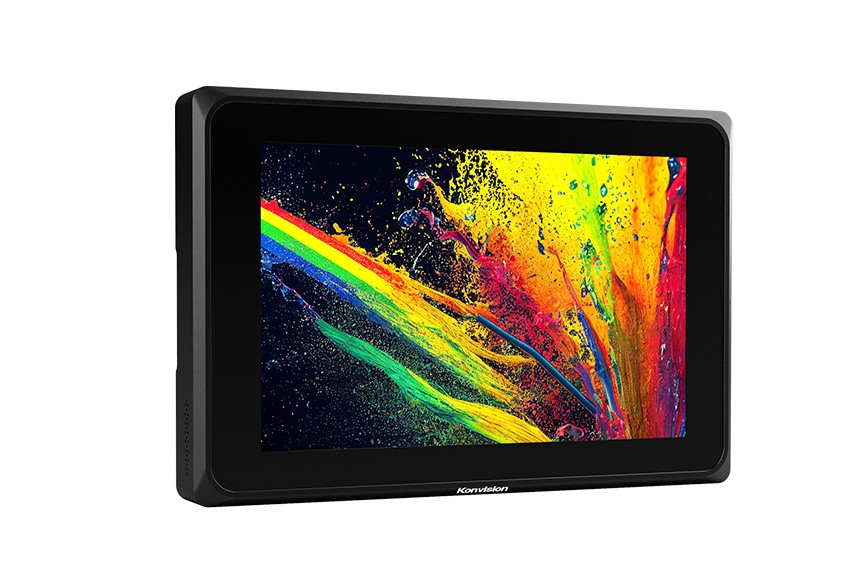

Konvision A7S 7in 12G-SDI Portable Recording Monitor

OVERVIEW
The A7S is a 7 inch monitor with a resolution of 1920×1200. It has 1 input and 2 outputs for 12G/6G/3G/HD/SD-SDI and 1 input and 1 output for HDMI 2.0. It supports recording, playback, monitoring, and editing functions, with the ability to convert 4K to HD. The recording format is ProRes and it supports features such as pre-roll recording, time-lapse photography, and fast/slow action. It also has waveform, false colour, focus assist, and zebra features. The monitor has a 3.5mm headset jack, tally indicator, and an aluminium alloy casing.

The A7S has powerful recording and playback functions, allowing for easy editing and storage on an affordable SSD drive. It supports full list or custom playlist review, as well as frame-by-frame, fast play, slow play, and loop play operations. It also has the ability to mark specific time fragments and output them in XML format. The monitor supports HDR display and can be calibrated with colour space and Calman software. It also has a 3D LUT file import function and a picture flip feature. The dual battery slot and durable aluminium alloy casing make it suitable for various environments.

This text is summarized by AI
SUMMARY
Screen Size: 7 Inch
Resolution: 1920 x 1200
Aspect Ratio: 16:10
Inputs: 12G-SDI, HDMI 2.0
Outputs:
12G-SDI
HDMI 2.0
INCLUDED IN BOX
1x A7S 7in Monitor
1x Power Adapter
1x User Manual

About The Konvision A7S 7in 12G-SDI Portable Recording Monitor
The A7S supports recording, monitoring, and playback functions. Built-in 2x12G SDI and 2xHDMI interface. Supports dual NP-F batteries and hot swap. Equipped with waveform, false colour and other features, makes it a nice choice for shooting and other applications.

Powerful Recording & Playback Function

Recording: Capture stunning 4K60p 12Bit HDR video directly from the camera. The recording format is an easy-to-edit ProRes format, conveniently stored on an affordable standard SSD drive. Enjoy versatile functionalities, including recording, playback, monitoring, editing, Pre-roll record, time-lapse photography, fast & slow action, Pulldown record, ExFAT file system, and customizable recording file names.

Playback: Support full list review or custom playlist review. Enable frame-by-frame, fast play, slow play, loop play, and other operations. During shooting or playback, the system supports marking fragments at specific times, with the ability to output to disk in XML format for direct use in later stages.

Support full list review or custom playlist review. Playback function supports frame-by-frame, fast play, slow play, loop play and etc operations. When shooting or playback, it supports marking fragments from time to time, and output to disk in XML format, which can be used directly in the later period. Support pre-roll record, and ExFAT file system.

Focus Assist

Focus assist aids the camera operator in obtaining the sharpest possible picture, it will mark with red colour where the sharp edges appear on the screen.

False Colour

Check exposure of the image. Blue, cyan, green, yellow, orange, and red colour be displayed in turn to show the luminance or brightness values of the image from darkest to brightest, enables an achievement of proper exposure without applying external test equipment.

Zebra

Display the overexposed areas (too bright) of the image with zebra stripes, aids the camera operator to control the luminance, in order to avoid overexposure. This feature is very effective for proper exposure.

HDR

Konvision KUM 4K, 8K and KVM-6X series support HDR display. Adjustable HDR modes include PQ(ST2084), HLG with Rec 2020 colour gamut. It reproduces a greater dynamic range of luminosity and provides extremely high-level picture quality.

Super Brightness, Accurate Colour Reproduction

Equipped with a 1500 brightness LCD screen, the monitor can be clearly viewed even outdoors. Compatible with Colour Space and Calman calibration software, Konvision monitors apply K10-A probe (professional level) to achieve a precise colour.

3D LUT Colour Calibration

Compatible with Colour Space and Calman calibration software, Konvision monitors apply K10-A probe (professional level) to achieve a precise colour. Monitor’s also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

3D LUT File Import

With the LUT loading function, users can load 2 different 3D LUT files with different colour types according to their own needs, making DIT, post production and grading work simpler and more intuitive, optimizing the work flow and improving work efficiency.

Picture Flip

The horizontal picture flip function allows negative images and is very useful in the studios/virtual studios, such as weather forecasts, news, and other programs, etc.

Dual Battery Slot

Dual NP-F battery slot, support hot swap, recording, monitoring without interruption.

Aluminium Alloy Casing

The aluminium alloy casing ensures that it is strong and durable in different environments.

LCD Panel
Size 7in
Resolution 1920×1200
Aspect Ratio 16:10
Pixel Ratio 78.75×78.75(um)
Contrast Ratio 1200:1
Viewing Angle 160(h) 160(v)
Colour Depth 1.07B
Brightness 1500cd/m2
Response Time 30ms
Screen IPS Panel
Screen Flip Vertical flip
Horizontal flip
Inputs / Outputs
1xBNC (IN/OUT) 12G/6G/3G/HD-SDI (SDI IN: Recording / Monitoring mode. SDI OUT: Playback mode)
1xBNC (OUT) 12G/6G/3G/HD-SDI
1xHDMI 2.0 (IN) HDMI 2.0
1xHDMI 2.0 (OUT) HDMI 2.0
1xType C (IN) Support DP1.4 signal input or system program, LUT update
1×2.55mm (OUT) LANC output control strip
Record Format
ProRes LT, 422, 422HQ, Pr
Video Resolution and Frame Rate
4K DCI 4096×2160 23.98/24/25/29.97/30/50/59.94/60p
4K UHD 3840×2160 23.98/24/25/29.97/30/50/59.94/60p
2K DCI 2048×1080 23.98/24/25/29.97/30/50/59.94/60p
FHD 1920×1080 Progressive 23.98/24/25/29.97/30/50/59.94/60p
FHD 1920×1080 PsF Convert to P loop out PsF
FHD 1920×1080 Interlaced 50/59.94/60i
1280×720 50/59.94/60p
Storage
SATA 2.5in SSD SATA 3.0
Real-time Processing
Pulldown conversion 24/25/30pSF>24/25/30p（2:2 pulldown)
4K to HD conversion Support loopout & playback
Audio In / Out
HDMI 8 Channels HDMI embedded audio
SDI 8 Channels SDI embedded audio
Channels Audio level meter horizontal display 2 channels, and optional 2 channels audio out
Audio Headset Output 3.5mm jack
Built-in Speaker 1.5W x 1
Function
Recording/Playback/Monitoring/Editing/HDR Support
LUT Support 3D LUT (.3dl format), Support 3rd party LUT files import
Playlist Support full list review or custom playlist review
Playback Support frame-by-frame, fast play, slow play, loop play etc
Marker Support marking fragments from time to time, and output to disk in XML format, which can be used directly in the later period
Pre-roll Record Support Pre-roll Record(HD, 10s, 4K 2s)
Time-lapse Photography Support
Fast and Slow Action Support
Pulldown Record Support
ExFat file system Support, customise file name
Colour Space Rec 709, EBU, DCI P3 D65, DCI P3, Rec2020, User1, User2
EOTF Gamma 2.0/2.2/2.4/2.6, Rec.2100 HLG 1.03/1.11/1.16/1.20/1.27/1.33, ST2084 PQ, ST2084 PQ（softroll）, SLog, SLog2, Slog3, Clog,
Clog2, Clog3, Vlog, Dlog, LogC
Picture Analysis Waveform Luma RGB 100%Vector 75%Vector, Auxiliary Focus Assist Zebra False Colour Blue Exposure Zoom1 Zoom2
Frame Guide Save Areas Anamorphic Freeze
Tally Light LED Tally Light and On-screen Tally display
Dimensions 194x129x48.5mm (wxhxd)
Weight 825g
Material Aluminium Alloy
Install Screw 1/4″ – 20 screw hole, 1xtop, 1xbottom
General
Power Consumption 25-36W
Input Voltage DC IN 6.2V-8.4V
Compatible Battery NP-F series (supports dual batteries)
Battery Life at max brightness (2×7.4)
6600mAh 3hrs
7800mAh 4.5hrs
Continuous Power Support hot swap, battery replacement without shutdown

7 inch 1920×1200 resolution
1 x 12G/6G/3G/HD/SD-SDI input or 2 x 12G/6G/3G/HD-SDI outputs
1 x HDMI 2.0 input, 1 x HDMI 2.0 output
4K to HD conversion. Support recording/playback/monitoring/editing
function
Recording Format: ProRes (LT, 422, 422HQ, Pr)
Support full list review or custom playlist review
Support frame-by-frame, fast play, slow play, loop play etc operation
During shooting or playback, the system supports marking fragments at specific times, with the ability to output to disk in XML format
Support Pre-roll Record HD 10s, 4K 2s, time-lapse photography, fast and slow action function
Support pulldown record
Support ExFAT file system, customizable recording file names
Support different colour space, EOTF selection
Support user 3D LUT files import
Support dual batteries, voltage 7.4V, hot swap
Waveform, False Colour, Focus Assist, Zebra
Aspect Ratio, Safe & Area Market, Time code, Video Freeze, Picture Flip
3.5mm headset jack, Tally Indicator (Back)
Aluminium Alloy Casing
