Hollyland Mars M1 Enhanced Wireless Transceiver Monitor

OVERVIEW
The Mars M1 Enhanced is a revolutionary all-in-one wireless transmission monitor that combines the functionalities of a transmitter, receiver, and monitor into a single device. It offers a 1,000 nit brightness and a 5.5″ touch LCD screen, making it perfect for outdoor use. With a range of 450ft and an ultra-low latency of 0.08s, it provides stable and reliable wireless signal for high-quality image monitoring. Powered by the innovative HollyOS operating system, it offers advanced monitoring tools and supports HDMI and SDI input. The monitor also features smart channel scan and selection, trigger recording and video playback, and new capsule antennas with a textured design for a comfortable grip. Optional accessories are available to further enhance the monitoring experience.

The Mars M1 Enhanced is designed for universal compatibility and can seamlessly connect with up to two receivers or four mobile device apps. It can also function solely as a monitor when the wireless mode is disabled, reducing power consumption. Weighing only 400g, it is built with a highly durable and impact-resistant body shell. Optional accessories, such as a rosewood handle and monitor hood, are available for different application scenarios. With its advanced features and comprehensive design, the Mars M1 Enhanced is a powerful and efficient solution for all your monitoring needs.

SUMMARY
Screen Size: 5.5 Inch
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Inputs:
HDMI
SDI

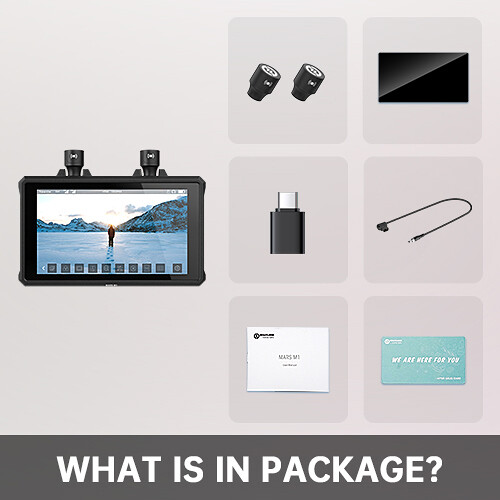

INCLUDED IN BOX
1x Monitor
2x Capsule Antenna

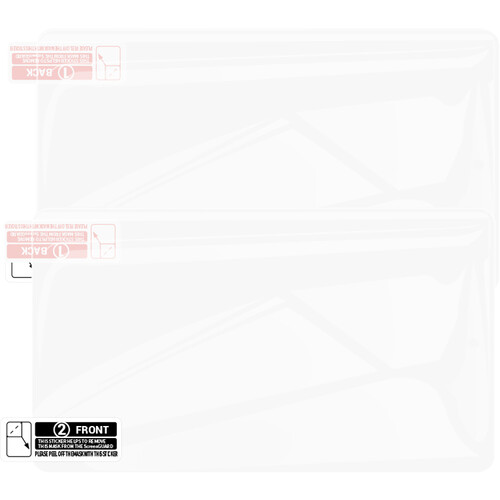

1x Tempered Glass Screen Protector
1x OTG Adapter

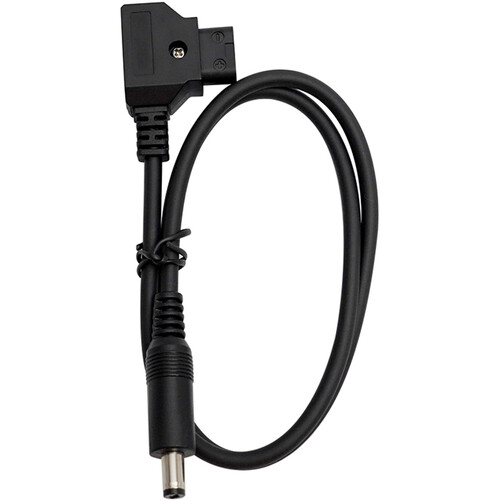

1x D-Tap to DC Cable
1x User Manual
1x Warranty Card

About The Hollyland Mars M1 Enhanced Wireless Transceiver Monitor
TX, RX, and Monitor All in One
The Mars M1 Enhanced wireless transmission monitor is a powerful and comprehensive solution for all your monitoring needs. Because it is an all-in-one device integrating the functionalities of a transmitter, receiver, and monitor into a single solution, you can effortlessly switch between the transmitter and receiver modes on its settings interface. Furthermore, a single Mars M1 Enhanced transmitter can seamlessly connect with up to two receivers or four mobile device apps.

Universal Compatibility
Our device is designed to easily work with the Mars Pro series and Mars 4K video transmission systems. This compatibility design reduces the need for multiple separate devices, making setup simpler and providing a more streamlined and efficient shooting experience.
Note: When the wireless mode is disabled, the Mars M1 Enhanced operates solely as a monitor. By disabling wireless functionality, power consumption is greatly reduced.

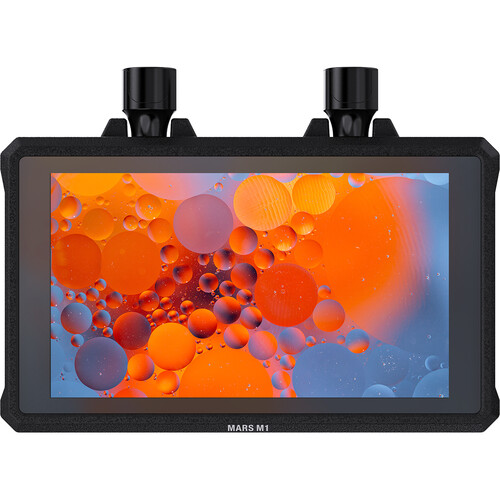

Responsive 5.5″ LCD Touch Screen
The Mars M1 Enhanced is a top-quality monitor with excellent color accuracy. Its highly responsive 5.5″ LCD touch screen and outstanding brightness of up to 1,000 nits make it perfect for outdoor use. The monitor undergoes a color calibration process during manufacturing, ensuring that every image is displayed with stunning resolution, vivid details, and unmatched color accuracy. Additionally, you can fine-tune the RGB gain using a simple reset option to achieve the perfect colors suitable for your needs.

450ft (150m) LOS Range 0.08s Ultra-low Latency
The Mars M1 Enhanced provides an exceptional wireless video transmission range of 450ft (150m). With an ultra-low latency of 80ms, it virtually eliminates lag, guaranteeing stable and reliable wireless signal and delivering high-quality image monitoring overall.

Revolutionary HollyOS
Powered by Hollyland’s groundbreaking operating system – HollyOS, the Mars M1 Enhanced offers a comprehensive suite of advanced monitoring tools. Each of these tools provides you with complete control over your image, offering an opportunity to fine-tune every shot to your specific preferences.

HDMI & SDI Support
Featuring decimal frame rate support, the Mars M1 Enhanced also supports 4K/30fps HDMI input and loopout for expanded connectivity and compatibility. Its SDI input also provides extensive connectivity options to accommodate an ever-widening range of professional video production needs.

Smart Channel Scan and Selection
The Mars M1 Enhanced features smart channel scan that helps determine which channels are occupied and which ones are selectable for ensuring a stable connection upon startup and allowing for interference-free transmission.

Innovative Trigger Recording and Video Playback
The Mars M1 Enhanced is engineered to enhance the appeal of automatic trigger recording and video playback. Replay your video wherever and whenever you want, to ensure that it is captured at its finest quality.

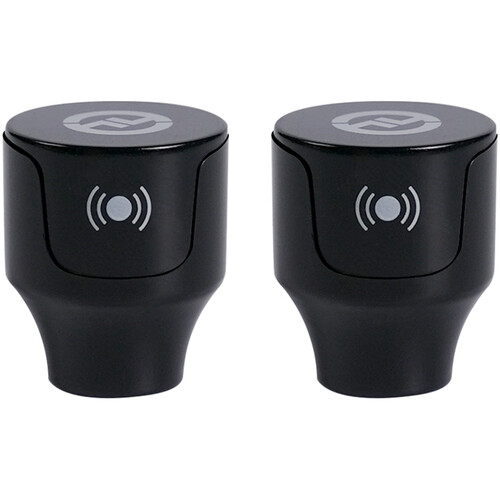

New Capsule Antennas and Textured Design
The Mars M1 Enhanced comes with new-designed capsule antennas that save your time by eliminating the need for repeated disassembly and reassembly.
Weighing approx. 400g (14.1oz), it is built with a highly impact-resistant body shell, ensuring maximum durability and protection even in challenging working environments. The shell is designed with a frosted texture, providing you with a comfortable and secure grip.

Optional Accessories for More Application Scenarios
The optional accessories for the Mars M1 Enhanced are specifically designed to elevate your monitoring experience. For example, the one-handed grip provided by the rosewood handle and T-shaped handle adds a touch of elegance, and the wrist strap and shoulder strap allow you to hold the monitor with one hand and secure it around your shoulder. The monitor hood option greatly improves visibility and monitor protection.

TRANSMITTER:

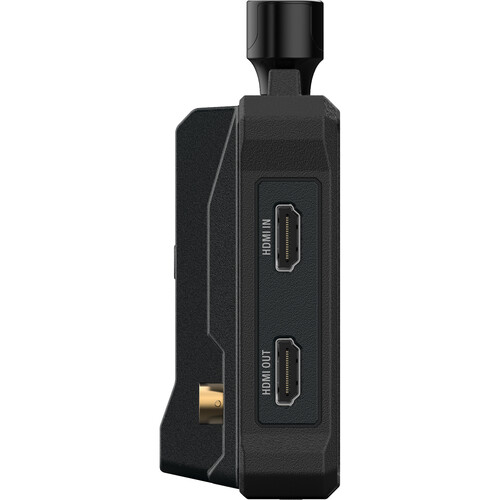

Video Input Interface HDMI 1.4b IN (Type-A female)
3G-SDI IN (BNC female)
Video Output Interface HDMI 1.4b LOOPOUT (Type-A female)
Antenna Interface Two RP-SMA male interfaces
Power Input Interface DC IN (2.0mm core socket)
Power Output Interface DC OUT (2.0mm core socket)

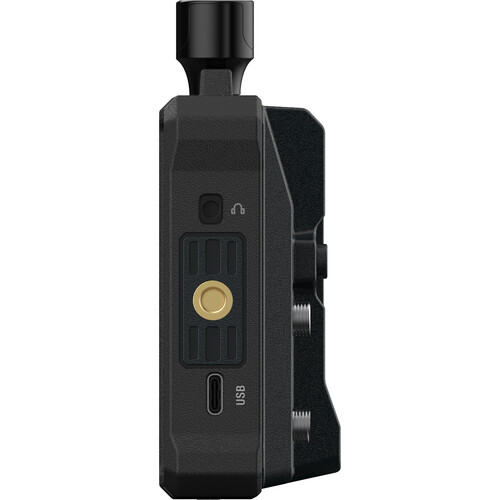

Headphone Jack 3.5mm
Upgrade Interface USB-C (USB-2.0 OTG)
Screen Size 5.5″ touchscreen
Screen Resolution 1920×1080 pixels
Pixel Density 403 PPI
Aspect Ratio 16:9
Screen Brightness 1,000 nits
Contrast Ratio 1000:1
Power Input Voltage DC IN: 7–16V 2.5A (nominal 12V)
NP-F battery: 6.8V–8.4V
DC Output Voltage 8.4V±5%
Power Consumption <16W Net Weight Approx. 400g (14.1oz) with external antennas excluded Dimensions (L x W x H): 152mm x 96mm x 40mm (5.98″ x 3.78″ x 1.57″) with external antennas excluded Input Video Resolution: HDMI IN 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz 3840x2160p23.98/24/25/29.97/30 Hz 4096x2160p23.98/24/25/29.97/30 Hz SDI IN 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30 1080p50/59.94/60 Hz (3G-SDI level A) 1080p50/59.94/60 Hz (3G-SDI level B) Output Video Resolution: HDMI LOOPOUT (HDMI IN) 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz 3840x2160p23.98/24/25/29.97/30 Hz 4096x2160p23.98/24/25/29.97/30 Hz HDMI LOOPOUT (SDI IN) 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz Note - When the device (in receiver mode) is connected to the Mars 4K transmitter, if the HDMI input video resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI output video resolution of the device is 1920x1080p24/25/30 Hz. Display Latency <0.05s (test data when 1080p60 signals are transmitted in a laboratory environment. The display latency varies by video resolution.) Operating Frequency 5.150–5.250GHz 5.250–5.350GHz 5.470–5.725GHz 5.725–5.850GHz Codec Technology H.264 Bit Rate 12Mbps TX Power ≤ 21+/-1.5dBm Transmission Latency Approx. 0.08s (test data when 1080p60 signals are transmitted in a laboratory environment) LOS Range Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference) Bandwidth 20MHz Audio Format Eight audio channels for the HDMI 1.4b Operating Temperature –10℃ to 60℃ (14° F to 140° F) Storage Temperature –40℃ to 60℃ (–40° F to 140° F) RECEIVER: Video Input Interface / Video Output Interface HDMI 1.4b OUT (Type-A female) Antenna Interface Two RP-SMA male interfaces Power Input Interface DC IN (2.0mm core socket) Power Output Interface DC OUT (2.0mm core socket) Headphone Jack 3.5mm Upgrade Interface USB-C (USB-2.0 OTG) Screen Size 5.5″ touchscreen Screen Resolution 1920×1080 pixels Pixel Density 403 PPI Aspect Ratio 16:9 Screen Brightness 1,000 nits Contrast Ratio 1000:1 Power Input Voltage DC IN: 7–16V 2.5A (nominal 12V) NP-F battery: 6.8V–8.4V DC Output Voltage 8.4V±5% Power Consumption <13.6W Net Weight Approx. 400g (14.1oz) with external antennas excluded Dimensions (L x W x H): 152mm x 96mm x 40mm (5.98″ x 3.78″ x 1.57″) with external antennas excluded Input Video Resolution / Output Video Resolution: HDMI OUT 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz 1080p50/59.94/60 Hz HDMI OUT 720p50/59.94/60 Hz 1080i50/59.94/60 Hz 1080p23.98/24/25/29.97/30/50/59.94/60 Hz Note: When the device (in receiver mode) is connected to the Mars 4K transmitter, if the HDMI input video resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI output video resolution of the device is 1920x1080p24/25/30 Hz. Display Latency / Operating Frequency 5.150–5.250GHz 5.250–5.350GHz 5.470–5.725GHz 5.725–5.850GHz Codec Technology H.264 Bit Rate 12Mbps TX Power ≤ 21+/-1.5dBm Transmission Latency Approx. 0.08s (test data when 1080p60 signals are transmitted in a laboratory environment) LOS Range Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference) Bandwidth 20MHz Audio Format Eight audio channels for the HDMI 1.4b Operating Temperature –10℃ to 60℃ (14° F to 140° F) Storage Temperature –40℃ to 60℃ (–40° F to 140° F) TX, RX, and Monitor — All in One Revolutionary Operating System 1,000 Nits of Brightness 5.5" Touch LCD Screen 450ft (150m) LOS Range 0.08s Low Latency
