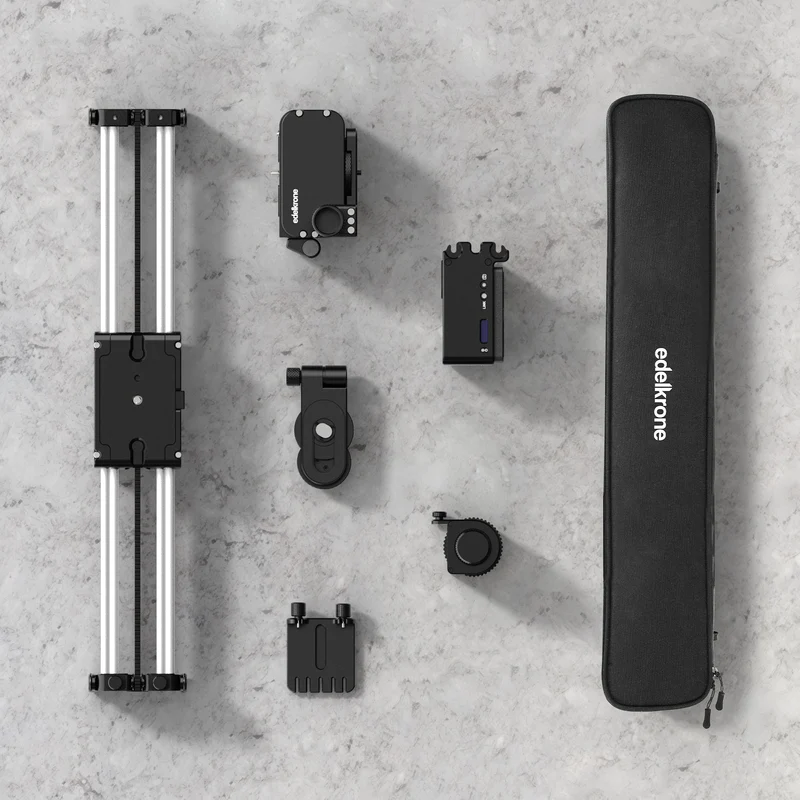

Bundle including Edelkrone’s SliderPLUS PRO (Long), Motor Module, Steady Module, Vertical Module and a Soft Case for SliderPLUS.
SliderPLUS PRO
The first slider in the world that combines portable size with long size, SliderPLUS is truly magical as a standalone slider and even more so with its revolutionary motion control add-ons.
Motor Module
Motor Module is a motorized add-on which can be attached to all SliderPLUS models. With Motor Module, you can easily achieve perfectly stable slides or easily program motion time-lapse and stop motion videos.
Steady Module
Steady module will enable you to nail that perfect shot even when you are at a very remote location. No batteries, no chargers required; completely mechanical solution. Uses fluid dynamics to dampen the movement.
Vertical Module
Spring-powered mechanism that assists in carrying your SliderPLUS PRO setup, allowing the Motor Module to move the SliderPLUS PRO effortlessly at any incline.
SLIDERPLUS PRO – LONG
Mounting Options: 3/8″-16 mounting port on bottom
3/8″-16 mounting screw on top
Working Mechanism: Non-friction ball bearing
Tracking system
Materials: CNC machined aluminum and stainless steel components
Steel ball bearings
Temperature-treated aluminum rods
Camera Travel: On Tripod: 2.9 ft (90 cm)
On Ground: 1.4 ft (45 cm)
Load Capacity: On Tripod: 20 lb (9 kg)
On Ground: 40 lb (18 kg)
Dimensions: 25.07 x 4.25 x 2.79 in (637 x 108 x 71 mm)
Weight: 4.05 lb (1.84 kg)
MOTOR MODULE
Incline Capacity:
Up to 22.5° with 5.5 lb (2.5 kg)
(you can achieve steeper inclines with the help of Vertical Module for SliderPLUS)
Min. Step Size on Tripod: 22.4 μm
Min. Step Size in Ground: 11.2 μm
Max. Speed on Tripod: 2.52 in/sec (6.42 cm/sec)
Max. Speed on Ground: 1.26 in/sec (3.21 cm/sec)
Number of Axes: Single (the slide motion)
Motor Type: Step motor with ultra high-res encoder.
Power Input:
2 x NP-F type battery (Batteries NOT included) (Sony NP-F Battery brackets included)
Alternatively, 2 x LP-E6 Batteries can be used (if LP-E6 battery brackets are purchased separately)
Battery Life:
With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 2 hours (continuously at full speed)
Shoots 12000 photographs (in Time-Lapse mode)
Shutter Trigger Cable Socket: 2.5 mm (Shutter trigger cable is sold separately).
Compatibility: To all SliderPLUS Models manufactured after 2018.
Can Be Paired With: HeadONE (Both in single or dual modes), Pan Module, HeadPLUS
Can Be Controlled By: edelkrone App, Controller for edelkrone Moco
Mobile Device Connection: 2.4GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App Compatibility: iOS 11.0 or later & Android 5.0 or later
Materials: CNC machined aluminum and stainless steel components.
DC Plug Specs: Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
Dimensions: 5.3 x 3.18 x 2.59 in (135 x 81 x 66 mm)
Weight: 1.87 lb (0.85 kg)
VERTICAL MODULE
Carrying Capacity:
– Our system includes 5 springs, each with a maximum tension of 2.5 kg, providing a total carrying capacity of 12.5 kg.
– To determine the camera carrying capacity, simply subtract the combined weight of your SliderPLUS PRO, Motor Module, and any additional accessories from the maximum carrying capacity of 12.5 kg.
Connection Ports:
Spring Box Unit has 3/8” port underneath. 3/8 screw on top.
L Bracket has 3/8” Port underneath and 1/4” screw on top.
Incline Limits:
Incline can be adjusted every 10 degree steps. Both spring box and L bracket.
Spring Box Unit max Incline 90 degrees.
Quantity of Springs: 5 Tension Springs
Spring Strength: 2.4-3 kg each. (Depending on the amount of tension applied.)
Dimensions: Spring Box Unit: 140 x 80 x 85mm
L Bracket: 65 x 28 x 135mm
Side Port: 80 x 75 x 8mm
Weight: Spring Box Unit: 1359g
L Bracket: 358g
Side Port: 127g
1x Edelkrone SliderPLUS PRO Long
1x Edelkrone Motor Module
1x Edelkrone Steady Module
1x Edelkrone Vertical Module
1x Soft Case for SliderPLUS
