Edelkrone Pan Module V1




Pan Module for JibONE
Motorized single-axis panning solution that can be attached to edelkrone JibONE, edelkrone Sliders & Dollies, and tripods. Achieve an unlimited JibONE experience or ultimate panning ability for heavier camera setups.

Connects wirelessly to JibONE, edelkrone Sliders & Dollies
As the newest member of the edelkrone ecosystem, Pan PRO is a heavy-duty, pan head solution designed to work perfectly with JibONE, edelkrone Sliders, and Dollies. The devices pair instantly in the background and can be managed altogether using the edelkrone App or edelkrone Controller. This instant connection allows you to quickly automate and program the most creative camera motions with ease. (Only a single Pan PRO can be paired with JibONE at a time.)

Camera Panning
Attach a single Pan PRO over JibONE for motorized camera panning motion. Carries camera setups of up to 30 lb. Only a single Pan PRO can be paired with JibONE at a time.

Jib Panning

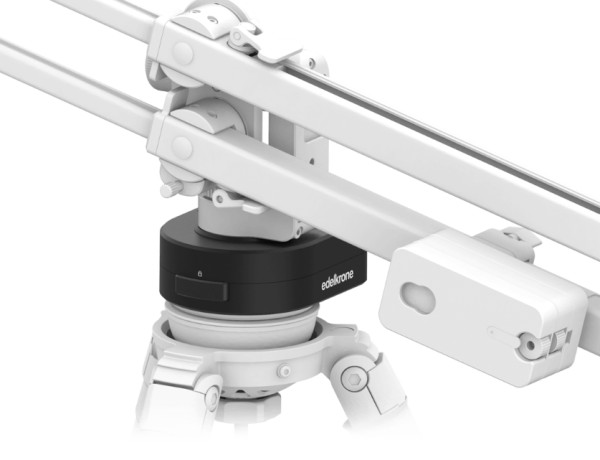

Attach a single Pan PRO under JibONE for motorized jib panning motion for the entire JibONE setup. Only a single Pan PRO can be paired with JibONE at a time.

Can be hand-controlled- You can manually adjust the pan angle with Pan PRO. Instead of relying on a remote control, you can program your camera motions with just your hands! This gives an unprecedented speed to your workflow, and makes the whole process much more intuitive.
High carrying capacity, compact design- Pan PRO is capable of carrying heavy professional cameras, as well as the entire JibONE setup. Similar to all edelkrone products, Pan PRO features a portable, compact design.
Unlock a new axis for a full JibONE experience- Pan PRO is an add-on to the jib solution, designed to add a panning axis to JibONE. Simply attach Pan PRO between your tripod and JibONE to unlock this new axis. Add HeadPLUS to this bundle and obtain an unlimited motorized jib experience. (Only a single Pan PRO can be paired with this bundle.)
Fast to set up – easy to relocate- No tools or assembly required. Needs only a few minutes of set up for quick filming and scene changes. Pan PRO has a locking mechanism to lock it in place securely so you don’t need to disassemble the system to relocate it. (We do not recommend this method when relocating the system long distances.)
Macro-precise, loopable motion- Pan PRO provides the necessary smoothness for macro shots and perfect, steady speed control when panning thanks to a backlash-free mechanical design.
Perfect for visual effects- Pan PRO can repeat any motion perfectly. Add some masking magic using your favorite video editing software and “wow” your audience in no time!

Size: (W x D x H) 4.33 x 5.31 x 2.36 in (110 x 135 x 60 mm)
Weight: 1.89 lb / 858 gr
Mounting Options: 3/8″-16 mounting port on bottom, 3/8″-16 mounting screw on camera plate
Recommended Maximum Setup Load: 30 lb / 13.5 kg or less (Jib + Head + Camera + 4 kg Counterbalance weights)
Minimum Step Size: 0.022 degree
Maximum Speed: 5 degree/sec when used with JibONE
Maximum rotation: ∞ x 360°
Number of Axes: Single
Additional Features: Safety lock, Instant feedback screen
Supported FPS: All
Motor Type: Step motor with ultra high-res encoder
Power Input: x1 LP-E6 type battery (battery NOT included) or DC Adapter (Does not charge batteries)
Battery Life: With x1 Canon LP-E6 battery (14.4 Wh) Operates 6 hours (continuously at full speed)
Compatible With: JibONE
Mobile Device Connection: 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App Compatibility: iOS 11.0 or later & Android 5.0 or later
Materials: CNC machined aluminum and stainless steel components.
DC Plug Specs: Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm

Pan Module
AC/DC Adapter
Allen key
