Edelkrone MaxReach Motion Bundle

1,678.40

Compare

Bundle including Edelkrone’s HeadPLUS and DollyPLUS.

HeadPLUS
New Motorized Pan & Tilt Head with optional add-ons Target Module, Vision Module and Focus/Zoom Module. Wireless & seamless compatibility within the entire edelkrone ecosystem.

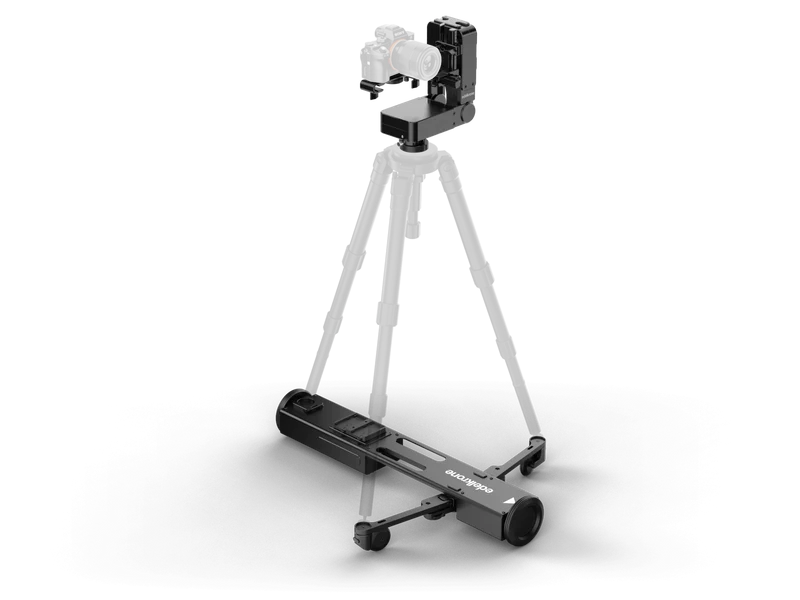

DollyPLUS
Motorized dolly to mobilize your camera and any tripod. Delivers straight or curved camera motions on flat surfaces + wirelessly connects to edelkrone motorized heads

HEADPLUS
Recommended Load: 10 lb (4.5kg)
Mounting Options: 3/8″-16 mounting port on bottom. 1/4″-20 mounting screw on L bracket.
Min. Step Size: 0.022 degree
Max. Speed: 360° in 20 sec
Number of Axes: 2 (Pan & Tilt)
Motor Type: x2 ultra precise step motors with ultra high-res encoders.
Battery Life: 28.8 Wh energy: Operates for 5 hours (continuously at full speed), Shoots 36,000 photographs (in Time-Lapse Mode)x1 Canon LP-E6 battery is 14.4 Whx1 Sony NP-F970 battery is 47.4 Wh
Power Input:
V-Mount, Gold Mount, Canon LP-E6, Sony NP-F.

(Sony NP-F Battery Bracket Included)

Batteries NOT included

Shutter Trigger Socket: 2.5 mm (shutter trigger cable sold separately)
Can Be Paired With: SliderONE v2, Motor Module (Previously known as Slide Module v3 and Slide Module v2), SliderPLUS v5, SliderPLUS v5 PRO, DollyONE, DollyPLUS, Focus/Zoom Module, Target Module, SliderPLUS.
Mobile Device Connection: 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App Compatibility: iOS 11.0 or later & Android 5.0 or later
Materials: CNC machined aluminum and stainless steel components.
Dimensions: HeadPLUS: 14.3 x 3.93 x 2.79 in (364 x 100 x 71 mm)
L Bracket: 6.7 x 5.6 x 2.9 in (168.5 x 140 x 75 mm)
Weight: HeadPLUS: 6.17 lb (2.8 kg)
L Bracket: 0.93 lb (423 g)
DOLLYPLUS
Recommended Camera Load: 30 lb (13.6 kg) or less.
Min. Step Size: 7.62 μm
Max. Speed: 5.59 in/sec (14.2 cm/sec)
Supported FPS: All
Motor Type: x2 Step motor with ultra high-res encoders.
Power Input: LP-E6 type battery, NP-F type battery, AC/DC adapter (Sony NP-F Battery Brackets included.)(Batteries not included)
Battery Life: With 95Wh energy (1 V-Mount / Gold Mount Battery)Operates 12 hours (continuously at full speed)Shoots 72000 photographs (in Time-Lapse mode)
Shutter Trigger Cable Socket: 2.5 mm (shutter trigger cable sold seperately)
Can Be Paired With: HeadONE (Both in single or dual modes), Pan PRO, HeadPLUS (v2 & v1), HeadPLUS PRO (v2 & v1)
Mobile Device Connection: 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App Compatibility: iOS 11.0 or later & Android 5.0 or later
Materials: CNC machined aluminum and stainless steel components.
Dimensions: 29.4 x 4.7 x 4.5 in (748 mm x 121 mm x 115 mm)
Weight: 15.4 lb (7 kg)

1x Edelkrone HeadPLUS
1x Edelkrone DollyPLUS
