HEADPLUS v2
New Motorised Pan & Tilt Head with optional add-ons FocusPLUS PRO and Vision Module. Wireless & seamless compatibility within the entire edelkrone ecosystem.
Automatic Target Tracking & Live Target Switching
HeadPLUS v2 has the ability to learn three different stationary targets. When transitioning between targets, HeadPLUS v2 keeps each target in frame and in focus even when operating on SliderPLUS, SliderONE, JibONE, and DollyONE and DollyPLUS.You can make a live, smooth transition among any of the three preset targets by selecting your desired target through the App.
Sequencer Feature
With Sequencer feature, you can chain multiple poses one after another to create complex camera motion. Transition speed between each pose is independently adjustable. You can also make the system loop back and forth in any given order.
Can be Hand-Controlled
Instead of relying on a remote control, manually adjust the pan & tilt angle of HeadPLUS v2 and program your camera motion with just your hands! This gives an unprecedented speed to your workflow and makes the entire process much more intuitive.
Connects Wirelessly to edelkrone Sliders, Jibs & Dollies

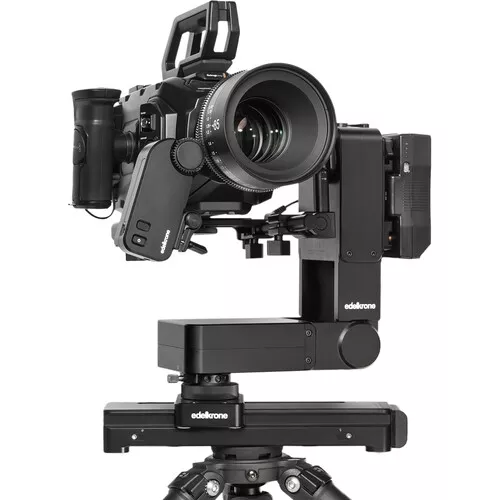

When HeadPLUS v2 is combined with a slider, jib or dolly, you can easily program 3-, or 4-axis camera motions. You can record never-before-seen, amazing motion time-lapses and visual effects shots with any combination you choose. The devices pair instantly in the background while using the same App or Controller to control all devices together.
Super Easy Time-Lapse Programming
Setting up a motion time-lapse is the easiest with edelkrone App. In your time-lapse videos, you can have a simple transition between two keyposes or you can convert a recorded complex camera motion into a time-lapse with a single button. You can use edelkrone’s unique Dynamic Interval and Dynamic Step Size Technologies to introduce never-before-seen effects to your time-lapses which bend the speed of time and speed of camera motion independently of each other.
Smart stationary object tracking
Advanced focus control with FocusPLUS PRO
Face Tracking with Vision Module (Coming Soon)
App / Controller / Hand-Control
Wireless edelkrone ecosystem integration
Fast & Simple Programming
Time-Lapse 2.0
Precise Repeatable Motion
Zero Noise & Backlash-Free
17.04 x 4.05 x 3.07 in (433 x 103 x 78 mm) actual size
6.04 lb (2.74 kg) actual weight
Motorised Pan & Tilt Head for Cameras 20 lb (9 kg) or less.
Can be controlled via edelkrone App & edelkrone Controller
Can be easily programmed for motion time-lapses
Can pair and work with SliderONE PRO v2, Slide Module v2, Slide Module v3, SliderPLUS PRO, DollyPLUS PRO, FocusPLUS PRO, Laser Module and previous generation SliderPLUS, SliderPLUS PRO.
Can not pair with Focus Module* (*Previous generation Focus Module)
Can automatically track stationary objects
Can track focus on stationary objects (Add FocusPLUS PRO)
Can learn target positions automatically (Add Laser Module)
Can be powered via Gold Mount / V-Mount / LP-E6 or NP-F batteries
Can also be powered via AC-DC adapter
Ultra quiet operation
Ultra precise backlash-free operation
Allows manual panning and tilting without affecting the motors.
Unfolds to fit in a camera bag.
Pan & Tilt locks to safely relocate.
Power On/Off switch and instant feedback screen
100% CNC machined aluminium body
Battery Brackets not included (sold separately)

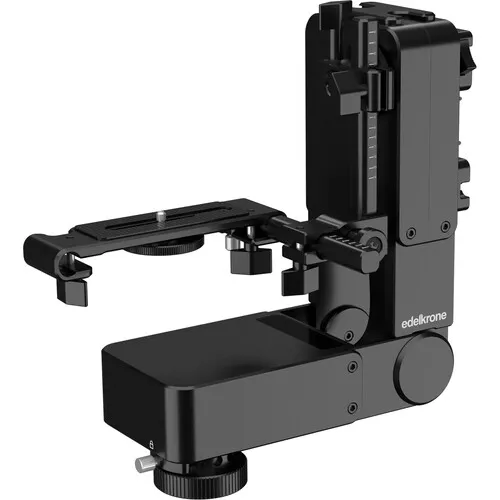

Model: HeadPLUS PRO
Recommended Load: 20 lb (9 kg)
Mounting Options: 3/8″-16 mounting port on bottom. 1/4″-20 mounting screw on L bracket (also 3/8″-16 mounting screw is included for compatible cameras)
Minimum Step Size: 0.022 degree
Maximum Speed: 360° in 20 sec
Number of Axes: 2 (Pan & Tilt)
Motor Type: x2 ultra precise step motors with ultra high-res encoders.
Battery Life: With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh), Operates 4 hours (continuously at full speed), Shoots 28800 photographs (in Time-Lapse mode)x1 V-Mount Battery is 95Whx1 Gold Mount Battery is 95Wh
Power Input:
V-Mount, Gold Mount, Canon LP-E6, Sony NP-F.
(Sony NP-F Battery Bracket Included)
Batteries NOT included
Shutter Trigger Socket: 2.5 mm (shutter trigger cable sold separately)
Compatibility: SliderONE v2, Motor Module (Previously known as Slide Module v3 and Slide Module v2), SliderPLUS v5, SliderPLUS v5 PRO, DollyONE, DollyPLUS, Focus/Zoom Module, Target Module, SliderPLUS.
Mobile Device Connection: 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App Compatibility: iOS 11.0 or later & Android 5.0 or later
Materials: CNC machined aluminum & stainless steel components.
Dimensions: HeadPLUS PRO: (L x W x H) 17.04 x 4.05 x 3.07 in (433 x 103 x 78 mm)
L Bracket (folded): (L x W x H) 7.51 x 5.70 x 3.14 in (191 x 145 x 80 mm)
Weight: HeadPLUS PRO: 9.26 lb (4.3 kg) (including the L-Bracket and recommended batteries)
L Bracket: 1.22 lb (556 gr.)
HeadPLUS PRO v2
L Bracket for cameras up to 20 lb (9 kg)
3/8”-16 screw width extenders for SliderPLUS legs
Allen keys
