Edelkrone CineMove 4-Axis Bundle

Original price was: €2,797.60.Current price is: €2,397.60.

Compare

Bundle including Edelkrone’s JibONE, HeadPLUS and Pan Module.

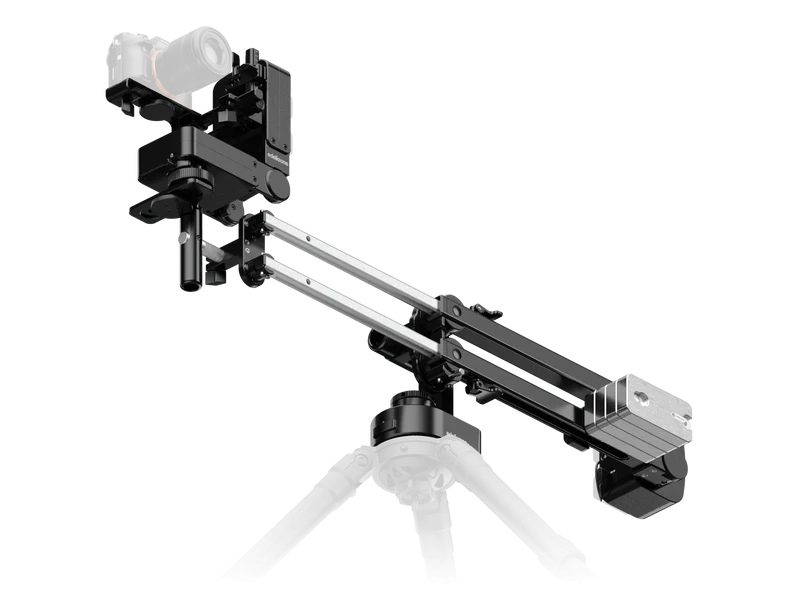

JibONE v2
The most portable jib in the world with unrivaled motorized motions & upgraded features. JibONE delivers the versatility & speed you need with complete edelkrone motion control ecosystem integration.

HeadPLUS
New Motorized Pan & Tilt Head with optional add-ons Target Module, Vision Module and Focus/Zoom Module. Wireless & seamless compatibility within the entire edelkrone ecosystem.

Pan Module for JibONE
Motorized single-axis panning solution that can be attached to edelkrone JibONE, edelkrone Sliders & Dollies, and tripods. Achieve an unlimited JibONE experience or ultimate panning ability for heavier camera setups.

Version: V2
Box Contents: JibONE v2, Main counterweight, x3 additional Counterweight, Shutter Extension Cable (not shutter cable), NP-F Battery Bracket, AC/DC Adapter.
Physical Power Button and Info Screen: Yes
Weight: 12 lb / 5.5 kg (with 2.2 lb / 1 kg counterweight)
Recommended maximum setup load: 11 lb / 5 kg or less (Camera + motorized head / tripod head)
Recommended minimum setup load: 3.1 lb / 1.4 kg (Camera + motorized head / tripod head)
Works with link port for fully wired option: Yes. Can operate both wired and wirelessly
Counterweight Weight; 2.2 lb / 1 kg single counterweight
Camera travel (Full length): 1.64ft / 50 cm
Additional features: Safety lock, adjustable Jib length & angle
Min. cont. speed: 50 cm in 140 sec
Max. cont. speed: 50 cm in 8 sec
Motor type: Step motor with ultra high-res encoder.
Power input: NP-F type battery bracket included. Bracket hosts 2 x NP-F batteries simultaneously. (Batteries are not included)
Battery life: With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 2 hours (continuously at full speed)
Shoots 12000 photographs (in Time-Lapse mode)
Shutter trigger cable socket: 2.5 mm (Shutter trigger cable is sold separately)
Can be paired with: HeadONE, HeadPLUS, Pan Module.
Mobile device connection: 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App. compatibility: iOS 11.0 or later & Android 5.0 or later
Materials: CNC machined aluminum and stainless steel components.
HeadPLUS
Model:
HeadPLUS Standard
Dimensions:
14.3 x 3.93 x 2.79 in (364 x 100 x 71 mm)
Weight:
6.17 lb (2.8 kg)
Recommended Load:
10 lb (4.5kg)
Mounting Options:
3/8″-16 mounting port on bottom
1/4″-20 mounting screw on L bracket.
Minimum Step Size:
0.022 degree
Maximum Speed:
360° in 20 sec
Number of Axes:
2 (Pan & Tilt)
Motor Type:
x2 ultra precise step motors with ultra high-res encoders.
Battery Life:
28.8 Wh energy: Operates for 5 hours (continuously at full speed), Shoots 36,000 photographs (in Time-Lapse Mode)x1 Canon LP-E6 battery is 14.4 Whx1 Sony NP-F970 battery is 47.4 Wh
Power Input:
V-Mount, Gold Mount, Canon LP-E6, Sony NP-F.
(Sony NP-F Battery Bracket Included)
Batteries NOT included
Shutter Trigger Socket:
2.5 mm (shutter trigger cable sold separately)
Compatible With:
SliderONE v2, Motor Module (Previously known as Slide Module v3 and Slide Module v2), SliderPLUS v5, SliderPLUS v5 PRO, DollyONE, DollyPLUS, Focus/Zoom Module, Target Module, SliderPLUS.
Mobile Device Connection:
2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App Compatibility:
iOS 11.0 or later & Android 5.0 or later
Materials:
CNC machined aluminum and stainless steel components.
Pan Module
Size: (W x D x H) 4.33 x 5.31 x 2.36 in (110 x 135 x 60 mm)
Weight: 1.89 lb / 858 gr
Mounting Options: 3/8″-16 mounting port on bottom, 3/8″-16 mounting screw on camera plate
Recommended Maximum Setup Load: 30 lb / 13.5 kg or less (Jib + Head + Camera + 4 kg Counterbalance weights)
Minimum Step Size: 0.022 degree
Maximum Speed: 5 degree/sec when used with JibONE
Maximum rotation: ∞ x 360°
Number of Axes: Single
Additional Features: Safety lock, Instant feedback screen
Supported FPS: All
Motor Type: Step motor with ultra high-res encoder
Power Input: x1 LP-E6 type battery (battery NOT included) or DC Adapter (Does not charge batteries)
Battery Life: With x1 Canon LP-E6 battery (14.4 Wh) Operates 6 hours (continuously at full speed)
Compatible With: JibONE
Mobile Device Connection: 2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection
App Compatibility: iOS 11.0 or later & Android 5.0 or later
Materials: CNC machined aluminum and stainless steel components.
DC Plug Specs: Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm

1x edelkrone JibONE v2
1x edelkrone HeadPLUS
1x edelkrone Pan Module v1
