DJI Transmission Combo – Standard

OVERVIEW
DJI Transmission Combo – Standard CP.RN.00000318 (CPRN00000318) dji-transmission-standard-combo-cp.rn.00000318 / CP.RN.00000318. DJI Transmission Vision Beyond Boundaries
DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder. It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries.

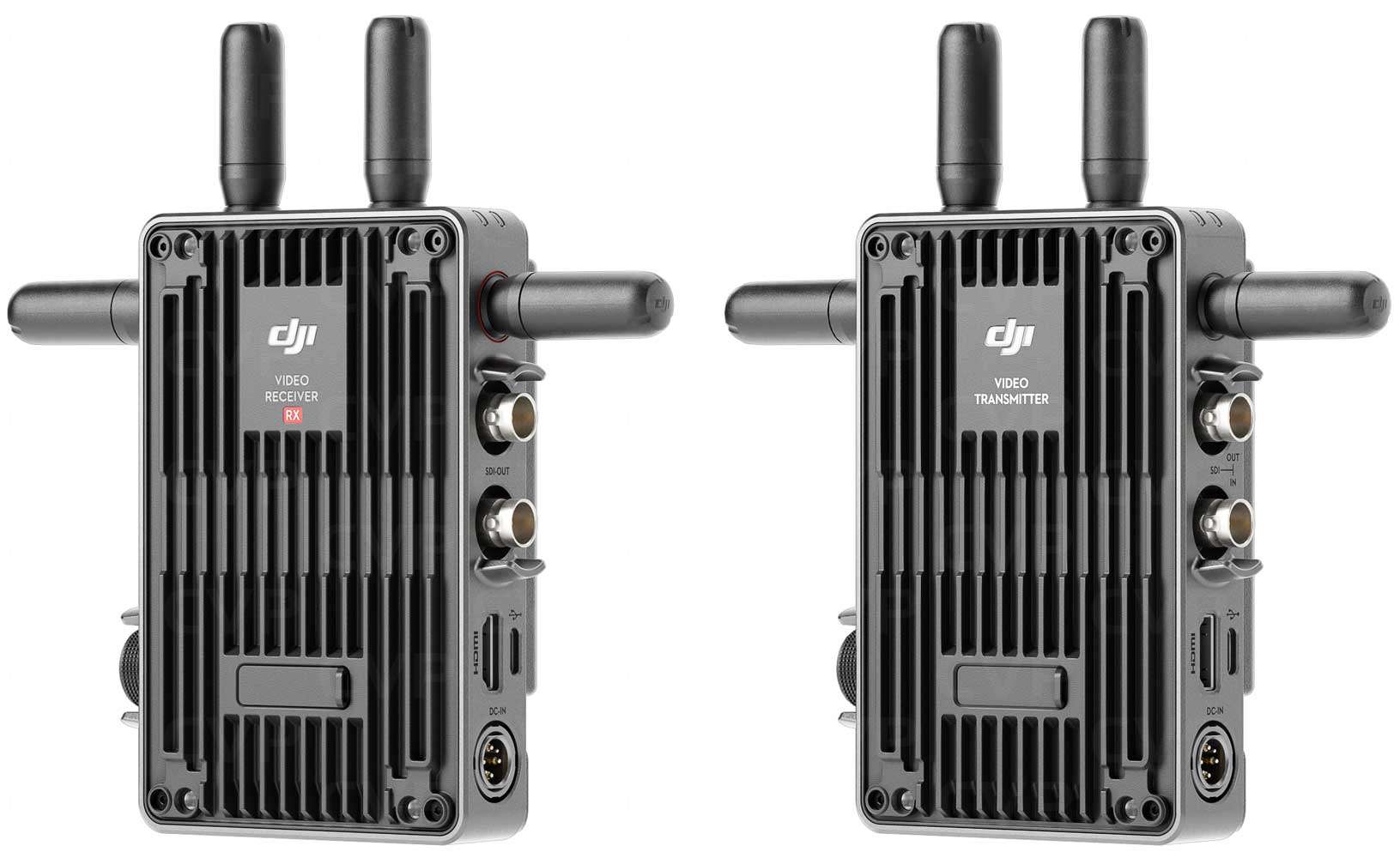

DJI Transmission (Standard Combo)

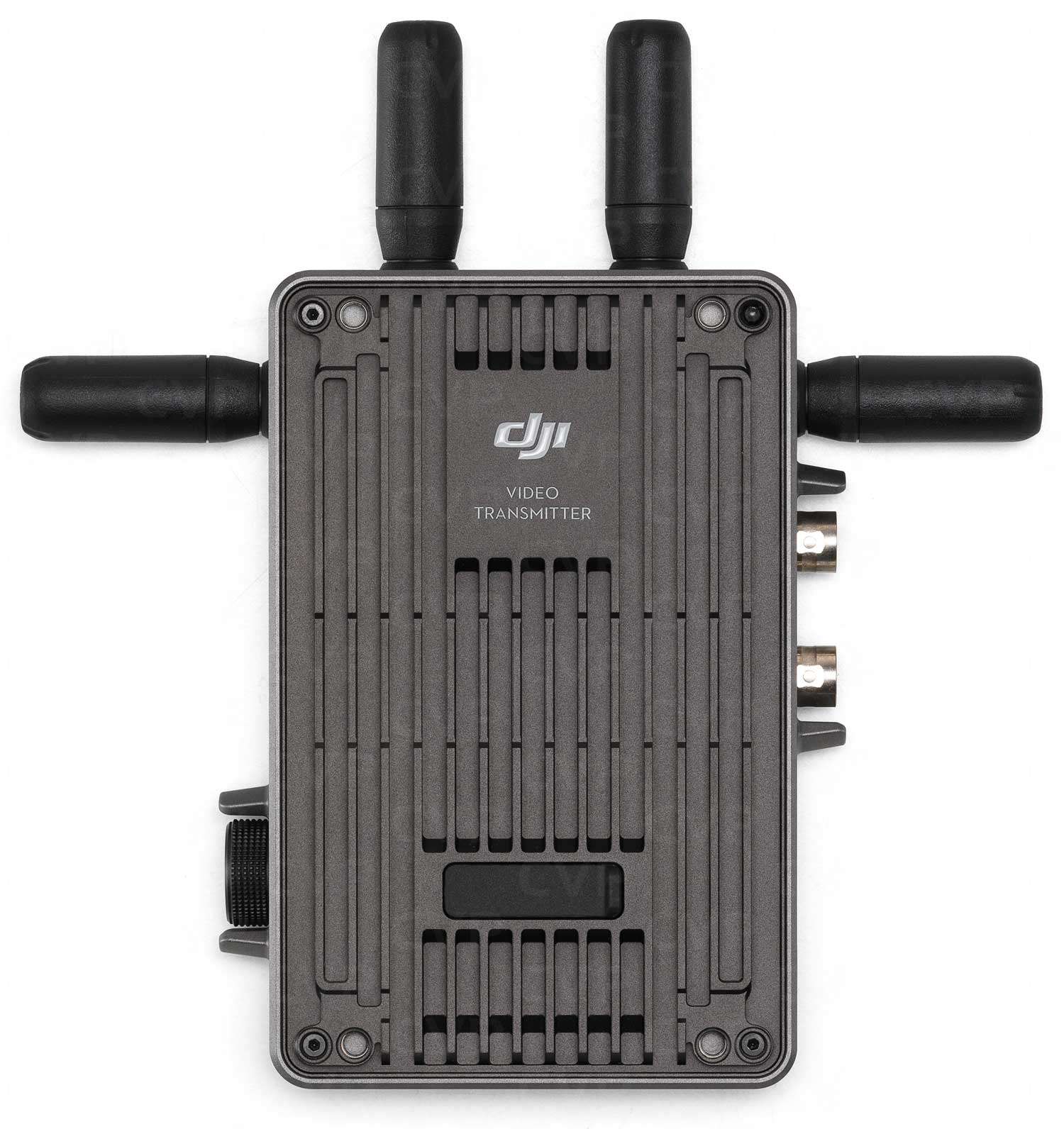

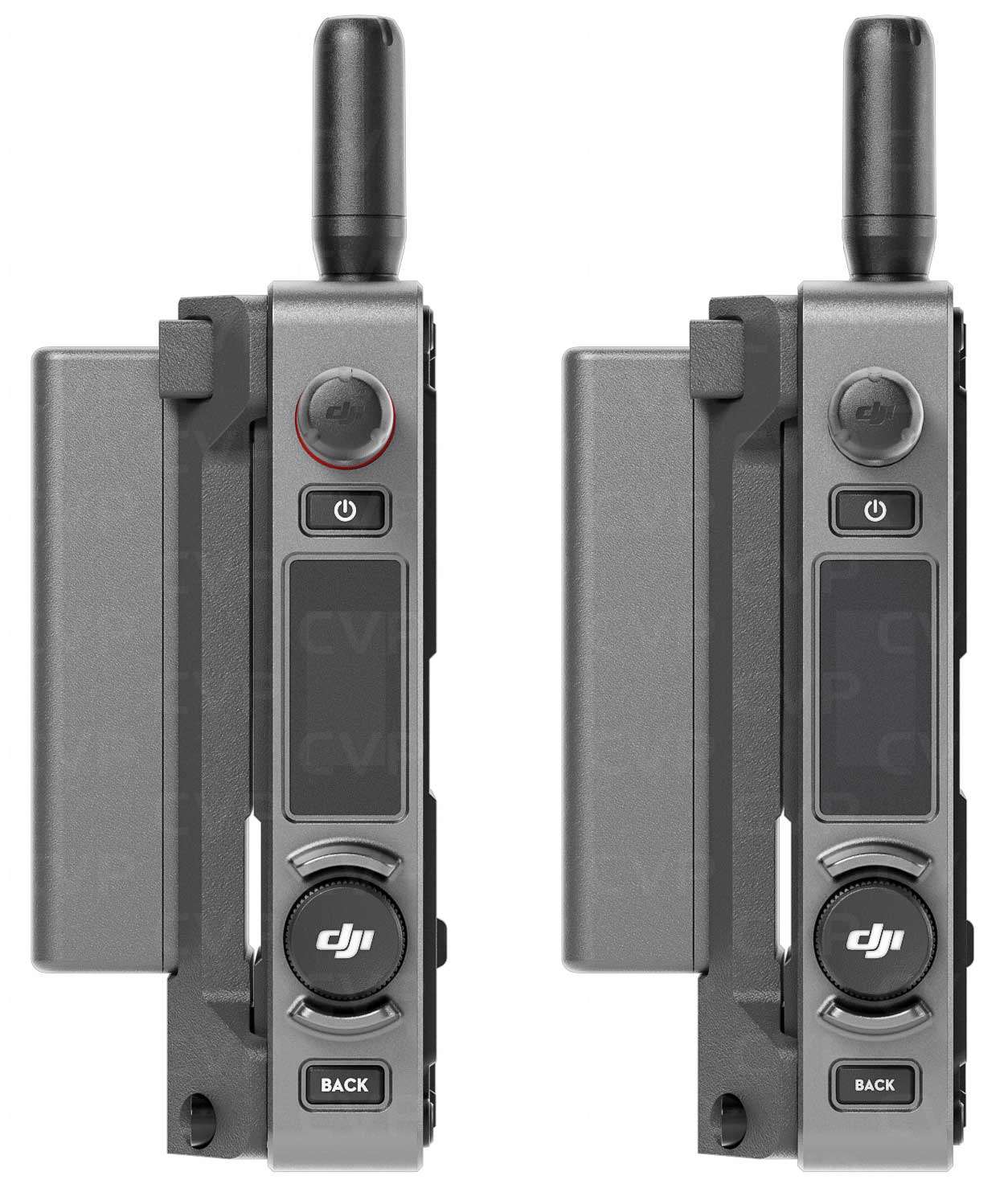

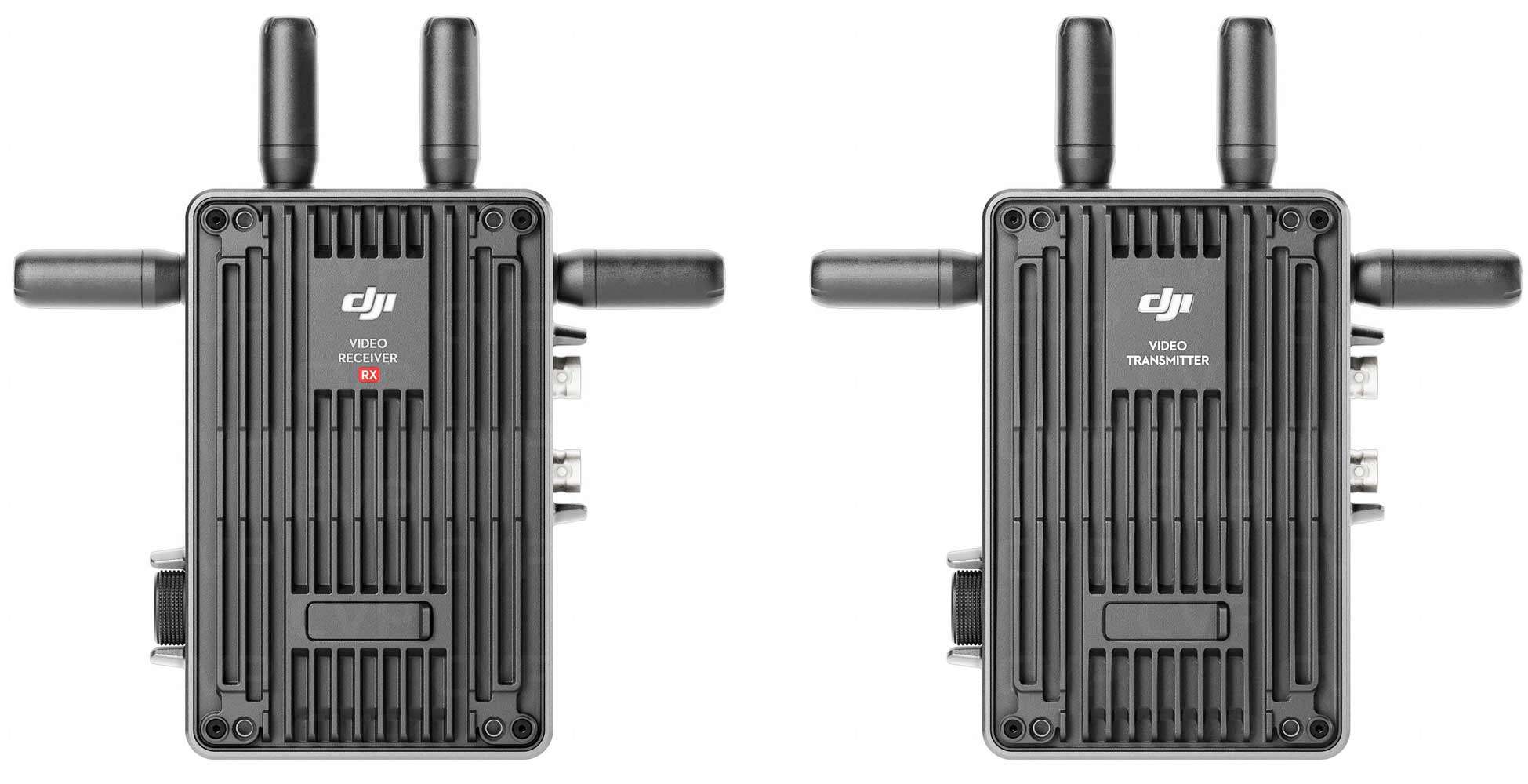

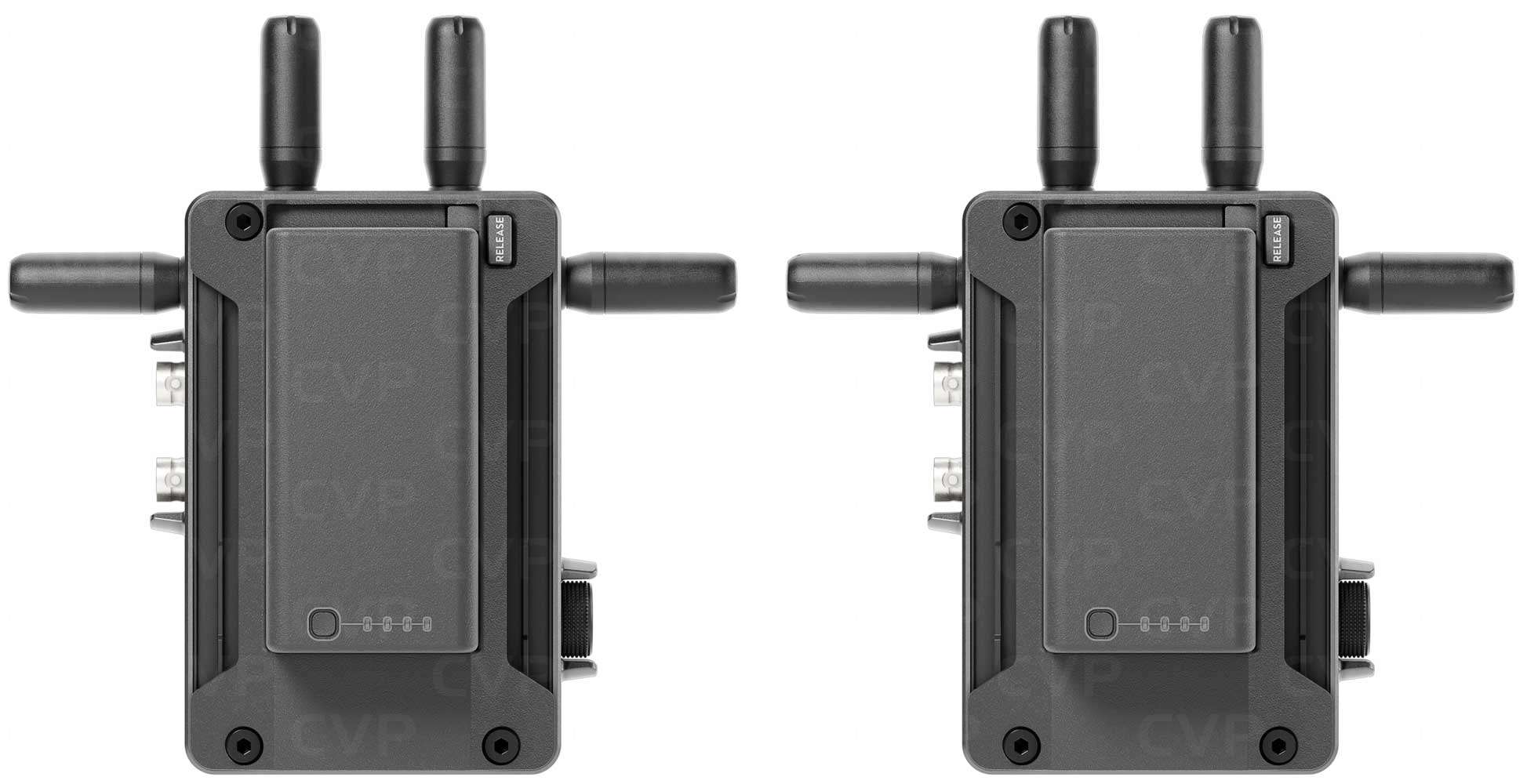

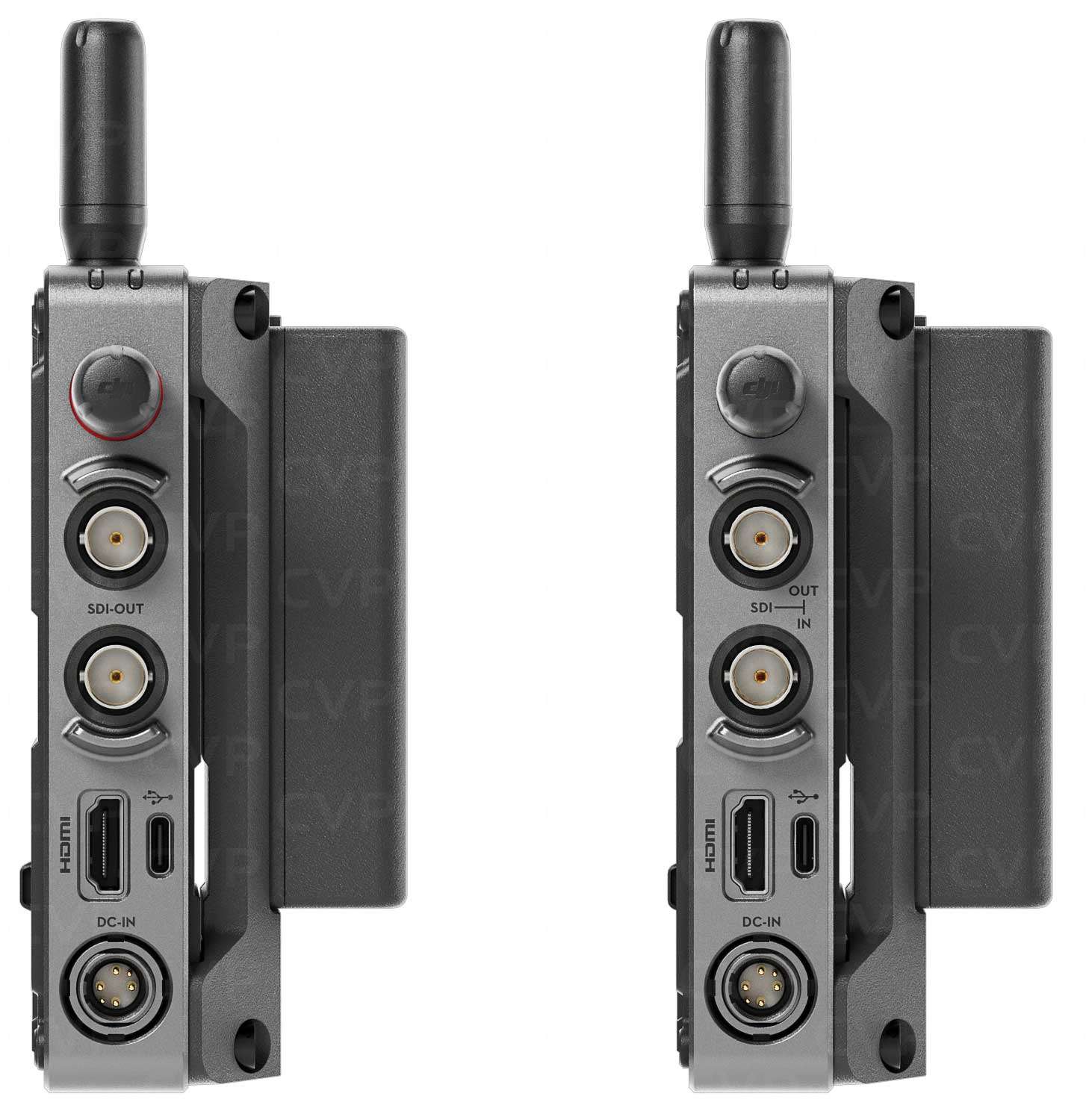

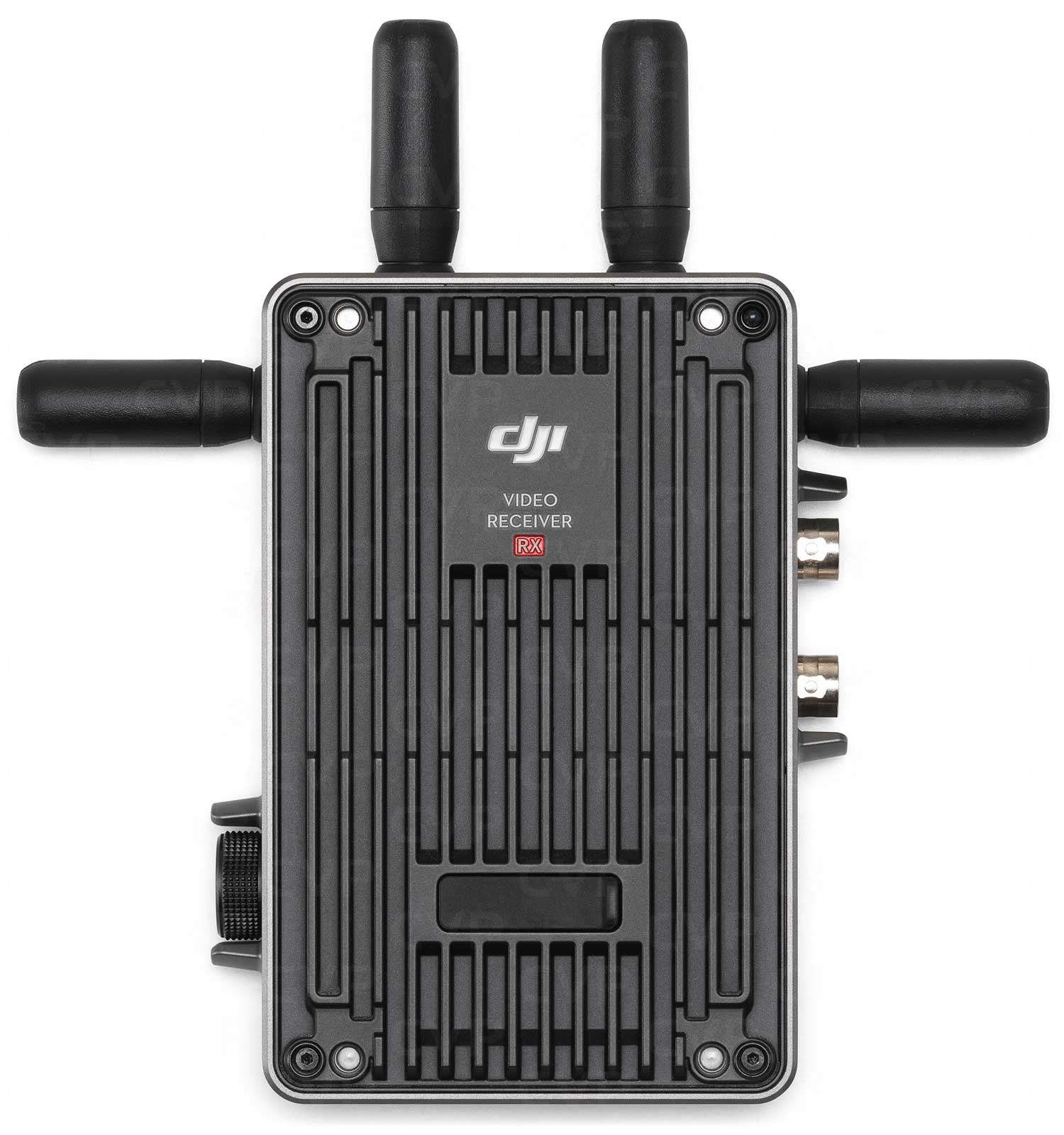

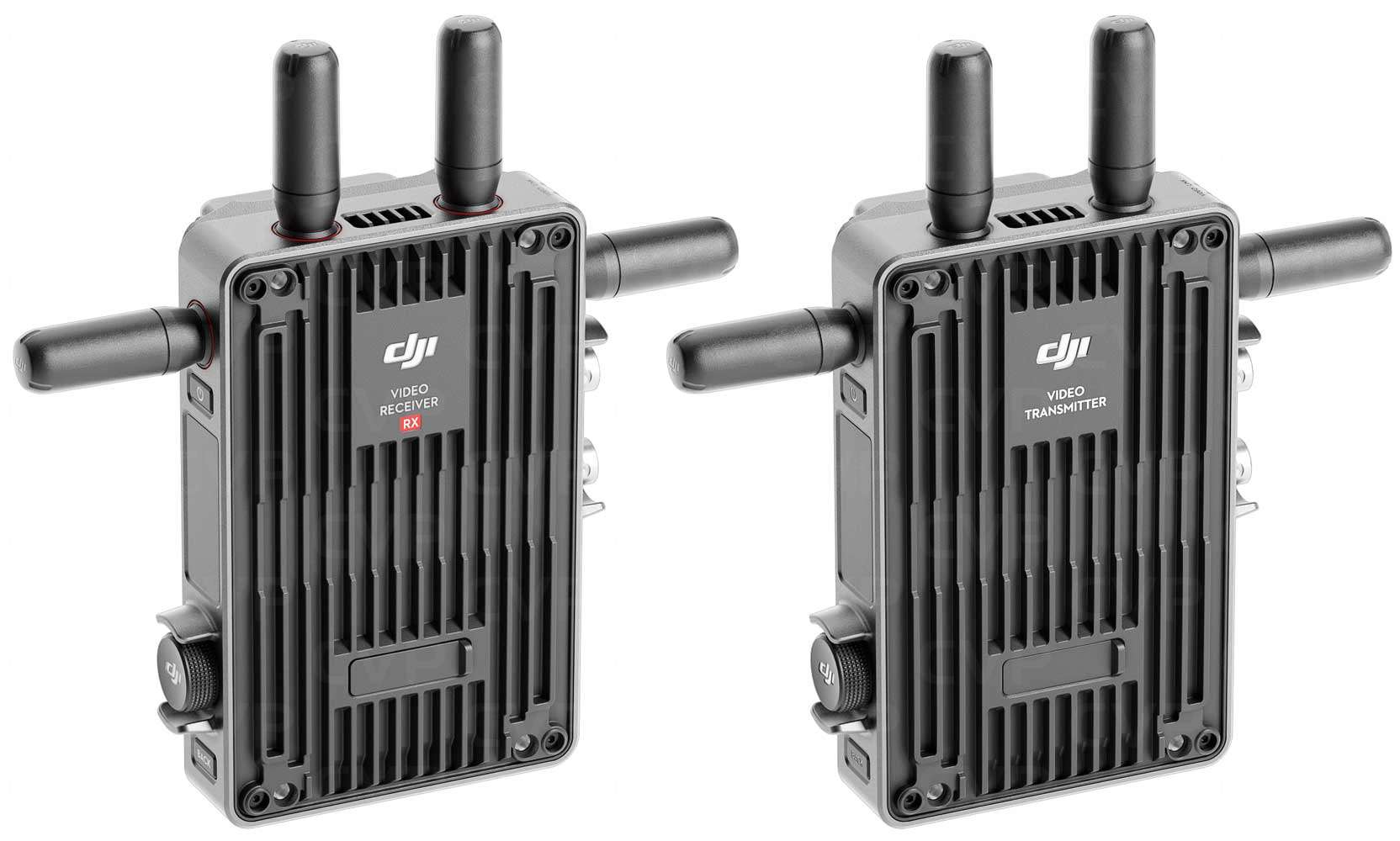

Includes a DJI Video Transmitter and a DJI Video Receiver.
This combo delivers extended-range, low-latency transmission, making it especially suitable for use with production monitors. It also now supports metadata transmission via SDI in addition to the output of fractional frame rates.
Long-Distance HD Live Feed
Incorporates O3 Pro video transmission technology that offers an incredible 20,000ft [1] transmission distance at 1080p/60fps.
Unlimited Number of Receivers [2]

Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams for enhanced efficiency.
Triple-Band Seamless Auto Hopping

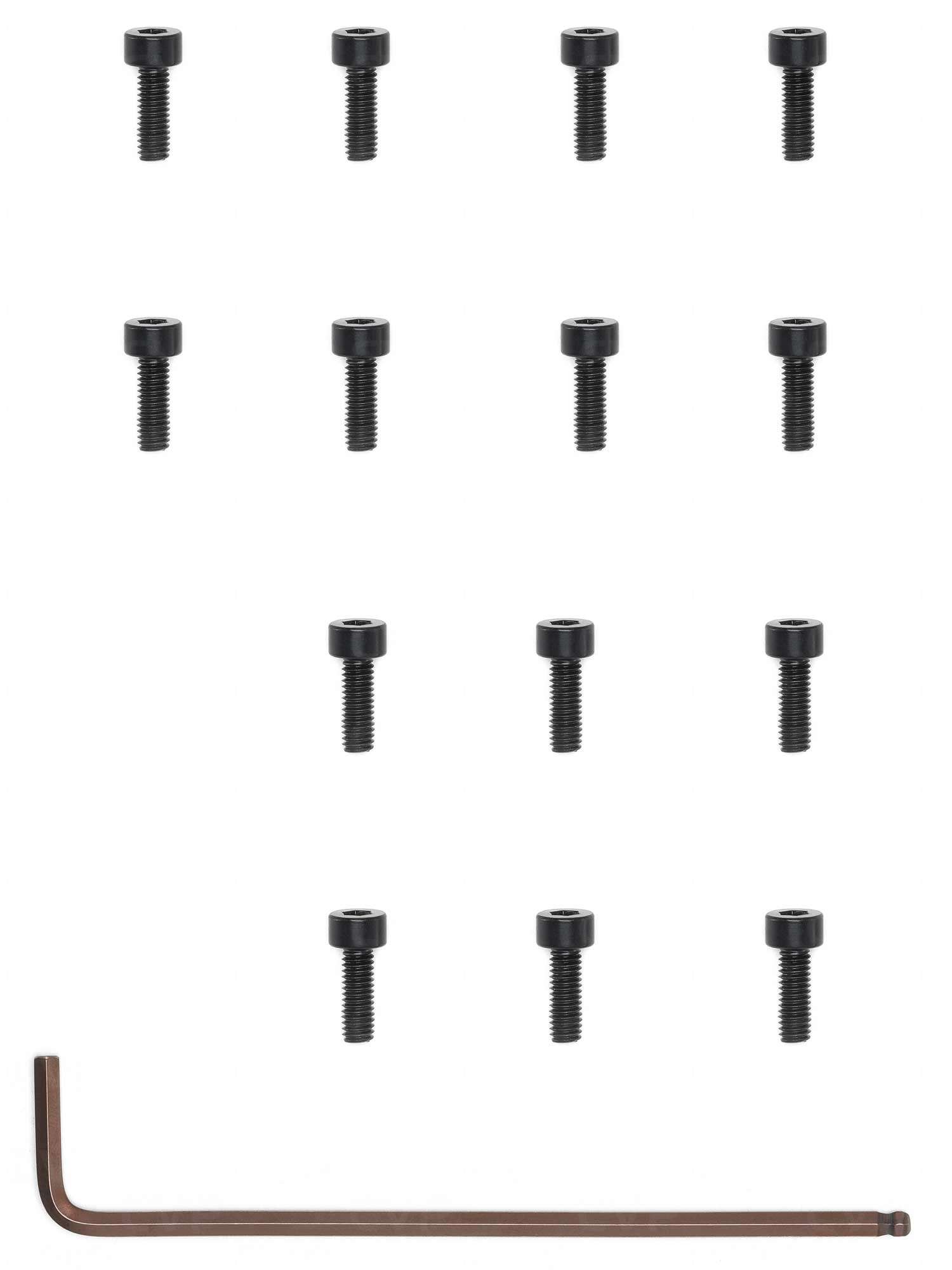

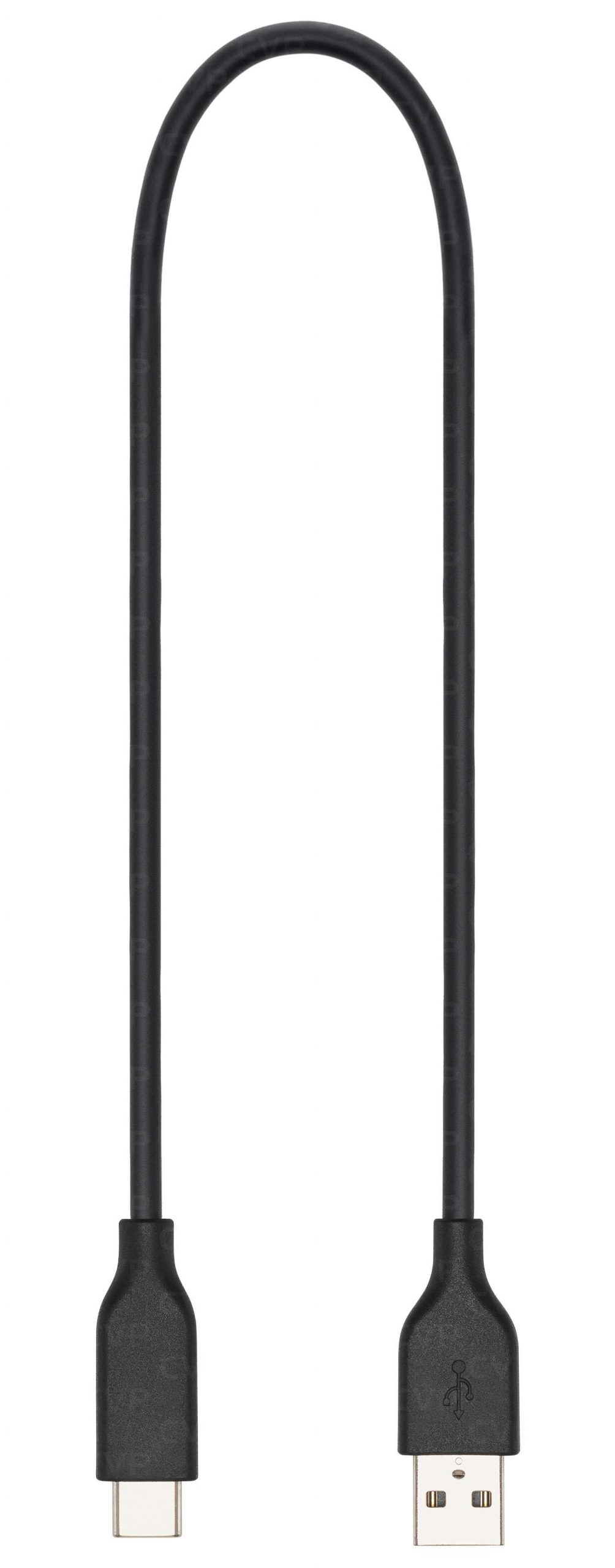

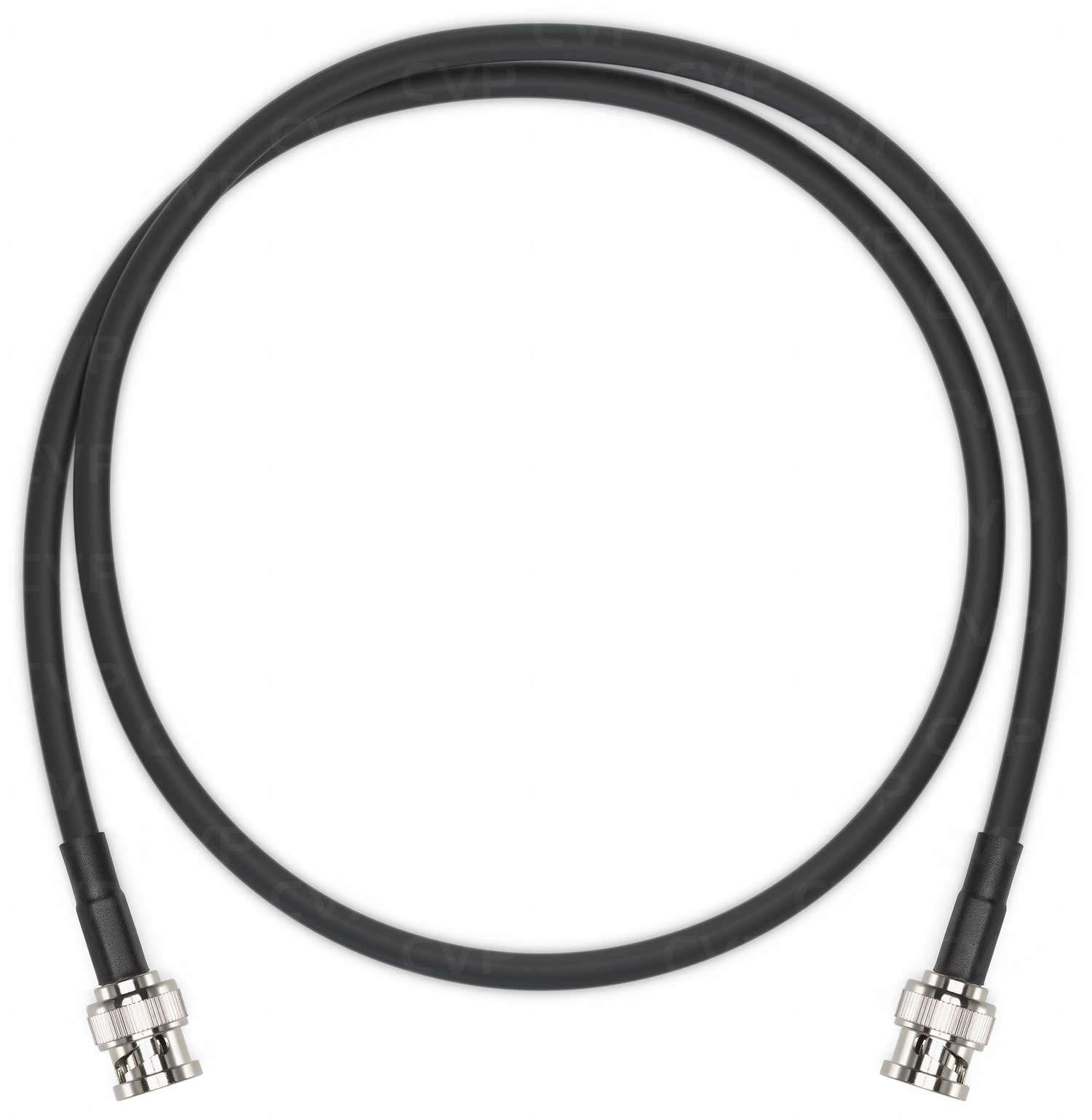

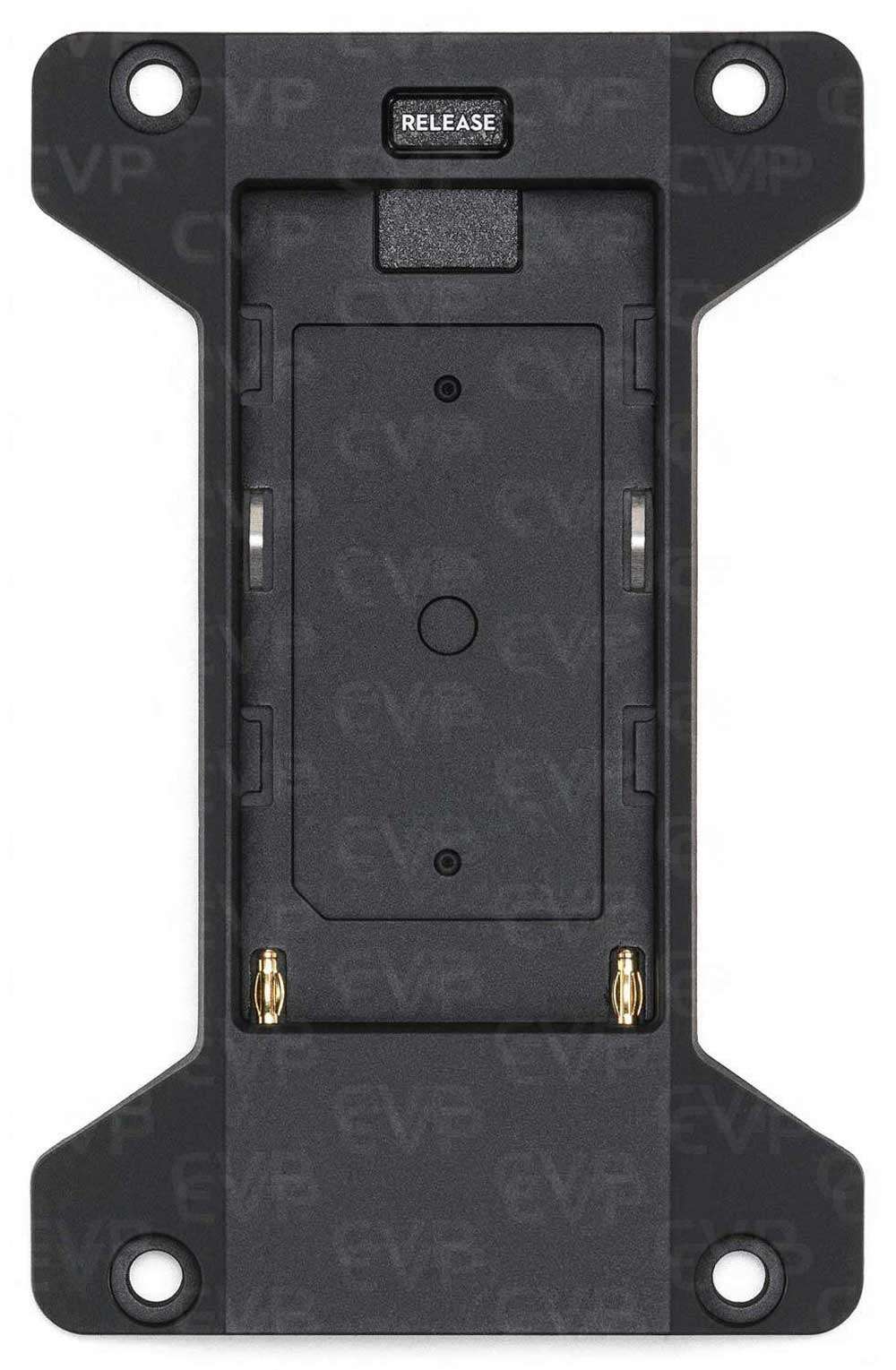

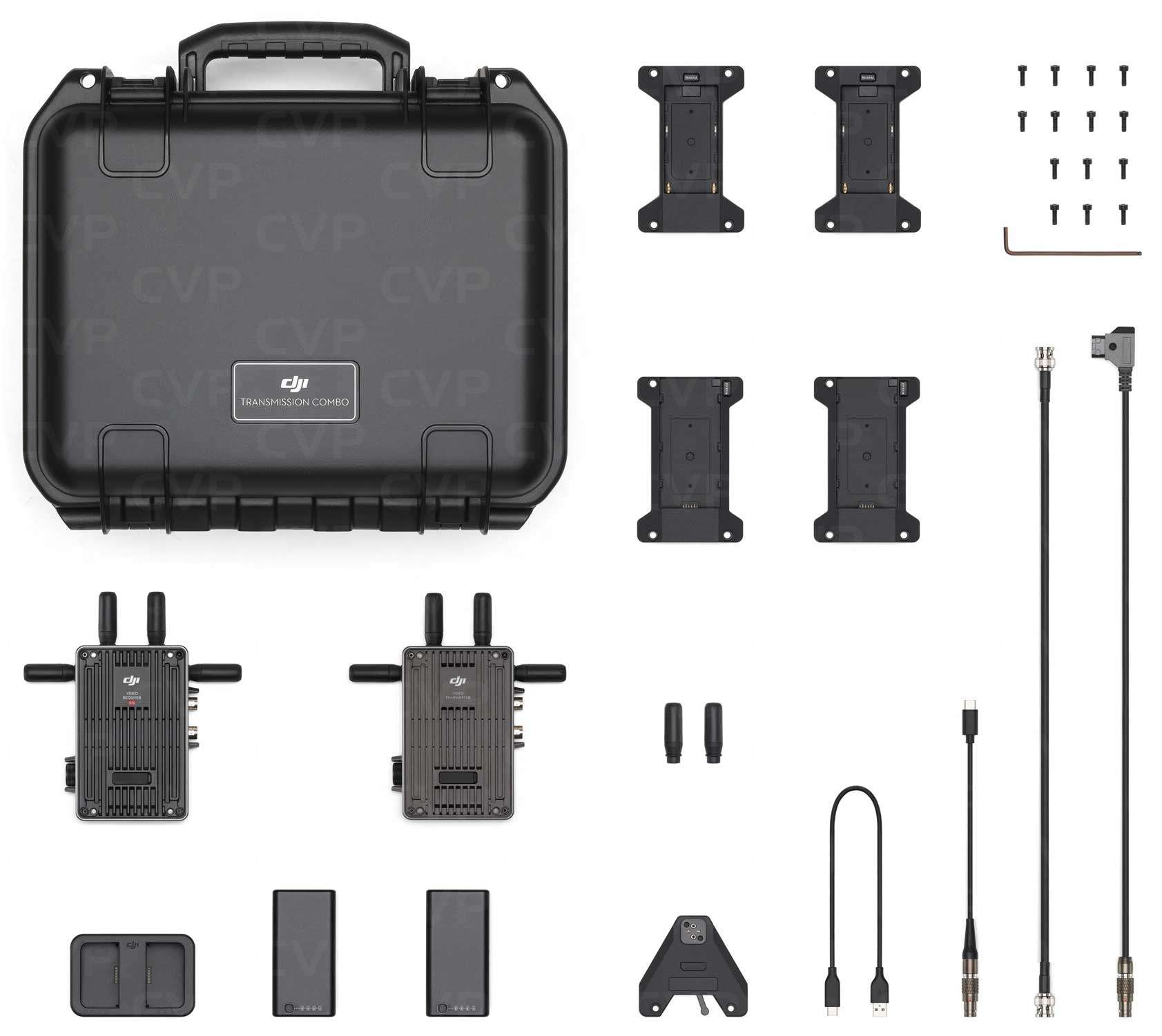

<... INCLUDED IN BOX 1x DJI Video Transmitter 1x DJI Video Receiver 2x WB37 Intelligent Battery 1x WB37 Battery Charging Hub(USB-C) 1x RS Gimbal Mounting Plate 2x WB37 Battery Adapter 2x NP-F Battery Adapter 1x DJI Transmission USB-C Power Cable 1x DC to P-Tap Power Cable 1x SDI Cable 1x USB-C Cable 1x Protector Case 2x Ronin Video Transmission Antenna 1x Installation Toolkit 1x DJI Video Receiver Product Information About The DJI Transmission Combo - Standard DJI Transmission Vision Beyond Boundaries DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder. It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries. DJI Transmission (Standard Combo) Includes a DJI Video Transmitter and a DJI Video Receiver. This combo delivers extended-range, low-latency transmission, making it especially suitable for use with production monitors. It also now supports metadata transmission via SDI in addition to the output of fractional frame rates. Long-Distance HD Live Feed Incorporates O3 Pro video transmission technology that offers an incredible 20,000ft [1] transmission distance at 1080p/60fps. Unlimited Number of Receivers [2] Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams for enhanced efficiency. Triple-Band Seamless Auto Hopping Supports triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS for optimal wireless channel use. End-to-End Ultra-Low Latency The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF. Integrated Wireless Receiver The DJI High-Bright Remote Monitor[3] integrates monitor and receiver with expansion features and supportive tools for precise control. Remote Gimbal/Focus/Camera Control [4] When used with Ronin 4D Hand Grips or DJI Master Wheels, [5] you can remotely control Ronin 2, RS 3 Pro, focus, and camera function Independent Recording and Playback [4] 1080p/60fps H.264 footage can be independently recorded and stored on a microSD card, making it easy to edit samples right on set. Seamless Auto Frequency Hopping O3 Pro adds DFS bands on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel. With a built-in frequency sweeper, users can even manually select the optimal channel to avoid interference between devices. By mounting high-gain antennas, [2] transmission capability is further boosted. One Transmitter with Multiple Receivers Both the High-Bright Remote Monitor and the Video Receiver support one transmitter with multiple receivers for video and audio feeds in two transmission modes. The default Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams such as lighting, art department, and makeup on sets with large crews, and a live feed's bitrate and input feed's video codecs can be displayed in real-time as well. If you want to switch camera index for monitoring, simply select the corresponding index without having to check the transmission channel, which greatly enhances the shooting efficiency. To connect to DJI Master Wheels or other control devices, select Control mode on the High-Bright Remote Monitor or the Video Receiver and pair it with the Video Transmitter. Then, Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely on up to two receiving ends while not affecting other devices connected via Broadcast mode. In addition, the Video Receiver supports voice calls for real-time, one-on-one, ultra-long-distance voice transmission, providing seamless communication between the cinematographer and the director or client. Transmission of Metadata The DJI Video Receiver supports camera metadata transmission via SDI. When used with ARRI, RED, and other mainstream cinema cameras, it can transmit file name, timecode, recording trigger, camera settings (aperture, focal length, etc.), and lens information (aperture, focal length) from the receiver to monitors and QTAKE, allowing directors, cinematographers, and DIT teams to receive detailed shooting information on set. Encrypted Transmission DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI’s self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage. DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub With the DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub, you can connect the DJI Video Transmitter to the DJI LiDAR Range Finder (RS) and DJI RS Focus Motor (2022) to experience an independent focusing and monitoring system, and achieve lens calibration and autofocus with a manual lens without the need for connecting to RS 3 Pro. Connect it to the Ronin 4D Hand Grips, and you will have LiDAR waveform to facilitate precision manual focusing. Additionally, when connecting to DJI RS 3 Pro, it gives you an entire set of shooting solutions that integrates stabilization, remote monitoring, gimbal control, and LiDAR focusing. Without Stabilizer With Stabilizer All In One Ports and Power Supply Video Transmitter Ports 3G-SDI Loop Out Port: Supports output of 1080p/60fps videos. 3G-SDI Input Port: Supports input of 1080p/60fps videos. HDMI 1.4 Type-A Input Port: Supports input of 1080p/60fps videos. USB Type-C port: For voice calls and firmware updates. Power Input Port [6]: 6.8 V to 17.6 V power input (including CAN input and output, and connection with Ronin 2 or RS 3 Pro). [4] Video Receiver Ports 3G-SDI Output Port [6]: Supports output of 1080p/60fps videos. HDMI 1.4 Type-A Output Port [6]: Supports output of 1080p/60fps videos. USB Type-C port: For voice calls and firmware updates. Power Input Port [6]: 6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels). [4] Direct Power Supply by Gimbal DJI Transmission can pair with Ronin 2 or RS 3 Pro for a customized shooting solution. The Video Transmitter can be mounted directly to the cold shoe on the bottom of the gimbal and powered by it directly without additional batteries. Mounted on Ronin 2 Mounted on RS 3 Pro Other Power Supply Solutions WB37 Power Supply The Video Transmitter, High-Bright Remote Monitor, and the Video Receiver are all compatible with the DJI WB37 Battery. NP-F Power Supply The Video Transmitter, High-Bright Remote Monitor, and the Video Receiver can use the included NP-F Battery Adapter to use universal batteries. V-mount Power Supply The Video Transmitter, High-Bright Remote Monitor, and the Video Receiver can be powered by V-mount batteries using third-party V-mount battery adapters. Pogo pins on both the front and back of the Video Transmitter and the Video Receiver also allow a simultaneous connection to a V-mount battery plate on a camera via third-party battery adapter for integrated power supply. DC-IN Power Supply For a continuous power supply of the Video Transmitter, High-Bright Remote Monitor and the Video Receiver, a P-TAP to DC-IN power cable can be used to connect to an external power source. 20,000ft 1080p/60fps Transmission| Seamless Auto Frequency Hopping| End-to-End Ultra-Low Latency| Integrated Receiver and Monitor| Gimbal/Focus/Camera Control| Independent Recording and Playback Unlimited Number of Receivers Transmits Metadata via SDI Dual-Link SDI + HDMI Simultaneous Output * When using DFS frequency band, please follow local laws and regulations. 1. Measured in the Control mode (with Broadcast mode turned off) with FCC compliance in a standard, interference-free environment. 2. Sold separately. 3. Requires a camera control cable. Check the camera compatibility list for detailed information on supported camera models. 4. Items sold separately. 5. Check the official spec sheet for compatible camera models. 6. Using these functions requires additional accessories that are sold separately. Weight Approx. 350 g (excluding antennas) Dimensions 127×87×26 mm (L×W×H, excluding antennas) Operating Frequency Frequency Band Non-DFS Frequency Band 2.4000-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz DFS Frequency Band: 5.250-5.350 GHz 5.470-5.725 GHz 5.725-5.850 GHz In some countries and regions, the 5.1/5.2/5.8 GHz frequencies are prohibited, or the 5.1/5.2 GHz frequencies are only allowed for indoor use. Check local laws and regulations for more information. 5.600-5.650 GHz is not used. Transmitter Power (EIRP) 2.4000-2.4835 GHz: <33 dBm (FCC) <20 dBm (SRRC/CE/MIC) 5.725-5.850 GHz: <33 dBm (FCC) <14 dBm (CE) <23 dBm (SRRC) Max Bandwidth 40 MHz Max Bitrate 40 Mbps Power Consumption 9 W Power Supply Voltage 6 to 18 V Output Voltage Power output port: 6 to 18 V Operating Time 3 hours 50 minutes Tested in a room temperature of 25° C (77° F) when powered by a fully charged WB37 Intelligent Battery and used with the DJI Video Transmitter. Output Video Format With the DJI Video Transmitter: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 720p: 50/59.94/60fps With Ronin 4D: 1080p: 24/25/30/48/50/60 fps Input Audio Format SDI embedded, HDMI embedded Output Audio Format PCM Video Transmission System O3 Pro Video Transmission Latency 70 ms Measured when shooting 1080p/60fps video. Video Coding Format H.264 Max Transmission Distance 6 km (FCC) 4 km (CE/SRRC/MIC) Measured in open environments without obstructions or interference. Operating Temperature -10° to 45° C (14° to 113° F) 20,000ft 1080p/60fps Transmission Unlimited Number of Receivers Seamless Auto Frequency Hopping End-to-End Ultra-Low Latency Transmits Metadata via SDI Dual-link SDI + HDMI simultaneous output
