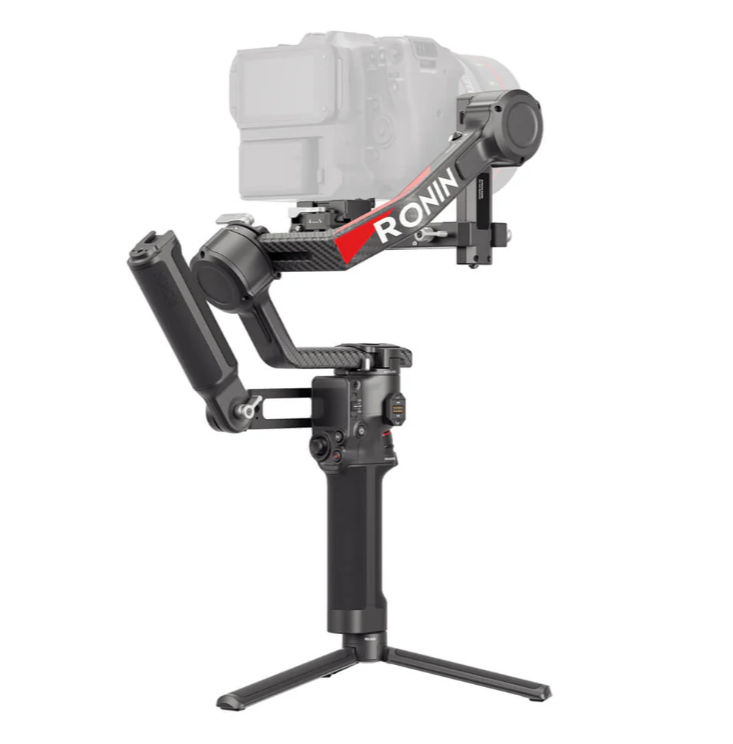

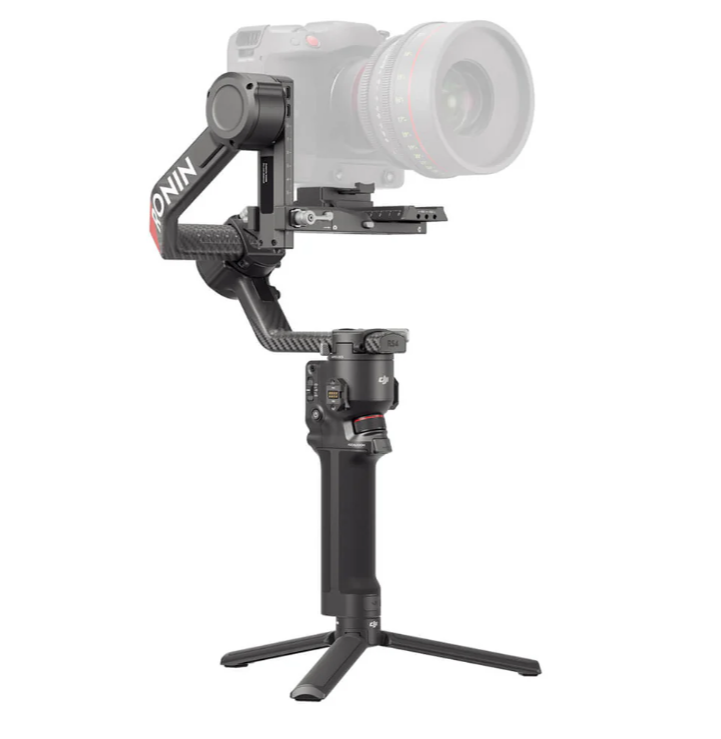

DJI RS 4 Pro Combo

OVERVIEW
The DJI RS 4 Pro Combo is a flagship stabilizer designed for the film and television industry, offering a full-scale production solution that unites stabilization, transmission, monitoring, focusing, and control. With its PRO-grade design, stabilization, shooting capabilities, battery runtime, and ecosystem, this stabilizer broadens the horizons of creative possibilities and empowers cinematographers to showcase their skills.

Equipped with carbon fiber axis arms, the DJI RS 4 Pro can handle a payload of up to 4.5kg (10lbs), making it suitable for mainstream mirrorless and cinema cameras. It also features a 2nd-generation native vertical shooting design, allowing for effortless switching between horizontal and vertical shooting. The roll axis has dual rolling bearings for easier adjustments, and all three axes have a Teflon™ coating for smooth balancing. The OLED touchscreen has an automatic screen lock feature to prevent accidental touches, and the 2nd-gen automated axis locks enhance shooting, transition, and storage efficiency.

The DJI RS 4 Pro offers professional stabilization with its 20% increase in motor torque across three axes, ensuring responsive and accurate tracking movements even with heavy cameras or multiple accessories. It also has a car mount mode for steady capture in shaky conditions and a 4th-gen RS stabilization algorithm that strikes a balance between stabilization strength and user experience. With the addition of the DJI Focus Pro LiDAR and Focus Pro Motor, the RS 4 Pro allows for more accurate and intelligent LiDAR autofocus, making it a master of versatility.

The LiDAR autofocus has a range of 76,800 points, a 77% increase from the previous generation, and can handle a maximum focus distance of 20m. It also has a FOV of 70° for edge compositions and close-up shots, and a refresh rate of 30 Hz for faster subject information collection. The next-gen ActiveTrack Pro feature uses AI algorithms and the Focus Pro LiDAR for improved subject tracking. With its advanced features and capabilities, the DJI RS 4 Pro Combo is the perfect tool for professional filmmakers and cinematographers.

INCLUDED IN BOX
1x Gimbal
1x BG30 Battery Grip
1x Quick-Release Plate (Arca-Swiss/Manfrotto)
1x Extended Grip/Tripod (Metal)
1x Briefcase Handle
1x Lens-Fastening Support (Extended)
2x Multi-Camera Control Cable (USB-C, 30 cm)
1x USB-C Charging Cable (40 cm)
1x Screw Kit
1x Carrying Case
1x USB-C Power Cable (20 cm)
1x Mini-HDMI to Mini-HDMI Cable (20 cm)
1x Mini-HDMI to HDMI Cable (20 cm)
1x Mini-HDMI to Micro-HDMI Cable (20 cm)
1x Ronin Image Transmitter
1x Focus Pro Motor
1x DJI Logo Sticker
1x FIZ Sticker
1x Focus Pro Motor Rod Mount Kit
1x Focus Gear Strip
1x Lower Quick-Release Plate (Extended)
1x Phone Holder

About The DJI RS 4 Pro Combo
For Ronin Series Compatibility Search please click HERE

The DJI RS 4 Pro expansive flagship stabilizer integrates seamlessly with the DJI Focus Pro lens control system, DJI Transmission, and an extensive control ecosystem. This synergy empowers the film and television industry with a full-scale production solution that unites stabilization, transmission, monitoring, focusing, and control. It broadens the horizons of creative possibilities, enabling cinematographers to harness their full potential and showcase their skills.

PRO-Grade Design
PRO-Grade Stabilization
PRO-Grade Shooting
PRO-Grade Battery Runtime
‌PRO-Grade Ecosystem

Professional Design Packed With Capabilities – Powerful Payload

Equipped with carbon fiber axis arms, DJI RS 4 Pro boasts a 4.5kg (10lbs) payload capacity as well as robust power and torque, easily accommodating mainstream mirrorless/cinema camera and lens setups.

2nd-Gen Native Vertical Shooting

Designed with an all-new horizontal plate, RS 4 Pro enables the second generation of native vertical shooting for further elevated efficiency. Without the need for additional accessories, cinematographers can simply release the horizontal plate and secure it into the vertical position for an effortless switch to vertical shooting. [1]

Smooth Balancing

The roll axis now has dual rolling bearings, facilitating easier adjustments.

All three axes feature a Teflon™ coating with a low friction coefficient, ensuring smooth balancing even when mounting heavy cameras.

When switching cameras or lenses, a fine-tuning knob on the tilt axis allows you to move the camera forward or backward, achieving precise, millimeter-level balancing.

The upper quick-release plate has added an adjustable placement guide to prevent the camera from loosening or shifting.

Automatic Screen Lock

The OLED touchscreen incorporates a new auto-lock feature, preventing accidental touches during shooting. When the screen is locked, it can still display the current gimbal and joystick modes at a low brightness, reducing power consumption.

2nd-Gen Automated Axis Locks

With the next-generation automated axis locks, DJI RS 4 Pro can quickly start working or enter sleep mode, significantly enhancing shooting, transition, and storage efficiency. In addition, the axis locks have been upgraded to achieve smaller gaps, further reducing gimbal shakes when locked.

3D

Get a feel for what it’s like to own DJI RS 4 Pro in advance.

AR

Take a closer look from every angle.

Professional Stabilization – Excellent Stability, Exceptional Standards

DJI RS 4 Pro features a 20% increase ‌[2]‌ in motor torque across three axes, offering greater power redundancy once balanced. This ensures that the gimbal remains responsive and accurate in its tracking movements, even with heavy cameras or multiple accessories. Additionally, it provides sufficient power to support gimbal stabilization in various shooting scenarios.

Car Mount Mode

The new Car Mount mode optimizes the gimbal stabilization algorithm based on vehicle vibrations and wind resistance data, enabling steady capture even in shaky conditions.

4th-Gen RS Stabilization Algorithm

The next-generation RS stabilization algorithm has been comprehensively optimized for different usage scenarios. It strikes a superior balance between stabilization strength and the tactile feel of camera movement, delivering both excellent stabilization performance and an enhanced user experience. Additionally, RS 4 Pro provides significantly enhanced stability in vertical shooting, easily mastering dynamic shots like running or low-angle perspectives.

Master of Versatility – LiDAR Intelligent Focusing for Confident Shooting

DJI Focus Pro LiDAR Autofocus

When paired with the all-new Focus Pro LiDAR [3] and Focus Pro Motor, [4] RS 4 Pro allows solo cinematographers to experience more accurate, distant, and intelligent LiDAR autofocus, gaining precise control over cinematic expression in dynamic shooting scenarios.

Ranging Points – 76,800

A leap of 77%, [5] sharpening human subject edge detection while effectively reducing focus hunting.

Max Focus Distance [6] 20 m

The human-subject focus distance is approximately three times that of the previous generation, [5] effortlessly‌ handling long-distance focusing with telephoto lenses.

FOV 70°

Beneficial for edge compositions and close-up shots, providing a larger framing space.

LiDAR Refresh Rate 30 Hz

Focus on moving subjects with confidence with faster subject information collection and the enhanced speed of the Focus Pro Motor. [4]

Next-Gen ActiveTrack Pro

Leveraging the all-new Focus Pro LiDAR [3] and AI algorithms, the next-gen ActiveTrack Pro enables RS 4 Pro’s three-axis gimbal to steadfastly track your subject. Even if the subject is briefly obscured, it can quickly relocate and retain focus. ActiveTrack Pro also exhibits excellent recognition and tracking performance in scenarios involving multiple subjects or when the subject is at a distance.

Dual Focus & Zoom Motors for Elevated Performance

DJI Focus Pro Motor

DJI RS 4 Pro introduces a new joystick mode switch, allowing cinematographers to control either the gimbal movement or the lens zoom via joystick. When used with the Focus Pro Motor [4] in zoom control mode, it can perform Power Zoom for PZ lenses, Clear Image Zoom, [7] and external focus motor zoom for a native, precise, and convenient focusing experience.

‌Motor Speed [5] Increased by 30%

More responsive focus, zoom, and aperture controls.

Universal Rod – 15 mm

More mainstream and versatile.

‌Lowest Latency [8] 10 ms

Rapid response for seamless operation.

High-Efficiency Lens Control

When paired with two Focus Pro Motors, [4] DJI RS 4 Pro allows cinematographers to precisely control the focus by rotating the dial and adjusting the lens zoom via joystick, facilitating smooth and effortless lens control.

Remote Control System for Professional Collaboration

DJI Focus Pro Hand Unit

DJI Focus Pro ushers in innovative LiDAR autofocus technology and introduces a high-precision magnetic-damping manual control unit: Focus Pro Hand Unit. [3]

Control Channels

FIZ – Supports FIZ control, mastering the power of focus, iris, and zoom with ease.

Communication Distance

160 m – Supports vehicle shoots and long-distance one-takes, etc.

Electronic Marking

A-B Points – Provides spring-back tactile feedback for endpoints, facilitating more accurate focusing on a fixed path or two subjects in static positions.

Bluetooth Functionality

Start/Stop Recording – Enables remote start/stop recording of the camera, [7] improving shooting efficiency with cable cams, jibs, and other carriers.

In collaborative team shooting, the gimbal operator can control the RS 4 Pro gimbal through devices such as DJI Master Wheels, DJI Ronin 4D Hand Grips, and DJI High-Bright Remote Monitor. [3] The focus puller can also enable LiDAR Waveform on the High-Bright Remote Monitor for intelligent focus assistance [9] to enable more precise control with the Focus Pro Hand Unit.

Efficient Operation, Flexible Creation

Bluetooth Wireless Control

DJI RS 4 Pro adopts Dual-Mode Bluetooth technology and supports wireless shutter and wireless zoom control. After switching joystick mode to zoom control, cinematographers can use the joystick to perform Power Zoom for PZ lenses as well as Clear Image Zoom. [7]

Trigger Function Customization

The trigger function can be customized to FPV mode, where pressing and holding the trigger makes the gimbal’s three axes follow the direction of the grip’s movement. This is particularly useful for shooting rotational footage or simulating POV.

Gimbal Mode Switch

Toggle to instantly switch the gimbal mode between PF, PTF, and FPV. You can also replace FPV mode with 3D Roll 360 mode or Custom mode based on your preference and shooting requirements, ensuring a seamless operation.

Intelligent Features

RS 4 Pro can automatically capture Motionlapse footage, Track videos, and Panorama images, intelligently producing high-quality short videos.

Exceptional Performance – Extended Battery Runtime

High-Capacity Battery Grip

Keep filming–with the DJI RS BG70 High-Capacity Battery Grip [3] extend RS 4 Pro’s battery runtime to 29 hours. [10] It also supports powering your camera and accessories with up to 18 W via the USB-C port at the bottom.

Max Battery Runtime [10]

29 Hours

PD Fast Charging

45 W

Rapid Full Charge [11]

2.5 Hours

Max Power Output

18 W

Control Ecosystem – Enhanced Lineup

With the Focus Pro AMF lens control system seamlessly integrated, the DJI PRO ecosystem has been elevated further to offer a robust lineup that opens up new possibilities in film and television production.

Focus Control Ecosystem

DJI Focus Pro provides a comprehensive and powerful lens control solution to RS 4 Pro cinematographers. Both solo creations and team collaborations can easily access intelligent LiDAR autofocus as well as multi-channel control of focus, aperture, and zoom, for dynamic mastery over every focus moment.

Video Transmission Ecosystem

Integrated Installation and Power Supply

DJI RS 4 Pro can power the Focus Pro LiDAR [3] and DJI Video Transmitter [3] simultaneously via the Focus Pro LiDAR to DJI Transmission Cable Hub, [3] eliminating the need for an external V-mount battery. The DJI Video Transmitter can also be easily and directly mounted on the bottom of RS 4 Pro via the cold shoe for easy installation, reducing the burden for handheld setup.

Intelligent Focus Assistance

‌With the Ronin 4D Hand Grips [3] and High-Bright Remote Monitor, [3] you can select LiDAR focus subjects, switch focus modes, and enable LiDAR Waveform. [9]

Gimbal/Focus/Camera Parameter Control

In conjunction with the Ronin 4D Hand Grips, [3] Focus Pro Hand Unit, [3] Master Wheels, [3] and High-Bright Remote Monitor, [3] you can remotely control the gimbal, focus, and camera parameters, achieving an integrated creative process that encompasses reception, monitoring, and control.

Mirror Control Mode

When RS 4 Pro is mounted to carriers like a jib, cable cam, or vehicle suction cup mount, you can directly control the core menu operations for Sony and other mirrorless cameras via Mirror Control mode on the High-Bright Remote Monitor, [3] without having to detach your camera.

Support for DJI Ronin Image Transmitter

Both solo cinematographers and small crews can utilize the Ronin Image Transmitter [3] for high-definition live feeds, remote gimbal and camera control, ActiveTrack 4.0, Force Mobile, and many other features, achieving an integrated shooting experience with monitoring and control capabilities.

Professional Solutions

DJI RS 4 Pro supports various handheld configurations, including briefcase, dual-grip, and ring-mount setups. [12] Additionally, it can use DJI RS SDK protocol to establish solutions with car mounts, jibs, Steadicam, cable cams, and sliders, [12] meeting full-scenario creative needs.

DJI RS SDK creates a joint ecosystem with developers.

DJI RS SDK is a developer protocol provided by DJI for developers and third-party hardware manufacturers to equip stabilizers such as RS 4 Pro, RS 3 Pro, and RS 4 with more features for extensive scenarios.

Features:

Set gimbal position
Control gimbal rotation
Get motor and attitude information
Control camera focus and shooting

Applications

1. Build a virtual studio system that can use a PC or console to control the RS stabilizer. It also supports online control of multiple gimbals, allowing solo operators to manage several devices with ease.2. Mount the RS stabilizer on a slider and link the two through programming for four-dimensional control. You can customize the shooting track to get effortlessly expressive camera movements.

Solo Creations, Double the Efficiency

When paired with Focus Pro, RS 4 Pro allows solo cinematographers to experience more accurate, distant, and intelligent LiDAR autofocus, gaining precise control over the cinematic expression in dynamic shooting scenarios.

DJI RS 4 Pro
DJI Focus Pro LiDAR
DJI Focus Pro Motor

Professional Vehicle Shoots, All in One Go

With the DJI PRO ecosystem’s lightweight vehicle-shooting solution, cinematographers can revel in a seamlessly integrated experience of stabilization, monitoring, and dual-channel control of the gimbal and focus.

DJI RS 4 Pro
DJI Focus Pro LiDAR
DJI Focus Pro Motor
DJI Transmission (High-Bright Monitor Combo)
DJI Ronin 4D Hand Grips Combo
DJI Focus Pro LiDAR to DJI Transmission Cable Hub
DJI Ronin External GPS Module

Diverse Mounting, Boundless Creativity

Based on RS SDK protocol, third-party manufacturers and individual developers can create customized solutions for RS 4 Pro, assisting cinematographers to effortlessly complete complex shoots with a jib, Steadicam, cable cam, or slider.

DJI RS 4 Pro
DJI Focus Pro LiDAR (Optional)
DJI Focus Pro Motor
DJI Focus Pro Hand Unit
DJI Focus Pro LiDAR to DJI Transmission Cable Hub (Optional)
DJI Transmission
DJI Master Wheels

* The DJI Ronin app is required for activation when using DJI RS 4 Pro for the first time.
1. The gimbal requires rebalancing after switching between horizontal and vertical shooting.
2. Compared with DJI RS 3 Pro.
3. Sold separately.
4. The DJI RS 4 Pro Combo includes a DJI Focus Pro Motor. For the standalone version, the motor is sold separately.
5. Compared with the DJI LiDAR Range Finder (RS).
6. Requires enabling the 2x zoom display function on the DJI RS 4 Pro touchscreen.
7. For more details on camera and lens compatibility, please refer to the Ronin Series Compatibility Search page.
8. This value indicates the response latency between the DJI Focus Pro Hand Unit and the DJI Focus Pro Motor.
9. LiDAR Waveform is only available when DJI RS 4 Pro is paired with a DJI Focus Pro Motor.
10. Measured in a 25° C (77° F) indoor environment with the gimbal balanced in a level and stationary state until the battery level reached 3% (with the battery grip only powering the gimbal).
11. Measured in a 25° C (77° F) indoor environment.
12. Setting up any of the shooting solutions requires one or more accessories that are sold separately.

Peripheral
Accessory Port Ronin Series Accessories (RSA)/NATO Ports
1/4″”-20 Mounting Hole
‌ Cold Shoe
Video Transmission/LiDAR Range Finder Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
Battery Model: BG30-1950mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Energy: 30 Wh
Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. ‌
When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. ‌
It is recommended to use chargers supporting QC 2.0 or PD protocols.)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections Bluetooth 5.1
Charging Port (USB-C)
Ronin App Requirements iOS 11.0 or above
Android 8.0 or above”
Languages Supported by the Touchscreen English, Simplified Chinese, Traditional Chinese,
German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload 4.5 kg (10 lbs)
Maximum Controlled Rotation Speed Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis : -112° to +214°
Mechanical & Electrical Properties
Operating Frequency 2.40‌‌0-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm Operating Temperature -20° to 45° C (-4° to 113° F) Weight Gimbal: Approx. 1242 g (2.74 lbs) Grip: Approx. 265 g (0.58 lbs) ‌Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs) Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs) Dimensions Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) DJI Ronin Image Transmitter Connections Power/Communication Port (USB-C) HDMI Port (Mini HDMI) RSS Camera Control Port (USB-C) Expansion Port Cold ShOE Operating Frequency 2.40‌‌0-2.4835 GHz 5.725-5.850 GHz Weight 126 g (0.27 lbs) Dimensions 82×63×24 mm (L×W×H) Transmitter Power (EIRP) "‌2.400-2.4835 GHz: < 25 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE) Battery Capacity: 2970 mAh Compatible Charger: 5 V/2 A Charging Time: Approx. 2.5 hourS Operating Time: Approx. 3.5 hours Transmission Range 200 m (SRRC/FCC) 100 m (CE) Measured in an unobstructed environment free of interference Latency 60 ms Operating Current/Voltage 900 mA/3.7 V Operating Temperature 0° to 45° C (32° to 113° F)
