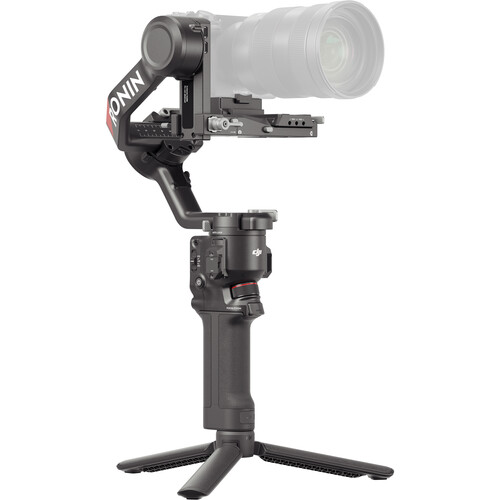

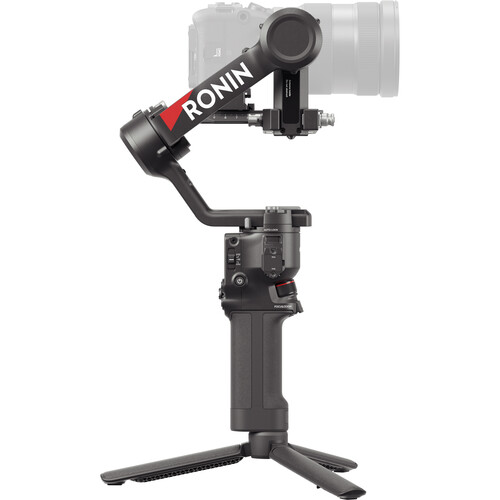

DJI RS 4 Gimbal

OVERVIEW
The DJI RS 4 Gimbal is a lightweight stabilizer designed for commercial use. It features 2nd-Gen Native Vertical Shooting, Joystick Mode Switch, and Zoom/Gimbal Control, making it efficient and easy to use for solo cinematographers. The Teflon™-Coated Axis Arms provide smoother balancing, while the 3kg (6.6lbs) Payload Capacity allows for comfortable holding with robust power. The extended tilt axis and RSA Communication Port also enhance its capabilities, making it a powerful tool for creating gripping visual stories.

The DJI RS 4 has a Quick Launch feature for 2nd-Gen Native Vertical Shooting, allowing for faster and simpler operation. Its 2nd-Gen Automated Axis Locks make it quick to start working or enter sleep mode, while the Teflon™ coating on all three axes provides the smoothest balancing experience yet. The OLED touchscreen also has an automatic screen lock feature to prevent accidental touches and conserve battery power.

With its excellent payload capacity and 4th-Gen RS Stabilization Algorithm, the DJI RS 4 is a professional-grade stabilizer. It also has Bluetooth Wireless Control for remote camera shutter and lens zoom, and supports the DJI Focus Pro Motor for efficient lens control. The trigger function can be customized for FPV mode, and the gimbal mode switch allows for quick switching between different modes.

The DJI RS 4 also has intelligent features such as Motionlapse, Track, and Panorama, and an accessory ecosystem that includes an RSA communication port for connecting accessories like the DJI RS Tethered Control Handle and third-party control handles and remotes. With its powerful features and extensive control ecosystem, the DJI RS 4 is a top choice for solo creators looking to elevate their visual storytelling.

INCLUDED IN BOX
1x Gimbal
1x BG21 Battery Grip
1x Quick-Release Plate (Arca-Swiss/Manfrotto)
1x Extended Grip/Tripod (Plastic)
1x Lens-Fastening Support
1x Multi-Camera Control Cable (USB-C, 30 cm)
1x USB-C Charging Cable (40 cm)
1x Screw Kit
DJI Logo Sticker

About The DJI RS 4 Gimbal
For Ronin Series Compatibility Search please click HERE

The DJI RS 4 lightweight commercial stabilizer supports next-generation native vertical shooting with enhanced operation efficiency, improved stabilization performance, and an upgraded accessory ecosystem. It empowers solo cinematographers with a more professional and efficient creative experience and the toolset to tell gripping visual stories.

Quick Launch

2nd-Gen Native Vertical Shooting

DJI RS 4 features a newly designed horizontal plate, enabling the second generation of native vertical shooting for faster and simpler operation. Without the need for additional accessories, you can simply release the horizontal plate and secure it into the vertical position for an easy switch to vertical shooting, [2] paving the way for efficient vertical video creation.

2nd-Gen Automated Axis Locks

The automated axis locks allow RS 4 to quickly start working or enter sleep mode, significantly enhancing shooting, transition, and storage efficiency. Additionally, the axis locks have smaller gaps when locked, further reducing gimbal shake.

Our Smoothest Balancing Experience Yet

DJI RS 4 features a Teflon™ coating for all three axes, resulting in reduced friction and smoother balancing.

When switching cameras or lenses, the fine-tuning knob on the tilt axis can move the camera forward or backward, achieving precise, millimeter-level balancing.

The upper quick-release plate has an added adjustable placement guide to ensure secure camera mounting.

Automatic Screen Lock

‌The OLED touchscreen incorporates a new auto-lock feature. Once locked, the screen will display the current gimbal and joystick modes at a low brightness. This not only prevents accidental touches but also helps to conserve battery power.

Powerful Stabilization

Excellent Payload Capacity

The lightweight body boasts a 3kg (6.6lbs) payload capacity. It can carry mainstream mirrorless camera and lens combinations, enabling comfortable holding with robust power.

Compared with the previous generation, RS 4’s tilt axis has been extended by 8.5 mm, offering expanded balancing space. This allows you to mount mainstream mirrorless camera and lens combinations along with accessories like ND filters, broadening the scope for creative potential.

4th-Gen RS Stabilization Algorithm

DJI has comprehensively optimized the next-generation RS stabilization algorithm for different usage scenarios. It strikes a superior balance between stabilization strength and the tactile feel of camera movement, delivering both excellent stabilization performance and an enhanced user experience. Additionally, RS 4 offers significantly improved stability when vertical shooting, easily steadying dynamic shots like running or low-angle perspectives.

Professional Creation

DJI RS 4 supports the professional-grade features of DJI PRO products, delivering superior performance that makes solo creation more efficient.

Bluetooth Wireless Control

DJI RS 4 can remotely control camera shutter and lens zoom with Dual-Mode Bluetooth technology. In zoom control mode, you can use the joystick to control Power Zoom for PZ lenses and Clear Image Zoom, [3] obtaining a native zoom experience. A camera only needs to be paired once, after which it can reconnect seamlessly and automatically.

Support for DJI Focus Pro Motor

When paired with the new DJI Focus Pro Motor, [4] DJI RS 4 allows you to control the lens focus via dial or adjust the lens zoom via joystick. This smooth operation enables efficient lens control.

‌Motor Speed [5]

Increased by 30%

Universal Rod

15 mm

Trigger Function Customization

The trigger function can be customized to FPV mode, where pressing and holding the trigger makes the gimbal’s three axes follow the direction of the grip’s movement. This is particularly useful for shooting rotational footage or simulating POV.

Gimbal Mode Switch

‌By toggling the gimbal mode switch, you can quickly switch between PF, PTF, and FPV modes. You can also set FPV mode to 3D Roll 360 mode or Custom mode according to the shooting requirements, ensuring RS 4 is precision-ready.

Intelligent Features

Motionlapse
Track
Panorama

Accessory Ecosystem

RSA Communication Port

DJI RS 4 introduces an RSA communication port, which allows for the connection of accessories such as the DJI RS Tethered Control Handle [6] and third-party accessories like control handles [6] and remote-control ring handles. [6] You can flexibly switch between different shooting setups according to your creative needs.

Thanks to DJI RS SDK protocol, third-party manufacturers and individual developers can develop customized functions for RS 4, meeting a wider range of shooting requirements.

DJI RS SDK creates a joint ecosystem with developers.

DJI RS SDK is a developer protocol provided by DJI for developers and third-party hardware manufacturers to equip stabilizers such as RS 4, RS 4 Pro, and RS 3 Pro with more features for extensive scenarios.

Features:

Set gimbal position
Control gimbal rotation
Get motor and attitude information
Control camera focus and shooting

Applications

1. Build a virtual studio system that can use a PC or console to control the RS stabilizer. It also supports online control of multiple gimbals, allowing solo operators to manage several devices with ease.

2. Mount the RS stabilizer on a slider and link the two through programming for four-dimensional control. You can customize the shooting track to get effortlessly expressive camera movements.

Peripheral
Accessory Port Ronin Series Accessories (RSA)/NATO Ports
1/4″”-20 Mounting Hole
‌ Cold Shoe
Video Transmission Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
Battery Model: BHX711-3000-7.2‌‌V
Type : LiPo 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. ‌
When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging.
It is recommended to use chargers supporting PD protocol.)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections Bluetooth 5.1
Charging Port (USB-C)
Ronin App Requirements iOS 11.0 or above
Android 8.0 or above
Languages Supported by the Touchscreen English, Simplified Chinese, Traditional Chinese, German,
French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload 3 kg (6.6 lbs)
Maximum Controlled Rotation Speed Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -112° to +214°
Mechanical & Electrical Properties
Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm Operating Temperature 20° to 45° C (-4° to 113° F) Weight Gimbal: Approx. 1066 g (2.35 lbs) Grip: Approx. 203 g (0.45 lbs) ‌Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs) Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs) Dimensions Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) DJI Ronin Image Transmitter Connections Power/Communication Port (USB-C) HDMI Port (Mini HDMI) RSS Camera Control Port (USB-C) Expansion Port Cold Shoe Operating Frequency 2.400-2.4835 GHz 5.725-5.850 GHz Operating Frequency 2.400-2.4835 GHz 5.725-5.850 GHz" Weight 126 g (0.27 lbs) Dimensions 82×63×24 mm (L×W×H) Transmitter Power (EIRP) 2.400-2.4835 GHz: < 25 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE) Battery Capacity: 2970 mAh Compatible Charger: 5 V/2 A Charging Time: Approx. 2.5 hours Operating Time: Approx. 3.5 hours Transmission Range 200 m (SRRC/FCC) 100 m (CE) Measured in an unobstructed environment free of interference Latency 60 ms Operating Current/Voltage 900 mA/3.7 V Operating Temperature 0° to 45° C (32° to 113° F) 2nd-Gen Native Vertical Shooting Joystick Mode Switch Zoom/Gimbal Control Teflon™-Coated Axis Arms Smoother Balancing 3kg (6.6lbs) Payload Capacity Extended Tilt Axis RSA Communication Port Extensive Control Ecosystem High-Capacity Battery Grip Approx. 2.5x Battery Runtime [1]
