DJI Focus Pro All-In-One Combo

OVERVIEW
The DJI Focus Pro All-In-One Combo is a revolutionary product that is perfect for cinematographers looking for an advanced and reliable focusing solution. With its impressive features, this product is sure to enhance your filming experience and take your shots to the next level.

One of the standout features of the DJI Focus Pro is its 20-meter subject focusing capability. This is made possible by its LiDAR technology, which boasts an impressive 76,800 ranging points. This results in sharper and more accurate edge detection of human subjects, making it easier to maintain focus even in challenging scenarios.

The DJI Focus Pro also comes with a built-in camera and enhanced AI recognition algorithms. This allows for more reliable recognition of human subjects and vehicles, even if they are momentarily obscured. The LiDAR technology quickly regains focus, ensuring that you never miss a crucial shot.

The AMF mode of the DJI Focus Pro allows for human-machine collaborative focus control. Cinematographers can visually observe the focus status on the monitor and also intuitively perceive the autofocus logic through tactile feedback. This provides a more seamless and efficient focusing experience.

The FIZ lens control and magnetic damping tactile feedback of the DJI Focus Pro further enhance its usability. The real-time, stepless damping adjustment of the Focus Pro Hand Unit and the one-button linking with the Focus Pro Motor make it effortless for focus pullers to control lens FIZ. Additionally, cinematographers can access the LiDAR Waveform focus assistance through the High-Bright Remote Monitor, providing supplementary information for more precise focusing.

Finally, the DJI Focus Pro is compatible with the DJI PRO ecosystem, making it a versatile and powerful tool for any filming scenario. It can work with Ronin stabilizers, DJI Transmission, Ronin 4D, Inspire 3, and more, providing a robust AMF focusing solution for expanded scenarios. With its advanced features and compatibility, the DJI Focus Pro is a must-have for any serious cinematographer.

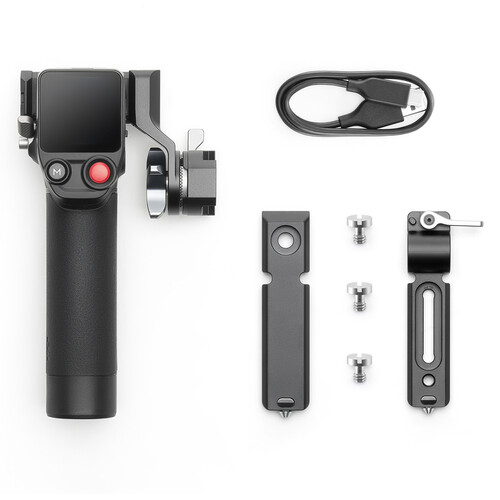

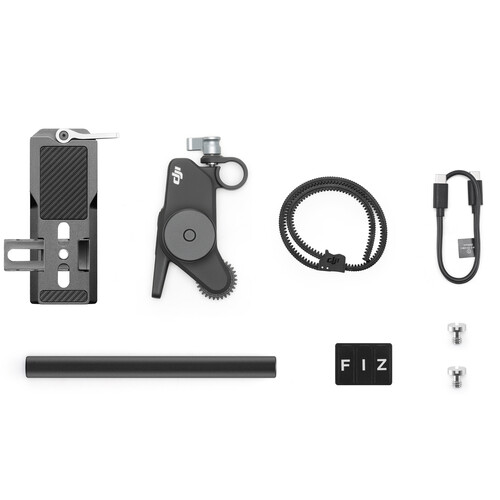

INCLUDED IN BOX
1 x DJI Focus Pro LiDAR
1 x DJI Focus Pro Grip

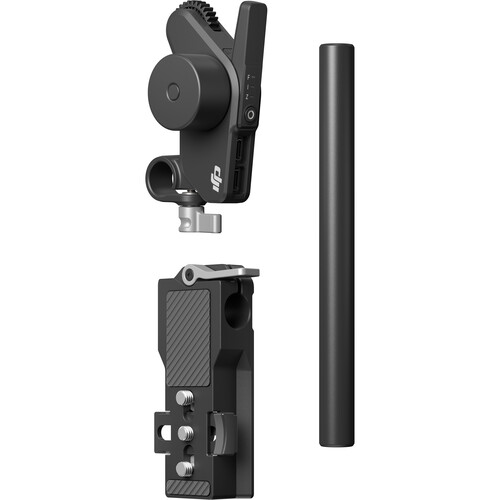

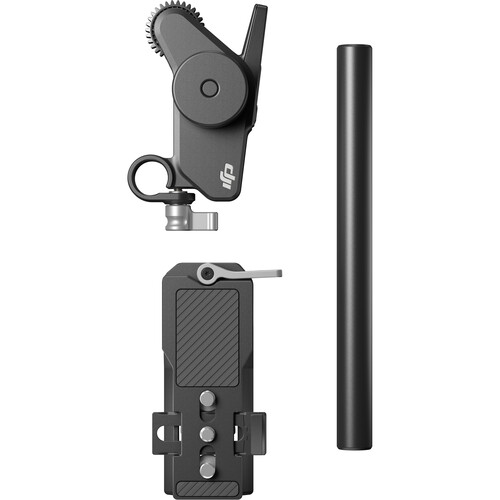

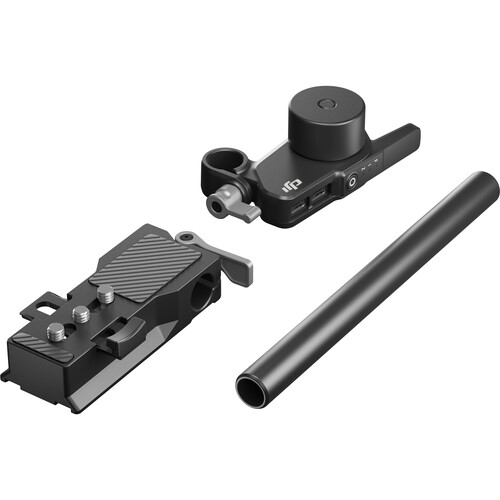

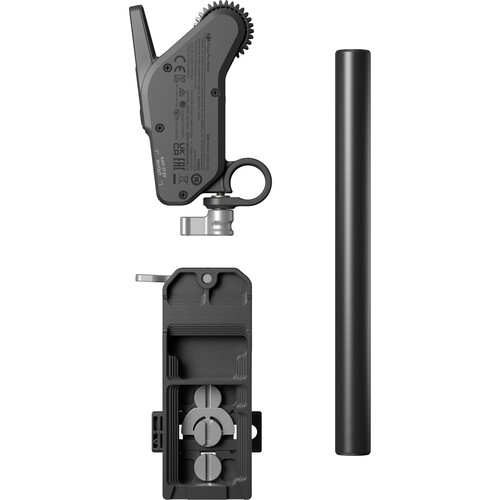

1 x DJI Focus Pro Motor
1 x DJI Focus Pro Hand Unit
1 x DJI Focus Pro Carrying Case

About The DJI Focus Pro All-In-One Combo
20-Meter Subject Focusing, [1] 76,800 Ranging Points

‌LiDAR human-subject focus distance is approx. 3 times that of the previous generation. [2] The upgraded LiDAR boasts 76,800 ranging points, sharpening human-subject edge detection.

Built-in Camera, Enhanced AI Recognition Algorithms

More reliable recognition of human subjects and vehicles can be achieved. Even if the subject is momentarily obscured, the LiDAR can quickly regain focus.

AMF Mode, Human-Machine Collaborative Focus Control

‌In AMF mode, cinematographers can both visually observe the focus status on the monitor and intuitively perceive the autofocus logic through tactile feedback.

FIZ Lens Control, Magnetic Damping Tactile Feedback

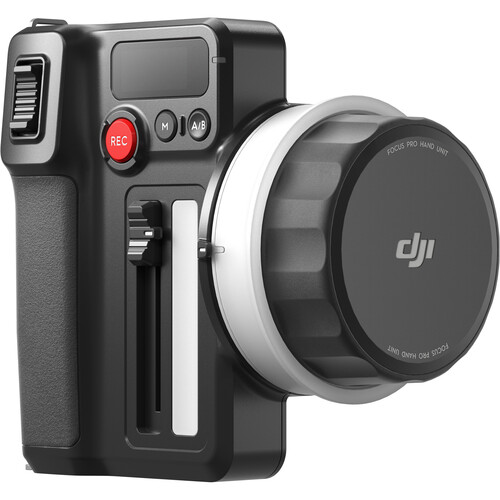

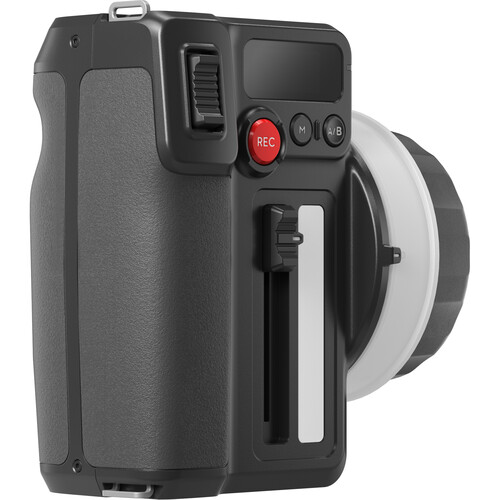

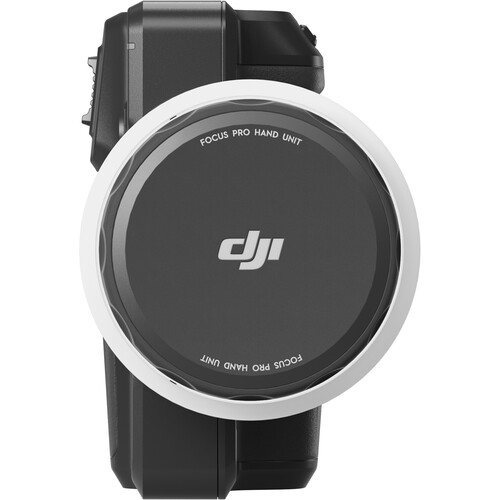

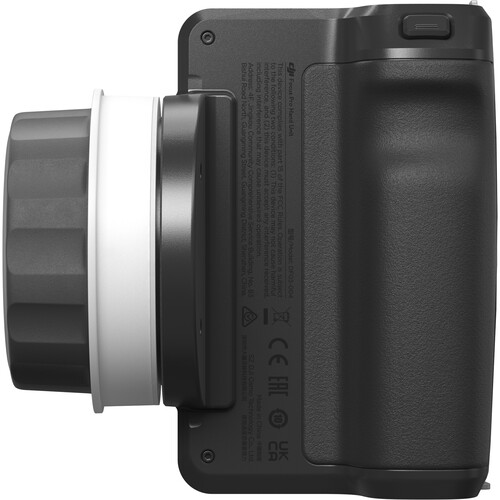

The Focus Pro Hand Unit features real-time, stepless damping adjustment, and the Focus Pro Motor supports one-button linking with the Hand Unit. This allows focus pullers to effortlessly control lens FIZ.

LiDAR Waveform, Top-Down Focus Assistance View

Cinematographers can access the LiDAR Waveform focus assistance [3] through the High-Bright Remote Monitor. In addition, LiDAR Waveform offers supplementary information.

Compatibility With DJI PRO Ecosystem

DJI Focus Pro can work with Ronin stabilizers, DJI Transmission, Ronin 4D, Inspire 3, and more. This provides a robust AMF focusing solution for expanded scenarios.

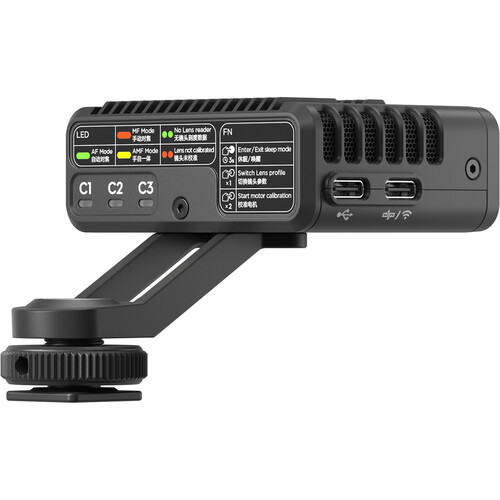

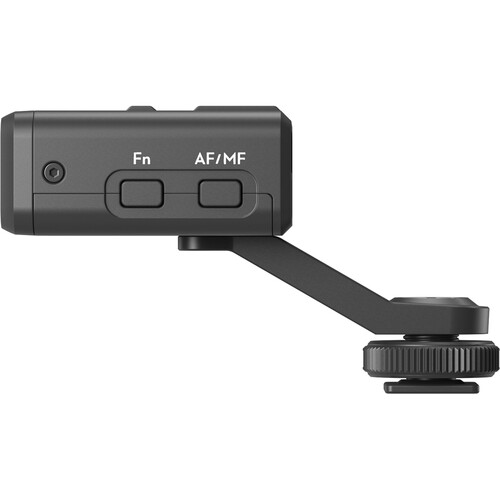

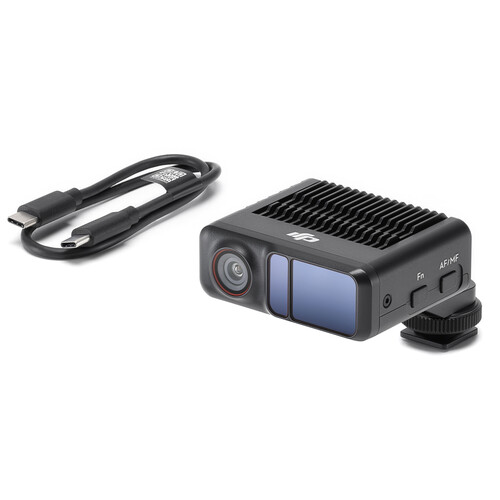

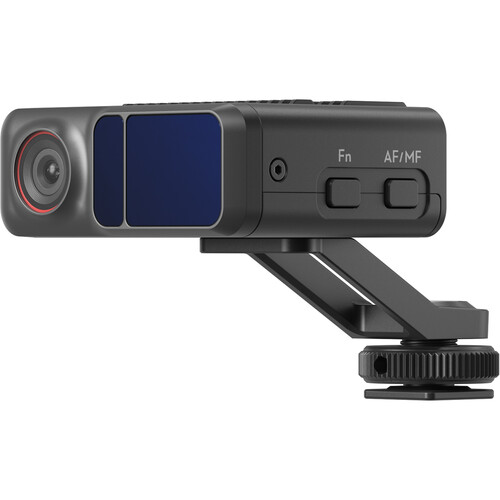

DJI Focus Pro LiDAR:
Accessory Port Cold Shoe
1/4″-20 Threaded Hole
USB-C Firmware Update Port (Power/USB)
USB-C Data Port (Power/CVBS/CAN)
Image Sensor Resolution: 1920×1440
FOV:
‌ 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm
ToF Sensor Ranging Points: 76,800
Sensing Range: 0.5-20 m
FOV:
Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm (wide- angle mode)
Ranging Accuracy: ±1% to 3% (affected by the distance)
Machine Learning Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow
Smart Object Identification: Human, vehicle
Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack)

* ActiveTrack is available only when used in conjunction with DJI RS 4 Pro or DJI RS 3 Pro.‌”
Electrical Properties ‌Power Consumption: Average approx. 6.3 W, max 6.8 W
Input Voltage: 6.6-17.2 V”
Operating Temperature -20° to 45° C (-4° to 113° F)
Mechanical Properties Main Body Dimensions: Approx. 68×25×57 mm (L×W×H)
Weight: Approx. 140 g (0.31 lbs)
Mounting Method and Position Can be mounted directly via cold shoe or using the 1/4″” threaded hole
It is recommended to mount the DJI Focus Pro LiDAR close to the camera’s optical axis.

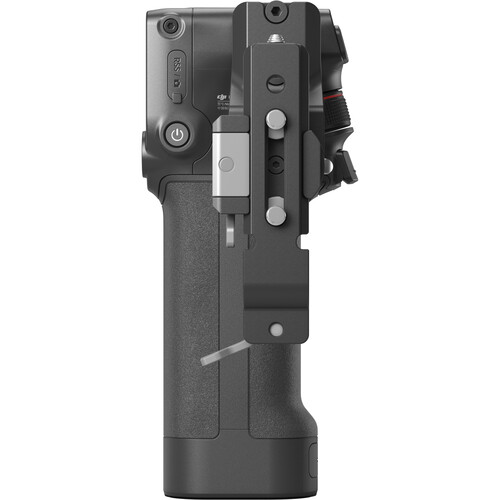

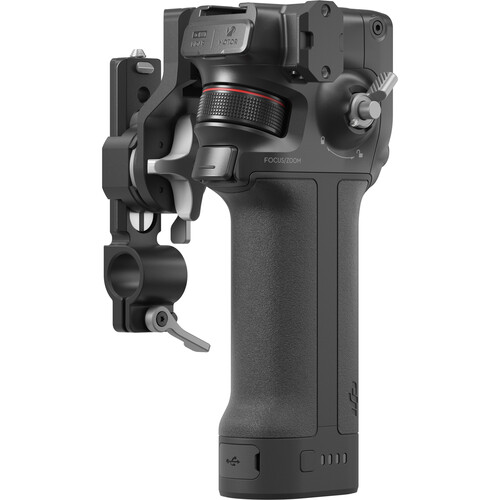

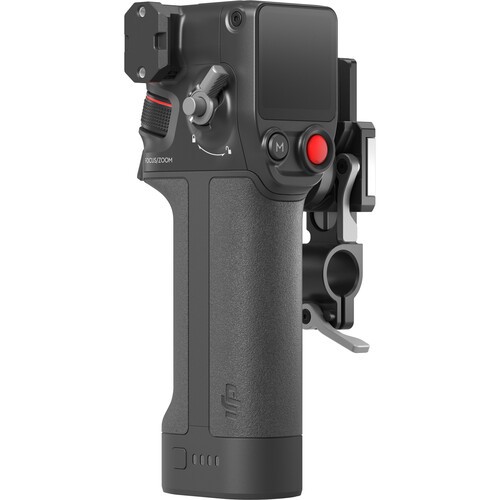

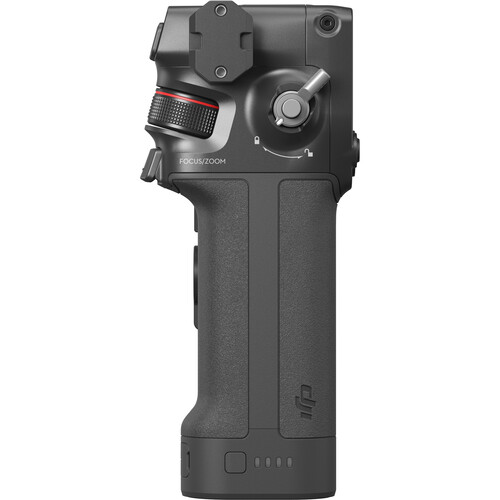

DJI Focus Pro Grip:
Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm Mechanical Properties Main Body Dimensions: Approx. 59×73×162 mm (L×W×H) Main Body Weight: Approx. 482 g (1.06 lbs) Mounting Method Flexible mounting on either left or right side of the cage via NATO port Screen 1.8-inch full-color touchscreen Port USB-C Port (DJI Focus Pro LiDAR) USB-C Port (DJI Focus Pro Motor) USB-C Port (Camera Control Port) USB-C Port (Battery Charging Port) Operating Time ‌Approx. 2.5 hours Measured in a 25° C (77° F) environment while simultaneously powering the grip, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens. Charging Power Supports 18W PD fast charging Battery Model BHX711-3000-7.2V Power Supply Voltage 6.6-8.4 V Operating Temperature -20° to 45° C (-4° to 113° F) DJI Focus Pro Motor: 2.4GHz Transmitter Power (EIRP) ‌< 20 dBm (CE/SRRC/MIC) < 26 dBm (FCC) 2.4GHz Transmission Distance 160 m* 100 m** ‌* Measured under FCC standard in an unobstructed environment free of interference. ‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. Mechanical Properties ‌Dimensions: Approx. 100×61×34 mm (L×W×H) ‌ Weight: Approx. 123 g (0.27 lbs) Rod Diameter: 15 mm Output Gear Teeth: 30 Output Gear Module: 0.8 Performance Max Torque: 0.6 N·m (8 V) Max Speed: 300 rpm (8 V) Power Supply Voltage 6.6-17.2 V Stall Current 2 A, 8 V Free Current 60 mA, 8 V Operating Temperature -20° to 45° C (-4° to 113° F) Output Voltage 6.6-17.2 V DJI Focus Pro Hand Unit: Operating Frequency 2.400-2.4835 GHz Bluetooth Transmitter Power < 8 dBm 2.4GHz Transmitter Power (EIRP) ‌< 20 dBm (CE/SRRC/MIC) < 26 dBm (FCC) 2.4GHz Transmission Distance 160 m* 100 m** ‌* Measured under FCC standard in an unobstructed environment free of interference. ‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. Mechanical Properties "‌Dimensions: Approx. 128×87×87 mm (L×W×H) Weight: Approx. 555 g (1.22 lbs) (without battery) Battery Model: NP-F550 Input: 6.3-8.4 V Dimensions: 71×38.6×21.1 mm (L×W×H) Screen 1.09-inch full-color touchscreen Static Power Consumption 0.83 W Operating Temperature -20° to 45° C (-4° to 113° F) (excluding battery temperature)
