Datavideo TP-900 PTZ Teleprompter

OVERVIEW
Datavideo offers turn-key solutions for teleprompting, making it easier than ever to control, create, and edit scripts in real time. With the ability to synchronize scripts over multiple devices and import Powerpoint or Keynote slides, Datavideos teleprompting solutions are the perfect choice for professional productions. The TP-900 PTZ Teleprompter is specifically designed for PTZ cameras, allowing for greater movement and flexibility in shots. Its unique camera mounting system supports most PTZ cameras on the market, making it suitable for any production setup.

The TP-900 also features a built-in teleprompter application with a powerful rich text editor, allowing for remote changes to font size, type, and color. It can also be controlled and monitored via Ethernet, and multiple units can be synchronized via HDMI or IP. The TP-900 is perfect for P2P interviews, video conferencing, and online presentations, with the ability to seamlessly switch between text-based scripts and slides. Optional hardware controllers and power over Ethernet make the TP-900 a versatile and convenient choice for any production needs.

INCLUDED IN BOX
1 x 15” LCD Control Unit
1 x 12V universal Mains PSU
1 x USB Mouse
1 x 5m Ethernet Cable
1 x 3.5mm input adapter for WR-500 remote control
1 x TP-900 metal base tray with tripod plate
1 x 150 x 150 PTZ Scissor Lift
1 x Cloth Hood
1 x M4 CRV hex tool
1 x 9mm long ¼ thumb screw with red dot
1 x 9mm long ¼ thumb screw with washers
8 x M6*40mm screws
10 x M6*14mm screws
1 x 16mm long screw
1 x 3/8 to ¼ adapter
4 x 565mm Vertical extrusions
2 x 475mm horizontal extrusions with 90 degree joining blocks
2 x 325mm glass support extrusions with single end caps
2 x 250mm PTZ lift extrusions with both end caps
1 x 70/30 mirror glass
1 x Glass support bar
2 x Spare black extrusion end caps
2 x Spare M6*14mm screws
2 x 12V regulated DTap cable
1 x Small CRV hex tool to remove the tripod plate from item F
1 x Medium CRV hex tool to remove 90 degree joining blocks from item Q

About The Datavideo TP-900 PTZ Teleprompter
PLEASE NOTE: Images are for display purposes. PTZ Camera NOT included. TP-900 PTZ Teleprompter only.

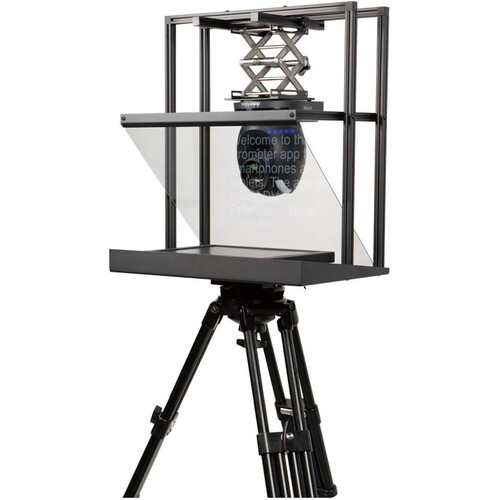

Designed Specifically for PTZ Cameras

The TP-900 teleprompter is designed specifically for PTZ cameras. Mounting the PTZ upside down removes the operational limitations of a PTZ camera within a prompter, the PTZ has greater movement in the shots it can achieve.

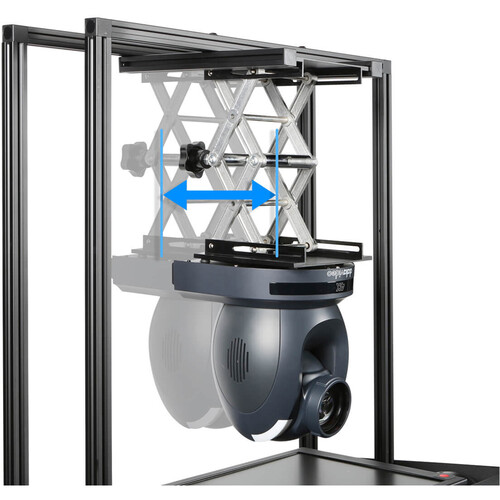

Universal Mounting

The TP-900s unique camera mounting system allows both horizontal and vertical adjustment and supports most PTZ cameras in the market.

Unique and innovative design, suitable for any PTZ camera

Live video production with a PTZ camera can also use a professional teleprompter, and TP-900 PTZ Camera Teleprompter is your good choice. TP-900 can be set up on a camera tripod and placed anywhere you want to do the video production, making your live video production extremely professional and easy.

Suitable with any PTZ camera sizes

The thoughtful and professional design allows teleprompter curtain to have the size adjustment. Any PTZ camera size is suitable for TP-900 PTZ Camera Teleprompter.

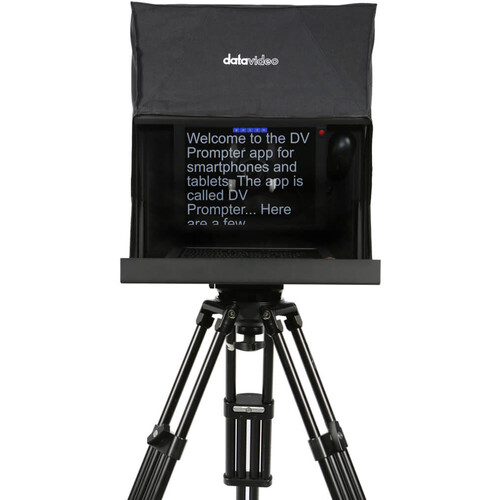

Built in Teleprompter application

The TP-900 features a bright 15″ 4:3 LCD screen with the powerful dvPrompter Plus application built in, there is no need to run software on a laptop.

Easy control and monitoring via Ethernet

Control and monitor the prompter over a local network using any device with a modern web browser, Load, reload and control scripts over a local network.

Synchronize multiple units via HDMI or IP

Connect multiple TP-900s together using the HDMI input and output or use IP synchronisation over Ethernet.

The HDMI input also allows the 15″ LCD screen to be used as a HDMI monitor with third party software if required. The HDMI output can also be used to drive external displays.

Powerful rich text editor

You can remotely change the font size, type, colour and justification on a per script basis and even use multiple different fonts within a single script.

The editor also has support for embedding images and creating playlists from multiple scripts.

P2P Interview Configuration

When using two TP-900 together in a P2P (Peer to Peer) interview configuration, the interviewer and the interviewee are able to look directly into the camera lens while still seeing and looking directly at an image of each other.

This equates to a natural one-on-one interview style which is also (because of the direct eye contact) much more involving for the audience. When the interviewer asks a question, he or she is looking right into the eyes of the viewer.

When the interviewee answers the question, he or she is also looking directly into the eyes of the audience and in essence giving his or her answers to them.

Video Conferencing

Look natural on camera, the TP-900 allows you to see your guests while looking directly into the centre of the camera lens. The TP-900s high brightness 15″ screen features mirroring in hardware, simply connect your VC system via HDMI and you are ready to go.

Online Presentations / Webinars

Look natural on camera, view your presentation or the program output of your switcher while looking directly into the centre of the camera lens. The TP-900s high brightness 15″ screen features mirroring in hardware, simply connect your presentation system or switcher via HDMI and you are ready to go.

Supports PowerPoint and Keynote slides*

In addition to text-based scripts you can now import your Powerpoint or Keynote presentation slides via the web interface, slides can be controlled using the hardware WR-500 control or the web based remote control interface. dvPrompter Plus supports seamlessly switching between text-based scripts and slides, you can even add slides and text-based scripts to a playlist.

dvPrompter Plus supports mirroring slides in real time so your content is the right way around even when viewed via the mirror glass.

Real Time Editing*

Interrupt live broadcasts with breaking news or urgent updates, simply modify the script via the web interface and watch it update in real time.

Optional hardware Controllers

The TP-900 can also be controlled using our WR-500 handheld remote, FS-30 Foot Pedal or any generic presentation remote with a USB receiver.

Power over Ethernet

The TP-900 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply add an optional PoE adapter, then run a single CAT6 cable to power your TP-900.

Model Number TP-900
Device Used 15″ monitor with integrated dvPrompter Plus software
Camera-Mount Interface Adjustable Lift
Smartphone / Tablet Size N/A
Multi-language Support English
Dutch
Spanish
Portuguese
Russian
Chinese(Traditional)
Chinese (Simplified)
Prompter Size (Max) Width: 535mm
Height: 590mm
Depth: 350mm
LCD Native Resolution 1024×768
LCD Brightness 350 NIT
Remote Control * Monitoring and control via LAN
*Optional WR-500 wired hardware remote or FS-30 Foot Pedal
*Supports generic presentation remote controls with USB receivers
Weight 10.3Kg
Operating Temp. Range 0~40 °C
Power 12V DC (Mains adapter supplied)
PoE (optional adapter required)
Carry Case Dimensions (excluding handle) N/A

Teleprompting made easy… Turn-key solutions

Benefits of Datavideo prompting solutions

Control, create and edit scripts over LAN in real time with any web browser
Synchronize scripts over multiple prompting devices
Edit scripts “on the fly” in real time
Import Powerpoint or Keynote slides
Use the nice features of a powerful rich text editor
HDMI input for use with video conferencing (Zoom/Teams)
Script depended auto switch to HDMI input and back
And more…
