Datavideo TP-700 ENG Teleprompter

1,241.10

TP-700

Compare
Category:

OVERVIEW
Datavideo offers turn-key solutions for teleprompting, making it easy to control, create, and edit scripts in real time over LAN with any web browser. Their prompting devices can also synchronize scripts and seamlessly switch between text-based scripts and PowerPoint or Keynote slides. With features such as HDMI input for video conferencing and a powerful rich text editor, Datavideo’s teleprompters are designed for professional shoots and can be operated by talent or remote operators.

The TP-700 teleprompter is built to withstand demanding conditions and can be used with ENG style cameras or in a freestanding configuration. It supports up to 19″ talent monitors and has a built-in teleprompter application, eliminating the need for a separate laptop. Multiple units can be synchronized via HDMI or IP, and the powerful rich text editor allows for remote changes to font size, type, and color. The TP-700 can also be controlled with optional hardware controllers, and supports real-time editing for breaking news updates. With PoE support, installation is easy and convenient.

INCLUDED IN BOX
1 x Main TP-700 ENG prompter rail
1 x Smaller rail with spacer block for mounting item F
2 x ¼” Screws Length 27mm secures item Aor AA to B
1 x Hex Tool (Silver) for counter sunk Hex head screws
1 x Hex Tool (Silver) for Glass Frame Hex screws
1 x Hex Tool (Silver) for VESA Hex screws
2 x 16mm ¼ screws with washer to attach item F to item B (With red dot)
1 x 15” LCD control unit 1
1 x Glass frame with 4 Velcro straps
2 x Wing nut screws ¼” Length 19mm secures item A or AA to G
1 x Cloth Snood/Hood with Velcro straps
1 x 70/30 Glass sheet with Green and Red stickers
1 x Snood/Hood support wire
2 x ¼” Camera securing screws length 16mm
2 x ¼” Camera securing screws length 31mm
1 x Camera riser block 15mm thick
1 x USB Mouse
1 x Adapter screw to convert 3/8” hole to ¼” hole
1 x ¼” Counter sunk hex head screw length 16mm
1 x ¼” Counter sunk hex head screw length 31mm
1 x Talent monitor vertical mounting rail
1 x Talent monitor VESA adapter plate
4 x 14mm M4 screws for mounting 75MM VESA monitors
1 x Universal mains PSU
1 x Ethernet Cable 5M
1 x 3.5mm input adapter for WR-500 remote control
1 x 12V D-Tap Cable
2 x 12mm M4 Screws to secure item J
1 x Small rail to attached item G to B in a freestanding configuration
2 x 16MM M4 screw to attach item S to item B
4 x 8mm M4 screws for mounting item T
4 x 12mm M4 screws for mounting item 100MM VESA monitors

About The Datavideo TP-700 ENG Teleprompter
PLEASE NOTE: Images are for display purposes. Datavideo TP-700 ENG Teleprompter only.

Professional teleprompting made easy

Hardware built to withstand the demanding conditions of professional shoots and software with high end features, our teleprompters are designed to be simple and straight forward to operate by the talent or remote operator. We use a high-quality mirror glass with a low iron content, meaning that the mirror has no tint.

ENG and Freestanding Configurations

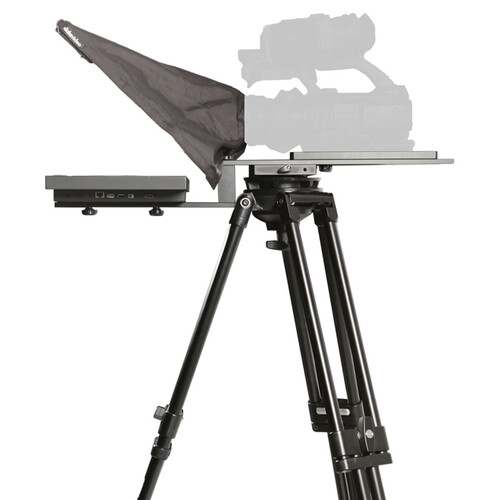

The TP-700 teleprompter, can be used with ENG style cameras, where the camera is mounted directly to the teleprompter rig, or with any camera in its freestanding configuration.

Supports Talent Monitors

The TP-700 supports up to 19” talent monitors with VESA 75mm and 100mm mounts, ideal for use with our TLM-170 series monitors.

Built in Teleprompter application

The TP-700 features a bright 15” 4:3 LCD screen with the powerful dvPrompter Plus application built in, there is no need to run software on a laptop.

Easy control and monitoring via Ethernet

Control and monitor the prompter over a local network using any device with a modern web browser, Load, reload and control scripts over a local network.

Synchronize multiple units via HDMI or IP

Connect multiple TP-700s together using the HDMI input and output or use IP synchronisation over Ethernet.

The HDMI input also allows the 15” LCD screen to be used as a HDMI monitor with third party software if required. The HDMI output can also be used to drive external displays.

Powerful rich text editor

You can remotely change the font size, type, colour and justification on a per script basis and even use multiple different fonts within a single script.

The editor also has support for embedding images and creating playlists from multiple scripts.

P2P Interview Configuration

When using two TP-700 together in a P2P (Peer to Peer) interview configuration, the interviewer and the interviewee are able to look directly into the camera lens while still seeing and looking directly at an image of each other. This equates to a natural one-on-one interview style which is also (because of the direct eye contact) much more involving for the audience. When the interviewer asks a question, he or she is looking right into the eyes of the viewer. When the interviewee answers the question, he or she is also looking directly into the eyes of the audience and in essence giving his or her answers to them.

Video Conferencing

Look natural on camera, the TP-700 allows you to see your guests while looking directly into the centre of the camera lens. The TP-700s high brightness 15″ screen features mirroring in hardware, simply connect your VC system via HDMI and you are ready to go.

Online Presentations / Webinars

Look natural on camera, view your presentation or the program output of your switcher while looking directly into the centre of the camera lens. The TP-700s high brightness 15″ screen features mirroring in hardware, simply connect your presentation system or switcher via HDMI and you are ready to go.

Supports PowerPoint and Keynote slides

In addition to text-based scripts you can now import your Powerpoint or Keynote presentation slides via the web interface, slides can be controlled using the hardware WR-500 control or the web based remote control interface. dvPrompter Plus supports seamlessly switching between text-based scripts and slides, you can even add slides and text-based scripts to a playlist.

dvPrompter Plus supports mirroring slides in real time so your content is the right way around even when viewed via the mirror glass.

Optional hardware Controllers

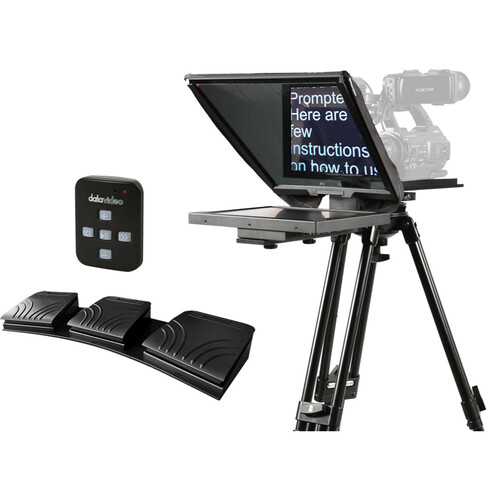

The TP-700 can also be controlled using our WR-500 handheld remote, FS-30 Foot Pedal or any generic presentation remote with a USB receiver.

Real Time Editing*

Interrupt live broadcasts with breaking news or urgent updates, simply modify the script via the web interface and watch it update in real time.

Power over Ethernet

The TP-700 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply add an optional PoE adapter, then run a single CAT6 cable to power your TP-700.

Model Number TP-700
Device Used 15″ monitor with integrated dvPrompter Plus software
Camera-Mount Interface Prompter Rail
Smartphone / Tablet Size N/A
Multi-language Support English
Dutch
Spanish
Portuguese
Russian
Chinese(Traditional)
Chinese (Simplified)
Prompter Size (Max) Width: 430mm
Height: 345mm
Depth: 820mm
LCD Native Resolution 1024×768
LCD Brightness 350 NIT
Remote Control * Monitoring and control via LAN
*Optional WR-500 wired hardware remote or FS-30 Foot Pedal
*Supports generic presentation remote controls with USB receivers
Weight 6.3 Kg
Operating Temp. Range 0~40 °C
Power 12V DC (Mains adapter supplied)
V-Lock battery PoE (optional adapter required)
Carry Case Dimensions (excluding handle) N/A

Teleprompting made easy… Turn-key solutions

Benefits of Datavideo prompting solutions

Control, create and edit scripts over LAN in real time with any web browser
Synchronize scripts over multiple prompting devices
Edit scripts “on the fly” in real time
Import Powerpoint or Keynote slides
Use the nice features of a powerful rich text editor
HDMI input for use with video conferencing (Zoom/Teams)
Script depended auto switch to HDMI input and back
And more…
