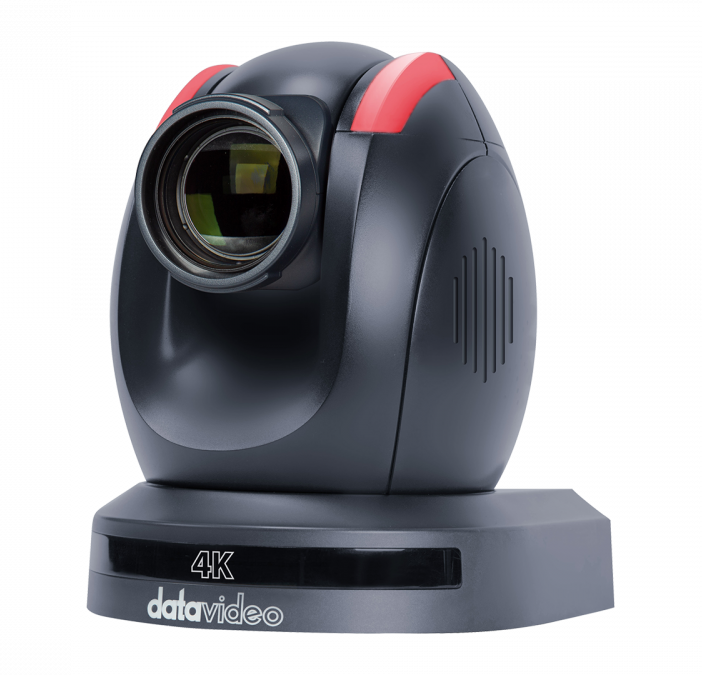

Datavideo PTC300NDI PTZ Camera – Black

2,144.00

PTC-300NDI

Compare
Category:

OVERVIEW
The PTC-300NDI is a high-quality 4K PTZ camera that offers broadcast resolution, low noise in low light, and multiple simultaneous video outputs. It also supports various network protocols and can be controlled through RS-422, DVIP, and Ethernet. This camera also features a tally light, power over Ethernet, and supports H.264/H.265 video compression.

The PTC-300NDI is compatible with various controllers and can be controlled through the Datavideo PTZ View Assist app. It also supports NDI technology, allowing for easy setup and transmission of video, audio, power, tally, and control through a single Ethernet cable. With its advanced features and easy installation, the PTC-300NDI is a top choice for high-quality 4K video production.

SUMMARY
Focal Length: 6.7-125mm
Max Aperture: f/1.5
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 2160p
Sensor: 1/1.8in CMOS
Video Outputs: 1 x 3G-SDI
Weight: 2-5kg
INCLUDED IN BOX
1x PTC-300NDI product
1x IR remote controller
1x Ceiling mount bracket-A
1x Ceiling mount bracket -B
6x Ceiling mount bracket screw M3*4mm
1x DC 12V Power Adaptor
1x A tightrope

About The Datavideo PTC300NDIW PTZ Camera – White
The PTC-300NDI is an NDI 4K50/60p PTZ camera. PTC-300NDI can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol), Sony VISCA over IP or any NDI controller.

The PTC-300NDI supports dual streaming output for A/V market application, you can easily stream to Facebook (RTMPS), YouTube and dvCloud.

BROADCAST QUALITY 4K RESOLUTION

With built-in 1/1.8in CMOS sensor, supports resolution up to 2160p 50/60.

SUPERIOR OPTICAL PERFORMANCE

The PTC-300NDI camera has 20x Optical Zoom and 16x Digital Zoom with the f1.58 wide open aperture.

LOW NOISE IN LOW LIGHT

Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

MULTIPLE SIMULTANEOUS VIDEO OUTPUTS

Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

PTZ VIEW ASSIST: CONTROL UP TO FOUR CAMERAS

The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-280NDI and PTC-300 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS. The app is able to decode the live streaming via RTSP, SRT, and NDI (only RTSP is available now), Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

MULTIPLE NETWORK PROTOCOL WITH DUAL STREAM FUNCTION

Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

COMPATIBLE WITH VARIOUS CONTROLLERS

Control real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180 series. With configurable preset positions supported.

RS-422, DVIP AND ETHERNET CAMERA CONTROL

RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

TALLY LIGHT

Green and red lights tally to show the preview and program status for broadcast applications.

POWER OVER ETHERNET

The PTC-300NDI supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your PTC-300NDI.

SUPPORTS H.264/H.265 VIDEO COMPRESSION

Support compression of resolution up to 3840×2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

ONE ETHERNET CABLE WITH NDI | HX TECHNOLOGY

There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.

Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.NDI is a registered trademark of Newtek, Inc.

NDI VIRTUAL INPUT

Present PTC-300NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.

Video format/Resolution HDMI-
2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
SDI-
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
(2160p 60/59.94/50 YUV 4:2:0 only)
Image Sensor 1/1.8in CMOS
Effective Pixels (approx.) 8.42 Mega Pixels
S/N Ratio ≥55dB
Min. Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 20x Optical, 16x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions 2D/3D
On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control Yes
Mirror / Flip Image Yes
Focus Mode Auto/Manual
Panning / Tilting Range Pan- 300°
Tilt- +130° to -15°
Panning/Tilting Speed Pan- 0.876°/s~43°/s
Tilt-0.693°/s ~21.32°/s
Preset 255 Position
Focal Length 20x, f = 6.7mm ~125mm, F1.58 ~ F3.95
Field of View (Horizontal, Wide) 60°
Image Compensation Back light compensation
Video Output HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 x1
Audio Input 3.5mm x1
Tally LED Yes
Lens Filter N/A
Control Protocol Pelco-D, Pelco-P,
VISCA, VISCA over IP
DHCP, RTSP, RTMP (IP Cam), RTMPS,
DVIP
NDI
Remote Control Interface IR
Web UI
RS-422
DVIP
NDI
Video Compression Format H.264/H.265/MJPEG
Audio Compression Format AAC
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
First Stream Supported Resolution 3840×2160
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution 1280×720
1024×576
720×576 (50Hz)
720×480 (60Hz)
720×408
640×360
480×270
320×240
Video Bitrate 32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode VBR, CBR
Encoding Frame rate 50Hz: 1-50fps
60Hz: 1-60fps
POE IEEE 802.3AT.
F/W Update Via Web UI or USB 2.0
IR Control Yes
Camera Control Unit RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories 1/ WM-10/ WM-11
Colour White
Dimension (LxWxH) 173 (W) x 219 (H) x 189.08 (D)
Weight 2.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W
4K NDI PTZ Camera
Broadcast Quality 4K Resolution
Low Noise in Low Light
Multiple Simultaneous Video Outputs
Multiple Network Protocol with Dual Stream Function
RS-422, DVIP and Ethernet Camera Control
Tally Light
Power over Ethernet
Supports H.264/H.265 Video Compression
