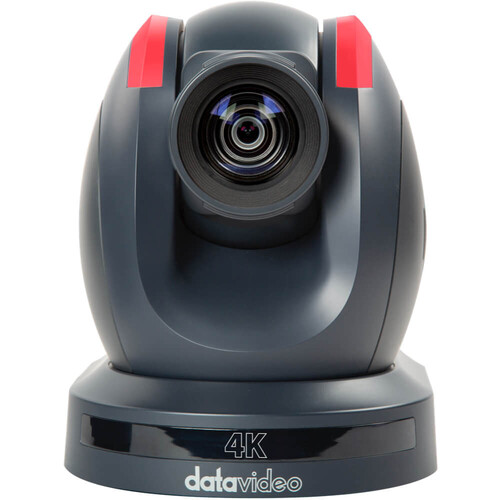

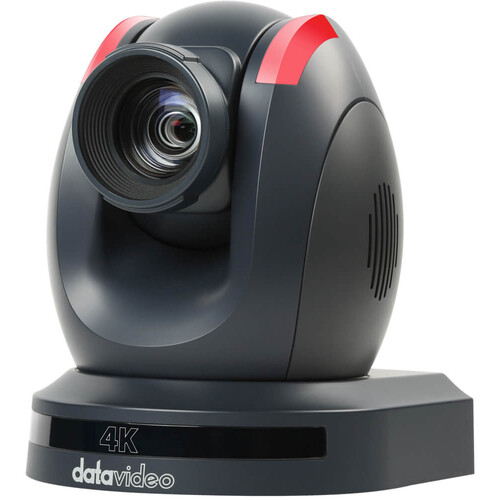

Datavideo PTC-305 4K PTZ – Black

OVERVIEW
Datavideo introduces the PTC-305, a 4K PTZ camera with auto tracking capabilities. This camera supports multiple control options, including traditional RS-422 serial port, IP remote control via DVIP or Sony VISCA over IP. It also offers dual streaming output for A/V market applications, making it easy to stream to platforms like Facebook, YouTube, and dvCloud. The PTC-305 is available in different models, such as the PTC-305T with HDBaseT and PTC-305NDI with NDI/HX3 technology.

The PTC-305 boasts impressive features, including simultaneous outputs, custom auto object tracking, and smart PTZ speed adaptation. It also has a 20x optical zoom, 16x digital zoom, and excellent low light performance. With multiple simultaneous video outputs and support for various network protocols, this camera is suitable for a range of broadcasting applications. It also offers convenient features like power over Ethernet, tally light, and compatibility with various controllers. The PTZ View Assist app allows for easy control of up to 4 cameras simultaneously, making it a user-friendly option for live streaming and production.

SUMMARY
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 2160p @ 60fps
Sensor: CMOS
Video Outputs:
3G-SDI
HDMI 2.0
Weight: 2-5kg
INCLUDED IN BOX
1 x PTC-305 product
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Safety cable

About The Datavideo PTC-305 4K PTZ – Black
PTC-305 4K PTZ Camera with Auto Tracking

Datavideo is introducing the 4K50/60p Auto tracking PTZ camera, PTC-305 can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.

Datavideo also provides extended models such as PTC-305T 4K HDBaseT and PTC-305NDI to meet the needs of different workflows.

Simultaneous Outputs

Connect your PTC-305 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

Quick Access to Camera’s Auto Tracking

You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).

In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.

Custom Auto Object Tracking

If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera’s corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Quick Access to Framing Options

All of the PTC-305 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

Simply Enable Auto Tracking with Your IR Remote Control

RMC-1AT PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.

Broadcast Quality 4K Resolution

With built-in 1/1.8″ CMOS sensor, supports resolution up to 2160p 50/60.

Superior Optical Performance

The PTC-305 camera has 20x Optical Zoom and 16x Digital Zoom with the f1.58 wide open aperture.

Low Noise in Low Light

Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs

Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

Multiple Network Protocol with Dual Stream Function

Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Supports H.264/H.265 Video Compression

Support compression of resolution up to 3840×2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

Power over Ethernet

The PTC-305 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT-6 cable to power your PTC-305.

Tally Light

Green and red lights tally to show the preview and program status for broadcast applications.

Compatible with Various Controllers

Control real-time pan, tilt, and zoom camera movements with Datavideo SHOWCAST 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

RS-422, DVIP and Ethernet Camera Control

RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

PTZ View Assist: Control up to 4 Cameras

The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.

The app is able to decode the live streaming via RTSP and SRT. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

Video format/Resolution 2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
*2160p60/59.94/50 YUV 4:2:2
Image Sensor 1/1.8″ CMOS
Effective Pixels (approx.) 8.51Mega Pixels
S/N Ratio ≥55dB
Min. Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 20x Optical, 16x Digital Zoom
Gamma Control N/A
Iris Control Auto / Manual
Digital Noise Reductions 3D
On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control Yes
Mirror / Flip Image Yes
Focus Mode Auto/Manual
Panning / Tilting Range Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset 255
Focal Length 20x, f = 6.7mm ~125mm, F1.58 ~ F3.95
Field of View (Horizontal, Wide) 60°
Image Compensation Back light compensation
Video Output HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 (PoE) x1
Audio Input 3.5 mm x1 (mic in/line in)
switch from Web UI
Tally LED Yes
Lens Filter N/A
Control Protocol Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP
Remote Control Interface IR
Web GUI
RS-422
DVIP
Video Compression Format H.264/H.265/MJPEG
Audio Compression Format AAC
Audio Bitrate 96Kbps, 128Kbps,256Kbps
Streaming Protocols RTSP, RTMP(S), Onvif, Multicast, SRT
First Stream Supported Resolution 3840×2160
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution 720×480
640×360
480×270
320×240
Video Bitrate 32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode VBR, CBR
Encoding Frame rate 50Hz: 1-50fps
60Hz: 1-60fps
POE IEEE 802.3at
F/W Update Via Web UI or USB 2.0
IR Control Yes
Camera Control Unit RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories WM-1/ WM-10/ WM-11
Dimension (LxWxH) 173 (W) x 219 (H) x 189.08 (D)
Weight 2.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V 21W
2160p50/59.94/60 PTZ camera
Support Auto tracking function
1/1..8” CMOS
Excellent low light performance (0.5 Lux @ F1.8, AGC ON)
20x Optical Zoom, 16x Digital Zoom
4K Video outputs: HDMI 2.0, 3G-SDI, H.264/H.265 Streaming)
2160p and 1080p (3G-SDI) Simultaneous video output
RS-422 Serial Control
DVIP (Datavideo Proprietary Protocol) Control
Supports Sony VISCA via browser and VISCA over IP Protocol
External audio input: 3.5mm audio in
User friendly web UI via browser & app (iOS and Android)
Dual streaming: 2160p and 720p simultaneously
NDI / HX3 technology (PTC-305NDI)
