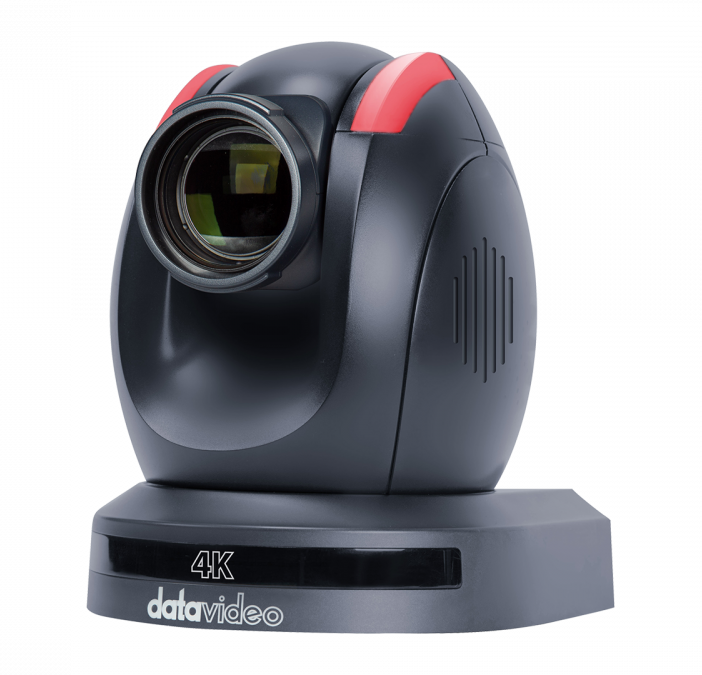

Datavideo PTC-280 – 4K PTZ Camera

OVERVIEW
Datavideo has recently launched their 4K50/60p PTZ camera series, including the PTC-280 Professional PTZ Camera. This camera can be easily controlled through traditional RS-422 serial port or IP remote control via DVIP or Sony VISCA over IP. It supports dual streaming output for A/V market applications, allowing for simultaneous streaming to Facebook and YouTube. The camera also works well with dvCloud. Additionally, the PTC-280 can be connected to multiple devices at the same time, providing flexibility in workflow. The camera control app, tailored for Datavideo PTZ cameras, allows for control of up to four cameras simultaneously via DVIP. It also supports various network protocols and has a wide field of view of 71°. The PTC-280 also supports H.264/H.265 video compression and has a low noise level in low light conditions.

The camera also has multiple simultaneous video outputs, including HDMI 2.0, IP output, and 3G-SDI output. It supports PoE for easy installation and has a tally light feature for broadcast applications. With advanced 2D/3D noise reduction technology, the PTC-280 ensures image sharpness. It also supports AAC, MP3, and PCM audio compression. Datavideo’s range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud, providing reliable streams over unreliable networks. With the BB-1 KIT and dvCloud streaming service, the PTZ camera can be controlled remotely from anywhere in the world.

SUMMARY
Max Aperture: f/1.8
Lens Zoom: 12x Optical Zoom
Resolution and Frame Rate: 2160p @ 60fps
Sensor: CMOS
Video Outputs:
3G-SDI
HDMI 2.0
Weight: 2-5kg
INCLUDED IN BOX
1 x PTC-280 product
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x A tightrope

About The Datavideo PTC-280 – 4K PTZ Camera
Datavideo is introducing the 4K50/60p PTZ camera lineup which includes the PTC-280 Professional PTZ Camera that can be easily controlled via traditional RS-422 serial port or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP.

This brand new 4K camera series supports dual streaming output for A/V market applications, so you can easily stream to Facebook (RTMPS), YouTube simultaneously. It also works well with dvCloud.

Simultaneous Outputs

Connect your PTC-280 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

PTZ View Assist: Control up to four cameras

The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, and PTC-280 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.

The app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

Low Noise in Low Light

Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs

Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

Multiple Network Protocol with Dual Stream Function

Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Power over Ethernet

The PTC-280 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your PTC-280.

Tally Light

Green and red lights tally to show the preview and program status for broadcast applications.

Wide 71° Field of View

PTC-280 provides a wide Field of View of 71°, easily shooting all the scenes in the field.

Supports H.264/H.265 Video Compression

Support compression of resolution up to 3840×2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

Build a reliable SRT live streaming workflow with all Datavideo products

Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.

By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Remote control from anywhere in the world

Control the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.

Video format/Resolution HDMI:
2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
(2160p 60/59.94/50 YUV 4:2:0 only)
Image Sensor 1/2.5″ CMOS
Effective Pixels (approx.) 8.51Mega Pixels
S/N Ratio ≥55dB
Min. Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 12x Optical Zoom, 16x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions 2D/3D
On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control Yes
Mirror / Flip Image Yes
Focus Mode Auto/Manual
Panning / Tilting Range Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset 255
Focal Length 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View (Horizontal, Wide) 71°
Image Compensation Back light compensation

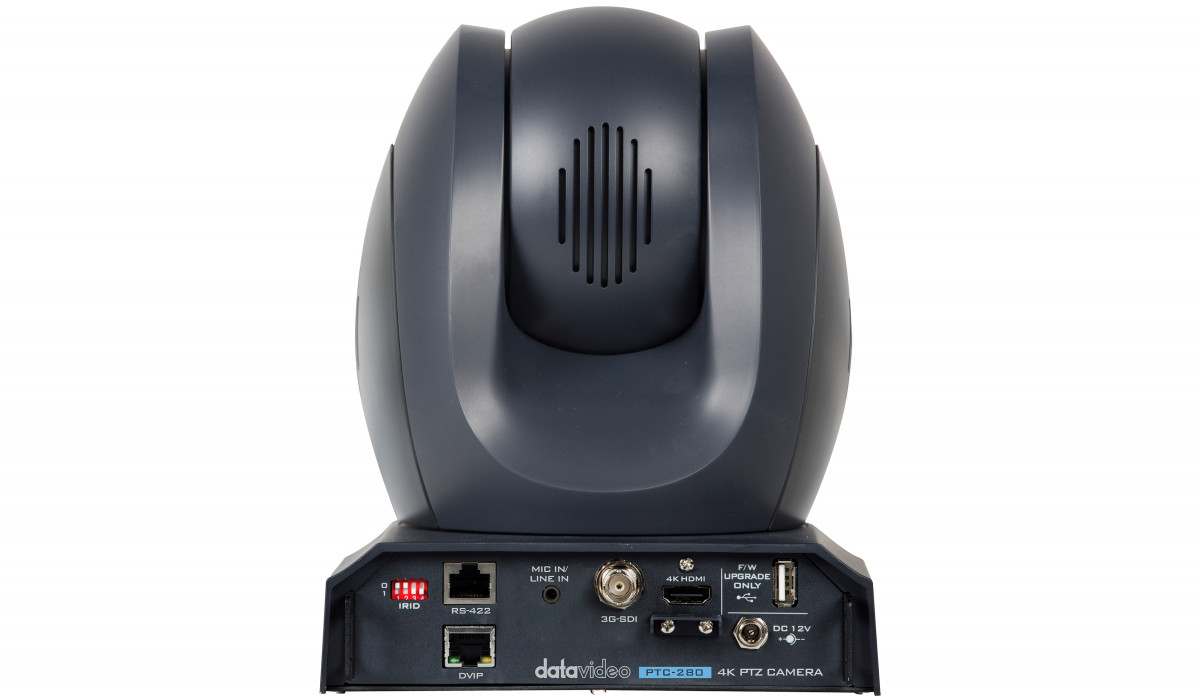

Video Output HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 x1
Audio Input 3.5mm x1
Tally LED Yes
Lens Filter N/A
Control Protocol Pelco-D, Pelco-P,
VISCA, VISCA over IP
DHCP, RTSP, RTMP (IP Cam), RTMPS,
DVIP
Remote Control Interface IR
Web UI
RS-422
DVIP
Video Compression Format H.264/H.265/MJPEG
Audio Compression Format AAC
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
HD IP Interface —-
Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
First Stream Supported Resolution 3840×2160
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution 1280×720
1024×576
720×576 (50Hz)
720×480 (60Hz)
720×408
640×360
480×270
320×240
Video Bitrate 32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode VBR, CBR
Encoding Frame rate 50Hz: 1-50fps
60Hz: 1-60fps
POE IEEE 802.3at
F/W Update Via Web UI or USB 2.0
IR Control Yes
Camera Control Unit RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories WM-1/ WM-10/ WM-11
Color Black
Dimension (LxWxH) 173 (W) x 219 (H) x 189.08 (D)
Weight 2.8 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W
