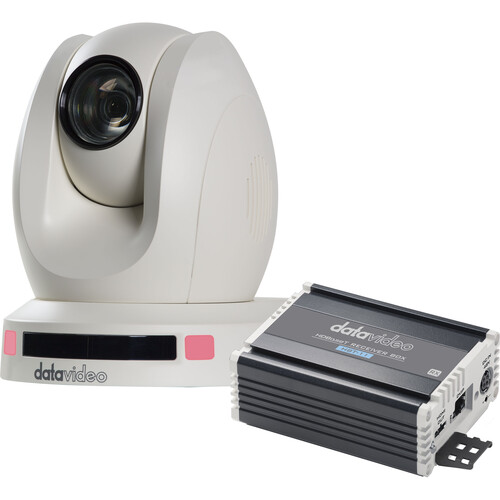

Datavideo PTC-140TW HDBaseT PTZ Camera – White

OVERVIEW
The PTC-140T camera features a 1/2.8 inch CMOS sensor and can capture video with a resolution of up to 1920×1080 and frame rate of 60fps. Its Low Noise CMOS technology ensures high signal-to-noise ratio for clear video, and it also utilizes advanced 2D/3D noise reduction technology for even sharper images.

The camera has an audio input interface that supports AAC, MP3, and G.711A audio coding with various sampling frequencies. It also supports H.264/H.265 video compression and can connect to streaming media servers using protocols like RTSP and RTMP. With a 20x optical zoom and 10x digital zoom, the PTC-140T can capture stunning full HD shots from near or far. Additionally, it utilizes HDBaseT technology for single cable transmission of power, video, control, and tally, with a transmission distance of up to 100 meters. The camera has a wide field of view of 54 degrees and can encode up to 2 simultaneous streams for streaming using its built-in encoder.

SUMMARY
Focal Length: 5.2-98mm
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 1080p
Sensor: 1/2.8in CMOS
Video Outputs:
HDBaseT (PoE)
RJ-45
Weight: 0-2kg
INCLUDED IN BOX
1 x PTC-140T Unit
1 x IR remote controller
1 x PTC-140T Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A braided safety cable
1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable

About The Datavideo PTC-140TW HDBaseT PTZ Camera – White
Stunning Full HD Resolution

The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

One Cable Solution

HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.

20x Optical Zoom, 10x Digital Zoom

The PTC-140T’s 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.

Advanced 2D/3D noise reduction function

Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.

Single cable transmission by HDBaseT technology

Based on HDBaseT technology, all signals, power, and control data travel through a single CAT6 (“network cable”). By applying with the Receiver Box, the transmission distance is able to up to 100 meters away.

Wide 54° Field of View

PTC-140T provides a wide Field of View of 54°, easily shooting all the scenes in the field.

H.264/H.265 video compression for streaming

With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.

Video format/Resolution 1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.) 2.07 Mega pixels
S/N Ratio >55dB
Min. Illumination 0.5Lux (F1.8, AGC ON)
Electronic Shutter Auto / Manual
Zoom Ratio 20x Optical Zoom, 10x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions Yes
On-Screen Display (OSD) English, Simplified Chinese
White Balance Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control Auto / Manual
Mirror / Flip Image Yes
Focus Mode Auto / Manual
Panning / Tilting Range Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset 255 Position
Focal Length f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide) Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation Backlight Compensation
Video Output HDBaseT (PoE) x1
RJ-45 x1
Audio Input 3.5mm Line in
Tally LED Dual color (Red, Green)
Lens Filter M52.0 x 0.75 Thread with UV Protection
Control Protocol VISCA, Pelco-D, Pelco-P, DVIP
Remote Control Interface RS-232
Lan (RJ-45)
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format H.264, H.265, Dual stream output
Audio Compression Format AAC/MP3/G.711A Audio compression
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
HD IP Interface 100M IP port(100BASE-TX); Support DVIP
Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
First Stream Supported Resolution —-
Second Stream Supported Resolution —-
Video Bitrate —-
Video Bitrate Mode —-
Encoding Frame rate —-
POE —-
F/W Update Ethernet
IR Control Yes
Camera Control Unit HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories WM-1/ WM-10/ WM-11
Color White
Dimension (LxWxH) 156 x 184 x 186 mm
Weight 1.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W

1/2.8 inch CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
Low Noise CMOS effectively ensures high SNR of camera video.
Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
Audio Input Interface
Supports AAC, MP3 and G.711A audio coding with sampling frequencies of 16000, 32000, 44100 and 48000.
Supports H.264/H.265 video compressions of resolution up to 1920×1080 with frame rate up to 60fps as well as AAC, MP3 and G.711A audio compressions.
Supports multiple network protocols such as RTSP and RTMP allowing you to easily link to any streaming media servers.
