OVERVIEW

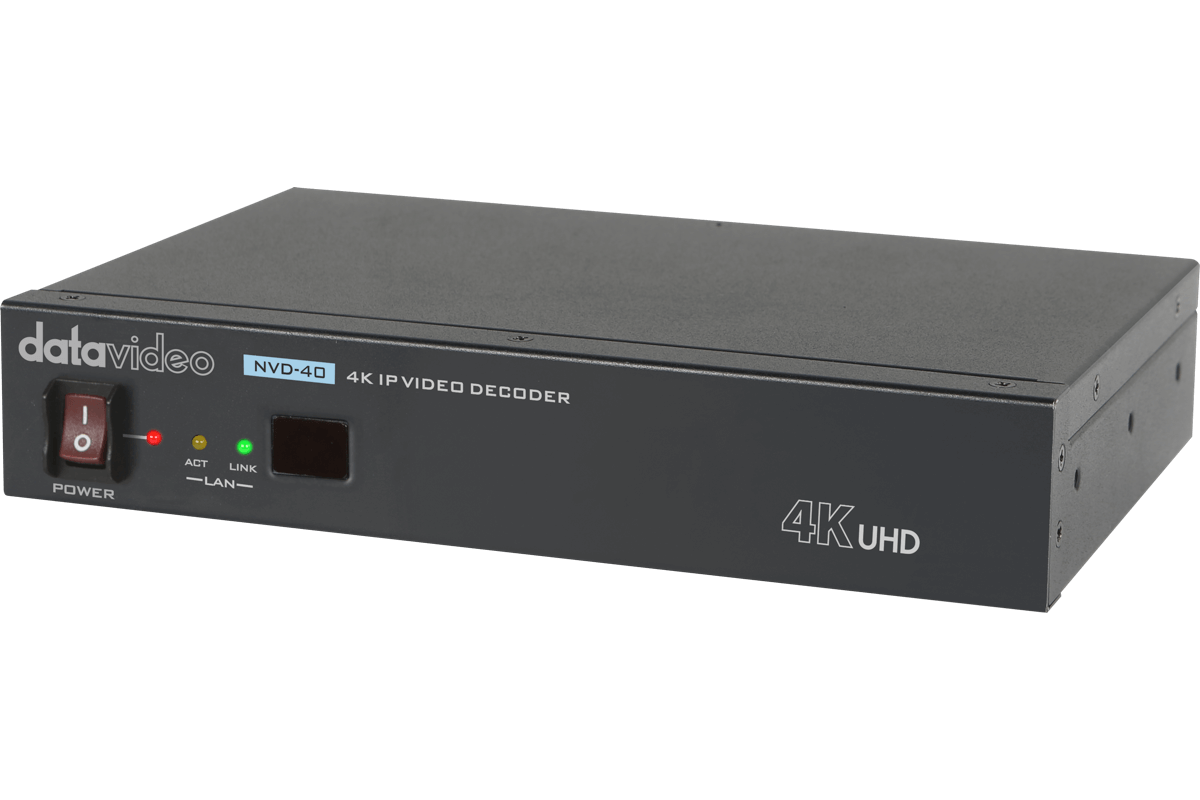

The Datavideo NVD-40 is a 4K HDMI IP video decoder that can decode all common streaming protocols, including SRT, RTSP, RTMP, HLS and MPEG-TS. It can output video at resolutions up to 4096x2160p and has simultaneous outputs for HDMI, composite video, and analogue audio. The NVD-40 also comes with a RMC-12 remote control for easy operation.
The NVD-40 is compatible with popular live platforms such as YouTube Live, Dailymotion, and Livestream, making it easy to decode videos from various sources. It also has low latency and can recover from packet loss and jitter, ensuring high-quality video streaming. Additionally, the NVD-40 can be easily connected to Datavideo streaming encoders and controlled remotely through the dvCloud live streaming platform.
INCLUDED IN BOX
1x NVD-40
1x AD Switch DC 12V
1x Remote Control
About The Datavideo NVD-40 HDMI IP Video Decoder
DECODE VIDEOS FROM DATAVIDEO ENCODERS, YOUTUBE LIVE, USTREAM, AND OTHER MAJOR CDNS
Datavideo NVD-40 is a H.264/H.265 4K IP video decoder with HDMI, composite video, and analogue audio outputs. The NVD-40 can decode all common streaming protocols such as SRT, RTSP, RTMP, HLS and MPEG-TS, and output video at resolutions up to 4096x2160p.
NVD-40 can also directly decode video streams from many live platforms such as YouTube Live, Dailymotion and Livestream. The NVD-40 allows you to create 4K point-to-point connections via Ethernet, Wi-Fi or the public Internet.

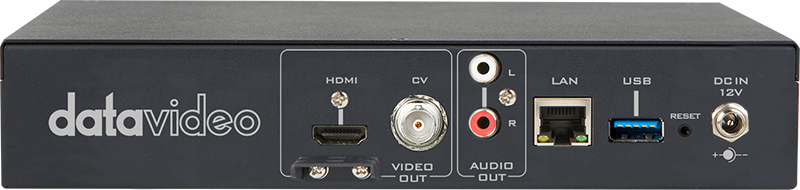

SIMULTANEOUS OUTPUTS
Connect your NVD-40 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.
Datavideo NVD-40 is a H.264/H.265 4K IP video decoder with HDMI, composite video, and analogue audio outputs.
The RCA stereo supports a line level analogue audio.
DECODES ALL COMMON STREAMING PROTOCOLS
The NVD-40 can decode all common streaming protocols such as SRT, RTSP, RTMP, HLS and MPEG-TS, NVD-40 can also directly decode video streams from many live platforms such as YouTube Live, Dailymotion and Livestream.
DECODES ALL COMMON STREAMING PROTOCOLS INCLUDING SRT
SRT is a video streaming protocol designed to delivering low latency video streams across lossy networks such as the public internet. In a nutshell, SRT brings the best quality live video over the worst networks. It accounts for packet loss, jitter, and fluctuating bandwidth all while maintaining the integrity and quality of video.
PRISTINE QUALITY
SRT protects against jitter, packet loss, and bandwidth fluctuation, ensuring the best possible viewing experience.
ALWAYS RELIABLE
No matter how unreliable your network, SRT can recover from severe packet loss and jitter, ensuring the integrity and quality of your video streams.
LOW LATENCY
SRT’s stream error correction is configurable to accommodate a user’s deployment conditions. Leveraging real-time IP communications development to extend traditional network error recovery practices, SRT delivers media with significantly lower latency than TCP/IP, while offering the speed of unreliable UDP transmission without the disadvantage.
OUTPUT HIGH QUALITY VIDEO AT 2160P 50/60 FPS
The NVD-40 IP Video Decoder supports HDMI and Composite video output with resolutions up 3840x2160p 50/60 FPS and 4096x2160p 30 FPS. RCA audio output is also supported.
EASILY CONNECT ENCODERS TO DECODERS WITH DVCLOUD
The NVD-40 Decoder is seamlessly compatible with our dvCloud live streaming platform, when connected to dvCloud you can remotely control the decoder from anywhere in the world.
Connect encoders to decoders anywhere in the world without firewall configuration
Connect encoders to decoder with a single click, no need to copy stream URLs or IP addresses.
Connect multiple decoders to a single encoder without putting extra load on the internet connection at the encoder side. The video encoder sends a single
stream to the cloud and the cloud distributes it to the multiple decoders via its high-speed connection to the internet backbone.
Remotely monitor and control all connected decoders from a single dashboard
Detailed statistics allow you to make sure that every frame makes it all the way from encoder to decoder.
PERFECTLY MATCHED WITH DATAVIDEO STREAMING ENCODERS
The NVD-40 can be matched with Datavideo NVS-33/34/35/40 and other webcast encoders to create a Full HD video transmission architecture based on Ethernet, WiFi or the Internet.
REAL-TIME VIDEO FLIP AND ROTATE
The NVD-40 adds real-time video flipping and rotating functions for more flexible video output options.
RMC-12 REMOTE CONTROL
RMC-12 remote control is included for more convenient operation.
Audio/Video Input:
Stream Input: RTSP over UDP (Unicast / Multicast)
RTSP over TCP
RTSP over HTTP
SRT (Secure Reliable Transport) caller
MPEG-TS over UDP
RTMP Pull
RTMP Push (Internal Server)
UDP raw (Unicast/Multicast)
HLS over HTTP
MPEG-TS over TCP Pull
Supported video sharing websites
Audio Output 2 x RCA(L/R)
HDMI embedded audio
Video Output HDMI 2.0 x 1 (Digital)
Composite x 1 (Analogue)
Network Feature 1x RJ-45 Female (10/100/1000M Ethernet) DHCP/Static IP
Supported Video Resolution 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 (H.265 Only)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
576i 50 (PAL)
480i 60 (NTSC)
Supported Decoding Resolution Up to 2160p60/50
Control Web browser UI for configuration and control
Socket commands
Update Automatic firmware upgrade
Power Input AC 100~240V Switching Adaptor
Output DC 12V / 1A
Environmental Conditions Operating temperature: 0~40°C, Storage temperature: -20~60°C
Dimension (LxWxH) 220 x 143 x 42 mm
Weight 1 kg
Power DC 12V, 1A
4K HDMI IP Video Decoder
Decode all common streaming protocols such as SRT, RTSP, RTMP, HLS and MPEG-TS, and output video at resolutions up to 4096x2160p
Simultaneous Outputs – HDMI, composite video, and analogue audio outputs
Decodes all common streaming protocols including SRT
Low Latency
RMC-12 remote control included
