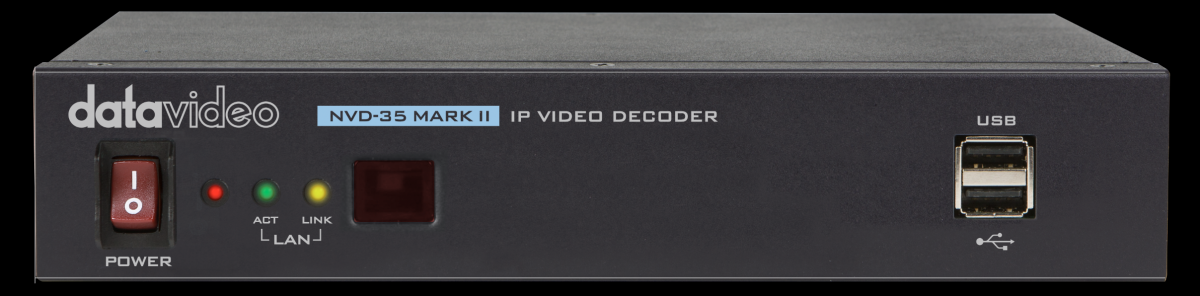

Datavideo NVD-35MKII SDI IP Video Decoder

OVERVIEW
The NVD-35 MARK II is a powerful IP video decoder that can decode videos from popular CDNs such as Datavideo encoders, Youtube Live, UStream, and more. It supports all common streaming protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS, and MPEG-TS, and can skip third-party ads. With its new support for SRT streaming protocol, it offers enhanced security, reliability, and low latency for high-quality video streaming even in unstable network environments. The decoder also provides high-quality video output at 1080p 50/60 FPS through SDI and Composite video outputs, with support for RCA audio output as well.

Additionally, the NVD-35 MARK II is seamlessly compatible with Datavideo’s dvCloud live streaming platform, allowing for easy remote control and monitoring of the decoder from anywhere in the world. It also offers the convenience of connecting multiple decoders to a single encoder without overloading the internet connection at the encoder’s side. With detailed statistics, users can ensure that every frame is successfully transmitted from the encoder to the decoder. The NVD-35 MARK II also comes with a remote control for easier operation and offers real-time video flipping and rotating functions for more flexible video output options.

INCLUDED IN BOX
1 x NVD-35 MARK II product
1 x AD Switch DC 12V
1 x Remote ControlAbout The Datavideo NVD-35MKII SDI IP Video Decoder
Decode videos from Datavideo encoders, Youtube Live, UStream, and other major CDNs

Decodes all common streaming protocols

NVD-35 MARK II decodes all common streaming protocols, directly from YouTube Live, UStream, Dailymotion, Livestream, Twitch and other major CDNs, and skips all third-party ads.

Decodes all common streaming protocols including SRT

The NVD-35 MARK II decodes common streaming protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS. The new support for SRT streaming protocol has three main features of security, reliability and low latency, which enables high quality video streaming with ultra-low latency even in unstable network environment.

Output high quality video at 1080p 50/60 FPS

The NVD-35 MARK II IP Video Decoder supports SDI and Composite video output with resolutions up to 1080p 50/60 FPS. RCA audio output is also supported.

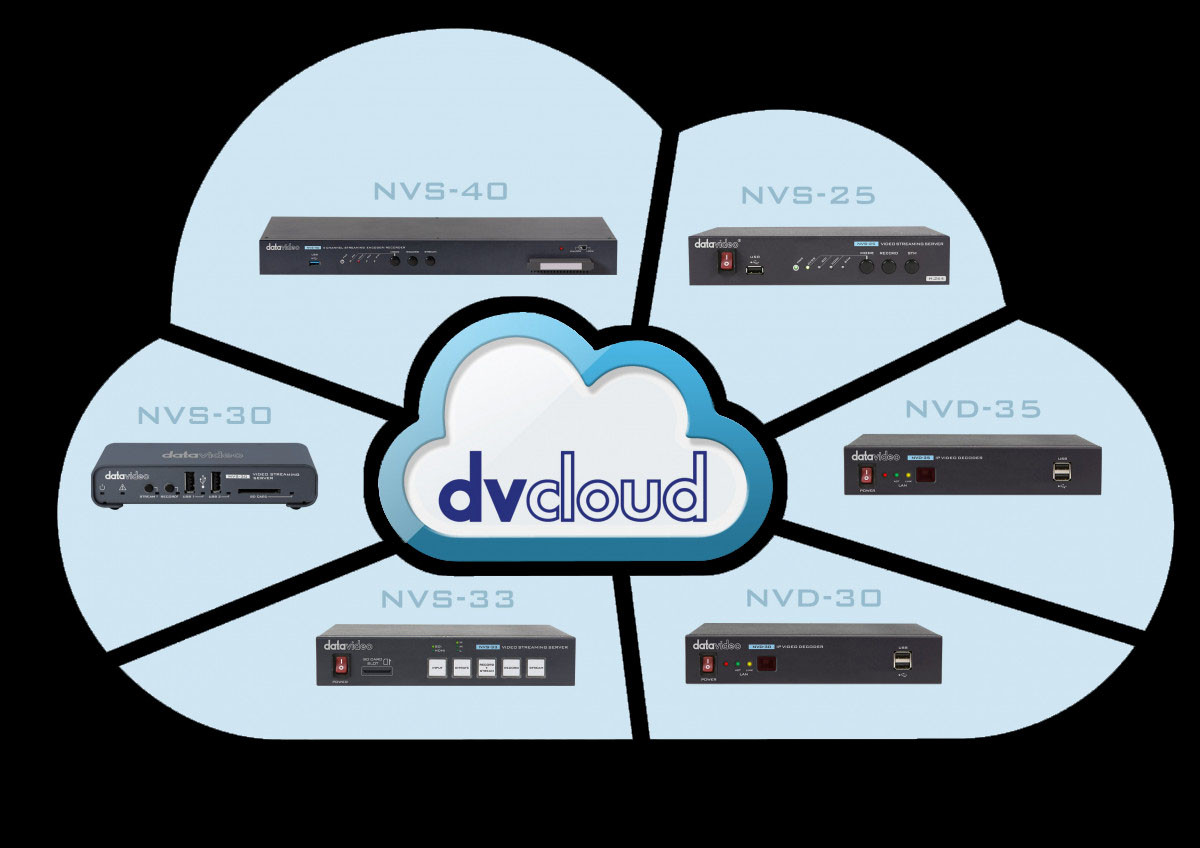

Easily connect encoders to decoders with dvCloud

The NVD-35 MARK II Decoder is seamlessly compatible with our dvCloud live streaming platform, when connected to dvCloud you can remotely control the decoder from anywhere in the world.

Connect encoders to decoders anywhere in the world without firewall configuration
Connect encoders to decoder with a single click, no need to copy stream URLS or IP addresses.
Connect multiple decoders to a single encoder without putting extra load on the internet connection at the encoder side. The video encoder sends a single stream to the cloud and the cloud distributes it to the multiple decoders via its high-speed connection to the internet backbone.
Remotely monitor and control all connected decoders from a single dashboard
Detailed statistics allow you to make sure that every frame makes it all the way from encoder to decoder.

For more information on dvCloud please click Here.

Perfectly Matched with Datavideo Streaming Encoders

The NVD-35 MARK II can be matched with Datavideo NVS-33/34/40 and other streaming encoders to create a Full HD video transmission architecture based on Ethernet, WiFi or the Internet.

Real-time Video Flip and Rotate

The NVD-35 MARK II adds real-time video flipping and rotating functions for more flexible video output options.

RMC-12 Remote Control

RMC-12 remote control is included for more convenient operation.

Model Number NVD-35 MARK II
Audio/Video Input Stream Input
· RTSP over UDP (Unicast / Multicast)
· RTSP over TCP
· RTSP over HTTP
· SRT (Secure Reliable Transport) caller
· MPEG-TS over UDP
· RTMP Pull
· RTMP Push (Internal Server)
· UDP raw (Unicast/Multicast)
· HLS over HTTP
· MPEG-TS over TCP Pull
· Video sharing websites
Audio Output 2 x RCA(L/R)
SDI embedded audio
Video Output Composite (analogue)
SDI (digital)
Network Feature 1x RJ-45 Female (10/100M Ethernet) DHCP/Static IP
Supported Video Resolution 1080p 60/59.94/30/29.97/25/24
1080i 60/59.94/50
720p 60/59.94/50
576i 50 (PAL)
480i 60 (NTSC)
Supported Decoding Resolution Up to 1080p60/50
Control Web browser UI for configuration and control.
TCP/IP Socket commands
Update Automatic firmware upgrade
Power Input AC 100~240V Switching Adaptor
Output DC 12V / 1A
Environmental Conditions Operating temperature: 0~40°C,
Storage temperature: -10~60°C
Dimension (LxWxH) 220 x 143 x 47 mm
Weight 1 kg
Power DC 12V, 1A
