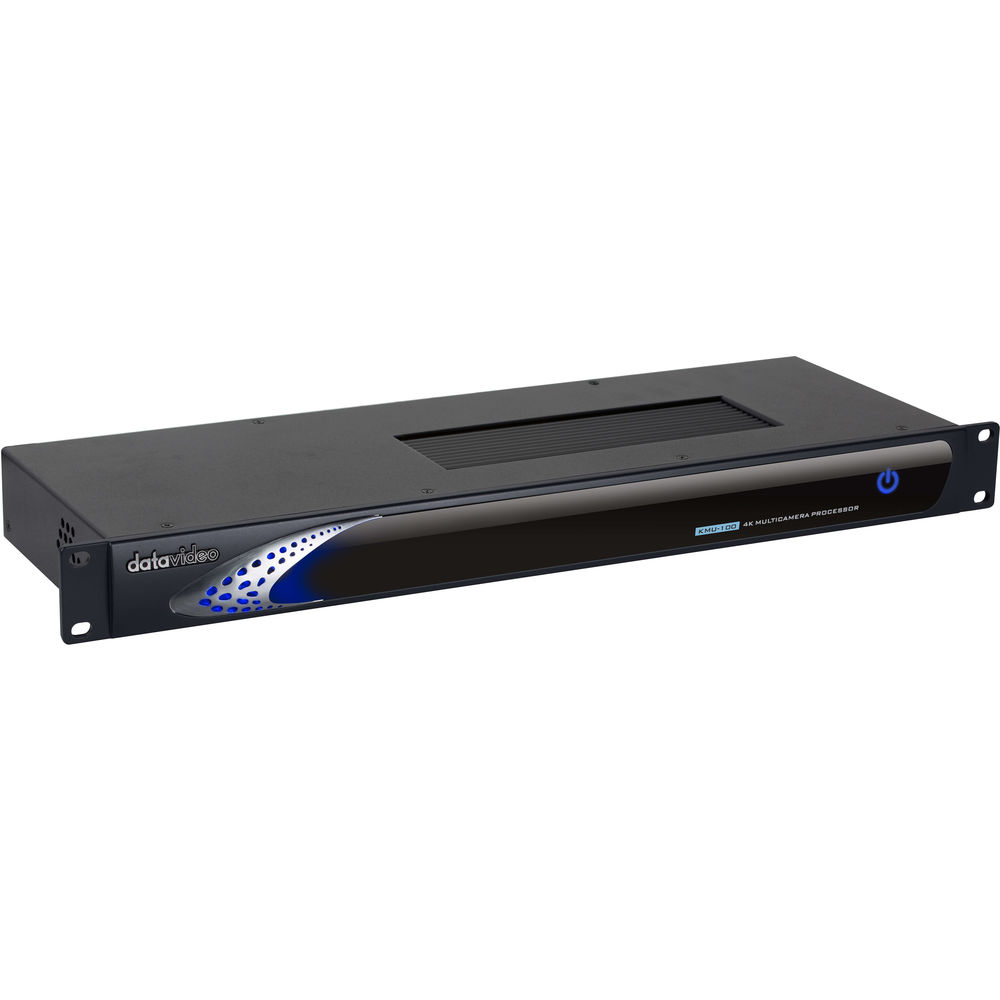

Datavideo KMU-100 4K Multi Camera Unit

DATAVIDEO’S GROUND-BREAKING 4K MULTI-CAMERA UNIT
Shortlisted for the IABM’s 2016 Game Changer Award, and winner of 3 independent awards at NAB 2016, the KMU-100 is a unique 4K multi-camera production solution that delivers multiple virtual full HD (up to 1080p) scaled camera angles with minimal installation cost and simple operation.

The basic concept is straightforward: the output of a single 4K/UHD camera is connected to KMU-100, which then displays up to four 16×9 user-defined cropped windows that are sent out as four separate HD signals through 3G HD-SDI. These user defined windows can be scaled to zoom in on a particular subject that you would like to highlight on the 4K signal. An additional 4K camera can be connected to allow up to eight defined outputs from the two 4K signals.

MULTI-CAMERA PRODUCTION FROM A SINGLE SOURCE
In essence, with KMU-100 a single 4K camera can be used to deliver a true 4-camera HD production, without the need to install, manage, operate and balance multiple cameras. KMU-100 is quick to set up and exceptionally easy to use. It saves time, money and resources: with the KMU-100, all you have to do it set up, cable, power and control just one camera.

As an option, the Datavideo RMC-185 camera controller can be added to easily pan, tilt, and zoom to create the user defined windows on the 4K signal.

You can set up shots in advance and save them as presets, or you can do it in real-time.

• Generates up to eight cutouts out of one or two 4K inputs
• Supports conversion from two 4K SDI or HDMI inputs to eight 3G-SDI video outputs – Supports conversion from two 4K SDI or HDMI inputs to eight 3G-SDI video outputs, giving users more live video switching choices.
• 8 channel switcher to switch between cutouts – Can view two 4K video channels at the same time on the multiview monitor as well as other cropped 4K video images in smaller windows for easier video switching.
• Create speed sensitive motion paths – Real-time lens movement can be simulated by the cutouts selected from the 4K camera, thus adding more varieties of motions to your video.
• Control through RMC-185 hardware controller – Allows user to easily pan, tilt, and zoom to create the user-defined windows on the 4K signal.
