OVERVIEW
Datavideo’s brand-new PTR-10T MARK II is a sleek and versatile robotic pan-tilt head that can turn any small size video camera or block camera into a robotic camera. With a weight of 3.4 kg, it can be easily mounted on a heavy-duty tripod or on a wall or ceiling, providing flexibility for your video production needs. The PTR-10T MARK II can be controlled using an IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series, and is also compatible with HDBaseT over Ethernet and other integration solutions such as Crestron. It supports multiple signal interfaces including SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC, making it a cost-effective solution for remote camera operations.
The PTR-10T MARK II is built with a strong and sturdy aluminum alloy design, capable of supporting cameras up to 4 kg in weight. It also offers 50 preset camera shooting positions, making it ideal for video productions that require multiple angles and positions. The built-in tally light in the front displays the status of the camera, and the D-tap connector allows for easy powering of accessories. Additionally, the PTR-10T MARK II has selectable DC voltage output options for different cameras, and supports PoE++ for convenient power supply without the need for extra batteries. With its wide range of compatible cameras and diversified controller options, the PTR-10T MARK II is a reliable and efficient choice for your remote camera needs.
INCLUDED IN BOX
1x PTR-10T Mark II Main Unit
1x DC 12V power adaptor
1x AC cord
1x IR remote control
1x DC with lock to D-Tap cable
1x HDMI cable
1x SDI cable
1x Remote cable (2.5mm phone-jack to mini-din 8pin)
2x 1/4” screw (14mm)
1x 1/4” screw (10mm)
1x 1/4” to 3/8” screw adaptor
About The Datavideo HDBaseT Robotic Pan Tilt Head
Datavideo’s brand-new PTR-10T MARK II is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a robotic camera
A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.
The PTR-10T MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series and compatible with HDBaseT over Ethernet and other integration solutions such as Crestron.
Multiple Signal Interface
PTR-10T MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.
Cost-Effective
PTR-10T MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.

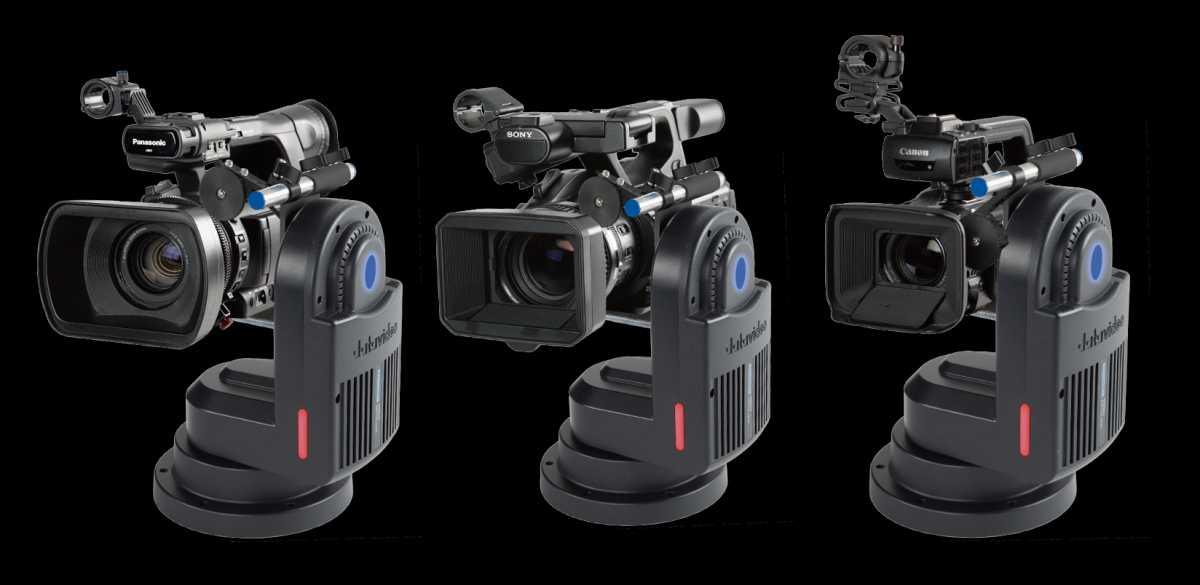

Wide Range of Compatible Cameras Supported
The PTR-10T MARK II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.
Light Weight, Strong, and Sturdy design
With a weight of 3.4 kg, PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.
Diversified Controller Options
Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series will fit your need.

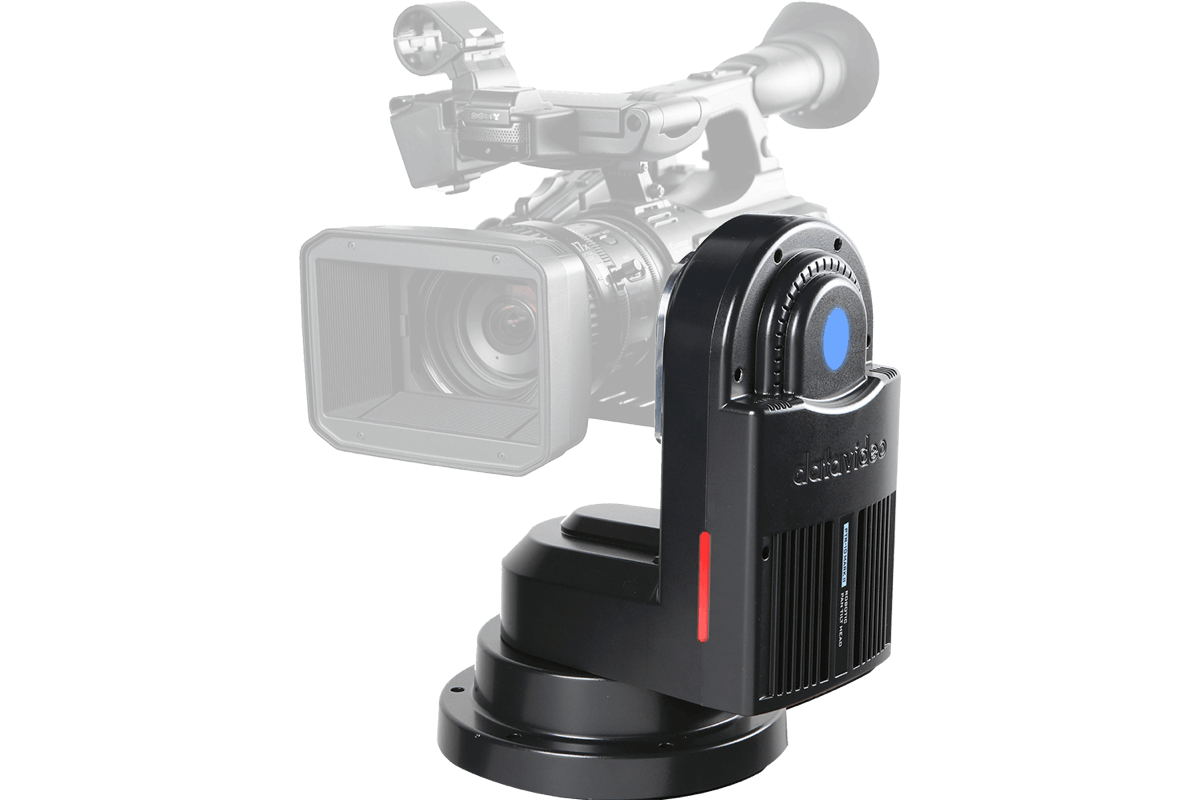

Support your cameras up to 4 Kg weight on PTR-10T MARK II
Super strong design. PTR-10T MARK II is built from aluminum alloy, making it a very sturdy base for your camera.
Support 50 preset camera shooting positions
When your video production requires many different angles and positions, 50 preset camera positions will meet your needs.
Using the IR remote allows you to call up to 50 presets at any time.
When combined with the RMC-300A universal remote controller, the 14 physical buttons can be called at any time.
When using the RMC-180 MARK II remote control, there are 4 physical buttons to call.
PoE++ Supported
You do not need any battery mount on your camera when using PTR-10T MARK II. The PoE++ is building in the PTR-10T MARK II; No extra battery or power needed when operating.
Built-in Tally light
With the big tally light in the front to show the status of your camera.
D-tap connector for DC output
The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power.
This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.
Selectable DC
Voltage output for different cameras
(7.4 / 8.4 / 10 / 12V )

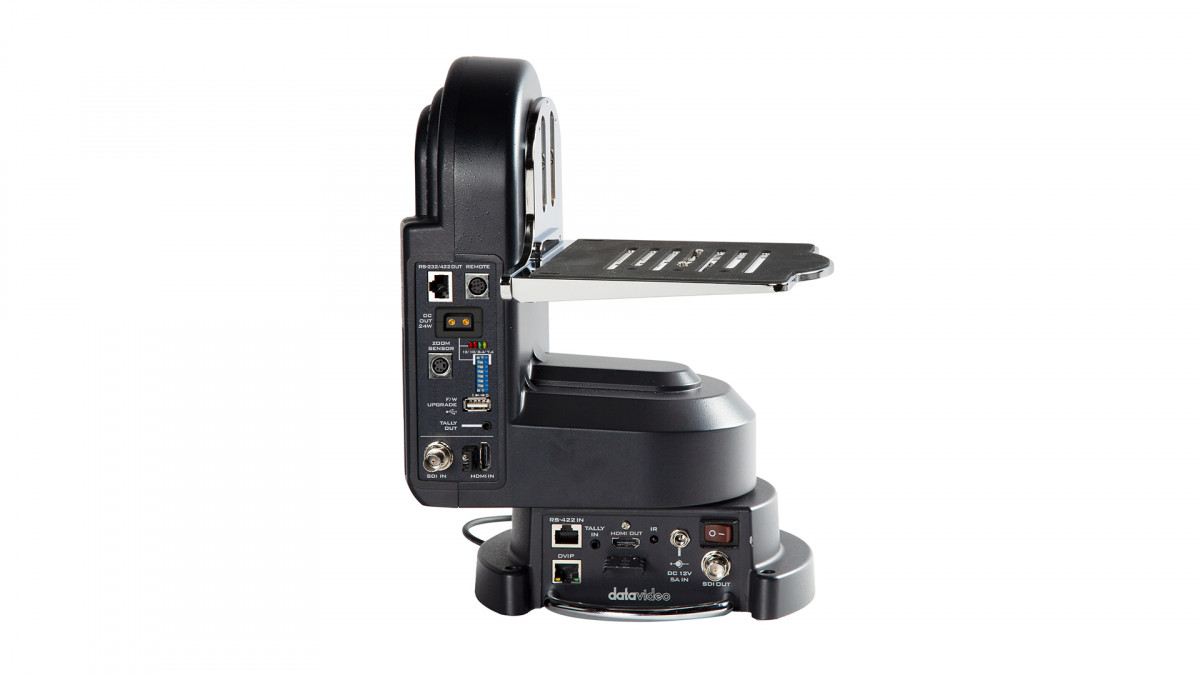

Multiple Signal Interface
PTR-10T MARK II supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.
Video Interface HDMI x 1
SDI x 1
RJ45 x 1 (HDBaseT)
Video Output 2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit RMC-180
HS-1600T
HS-1600T Mark II
RMC-300A
VISCA Protocol Controller
IP Control
IR remote

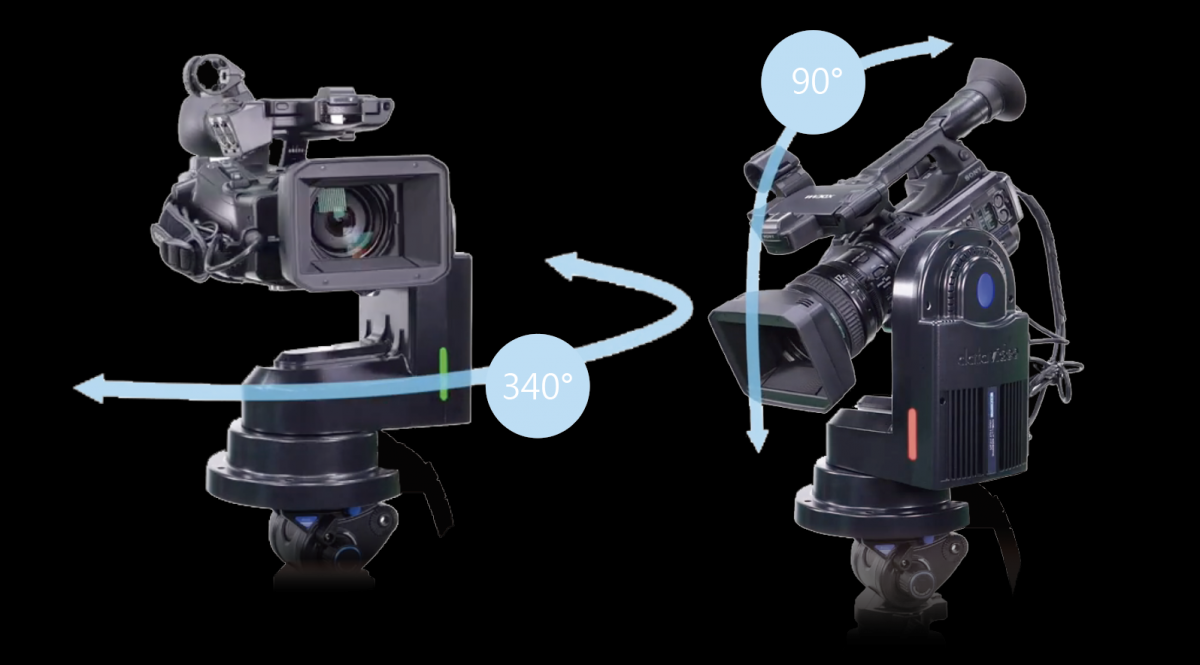

Panning / Tilting Range Pan: 340°
Tilt: ±45°
Panning / Tilting Speed Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec
Preset Pan/Tilt position 50
Control Distance 1,200M by RS422
100M by HDBaseT
Control Protocal Sony VISCA
DVIP
Control Input RS-422
HDBaseT
Maximum Load
4 KG Max
Control Output RS-232
RS-422
BX-Lens
LanC
Power Requirement DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)
Power Supply DC 12/10/8.4/7.4V, 24W Max
Operating Temp. Range 0~40 C°
Operating Humidity Range 10~80%
Storage Temp. Range -10~60C°
Storage Humidity Range 5~80%
Weight 3.4 KG
Dimension (LxWxH) 230 x 190 x 300 mm
Optional accessories ZEK-2 KIT
WM-10
WM-11
CM-10
