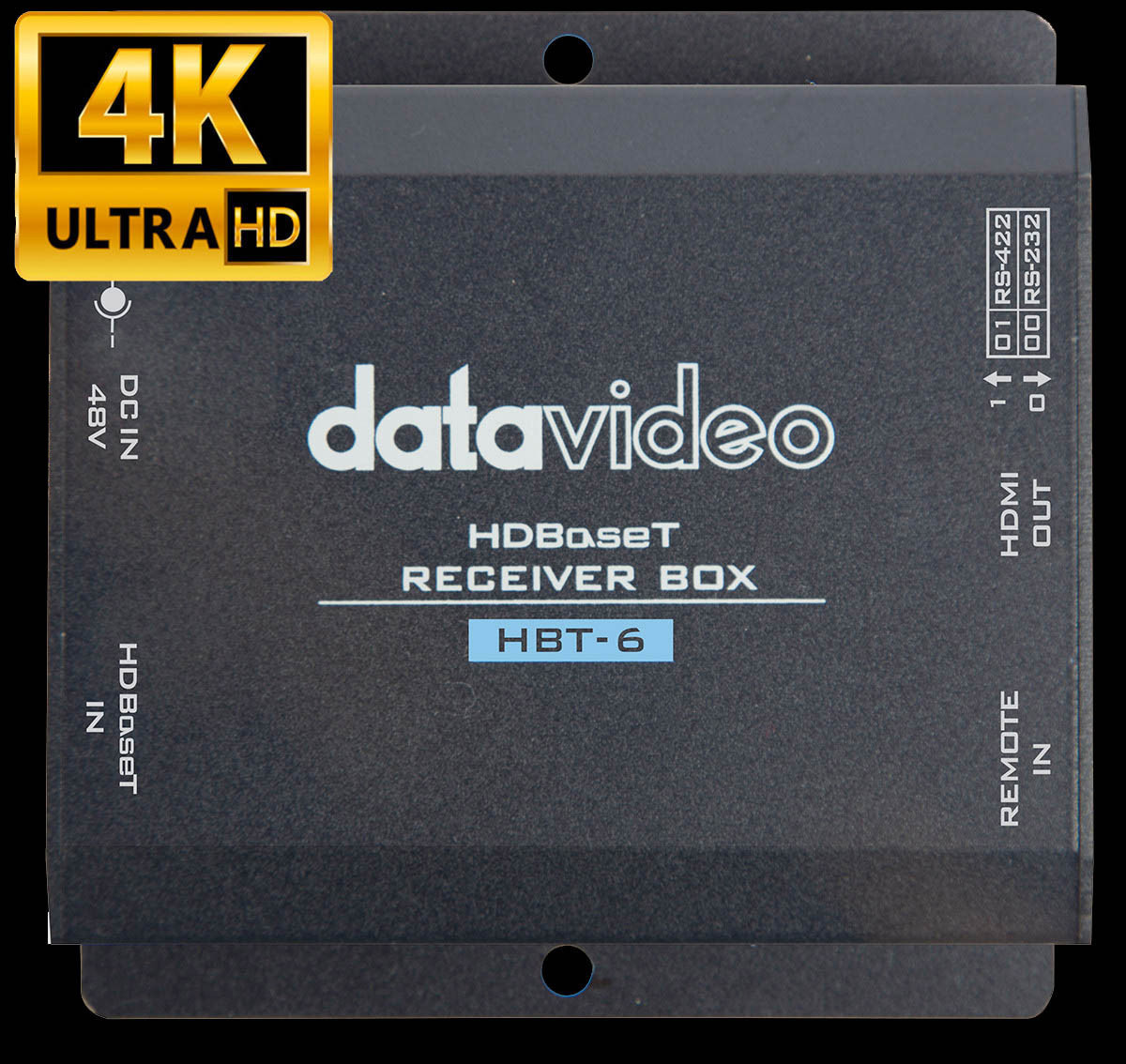

Datavideo HBT-6 HDBaseT Receiver Box

OVERVIEW
The HBT-6 HDMI extender is a powerful device that can transmit HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable. It utilizes HDBaseT technology to support HDMI Deep Color, full 3D, and 4K@30, resulting in better color depths and a great image on your display device. The extender also supports Ultra HD and Full HD resolution, along with digital audio. The receiver can be powered directly by a power supply or through Power over Ethernet from the transmitter, making it easy to install for various applications. Additionally, it offers RS-232/RS-422 control signals and supports default EDID and EDID learning from the display, as well as Dolby TrueHD and DTS Master audio.

With its HDCP compliance, the HBT-6 HDMI extender can perfectly display video sources with HDCP in high clarity and without any interruptions. It also features EDID pass-through, allowing the signal to pass between the source and display. The HBT-6 receiver can be powered by the same single power source using Power-over-Ethernet (PoE), making it convenient for use with remotely located equipment. With its advanced features and capabilities, the HBT-6 HDMI extender is a reliable choice for all your HDMI signal transmission needs.

INCLUDED IN BOX
1 x HBT-6 main unit
1 x AC cord
1 x DC 48V power adaptor
2 x Screw

About The Datavideo HBT-6 HDBaseT Receiver Box
Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable

Supports HDMI Deep Color & full 3D & 4K@30 (HDBaseT technology)

HDMI Deep Color supports better color depths. To giving your display device a great image.

The extender supports Ultra HD and Full HD resolution

Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter

HBT-6 receiver can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.

HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.

Supports control over RS-232/ RS-422

HBT-6 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.

Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display

Dolby TrueHD & DTS Master audio support

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

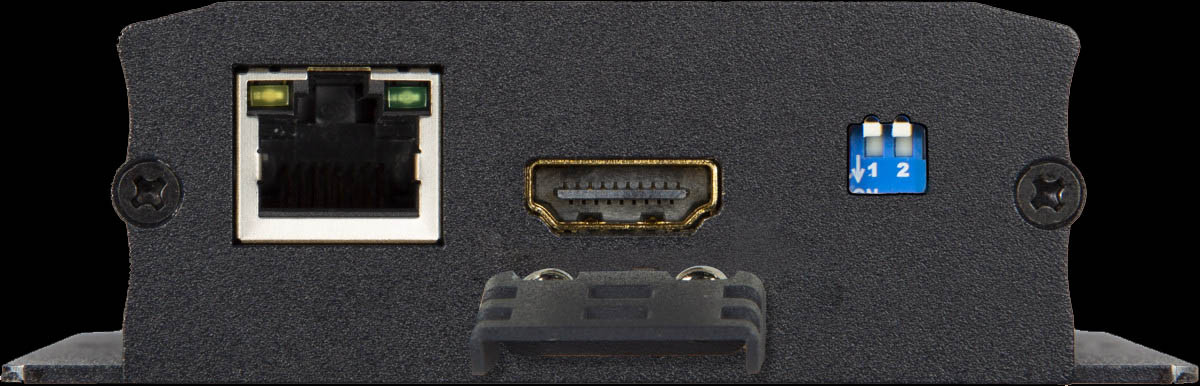

Video/Audio Input HDBaseT RJ-45 x1
Video/Audio Output HDMI x1
Supported Video Format 3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL
Video Process 4K2K30 4:4:4 8bit
4K2K60 4:2:0 8bit
Video bandwidth Single-link 340MHz [10.2Gbps]
DVIP —
RS-422/ RS-232 YES
Power DC IN: DC 48V
PoE Output 30W
HDBaseT Distance 1080p@60 60m (198ft) by CAT6 cable
4K2K@30 35m (114ft) by CAT6 cable
HDMI compliance HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance HDCP 2.2/1.4
Audio support Surround sound [up to 7.1ch) or stereo digital audio
Dimension (LxWxH) 88 x 76 x 30 mm
Weight 154 g
Operating Temp. Range 0~40 °C
